ProCo Sound AODDP Dante Wall Plates | 4 XLR Female
ProCo Sound AODDP Dante Wall Plates | 4 XLR Female
SoundPro Item: 152043 | Part Number: AODDP-4XF
Usually ships in 5-7 business days

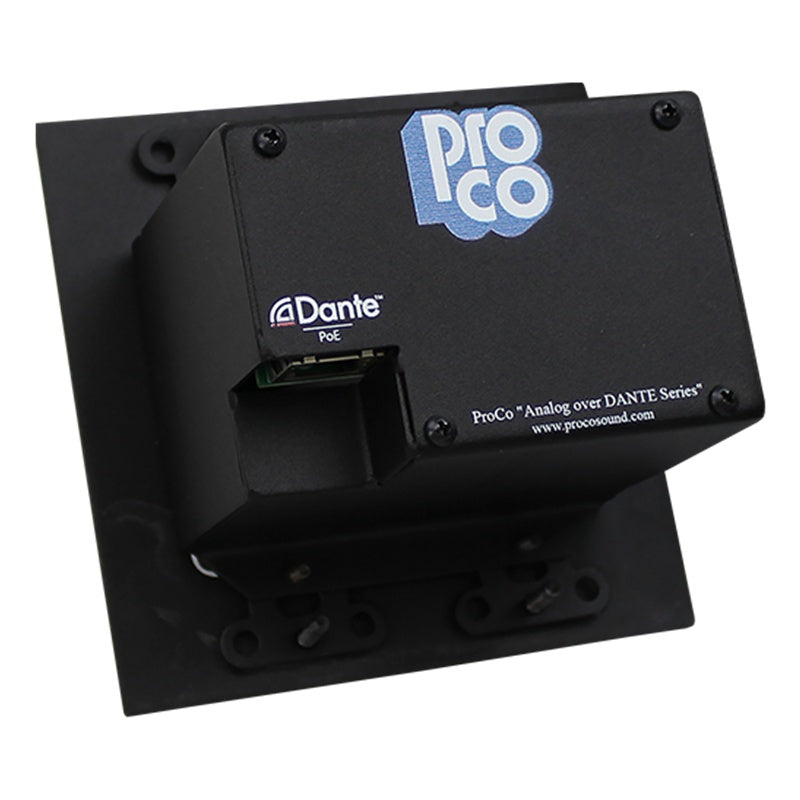

- Neutrik Locking EtherCon Rear Interface Keeps Dante Network Connection Secure After Installation
- PoE-Powered Operation Eliminates Local Power Supply Requirements For Cleaner Installs
- AES67 Compliant Design Ensures Interoperability Across Any Dante Ecosystem
- Front-Panel LED Indicators Provide System Status And Post-Installation Locate Function

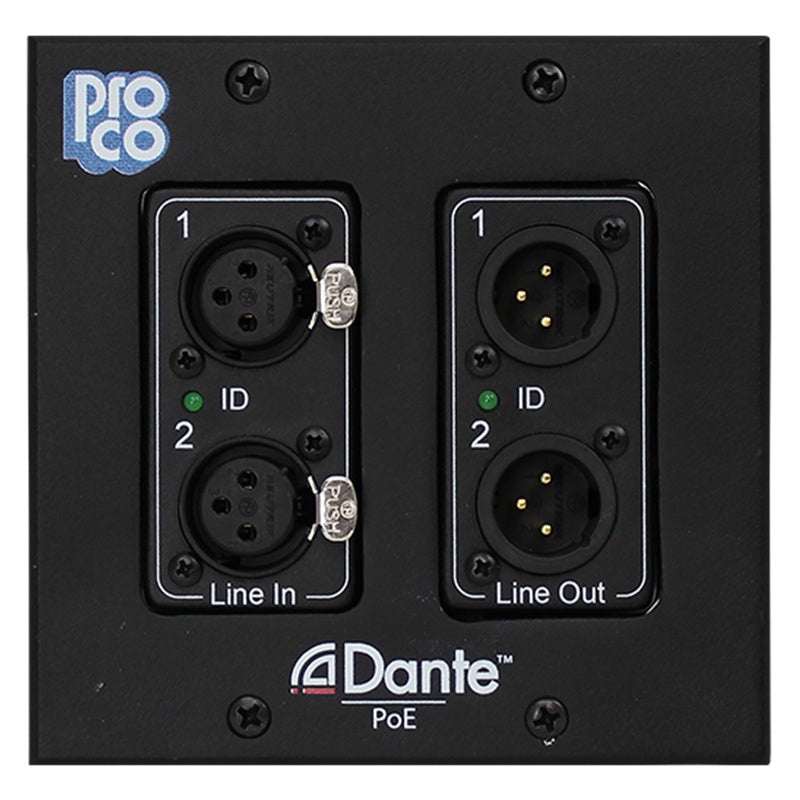

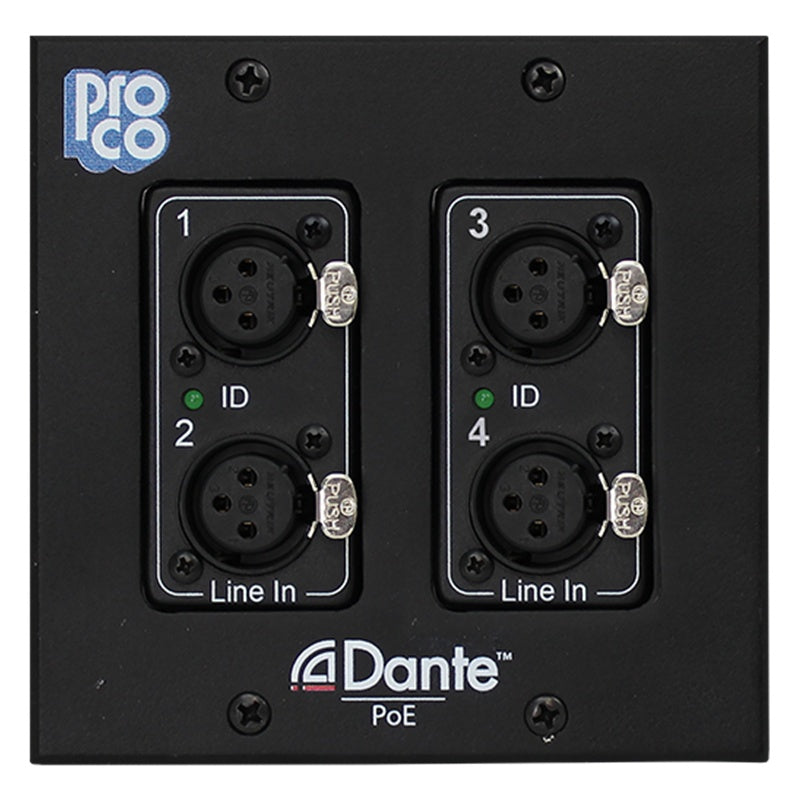

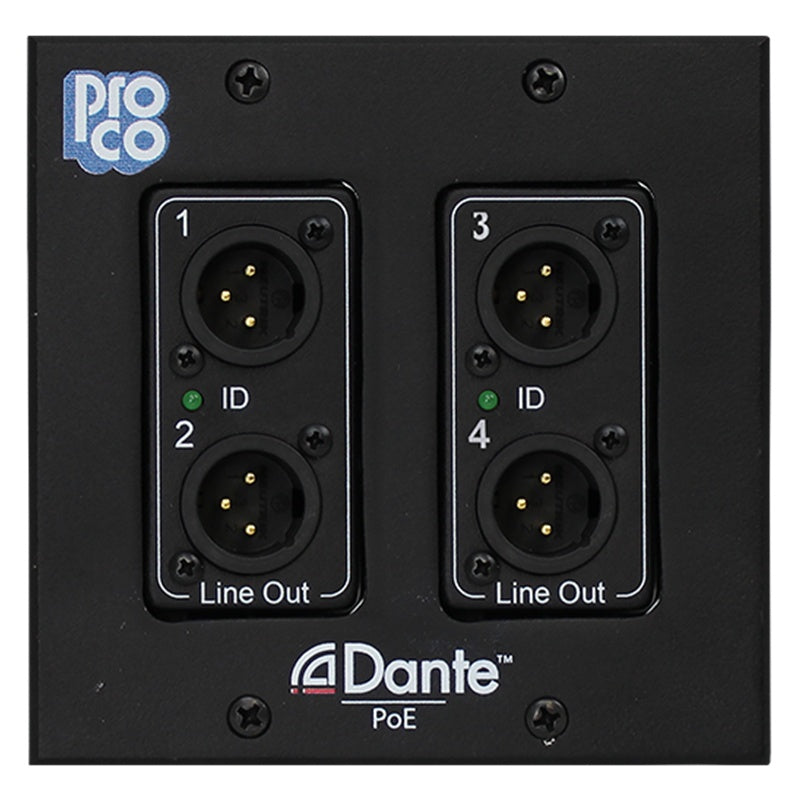

- Neutrik Black XLR Audio Connectors Deliver Reliable Line Level Analog Signal Termination
- Aluminum Extrusion Enclosure Withstands Permanent Installation Environments
- Fits Standard 2-Gang Deep-Well J-Box For Straightforward Retrofit Deployments
The ProCo Sound AoDDP series is engineered for AV integrators and installed sound professionals who need a clean, reliable bridge between analog signal chains and Dante IP audio networks. Whether deployed in corporate AV, house of worship, higher education, or broadcast facilities, these wall plates eliminate the need for bulky rack-mount converters by bringing Dante connectivity directly to the wall.
Each unit accepts a single RJ45 Dante connection via a Neutrik locking EtherCon jack on the rear and passes up to four channels of line-level analog audio through front-panel XLR connectors. Power is drawn directly from a PoE switch — no local power supply or additional wiring runs required — making these plates ideal for retrofit installs where conduit space is at a premium. The aluminum extrusion housing is built to withstand the demands of permanent installation environments.
Full AES67 compliance ensures interoperability across mixed-manufacturer Dante ecosystems, and onboard LED indicators give installers and operators instant visual confirmation of system status and device location after the wall plate is set. The form factor fits inside a standard 2-gang deep-well J-Box, reducing rough-in requirements and simplifying commissioning for integrators working on tight schedules.
Specifications
