ProCo Sound IPLATE Portable Audio Player Wall Plate Interface
ProCo Sound IPLATE Portable Audio Player Wall Plate Interface
SoundPro Item: 96554 | Part Number: IPLATE
Usually ships in 5-7 business days
- MBT-1 Microphone Bridging Transformers Eliminate Hum, RFI, And EMI At The Source
- Dual Faraday Electrostatic Shielding And Mu-Metal Cans Maximize Common-Mode Rejection
- Ground Lift Switch Resolves Ground Loops Between AC And Battery-Powered Sources
- Stereo/Mono Summing Switch Feeds Dual Mono Output For Single-Channel Console Routing
- Screw-Type Barrier Strip Output Requires No Crimp Terminals For Fast Installation
- Laser-Engraved Legends On Anodized Aluminum Face Plate Ensure Long-Term Legibility
- Dual-Gang Wall Plate Form Factor Integrates Cleanly Into Permanent AV Installations

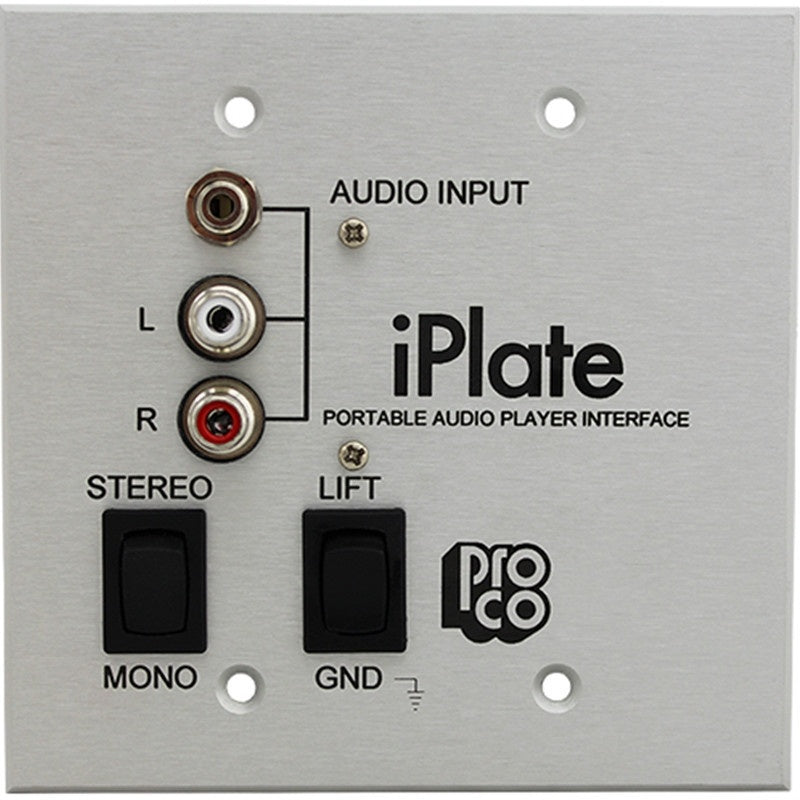

The ProCo Sound iPlate is designed for AV integrators and install engineers who need a clean, permanent interface between consumer audio sources — laptops, MP3 players, CD/DVD players — and the balanced microphone inputs of professional mixing consoles. It fits a standard dual-gang wall plate cutout, making it a natural solution for fixed installations in conference rooms, houses of worship, corporate AV systems, and presentation venues where a discreet, flush-mount connection point is required.

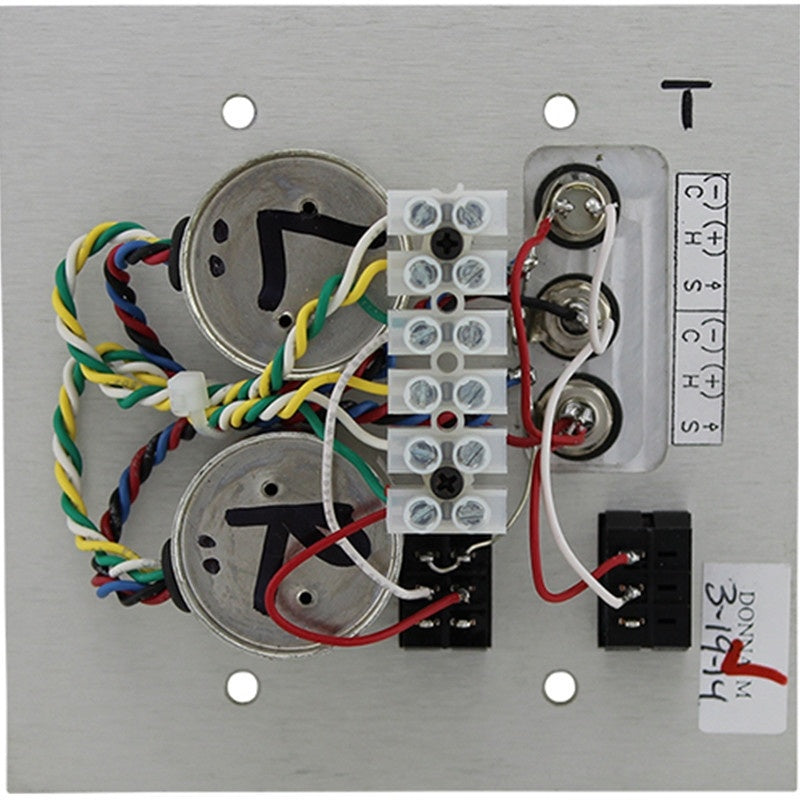

At the core of the iPlate are ProCo Sound MBT-1 Microphone Bridging Transformers — audiophile-grade units with mu-metal magnetic shielding and dual Faraday electrostatic isolation. This design delivers effective rejection of RFI, EMI, SCR dimmer interference, and 60 Hz hum that routinely plagues consumer-to-pro interfaces in installed environments. The Ground Lift switch handles grounding discrepancies between battery-powered and AC-sourced devices, eliminating buzz and hum from ground loops without requiring external DI boxes or adapter chains.
For installers, the screw-type barrier strip output — requiring no crimp terminals — speeds up termination and simplifies future serviceability. Laser-engraved legends on the brushed anodized aluminum face plate ensure all controls and connections remain clearly identifiable over time. The stereo/mono summing switch adds flexibility for single-channel console inputs, and standard clear finish is stocked with black and bronze available on special order.
Specifications
