ProX T-C17-BLK Aluminum C-Clamp for Truss Mounting Black
ProX T-C17-BLK Aluminum C-Clamp for Truss Mounting Black
SoundPro Item: 128762 | Part Number: T-C17-BLK
Usually ships in 5-7 business days
- Uni-Body Aluminum Construction Provides Consistent Clamping Force Across The Tube
- Inner Grip Grooves Resist Fixture Rotation And Lateral Shift Under Load
- Spring Washer Maintains Compression To Prevent Fixture Movement After Tightening
- TUV Approved Rating Meets Venue And Production Documentation Requirements
- Wrench-Tightened Pan Bolt Delivers Repeatable Secure Clamping Increments

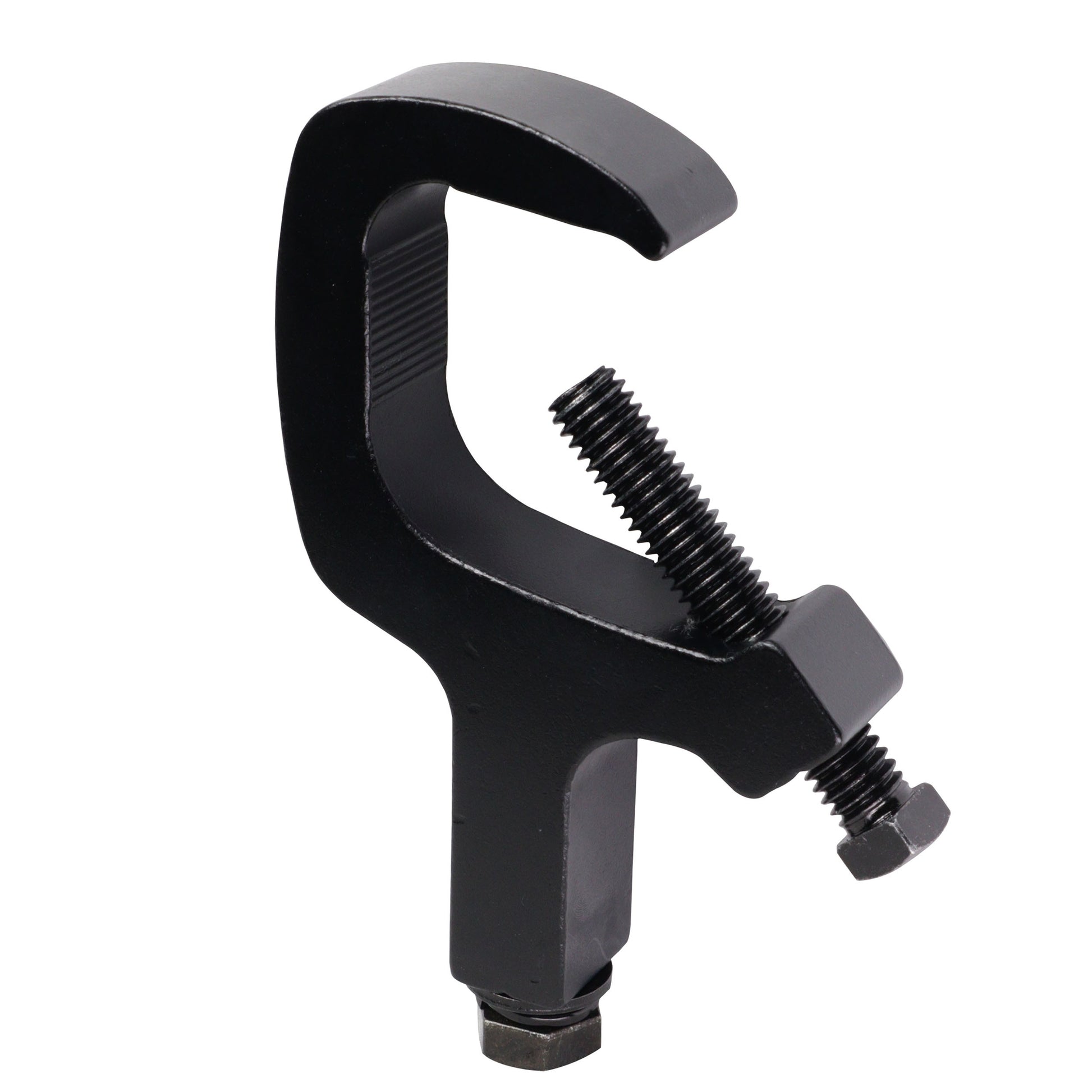

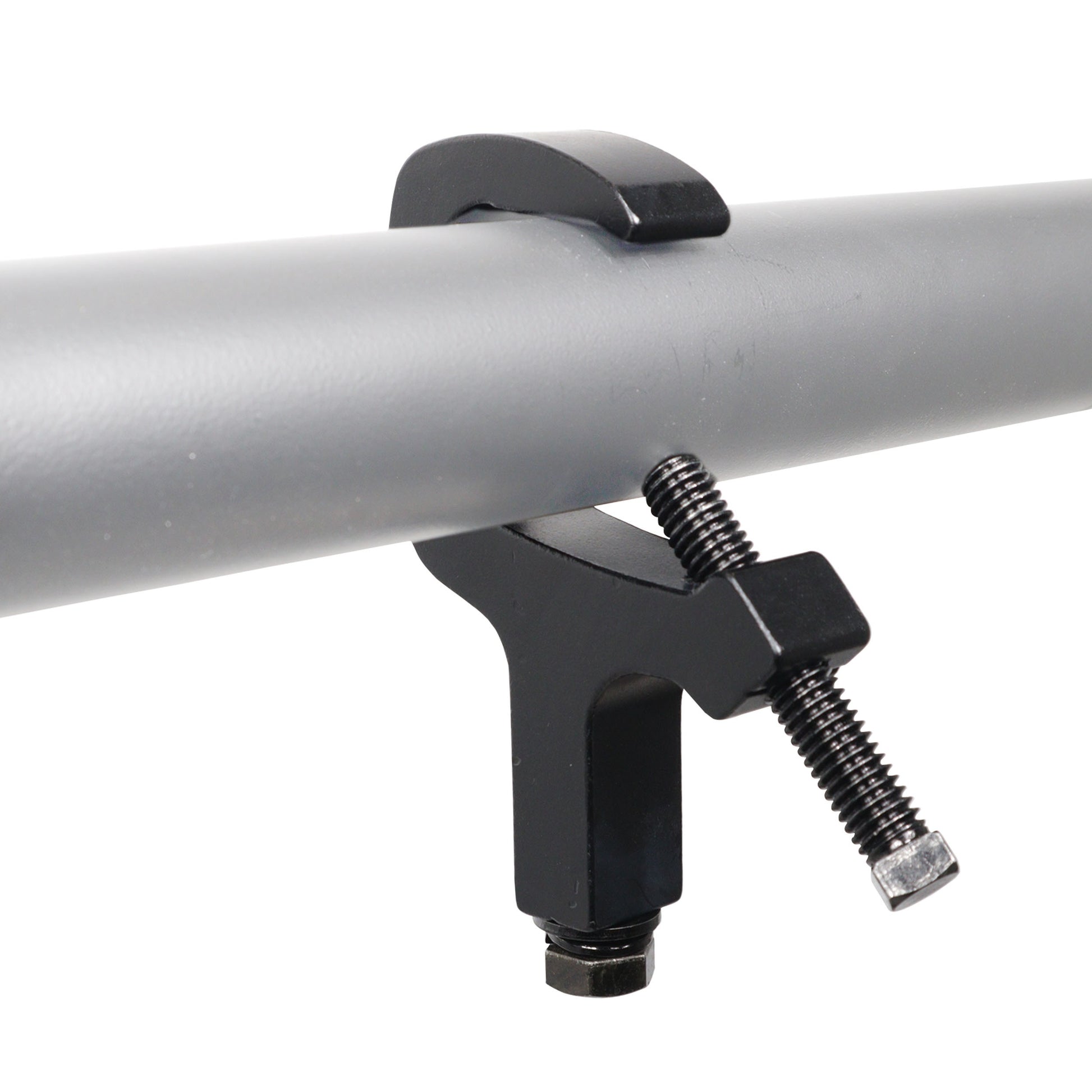

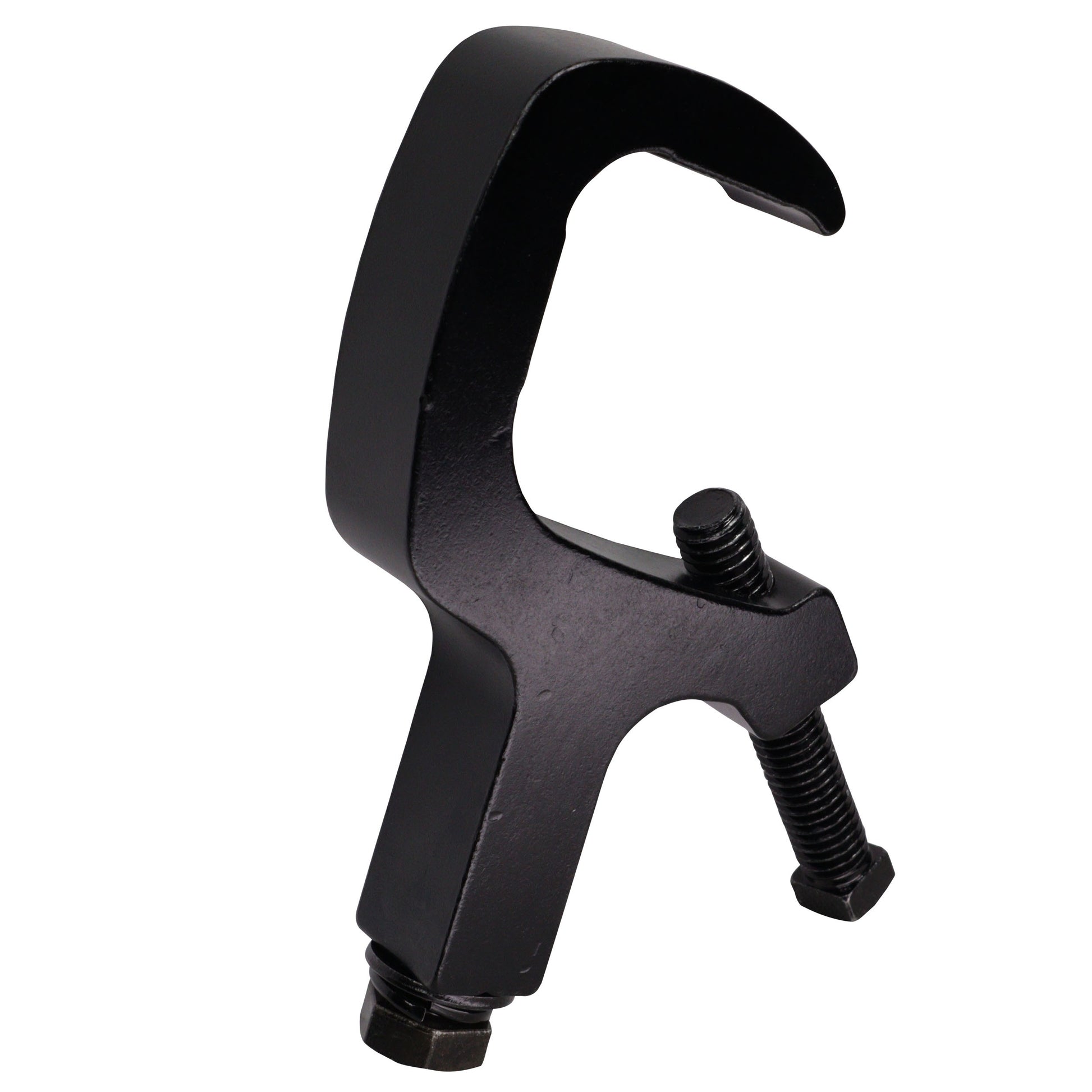

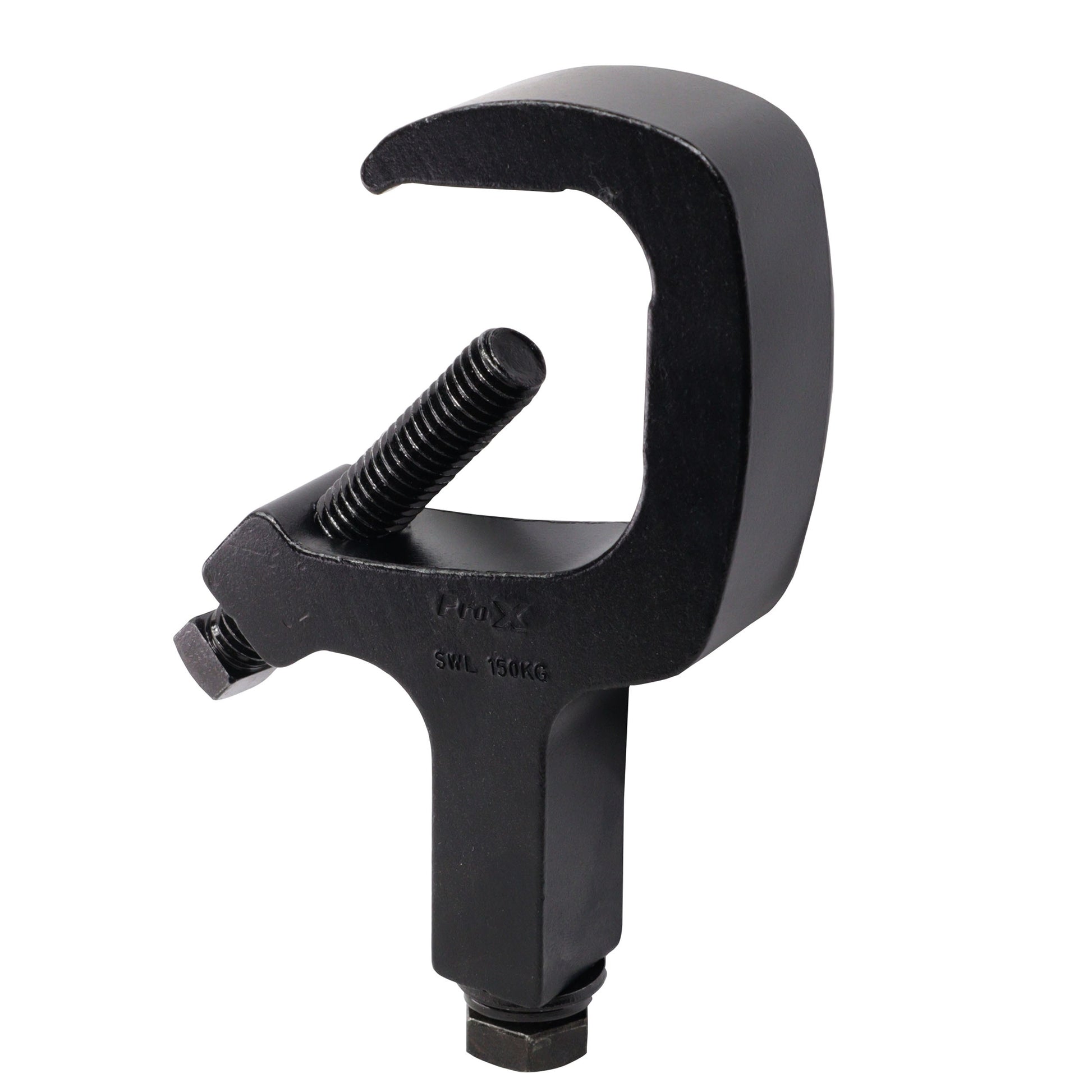

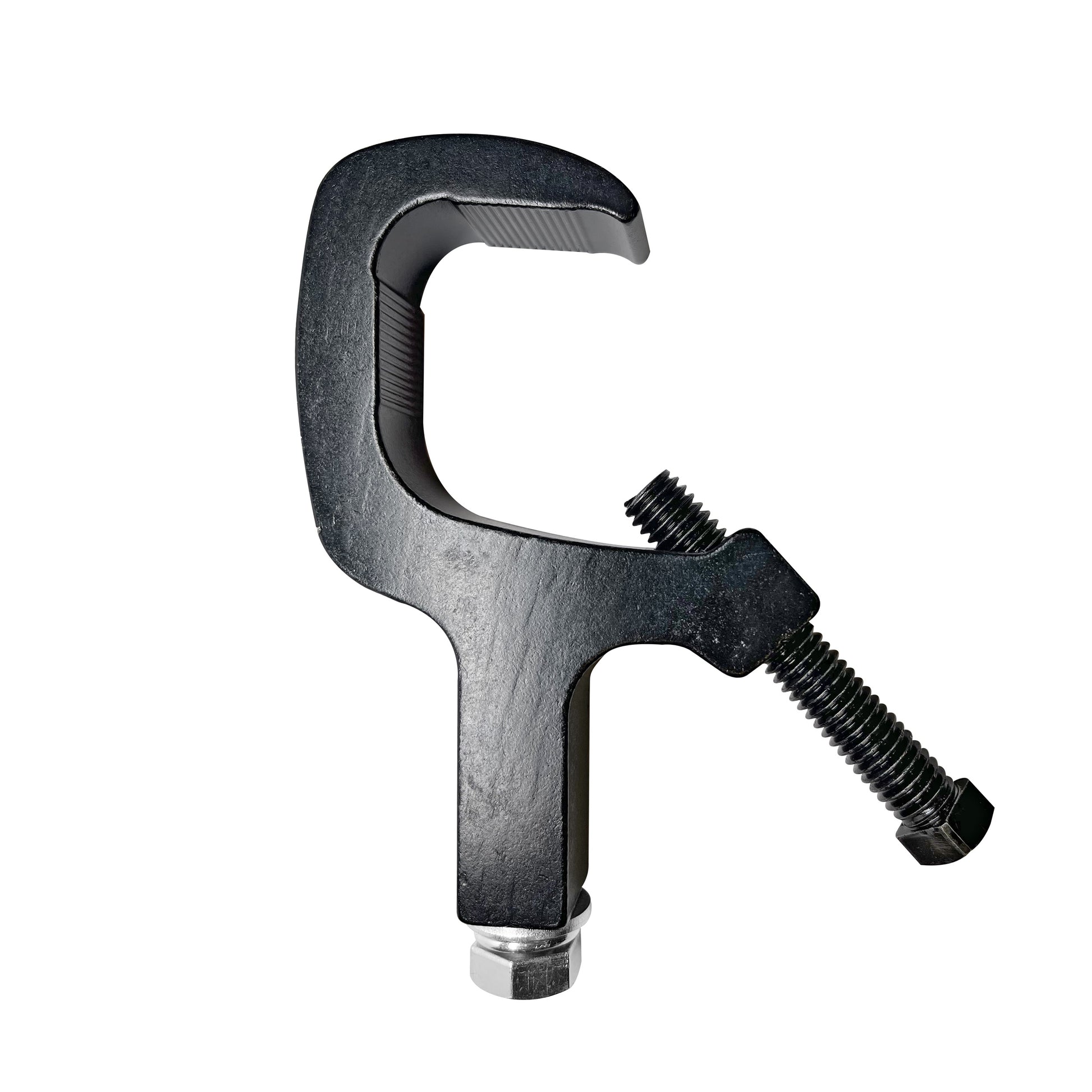

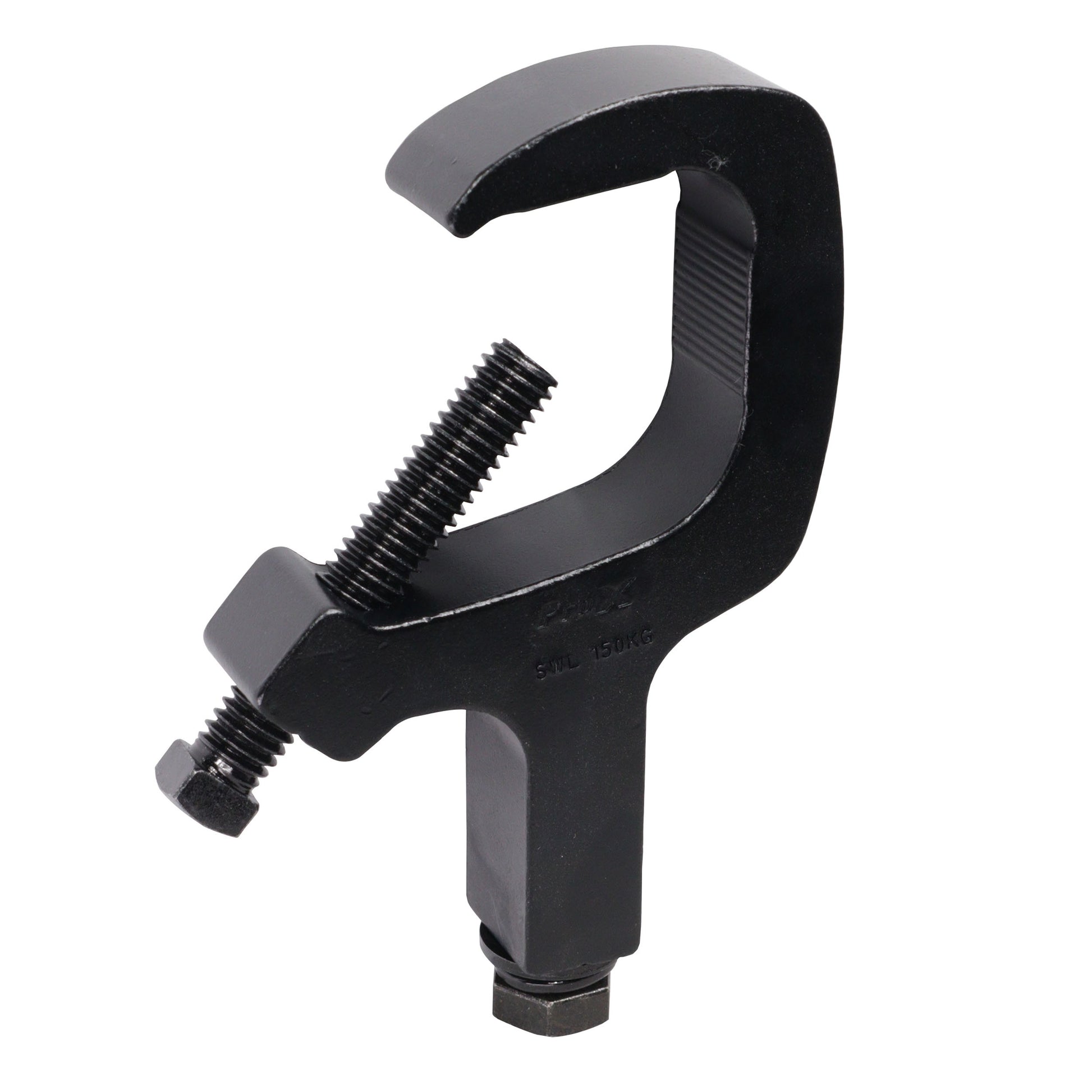

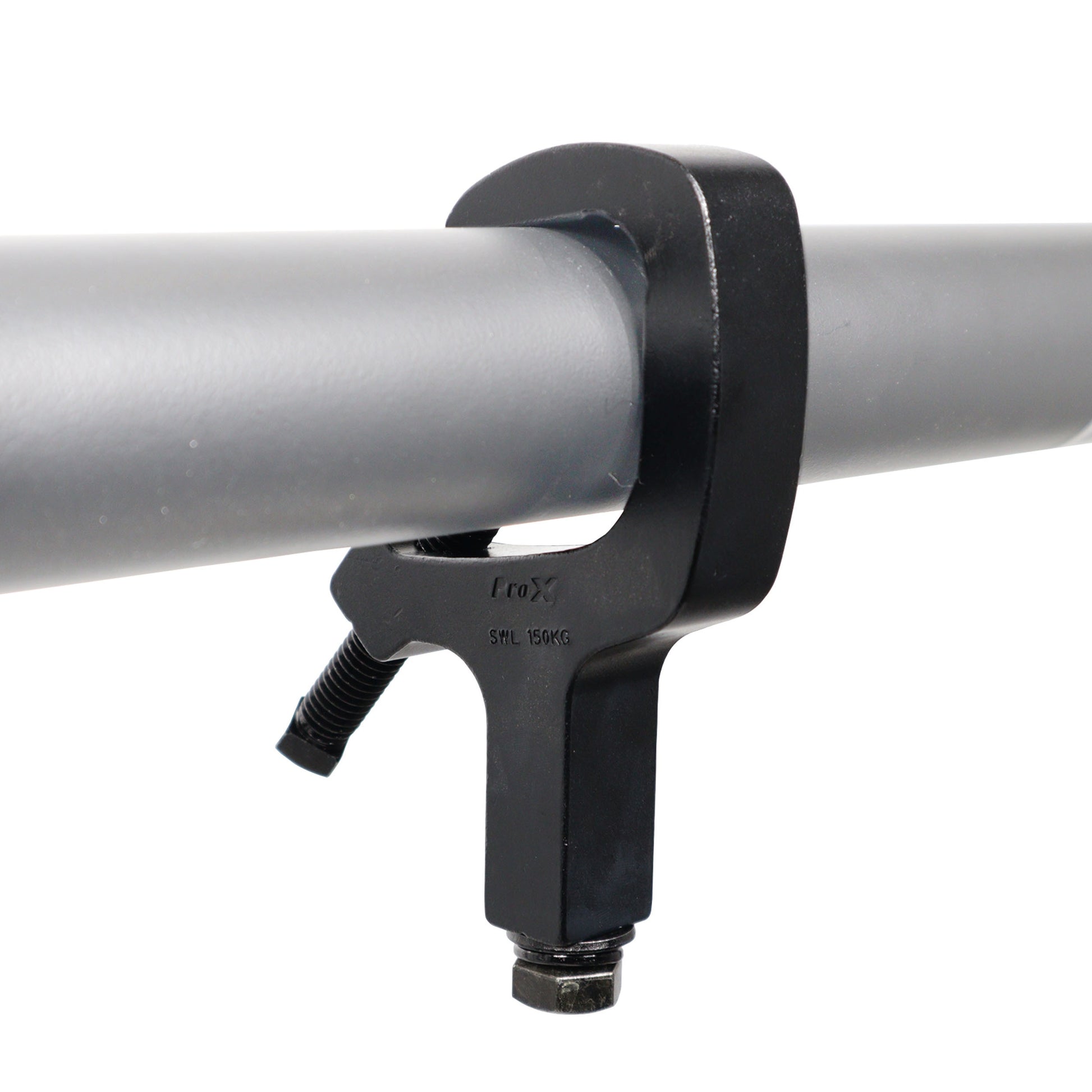

The ProX T-C17-BLK is a square bolt aluminum C-clamp engineered for production riggers, lighting technicians, and stage crews who need a reliable, code-compliant solution for mounting lighting fixtures to truss systems. Compatible with truss tubing from 1" to 2" in diameter, it covers the majority of truss profiles found in touring, theatrical, and installed event environments, reducing the need to stock multiple clamp sizes.
The uni-body aluminum construction distributes clamping force evenly around the tube, while machined inner grooves bite into the truss surface to resist rotation and lateral shift under load. A spring washer on the pan bolt maintains compression after initial torquing, so fixtures stay positioned through the vibration and handling common in live production. Tightening requires a standard wrench, keeping the clamping force precise and repeatable rather than dependent on hand pressure alone.
With a 330 lb maximum load capacity and TUV approval, the T-C17-BLK meets the documentation requirements that venue managers and production insurance carriers increasingly expect. It is a practical choice for permanent installs, touring rigs, and rental inventory where accountability and consistency matter.
