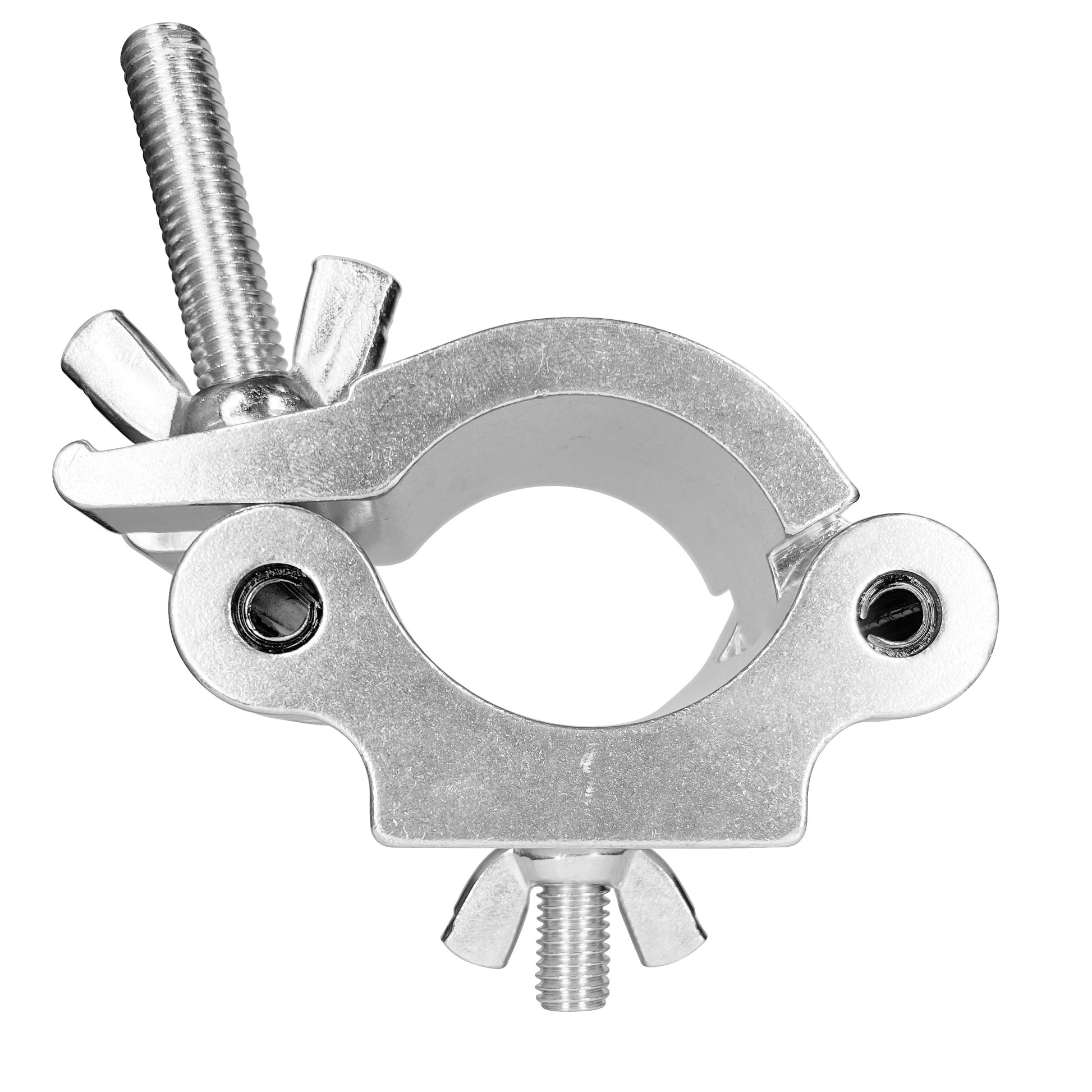

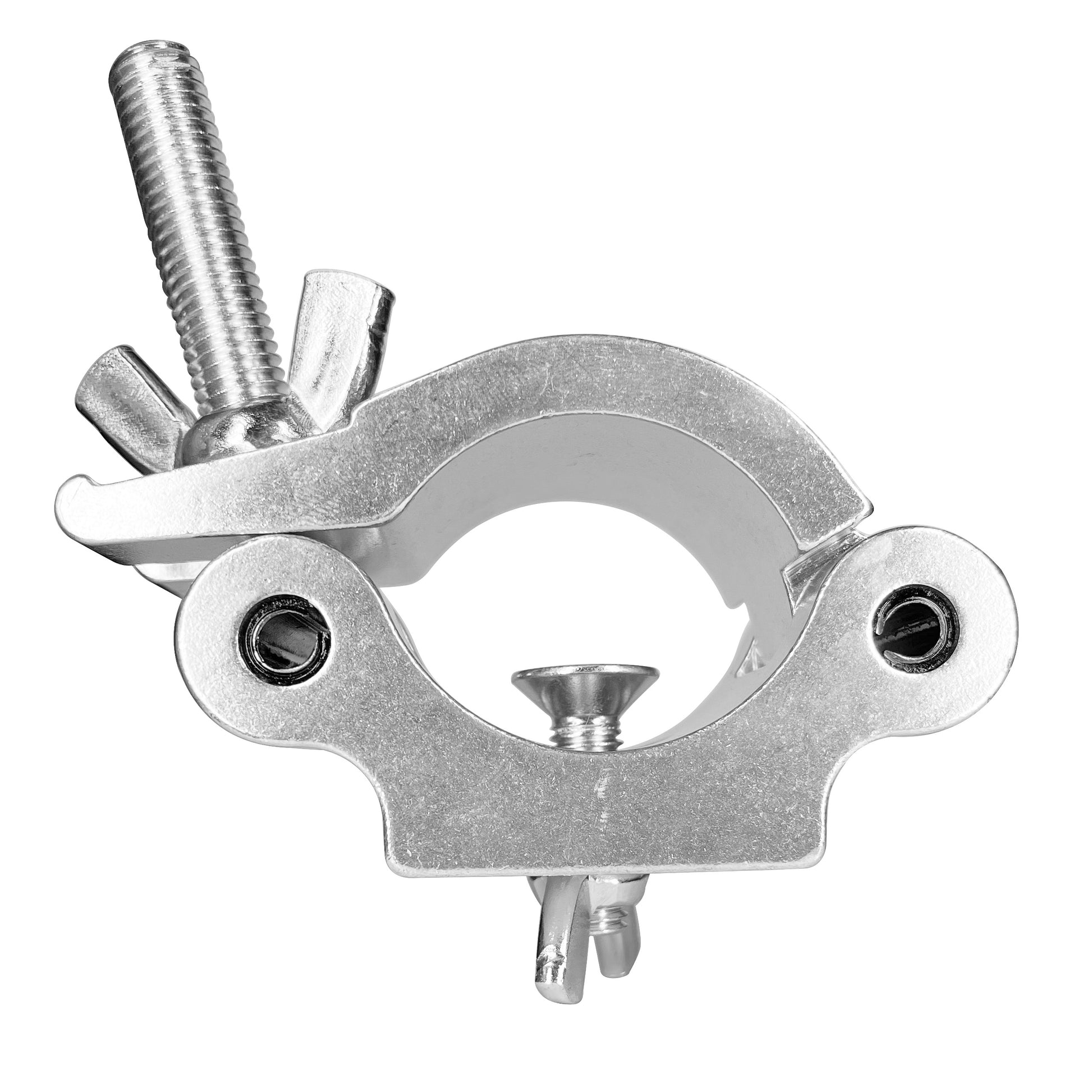

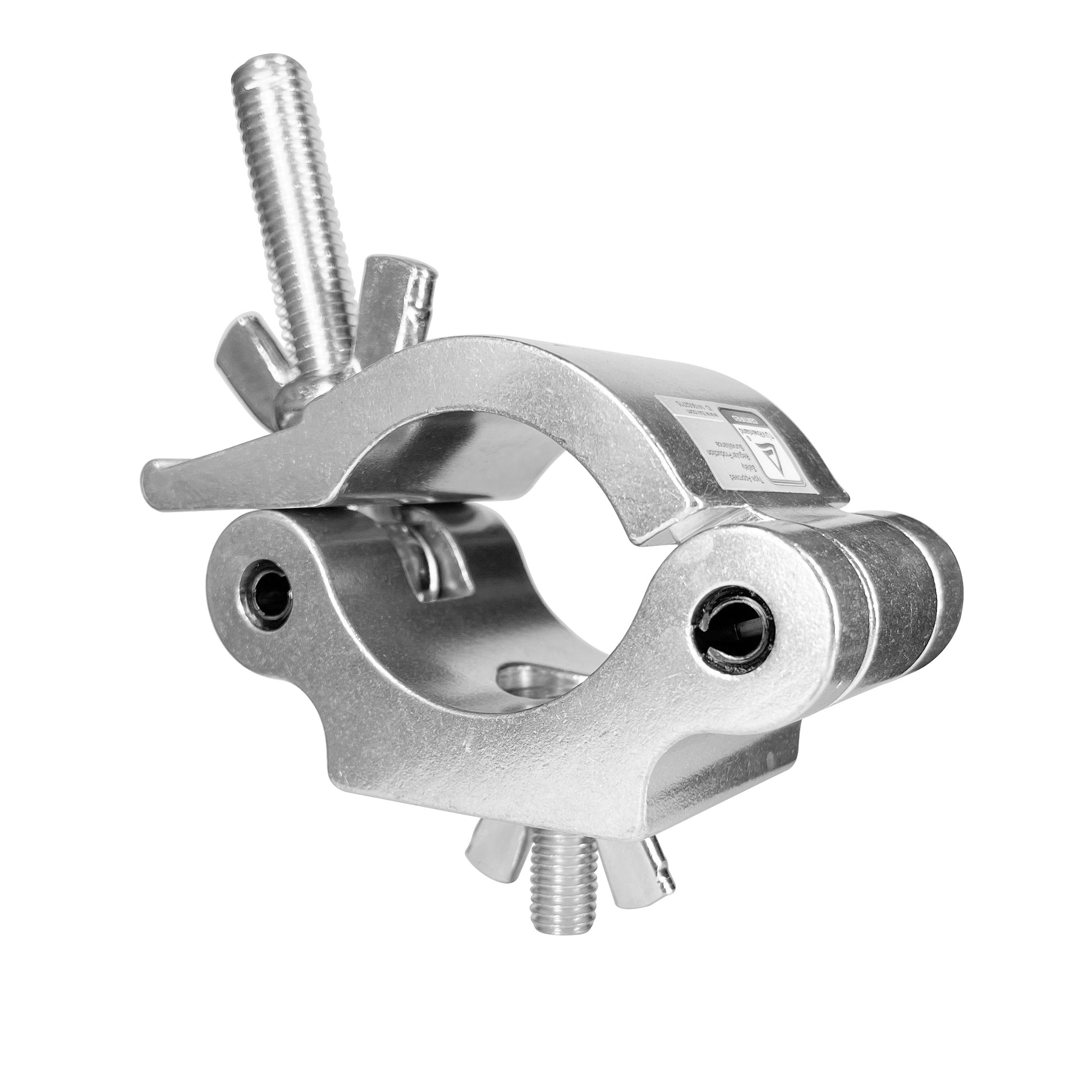

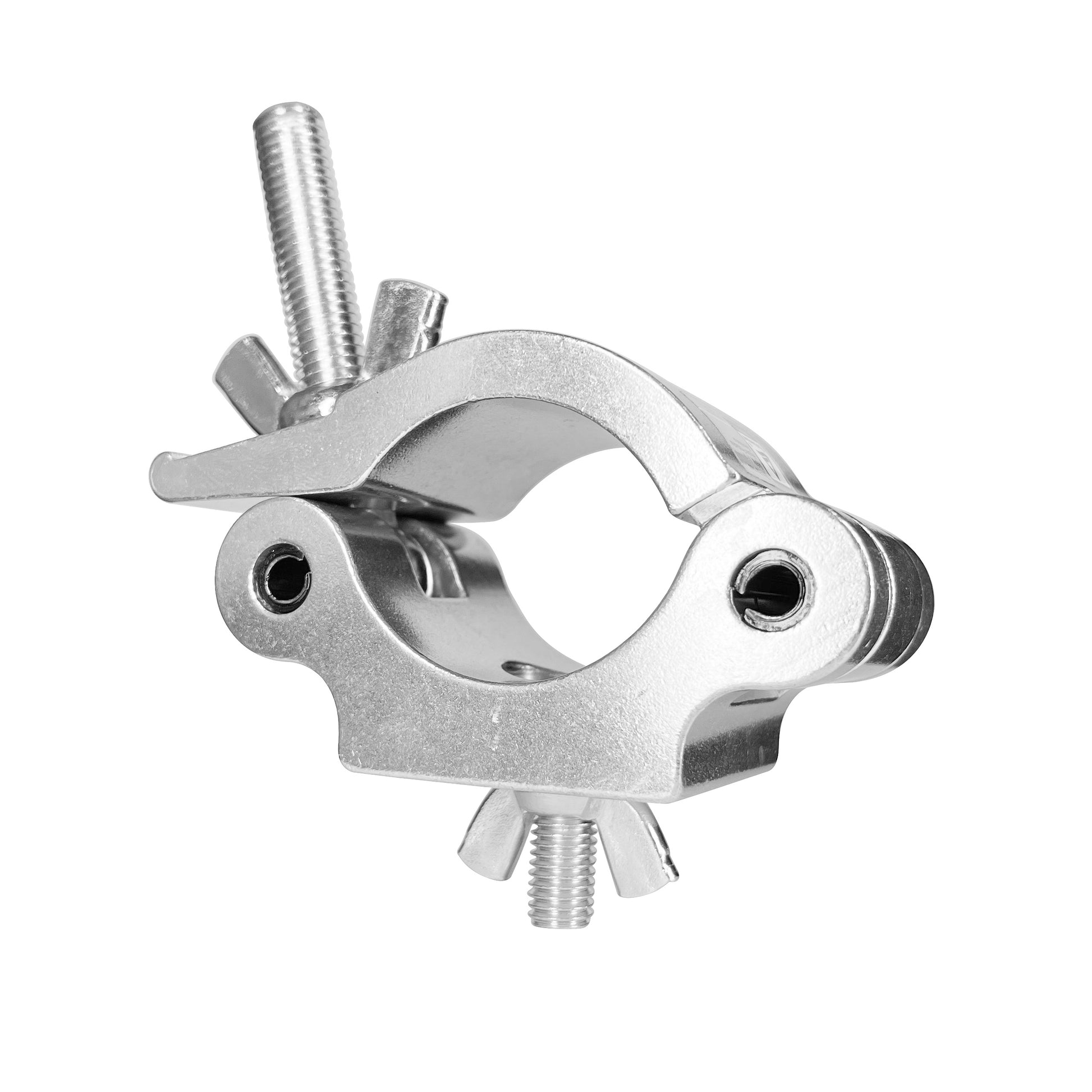

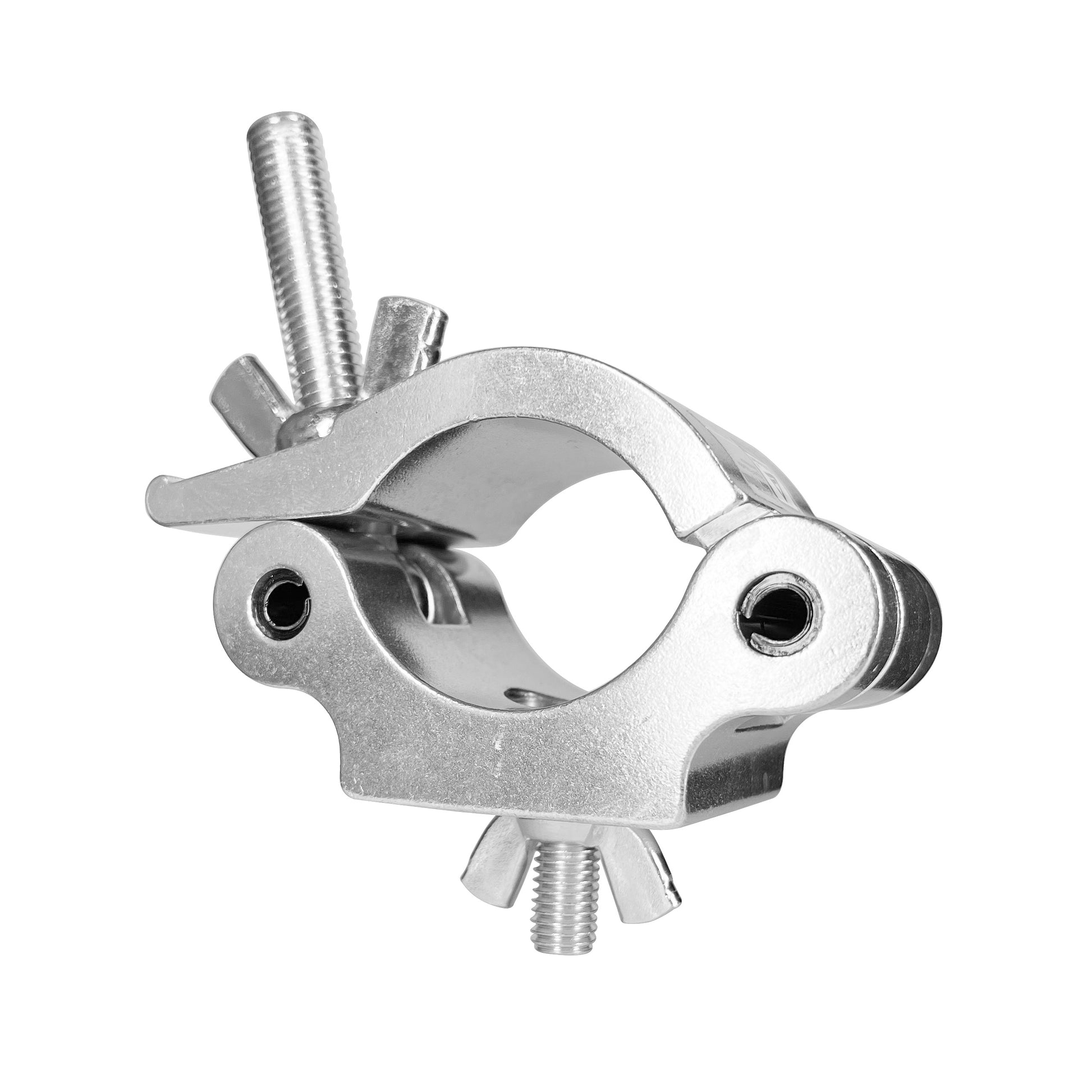

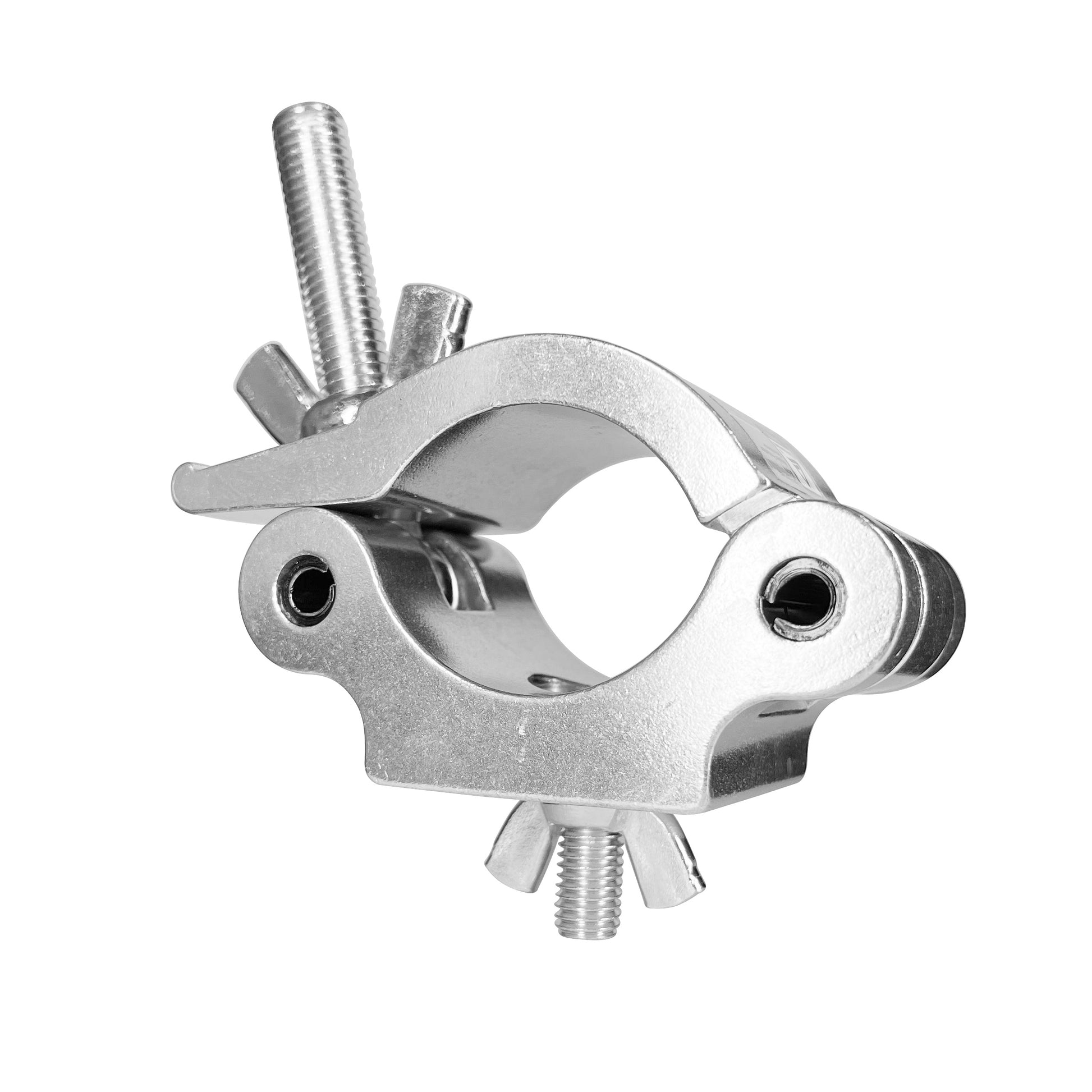

ProX T-C4 Aluminum Pro O-Clamp for 2" Truss With Wing Nut

ProX T-C4 Aluminum Pro O-Clamp for 2" Truss With Wing Nut

SoundPro Item: 74462 | Part Number: T-C4

$21.99
$43.99 $21.99
Your Price Sold out
MSRP: $43.99 | MAP: $21.99

Usually ships in 5-7 business days

  • TUV Approved For Verified Safety In Professional Rigging Applications
  • AI 6061-T6 Aluminum Alloy Construction Keeps Weight Low Without Sacrificing Strength
  • O-Clamp Design With Wing Nut Allows Fast Secure Mounting On Standard Truss
  • Wide Surface Area Distributes Load Evenly To Protect Truss And Hung Equipment
  • M10 Threaded Bolt Attachment For Reliable Fastening Compatibility
Log in or register for YOUR best price

The ProX T-C4 is an aluminum O-clamp built for production riggers and lighting technicians who need a reliable, lightweight clamping solution for standard 2" truss systems. Whether you are rigging moving heads, LED fixtures, or other hung equipment in a touring venue, theater, or installed event space, this clamp delivers the structural integrity required for safe overhead load management.

Machined from AI 6061-T6 aluminum alloy, the T-C4 keeps weight low without sacrificing holding strength. The O-clamp geometry wraps the truss tube fully, and the included wing nut allows for fast, tool-minimal installation during load-in. The wide contact surface distributes load evenly across the tubing, reducing stress concentration on both the clamp and the truss chord. With TUV approval and a rated capacity of 1100 lbs, this clamp meets the documentation requirements that touring and installed production environments demand.

For production managers and riggers sourcing hardware in volume, the T-C4 ships in master box quantities and fits the full range of standard 2" truss configurations from major truss manufacturers, making it a practical stock item for rental houses and install contractors alike.

Downloads

View full details

Specifications

Certifications
TUV Approved
Yes
Performance
Max Load Capacity
1100 lbs (500 kg)
Min. Tubing Diameter
1.9" (48mm)
Max. Tubing Diameter
2.008" (51mm)
Construction
Material
AI 6061-T6 Aluminum Alloy
Bolt Thread
M10
Tubing Compatibility
2" (50mm)
Dimensions
Exterior Height
2.00"
Exterior Width
3.50"
Exterior Length
3.50"
Weight
Product Weight
1.00 lbs
Shipping Weight
1.25 lbs
Shipping
Shipping Box Dimensions
2.50"H x 4.00"W x 4.00"L
Shipping Method
Parcel
Master Box Quantity
24 pcs
Master Box Dimensions
8.00"H x 11.00"W x 14.00"L
Master Box Shipping Weight
32.00 lbs
Identifiers
UPC
741459147198
UPC TIN
74145914719824
