ProX X-DMX2USB USB to DMX 512 Converter Interface FTDI-232
ProX X-DMX2USB USB to DMX 512 Converter Interface FTDI-232
SoundPro Item: 74853 | Part Number: X-DMX2USB
Usually ships in 5-7 business days
- Open DMX Standard With FTDI-232 Chipset Ensures Broad Software Compatibility
- RDM-Enabled For Remote Device Management Over The DMX Line

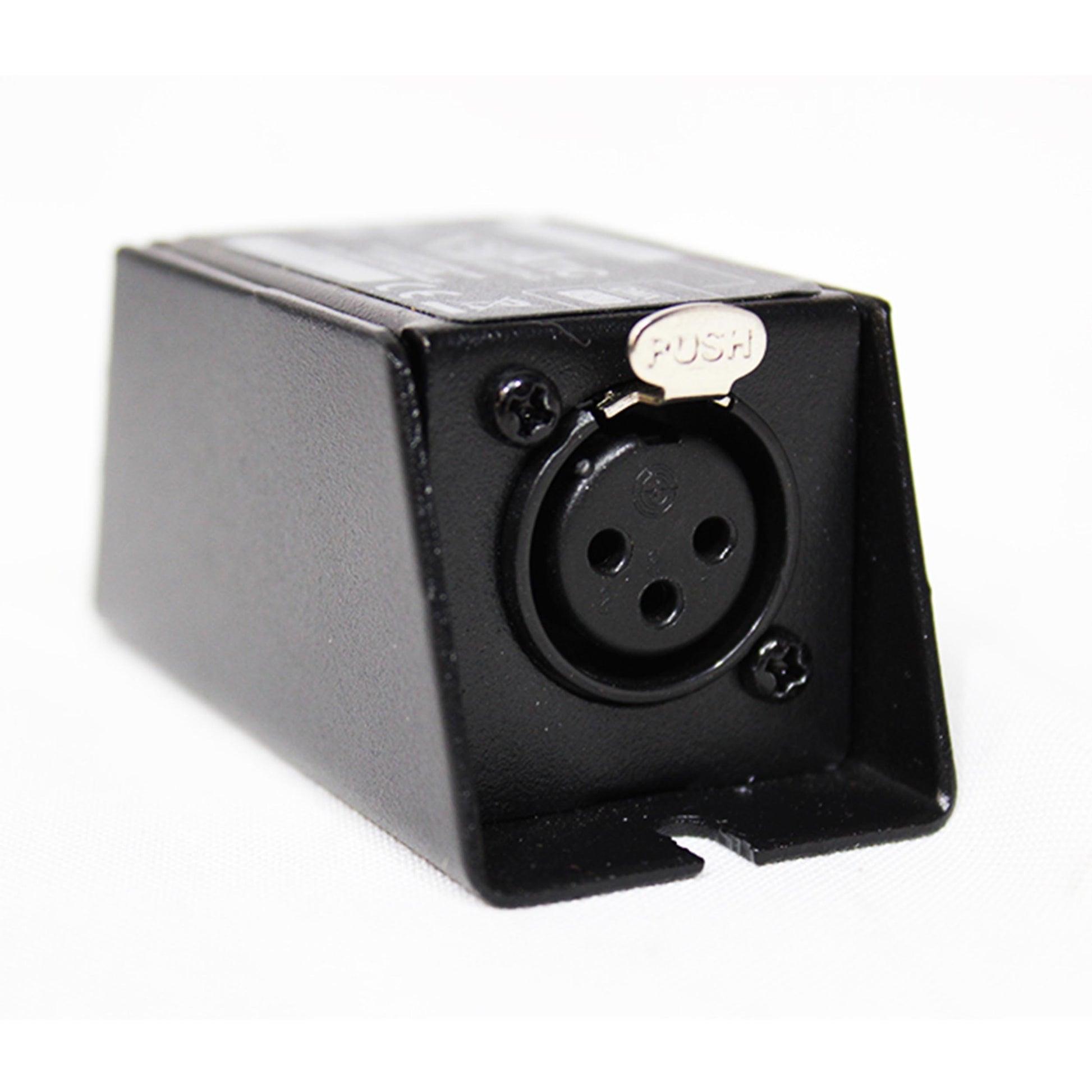

- Locking 3-Pin XLR Female Output Secures DMX Connection In Live Environments

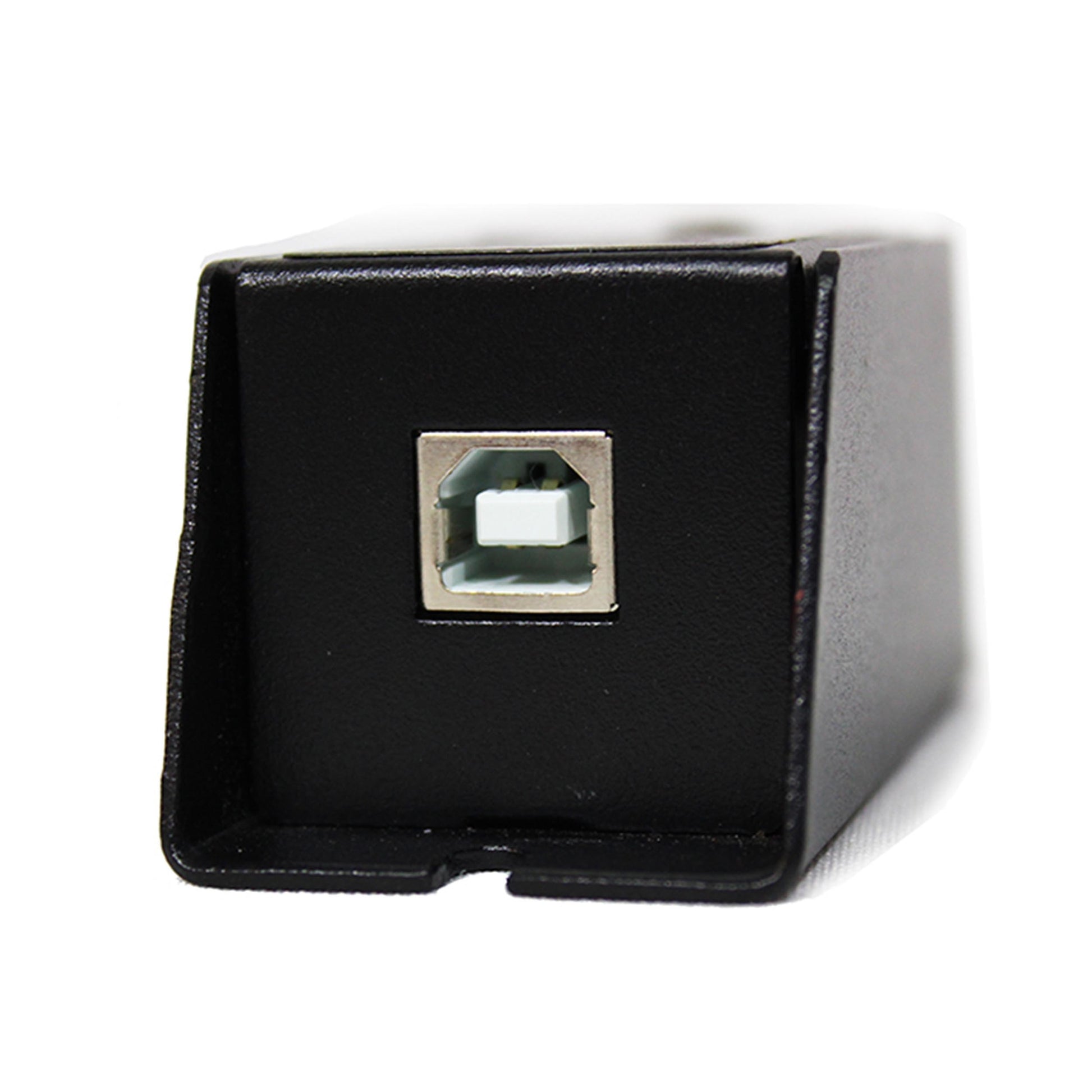

- USB Bus Power Eliminates Need For External Power Supply

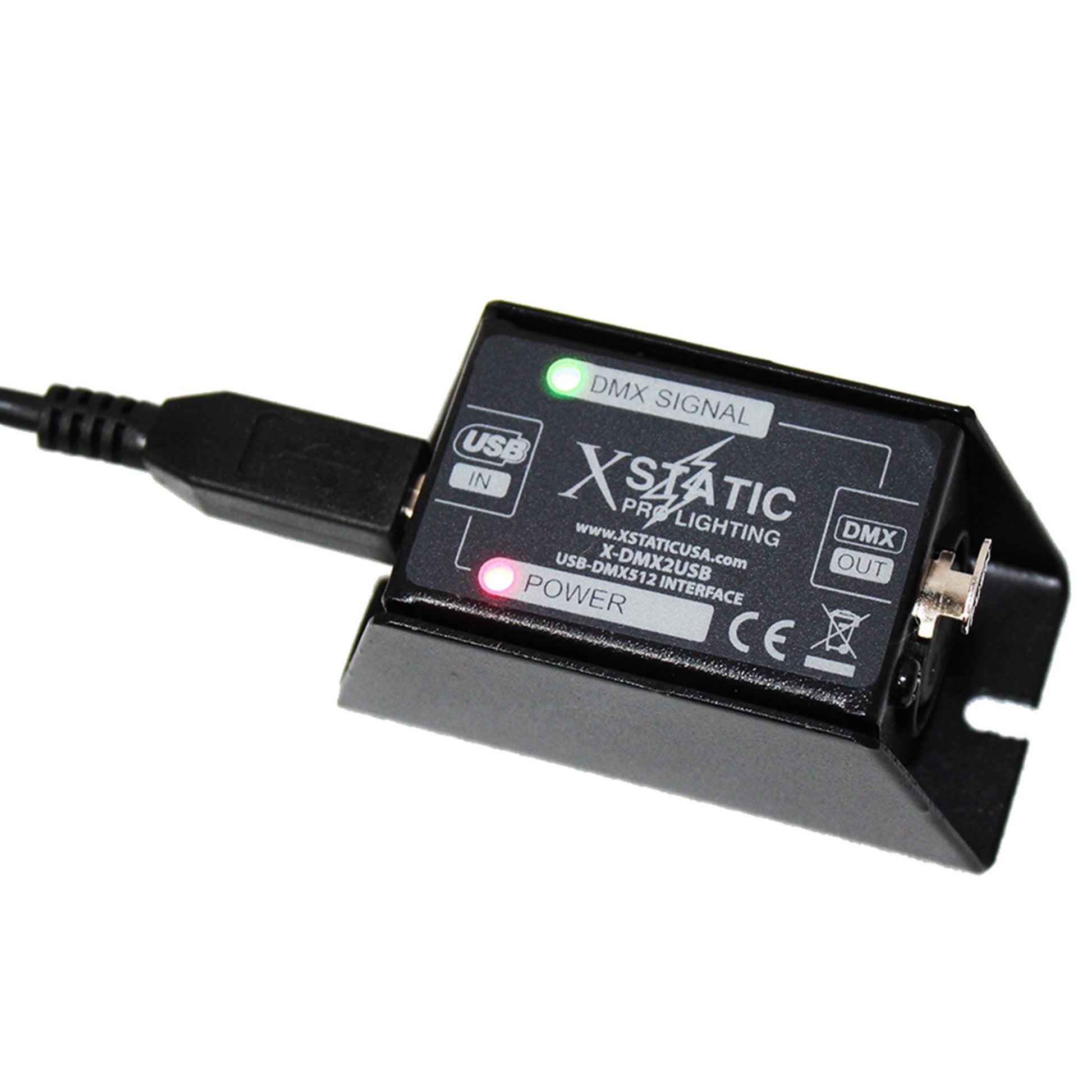

- Status LEDs Provide Instant Confirmation Of USB Power And DMX Signal

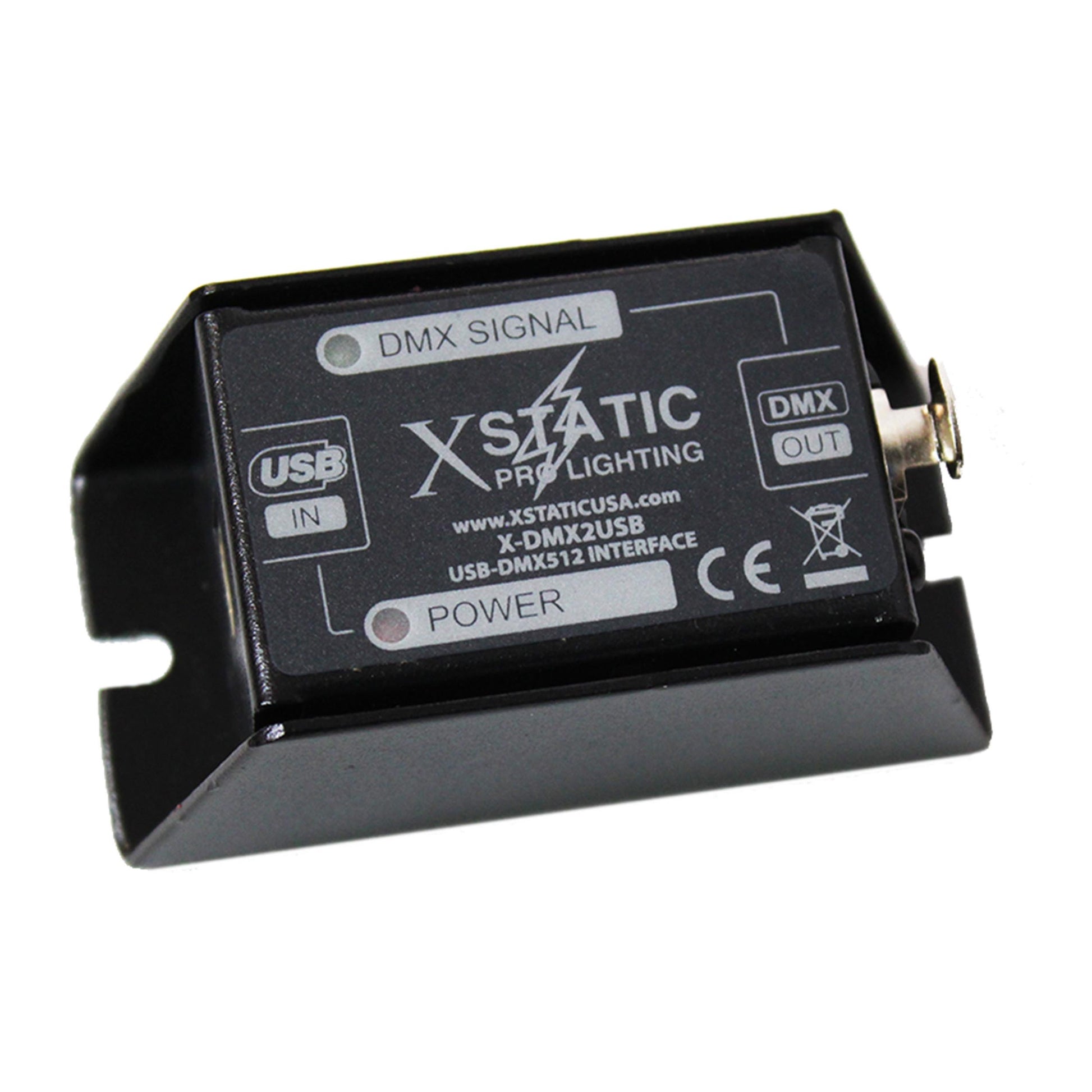

- All-Metal Case With Protection Flanges And Mounting Holes For Install Or Tour Use
The ProX X-DMX2USB is a compact USB-to-DMX 512 converter designed for lighting programmers, stage technicians, and AV integrators who need a reliable, cost-effective bridge between a PC and a DMX lighting rig. Whether the application is a live concert, theater production, club installation, or architectural illumination, this interface delivers full 512-channel DMX output directly from a USB port without requiring an external power supply.
Built around the industry-standard FTDI-232 chipset and following the open DMX protocol, the X-DMX2USB works across a broad ecosystem of PC-based lighting software on Windows, Mac, and Linux. Recommended platforms include DMXControl and FreeStyler, and the unit is also confirmed compatible with QLC+, LightFactory, Millumin, Martin M-PC, and numerous other applications. The locking 3-pin XLR female output protects the DMX connection on busy stage floors, while status LEDs provide immediate confirmation of USB bus power and active DMX signal.
For production teams building out budget-conscious lighting control workflows, the X-DMX2USB eliminates the need for a dedicated hardware console at the computer end of the signal chain. The all-metal enclosure with connector protection flanges and mounting holes suits permanent install and touring applications alike, making it a practical starting point or supplemental interface for any DMX-based show environment.
Specifications
