ProX X-DMX3CH DMX Decoder Controller for LED Lighting

The ProX X-DMX3CH is built for lighting professionals who need reliable DMX-512 to PWM signal conversion across multi-channel LED strip and tape installations. Using a computer control chip, it accurately receives and converts standard DMX-512 digital signals into PWM output that drives LED loads directly, making it a practical solution for stage productions, events, and architectural installations where precise dimming and synchronized effects are required.

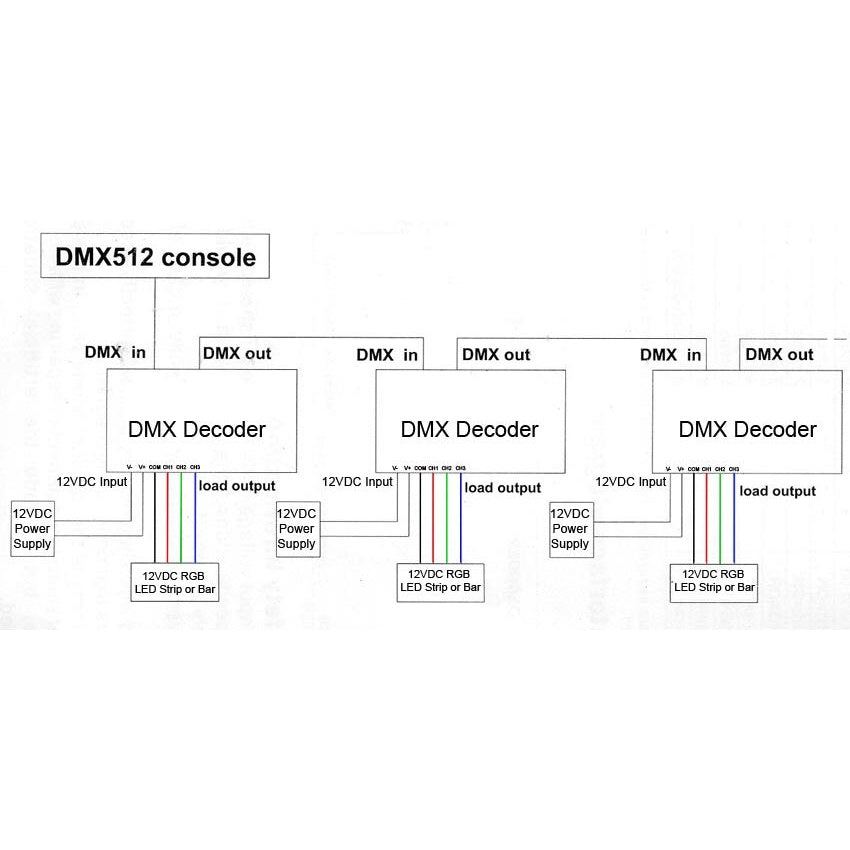

Where standalone LED dimmer packs lack network integration, the X-DMX3CH accepts control from any DMX console and can be chained with additional decoders to scale output power across larger rigs. Its synchronous controller mode allows the unit to operate LED lights independently, enabling repeatable, synchronized lighting effects without continuous console input. A digital tube display shows the active address code, and three onboard buttons simplify DMX address programming and initial setup on the fly.

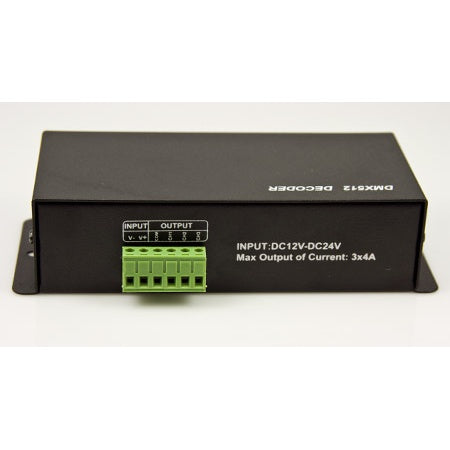

With a maximum load of 4A per channel across three channels and output power reaching 288W at 24V, this decoder handles meaningful LED tape loads for permanent installations and touring setups alike. Its 256-step brightness resolution delivers smooth, flicker-free dimming curves that satisfy demanding visual environments from broadcast stages to architectural feature lighting.
