Specifications
Performance
Nominal Capacitance, Conductor to Conductor
80 pF/m / 24.4 pF/ft
Nominal Capacitance, Conductor to Shield
185 pF/m / 56.4 pF/ft
Nominal Inductance, Conductor to Conductor
0.7 µH/m / 0.213 µH/ft
Nominal Inductance, Conductor to Shield
0.2 µH/m / 0.061 µH/ft
Nominal DC Resistance per Conductor
40 Ω/km / 12.2 Ω/1,000 ft
Nominal DC Resistance of Shield
20 Ω/km / 6.1 Ω/1,000 ft
Nominal Characteristic Impedance
93.5 Ω
Insulation Resistance, Conductor to Shield
Greater than 1 GΩ
Construction
Conductors
20 AWG x 2 Oxygen-Free Copper (OFC)
Shield
93% Braided OFC
Connector Type

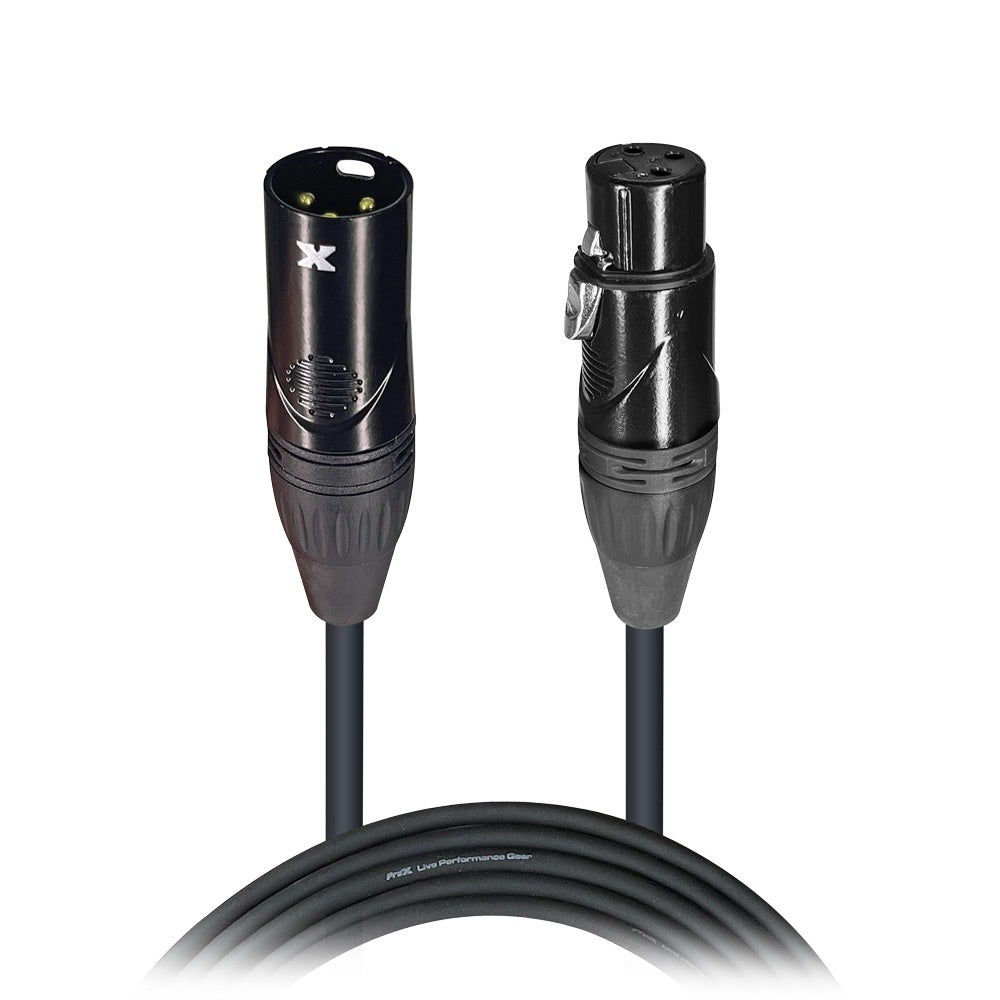

Balanced XLR-F to XLR-M
Connector Housing
All-Metal ProX Branded
Contact Plating
Gold and Silver Plated
Dimensions
Cable Length
100 ft
Weight
Product Weight
18.00 lbs
Shipping
Shipping Box Dimensions
4.00" H x 4.00" W x 12.00" L
Shipping Weight
4.00 lbs
Master Box Quantity
5 pcs
Master Box Dimensions
9.00" H x 16.00" W x 12.00" L
Master Box Shipping Weight
20.00 lbs
Identifiers
UPC
022099559009
UPC TIN
02209955900905
