Specifications
Performance
Nominal Capacitance, Conductor to Conductor
80 pF/m / 24.4 pF/ft
Nominal Capacitance, Conductor to Shield
185 pF/m / 56.4 pF/ft
Nominal Inductance, Conductor to Conductor
0.7 µH/m / 0.213 µH/ft
Nominal Inductance, Conductor to Shield
0.2 µH/m / 0.061 µH/ft
Nominal DC Resistance per Conductor
40 Ω/km / 12.2 Ω/1,000 ft
Nominal DC Resistance of Shield
20 Ω/km / 6.1 Ω/1,000 ft
Nominal Characteristic Impedance
93.5 Ω
Insulation Resistance, Conductor to Shield
Greater than 1 GΩ
Construction
Conductors
20 AWG x 2 Oxygen-Free Copper (OFC)
Shield
93% Braided OFC
Connectors

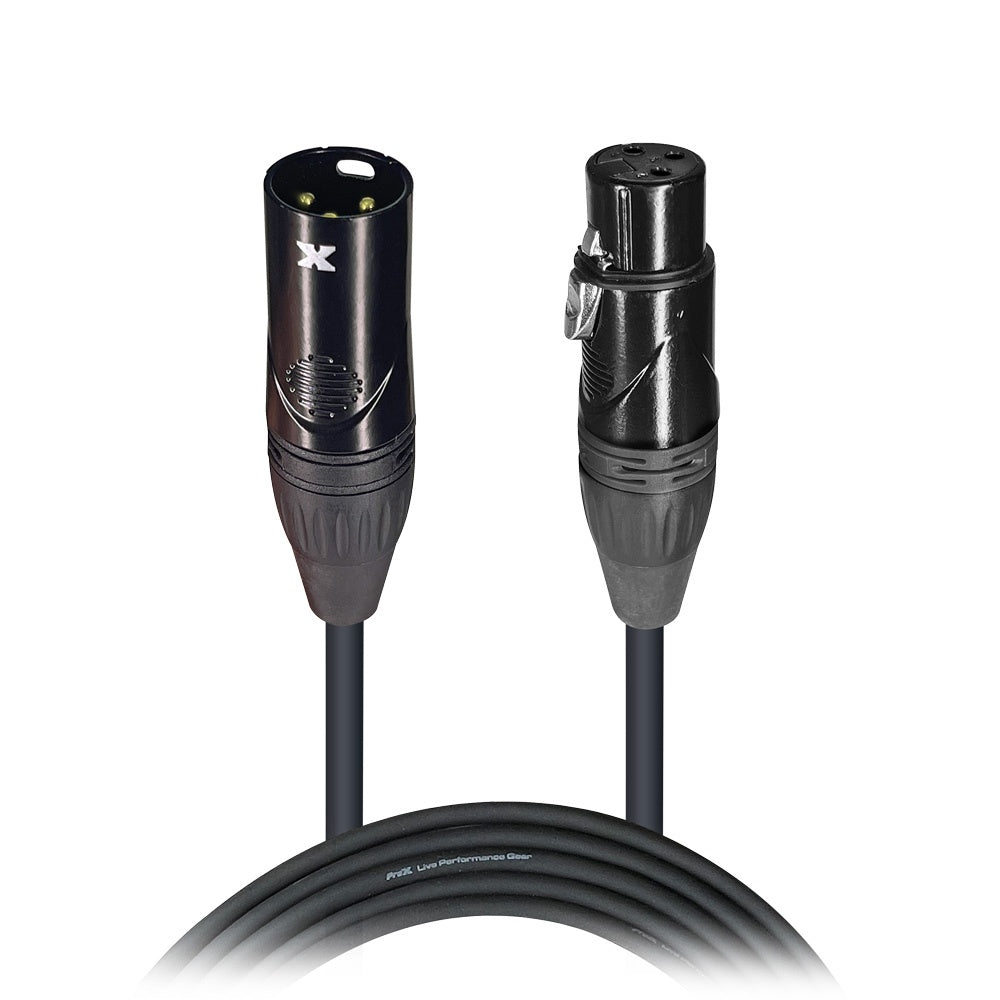

All-Metal ProX Branded XLR, Gold and Silver Plated Contacts
Connection Type
Balanced XLR-F to XLR-M
Cable Length
25 ft
Weight
Product Weight
1.50 lbs
Shipping
Box Dimensions
1.00" H x 3.00" W x 13.00" L
Shipping Weight
1.30 lbs
Shipping Method
Parcel
Identifiers
UPC
022099558989
