Specifications
Performance
Nominal Capacitance, Conductor to Conductor
80 pF/m / 24.4 pF/ft
Nominal Capacitance, Conductor to Shield
185 pF/m / 56.4 pF/ft
Nominal Inductance, Conductor to Conductor
0.7 µH/m / 0.213 µH/ft
Nominal Inductance, Conductor to Shield
0.2 µH/m / 0.061 µH/ft
Nominal DC Resistance per Conductor
40 Ω/km / 12.2 Ω/1,000 ft
Nominal DC Resistance of Shield
20 Ω/km / 6.1 Ω/1,000 ft
Nominal Characteristic Impedance
93.5 Ω
Insulation Resistance, Conductor to Shield
Greater than 1 GΩ
Construction
Conductors
20 AWG x 2 Oxygen-Free Copper (OFC)
Shield
93% Braided OFC

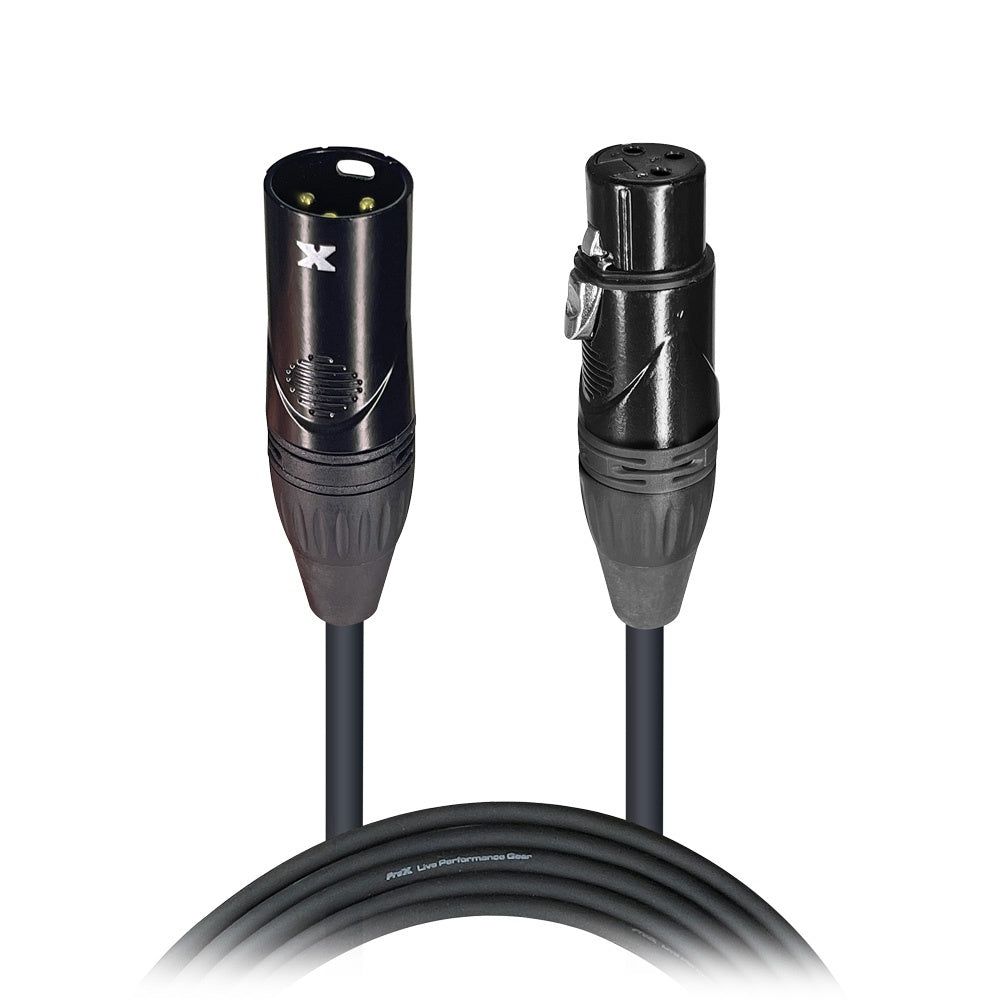

Connector Type
XLR3-F to XLR3-M
Connector Housing
All-Metal ProX Branded
Contacts
Silver Plated
Dimensions
Cable Length
50 ft
Weight
Product Weight
10.00 lbs
Shipping
Shipping Dimensions
2.00" H x 3.00" W x 14.00" L
Shipping Weight
2.00 lbs
Identifiers
UPC
022099558996
