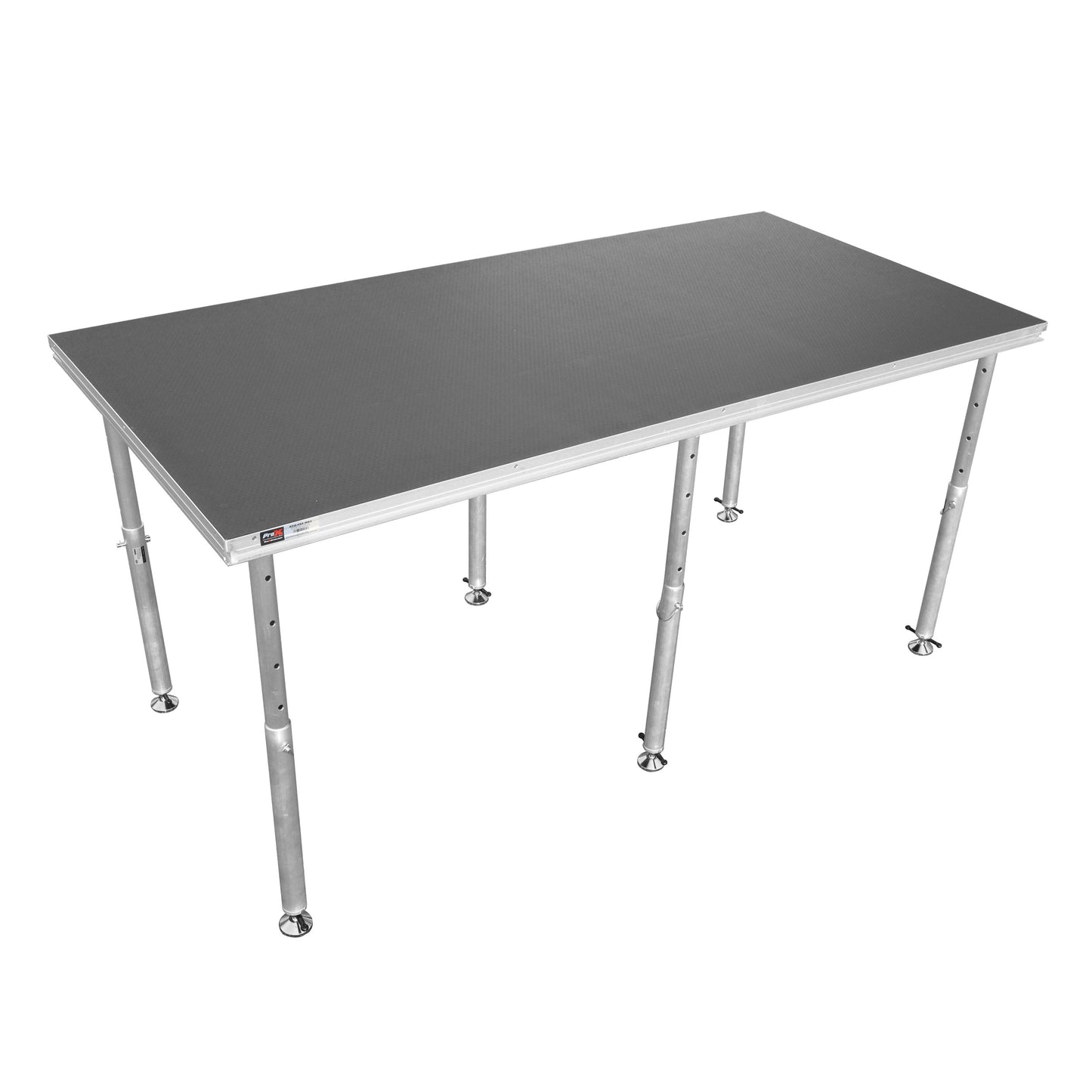

ProX StageQ Single Stage Deck with Adjustable Legs Modular HPL Platform | 4x8 ft

ProX StageQ Single Stage Deck with Adjustable Legs Modular HPL Platform | 4x8 ft

SoundPro Item: 139188 | Part Number: XSQ-4X8MK3

Regular price $1,299.99
Regular price $3,249.99 Sale price $1,299.99
Your Price Sold out
MSRP: $3,249.99 | MAP: $1,299.99

Usually ships in 5-7 business days

  • Signature Honeycomb Digital HPL Surface Delivers Grip, Traction, And Scuff Resistance
  • High Temperature Heat Press Lamination Creates A Permanent Bond That Will Not Peel Or Bubble
  • Birch Plywood Core Provides A Stiff, Solid Feel With No Flex Or Bounce Underfoot

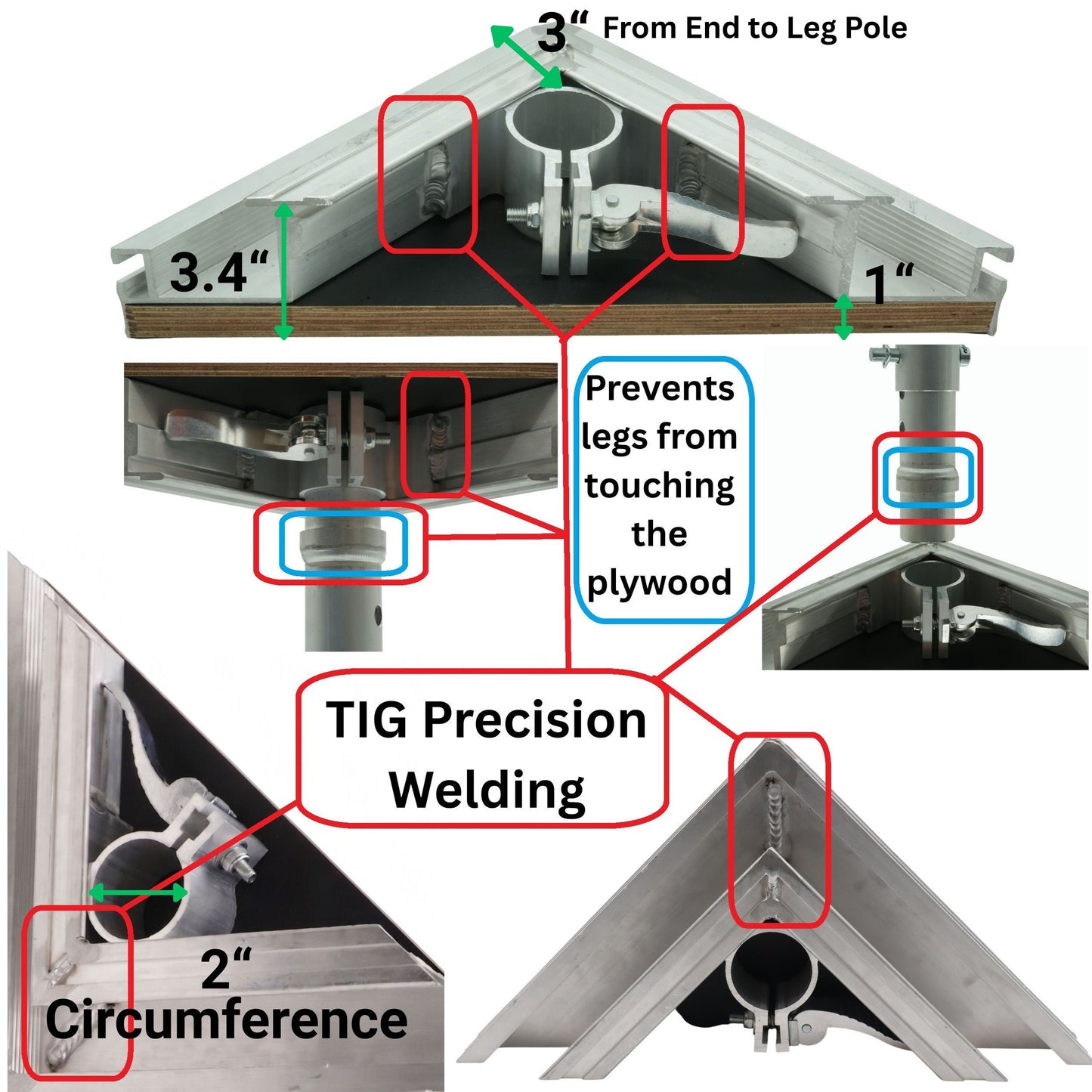

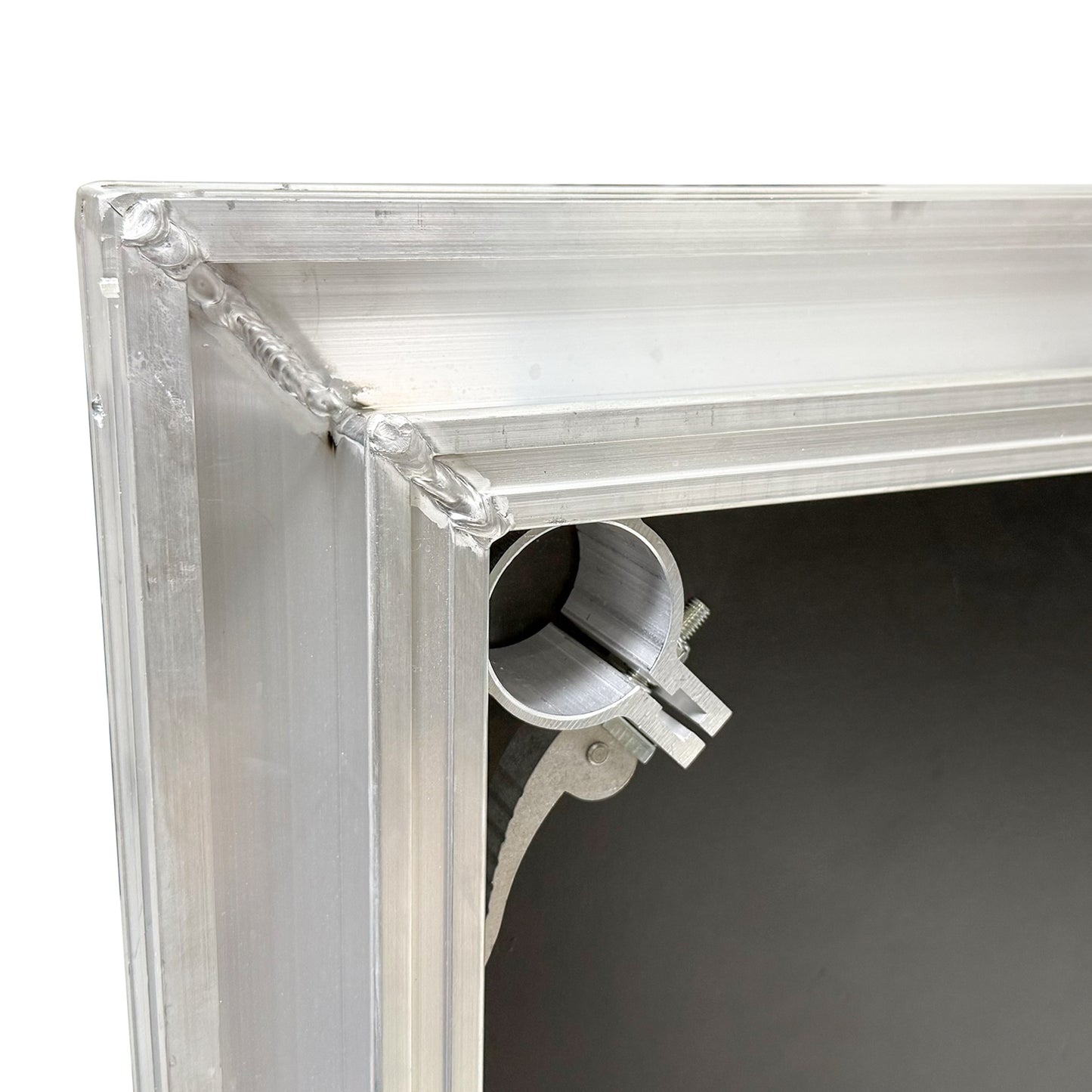

  • TIG Welded Frame Keeps Each Deck Square And True Across Repeated Setups

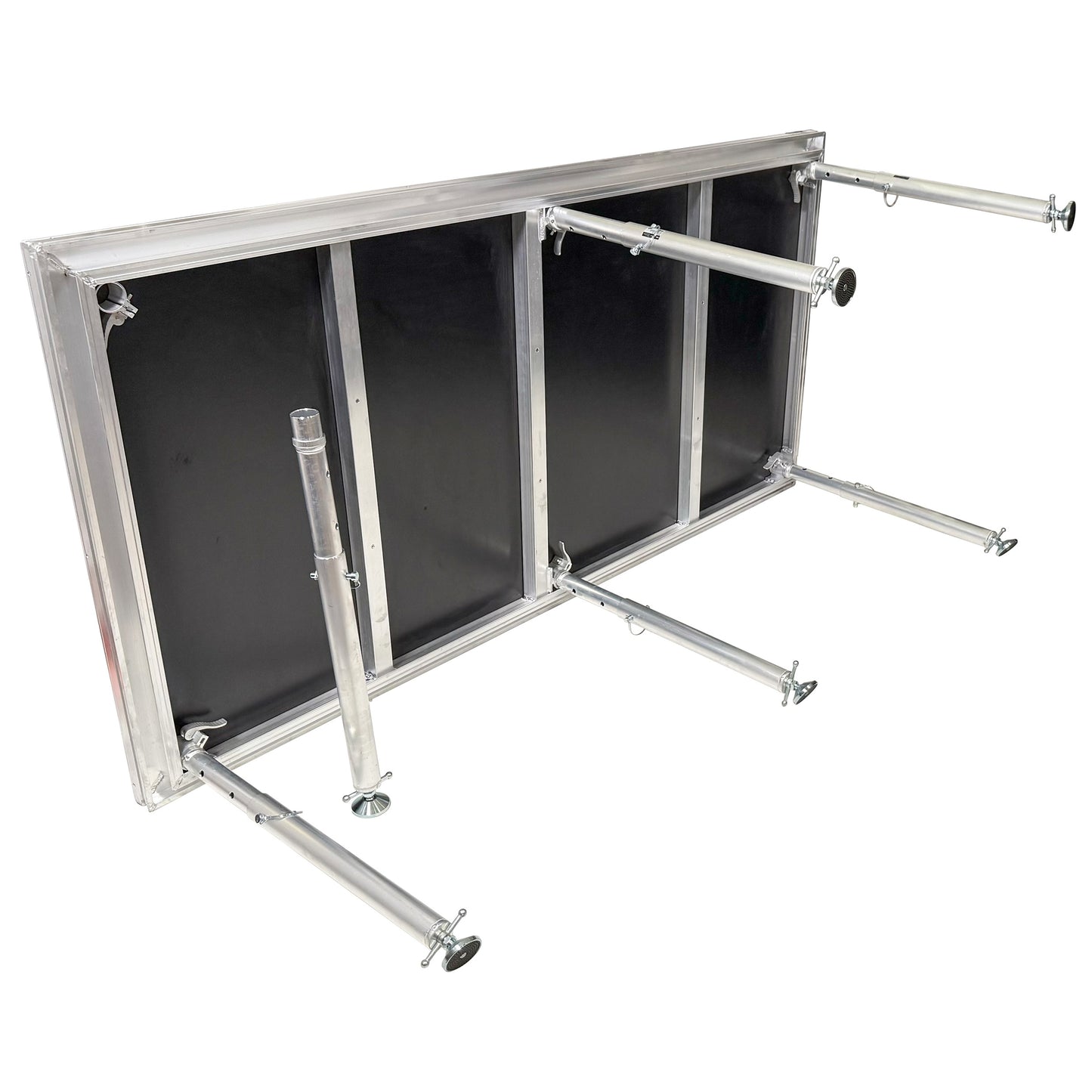

  • Telesoping Legs With Captive Pin And Cable System Lock Height Without Losing The Pin

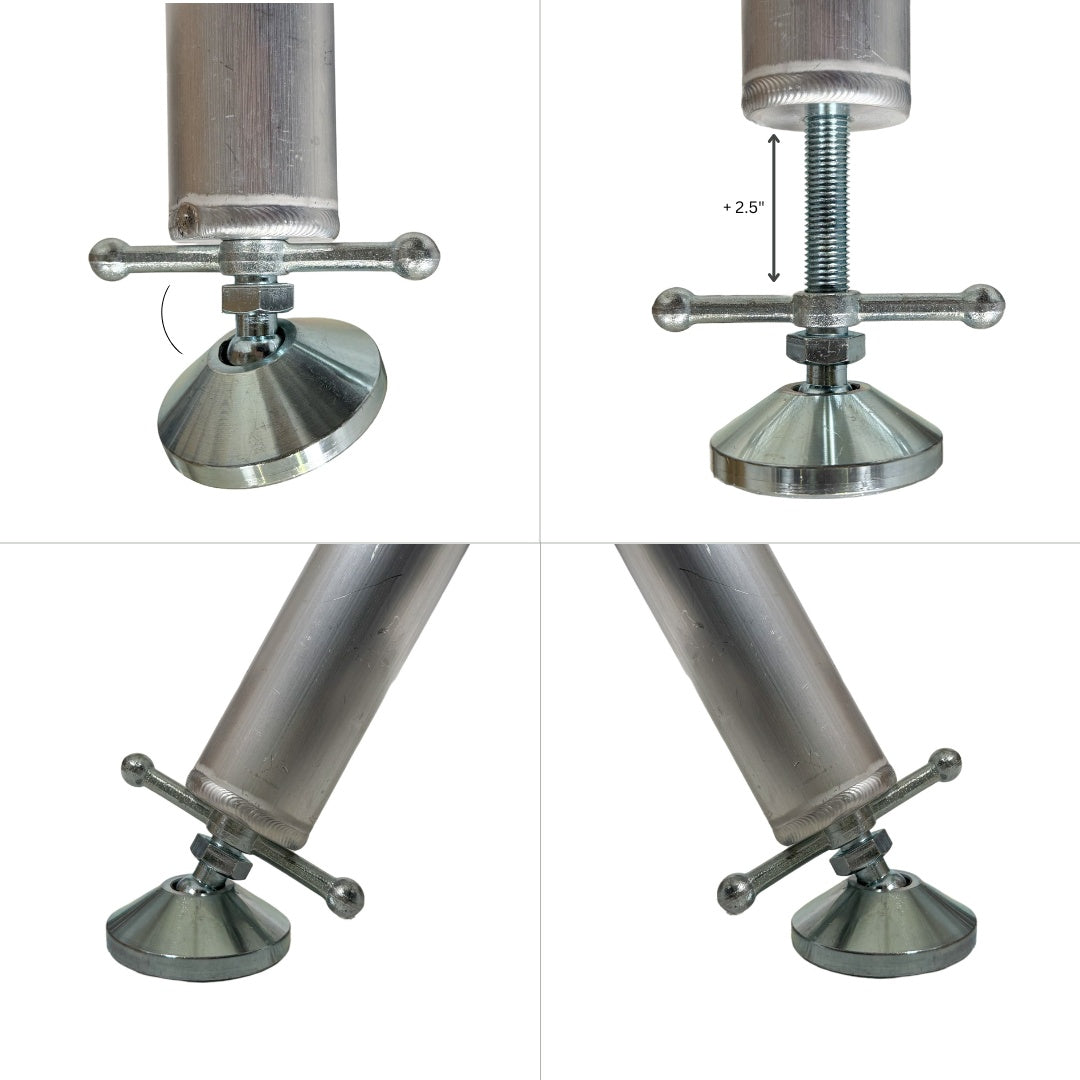

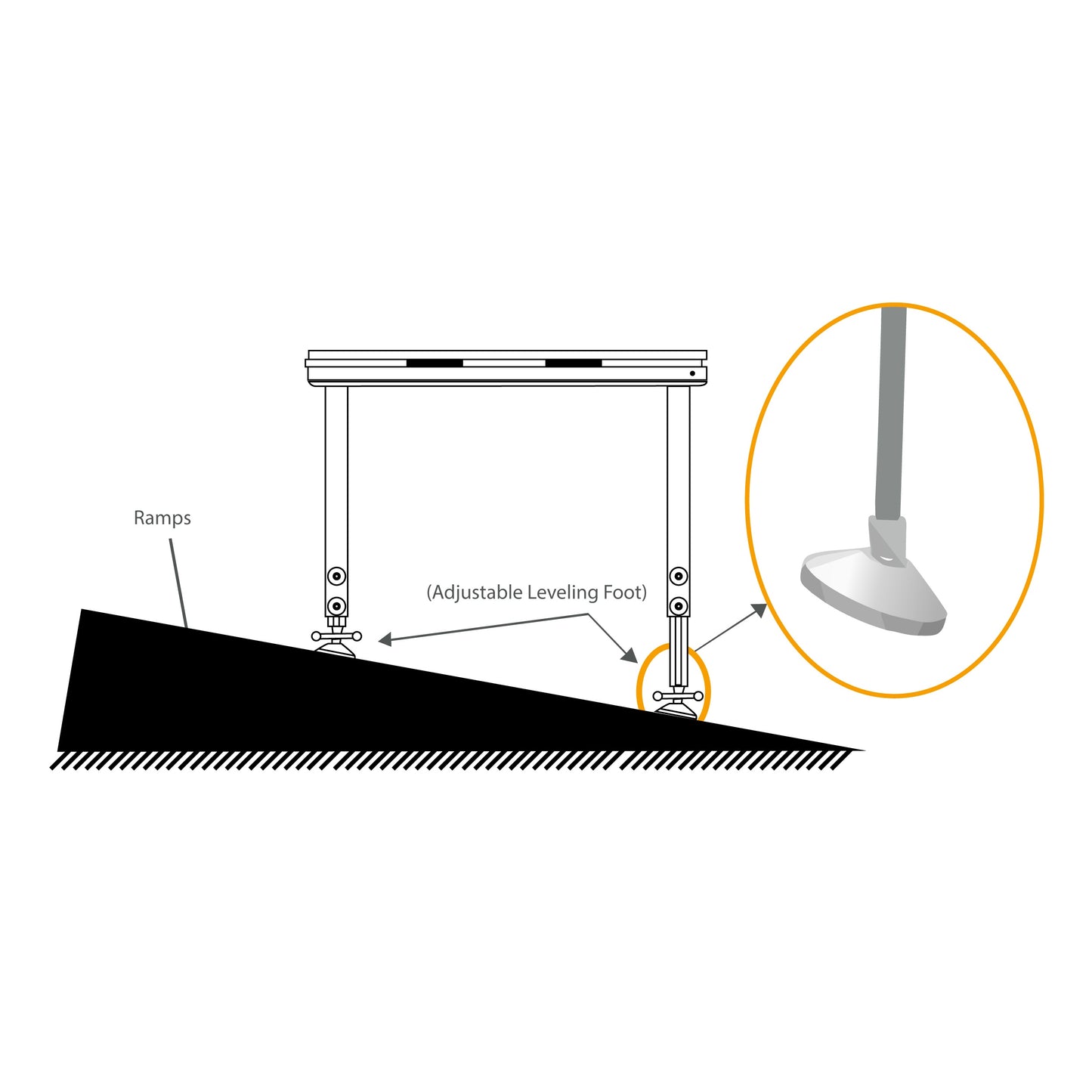

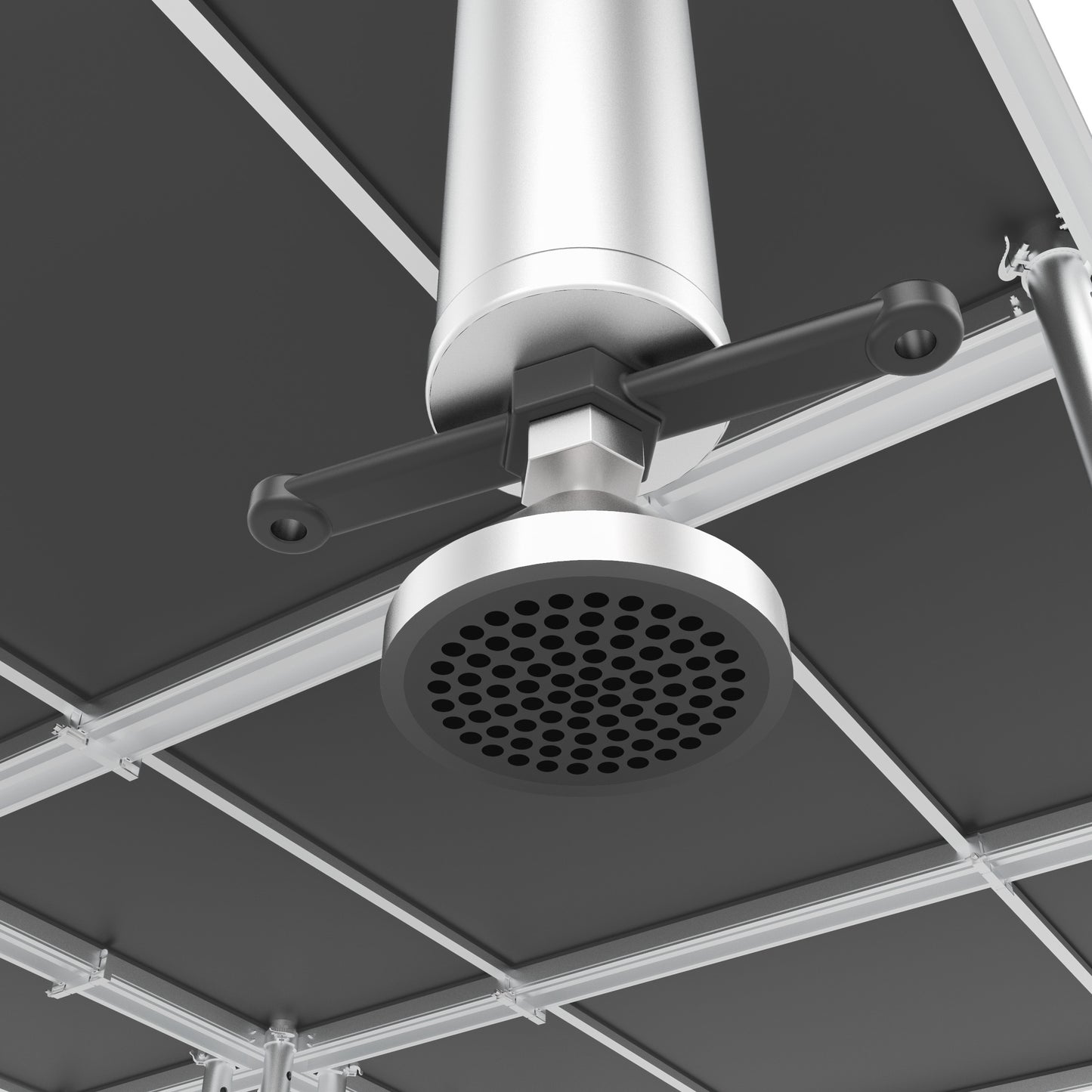

  • Adjustable Leveling Feet Dial Out Sloped, Crowned, Or Uneven Ground Without Shimming
  • Modular Design Lets Multiple Decks Link Into One Continuous Walking Surface

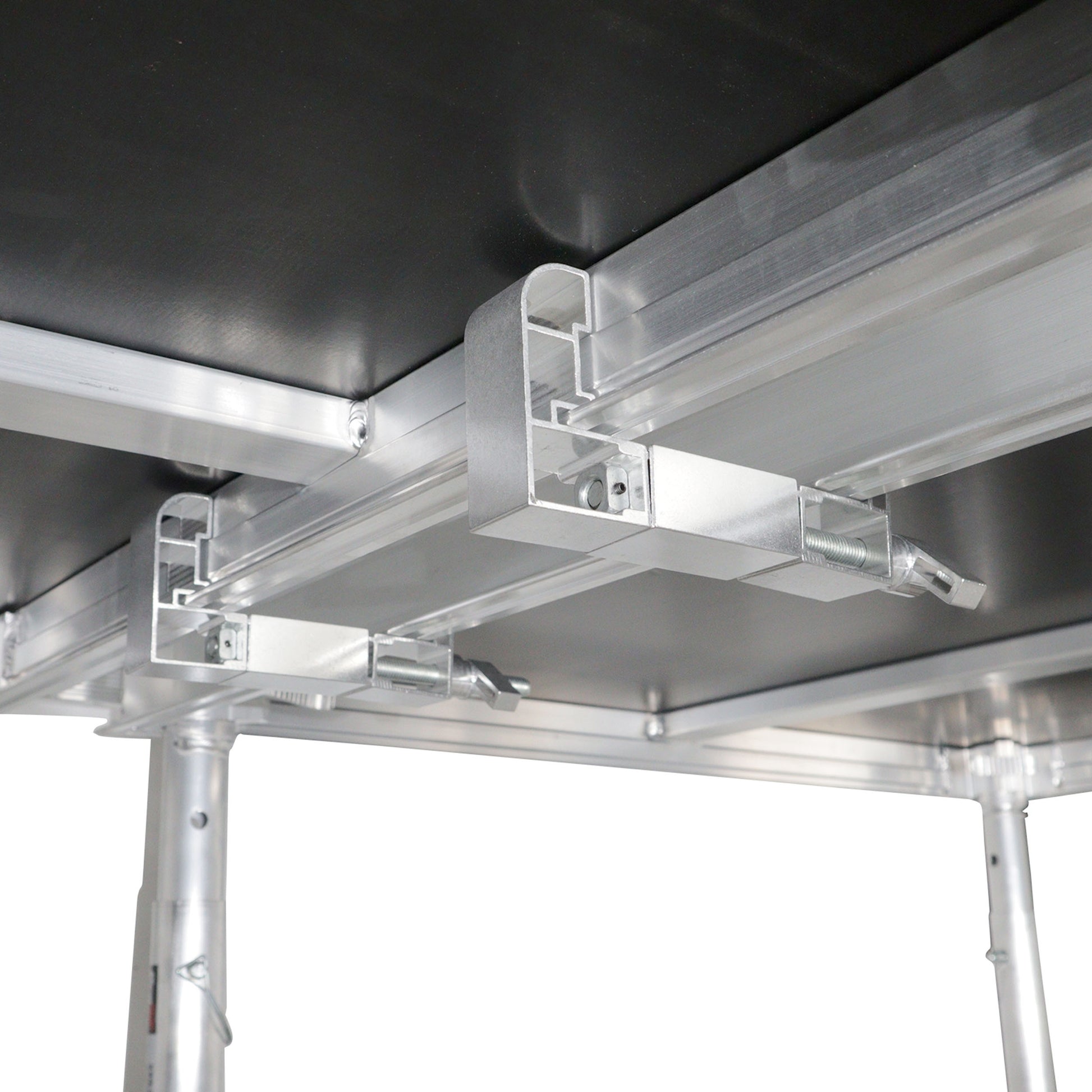

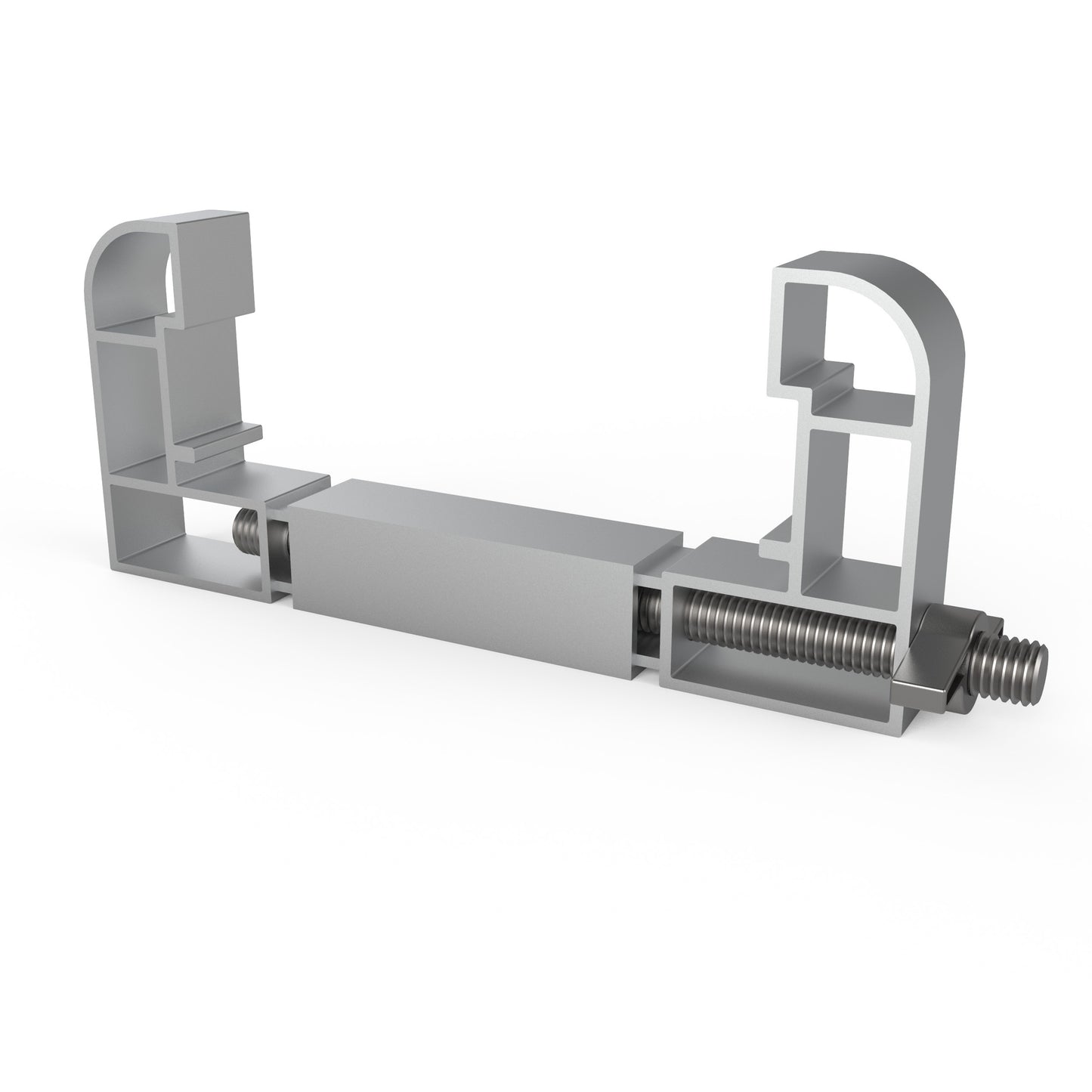

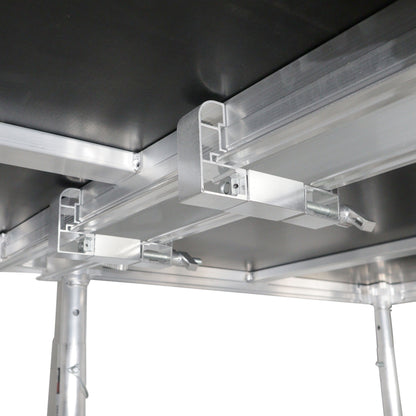

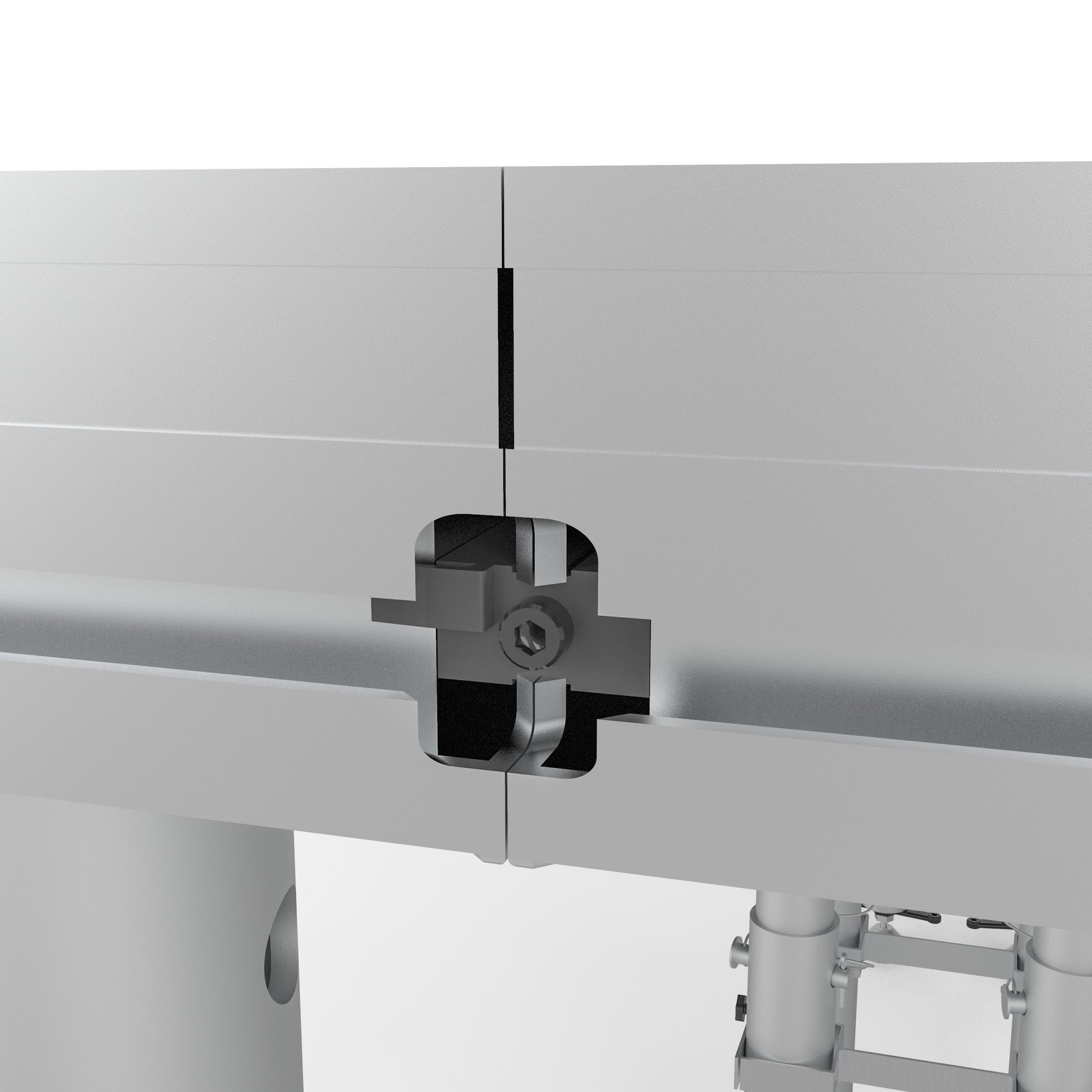

  • Included Security Clamps And Deck Leveler Joint Connect Adjacent Decks Flush
  • Suited For Indoor And Outdoor Productions Including Festivals And Houses Of Worship

The ProX StageQ single stage deck series is built for production companies, rental houses, houses of worship, schools, and mobile entertainers who need a platform that goes up fast, holds level on imperfect ground, and survives repeated load-in and load-out cycles without losing its shape. Every deck in the line ships as a complete, ready-to-deploy section. The hardware needed to join it to adjacent decks and keep neighboring surfaces flush is included in the box, so you are not sourcing clamps and connectors separately before you can put a real stage together. The StageQ system is the answer when a crew has a short window, an uneven floor, and a production that cannot afford a wobble.

Each deck is built around a birch plywood core finished with the Signature Honeycomb Digital High Pressure Laminate, a hexagonal textured surface that gives performers, dancers, and crew reliable traction under stage lighting and resists the scuffing that plain painted platforms show after a single event. The laminate is bonded to the core under high temperature heat press lamination rather than standard adhesive, so it will not peel, bubble, or lift at the edges where cheaper decks fail first. The perimeter frame is aluminum with TIG welded joints, keeping the platform square through years of assembly cycles and allowing multiple units to butt together tightly for a continuous walking surface. Adjustable telescoping legs span a wide height range and lock at the selected position with a captive pin and cable system, so the pin never disappears into a dark parking lot during setup. Leveling feet at each leg base dial out sloped floors, crowns, and uneven ground without shimming. The result is a portable staging platform that performs like permanent installation hardware while packing down for the next show.

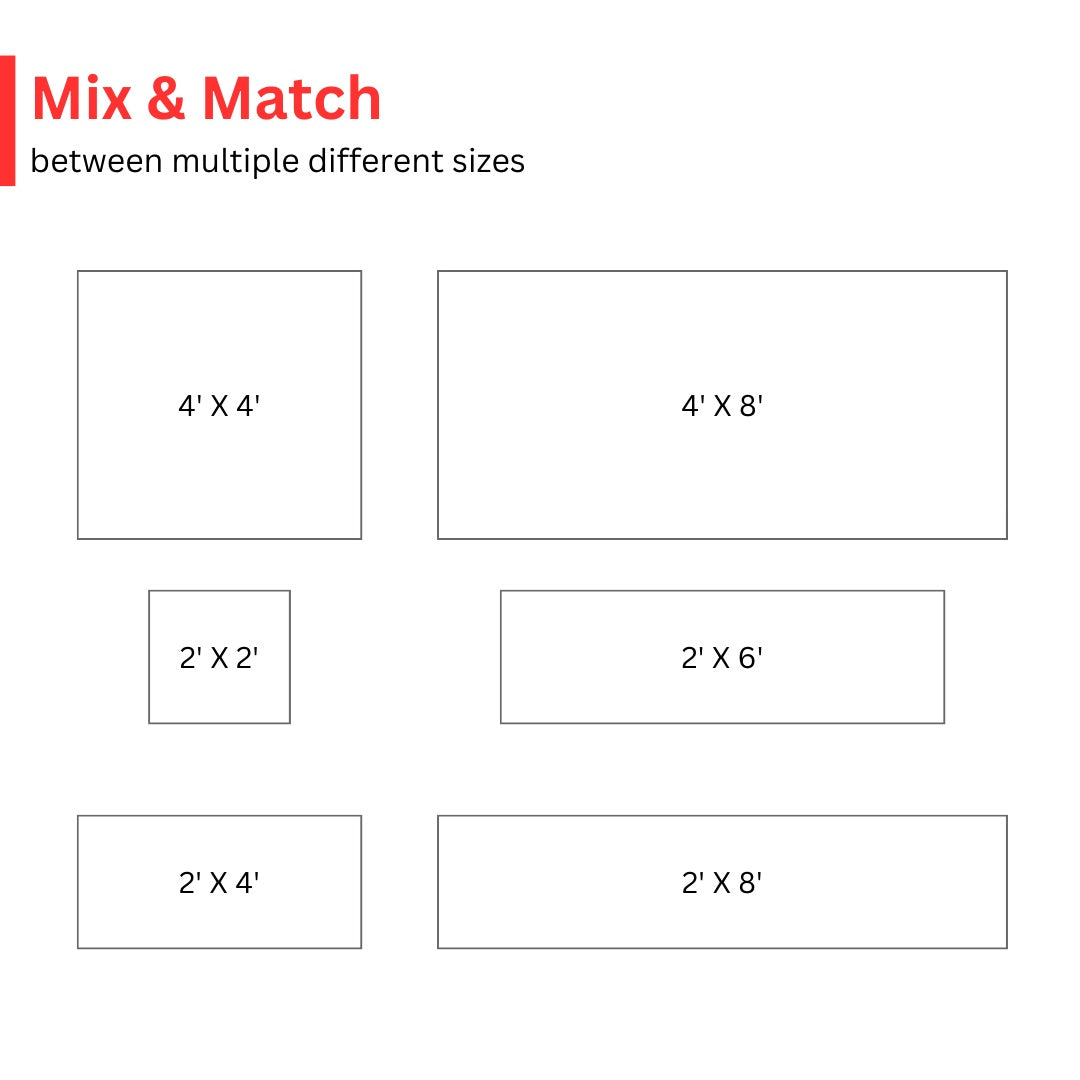

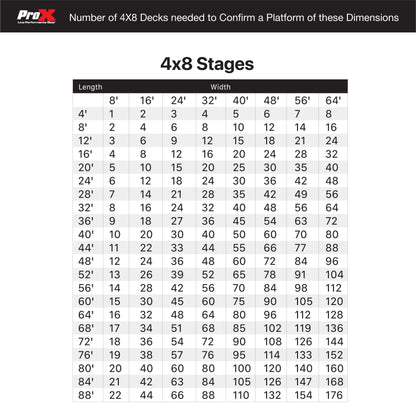

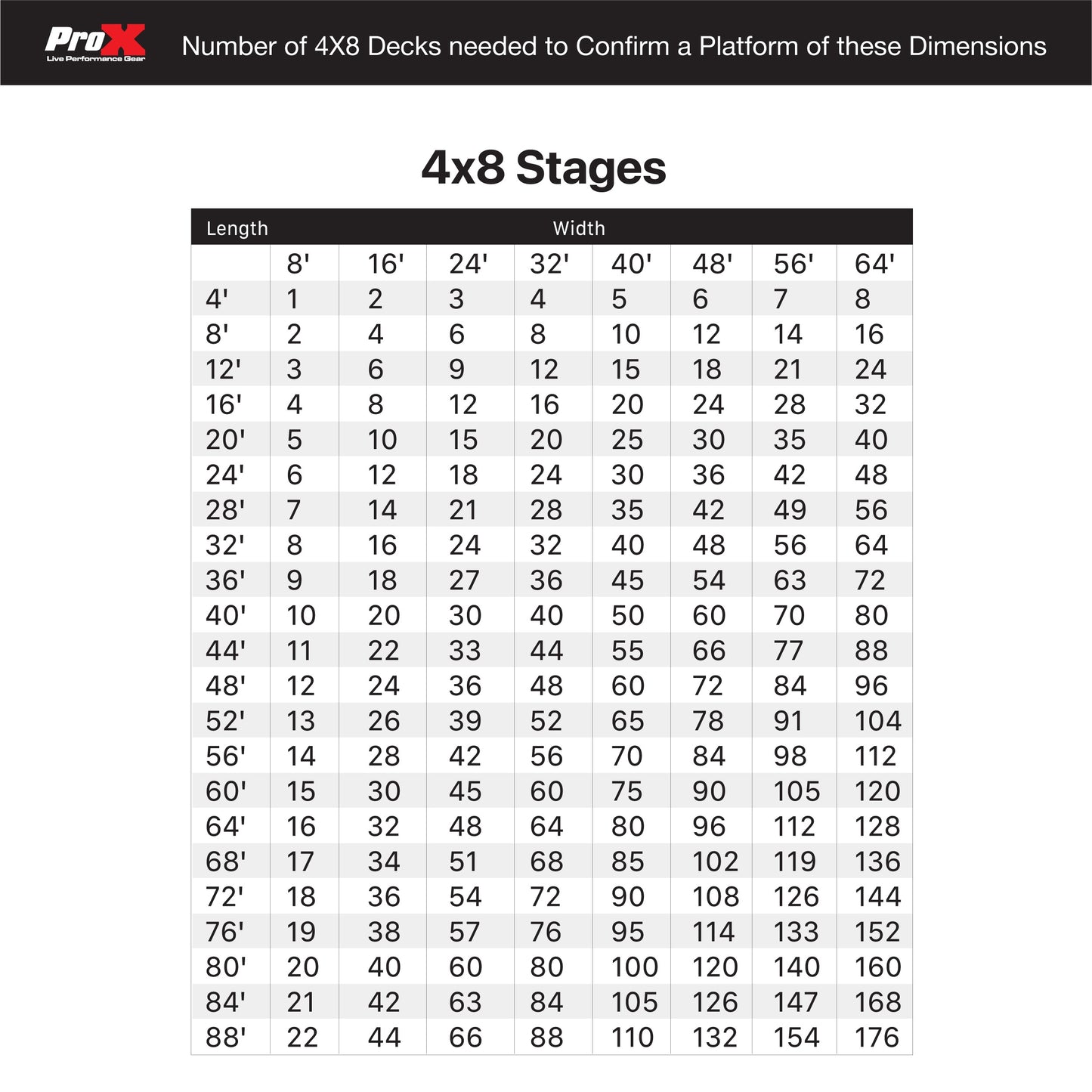

The StageQ deck line is available in multiple footprint sizes, giving production teams and rental houses the flexibility to configure narrow runways, square risers, choir tiers, and full main stages from a common pool of interchangeable hardware. Steps, guardrails, and stage skirts are available separately to complete the installation. Whether the event is an indoor corporate panel, a house of worship service, a festival field, or a tented outdoor ceremony, the StageQ series is sized and weighted so a small crew can build and strike a full stage without a lift or specialty tools.

Downloads

View full details

Specifications

Certifications
Certification
TUV Rheinland Tested
Dimensions
Platform Size
47.25" x 94.5"
Stage Platform Height
3.00"
Stage Platform Width
48.00"
Stage Platform Length
96.00"
Leg Bundle Height
7.50"
Leg Bundle Width
7.50"
Leg Bundle Length
28.00"
Weight
Stage Platform Weight
125.00 lbs
Leg Set Weight
23.00 lbs
Performance
Maximum Load Capacity
1500 lbs per 4 ft x 4 ft section, evenly distributed
Leg Height Range
28" - 48"
Leg Quantity
6
Construction
Deck Material
7/8" (22 mm) AAA Grade Exterior Rated Birch Plywood, Zero Voids
Frame Material
High Strength Aluminum
Surface Finish
Honeycomb Digital High Pressure Laminate
Leveling Feet
Micro Adjustable Rubber Feet with M16 Thread
Upper Shaft Exterior OD
50 mm / 2"
Lower Shaft Exterior OD
57 mm / 2.25"
Upper Shaft Interior OD
44 mm / 1.7"
Lower Shaft Interior OD
51 mm / 2"
Included Items
Telescoping Leg Set
XSQ-2848X6, Set of 6, 28"-48"
Lower Deck Security Clamps
2x XSQ-C11MK2
Deck Leveler Joint
1x XSQ-C05
Shipping
Shipping Box Dimensions
4.00"H x 50.00"W x 100.00"L
Shipping Weight
132.00 lbs
Suggested Shipping Method
LTL
Identifiers
UPC
019372411697
