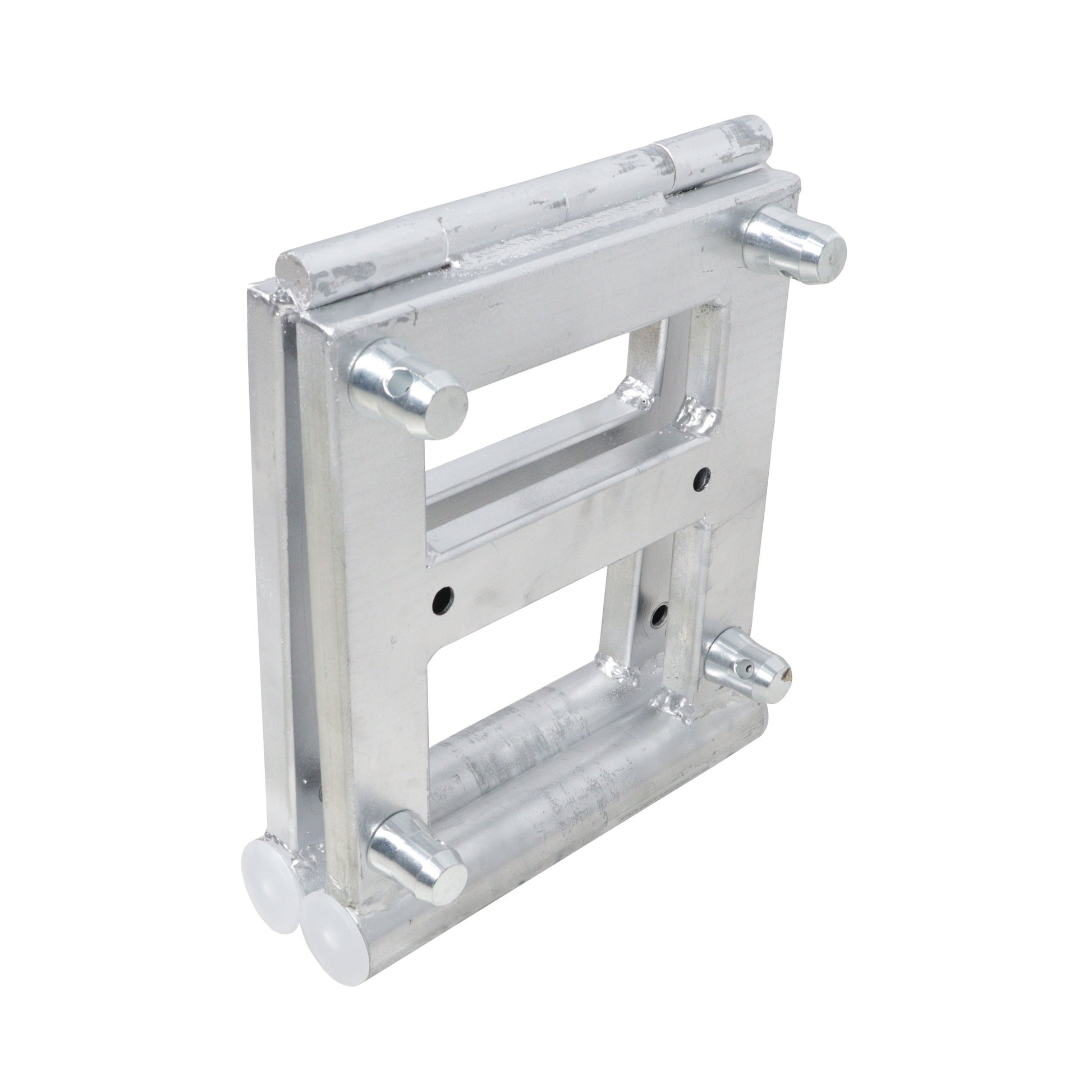

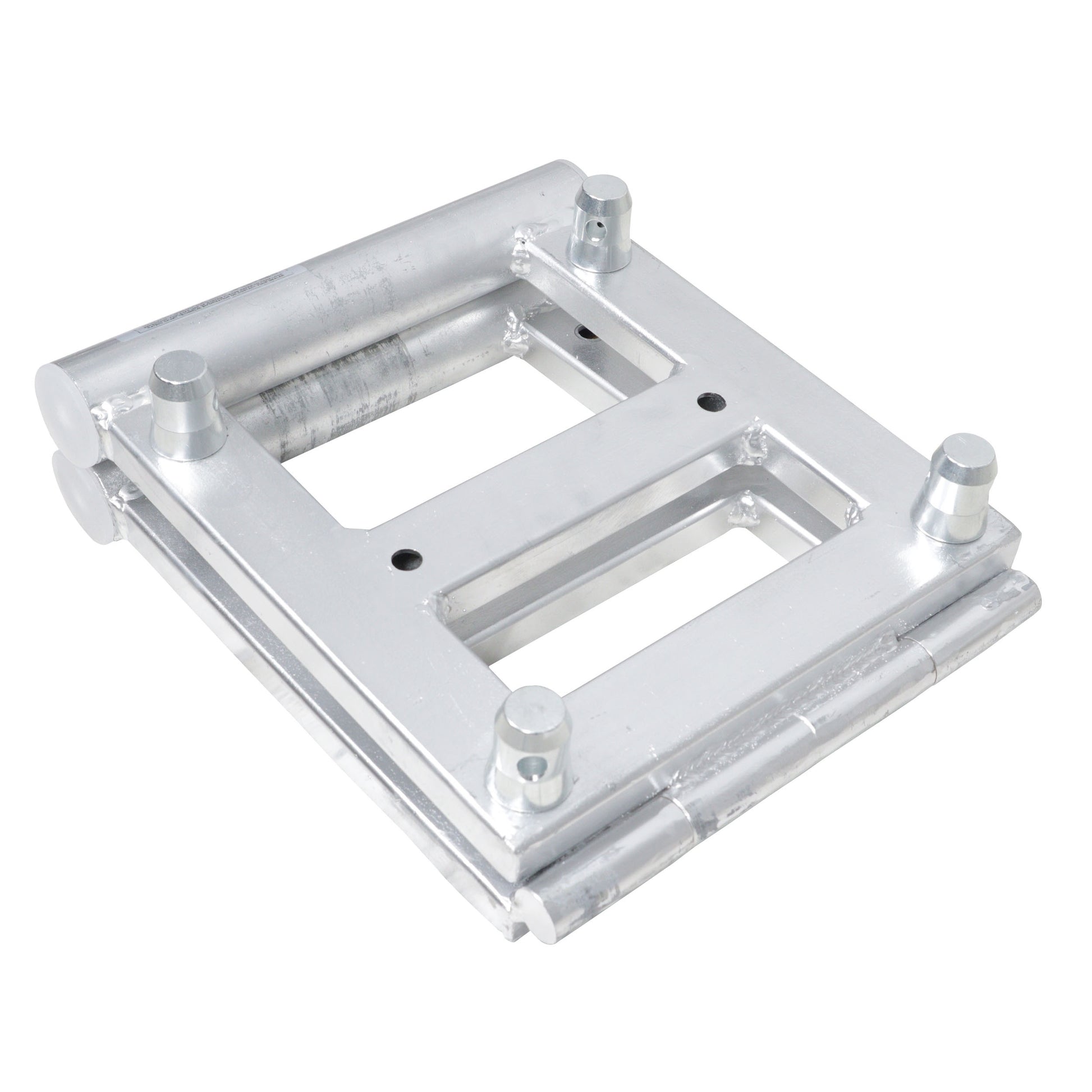

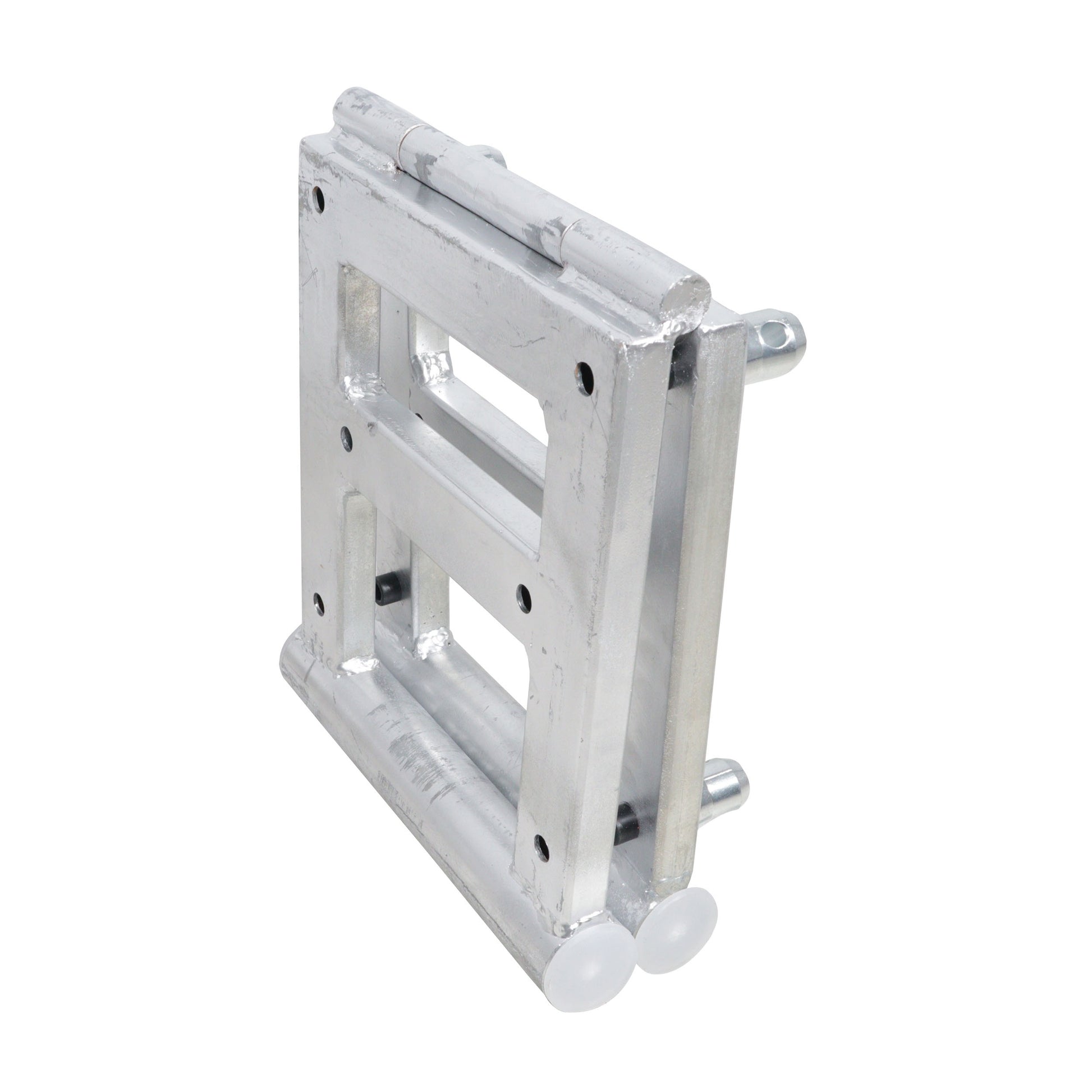

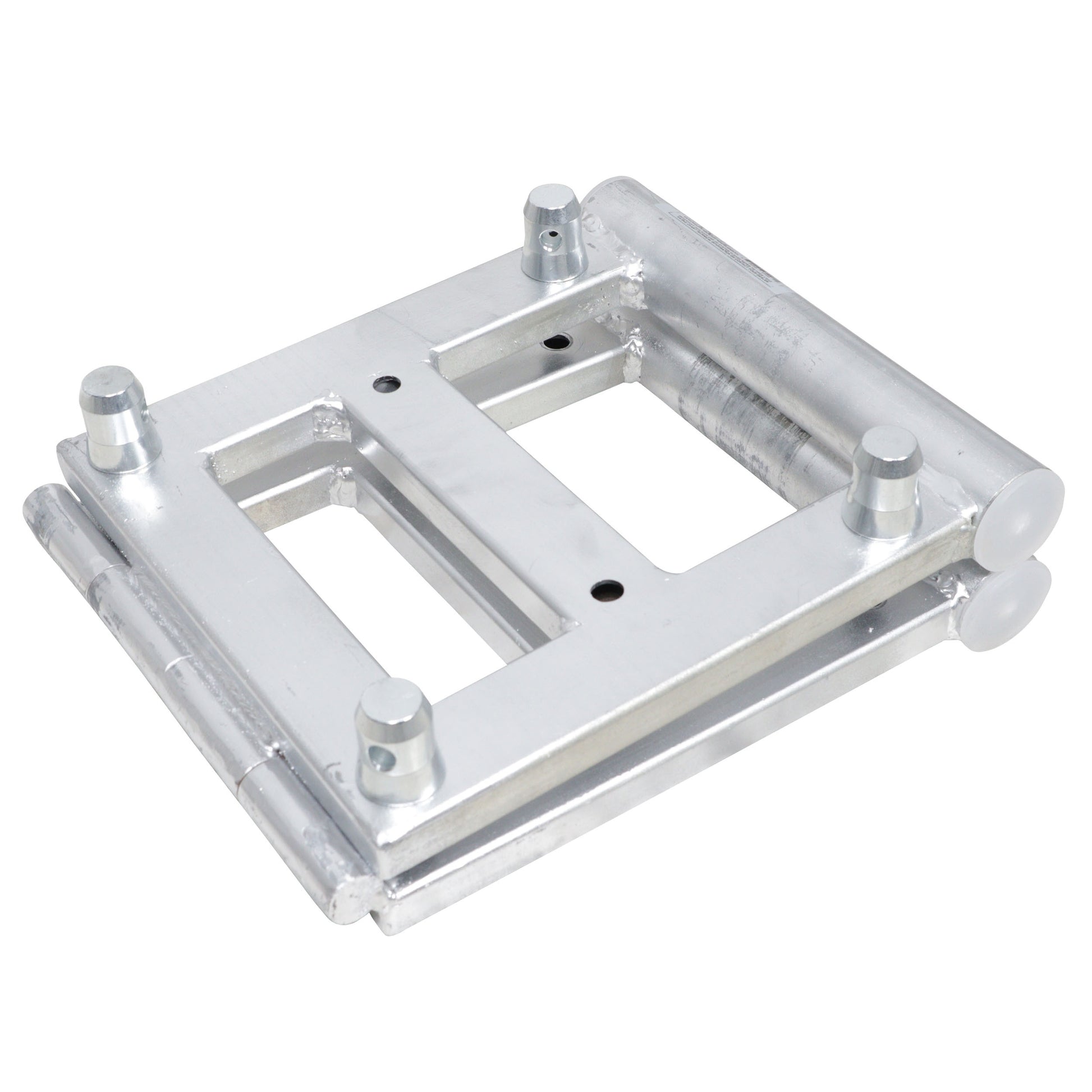

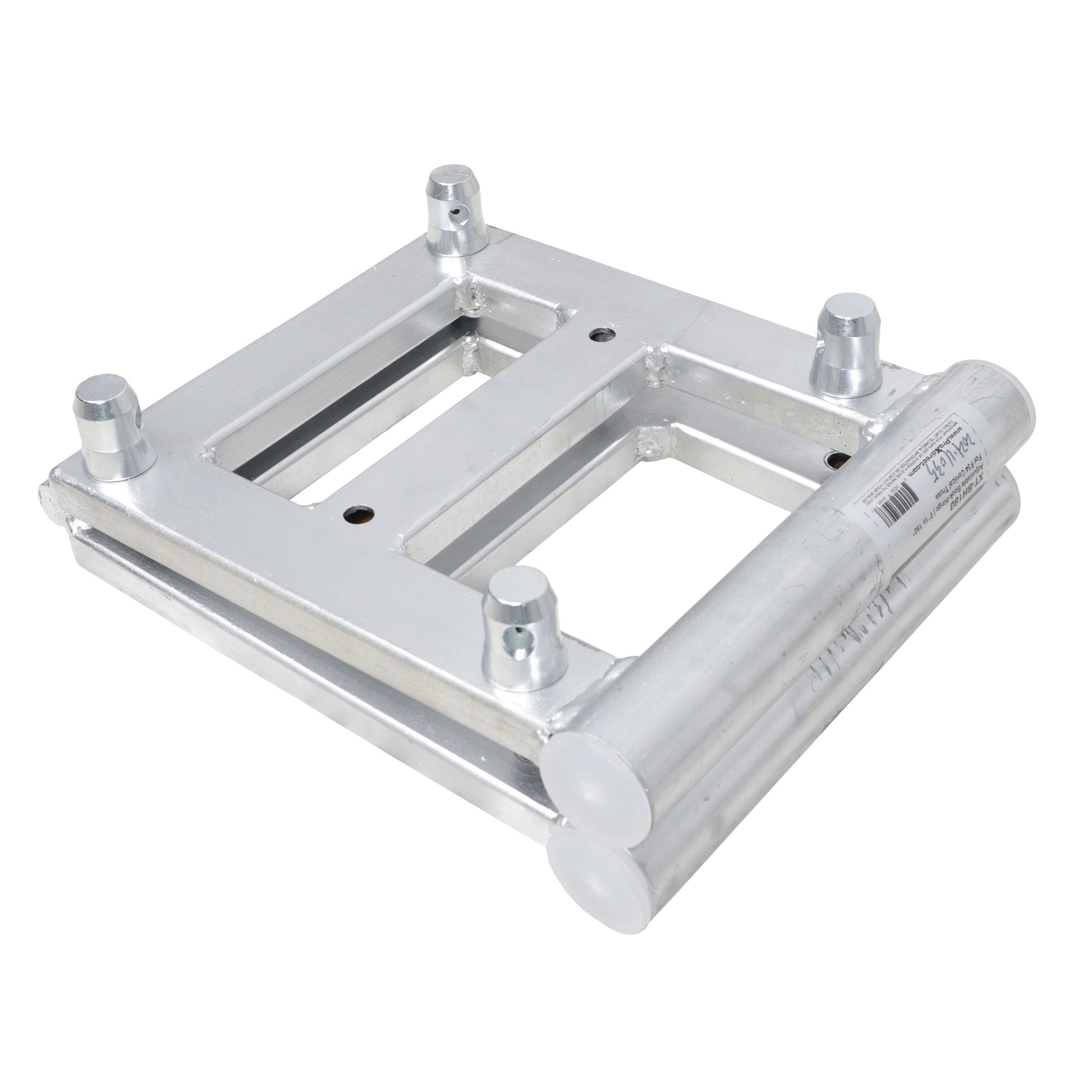

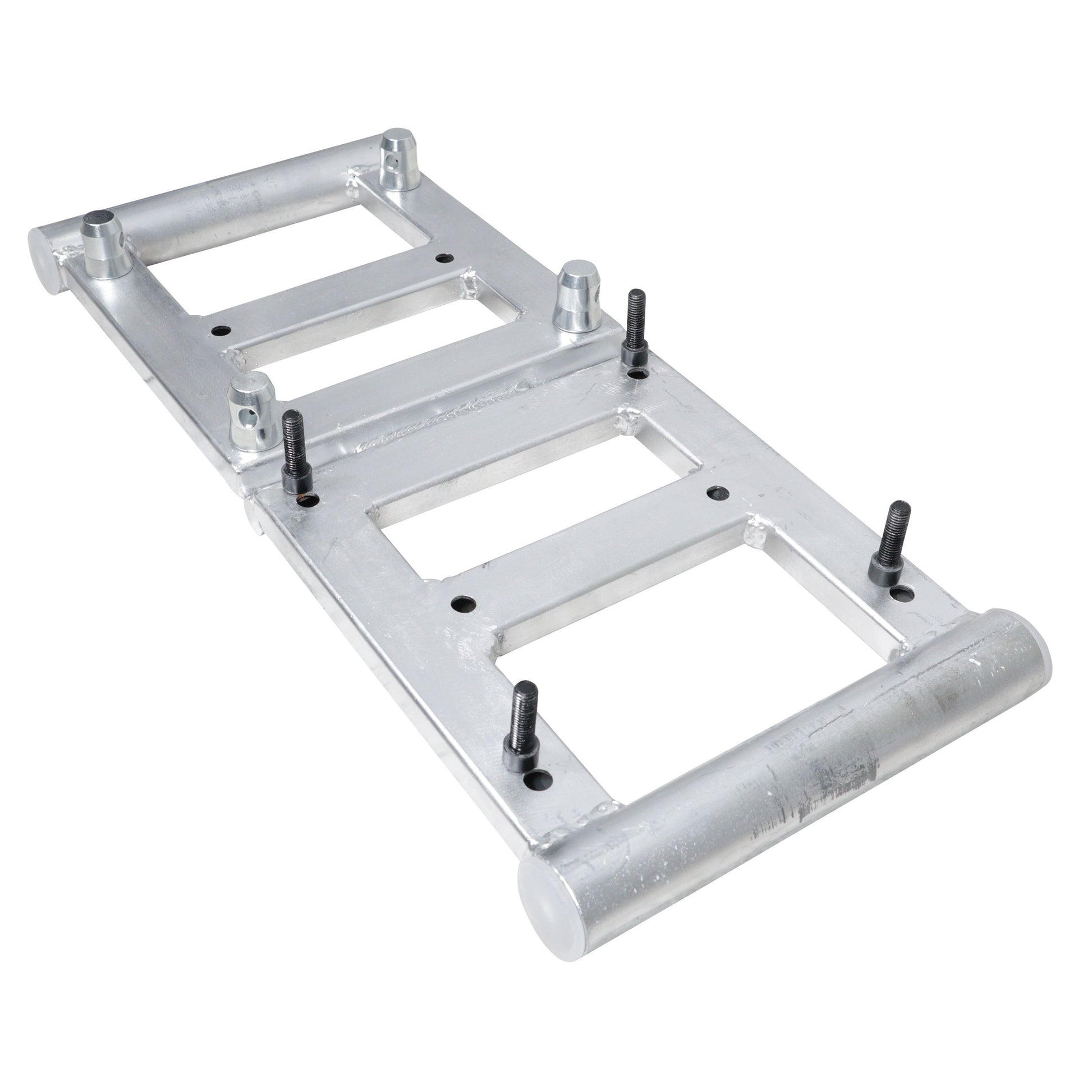

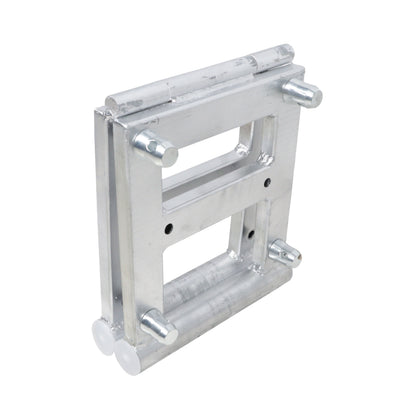

ProX XT-BH180 Adjustable Plate Hinge For F34 Conical Truss
ProX XT-BH180 Adjustable Plate Hinge For F34 Conical Truss
SoundPro Item: 132818 | Part Number: XT-BH180
Usually ships in 5-7 business days
- Variable Angle Lock From 3 To 180 Degrees Enables Custom Truss Geometry
- TUV-Certified Aluminum Welding Provides Third-Party Structural Verification
- Tolerance-Free Standard Conical Connector For Cross-Brand Compatibility
- Built-In Adjustable Arm Locks Desired Angle Between Truss Sections
- Conical Couplers Included On One Side For Ready Connection
- Lightweight 6061 Aluminum Construction Simplifies Transport And Setup
The ProX XT-BH180 is a variable-angle plate hinge engineered for production riggers, mobile DJ companies, and installation contractors who need custom truss geometry beyond what fixed corners allow. It is designed to work with ProX 12-inch SQ F34 conical square trussing and mates with other manufacturers' trussing of the same size and connector style, giving integrators flexibility across mixed-brand systems.
A built-in adjustable locking arm holds any angle between 3 and 180 degrees, making it practical for non-standard stage configurations, angled overhead structures, and junction box connections in permanent nightclub or touring rig installs. The hinge ships with conical connectors, spigots, and cotter pins, so crews can complete the connection without sourcing separate hardware.
Construction uses 10mm EN-AWT6 6061 aluminum throughout, keeping the assembly light enough for frequent load-in and load-out while maintaining the structural integrity required for overhead rigging. TUV-certified aluminum welding provides third-party verification of weld quality, a meaningful distinction from non-certified competitors in the same price bracket. Industry-standard dimensions ensure compatibility with a wide range of corners, base plates, and truss accessories for scalable system design.
Downloads
Downloads
Specifications
