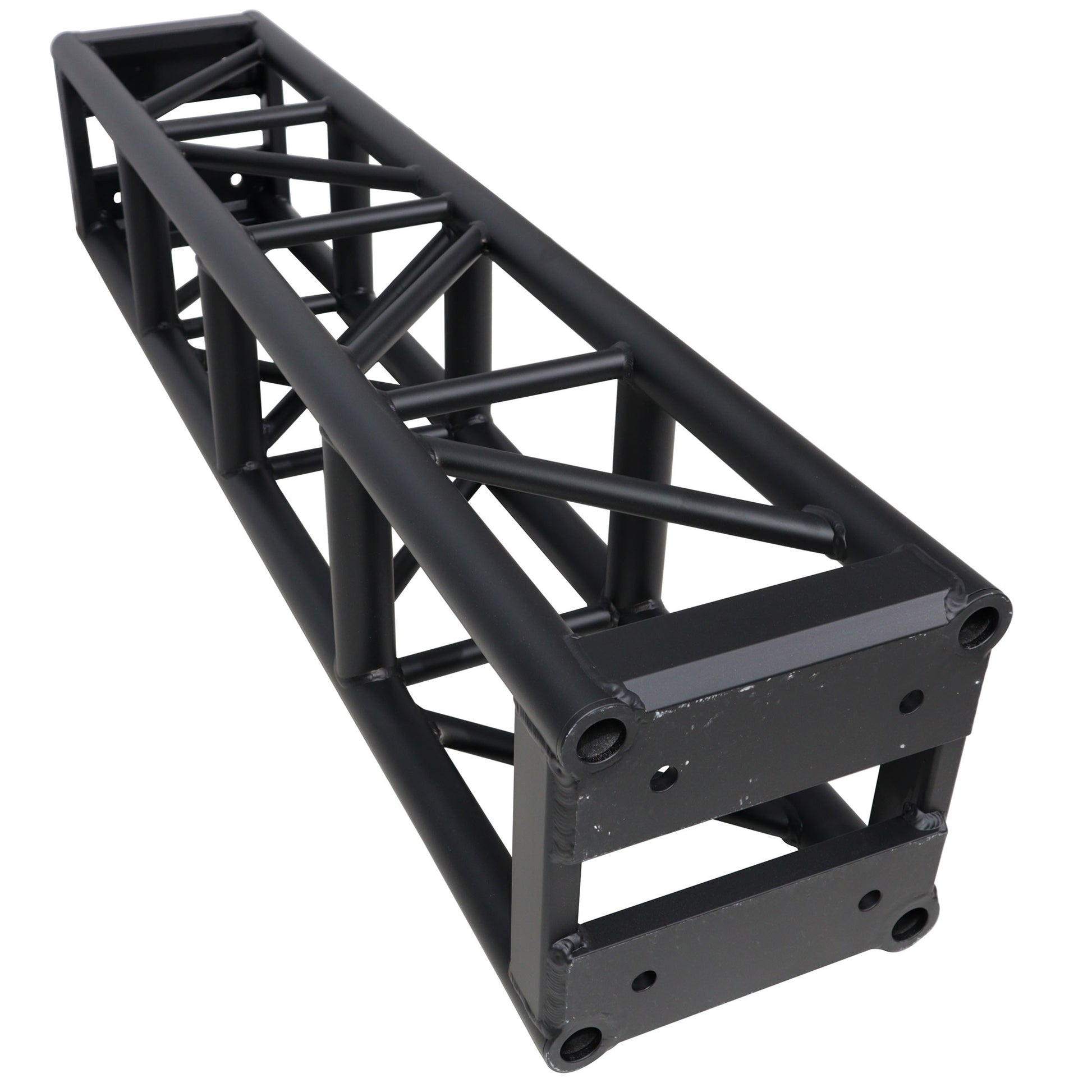

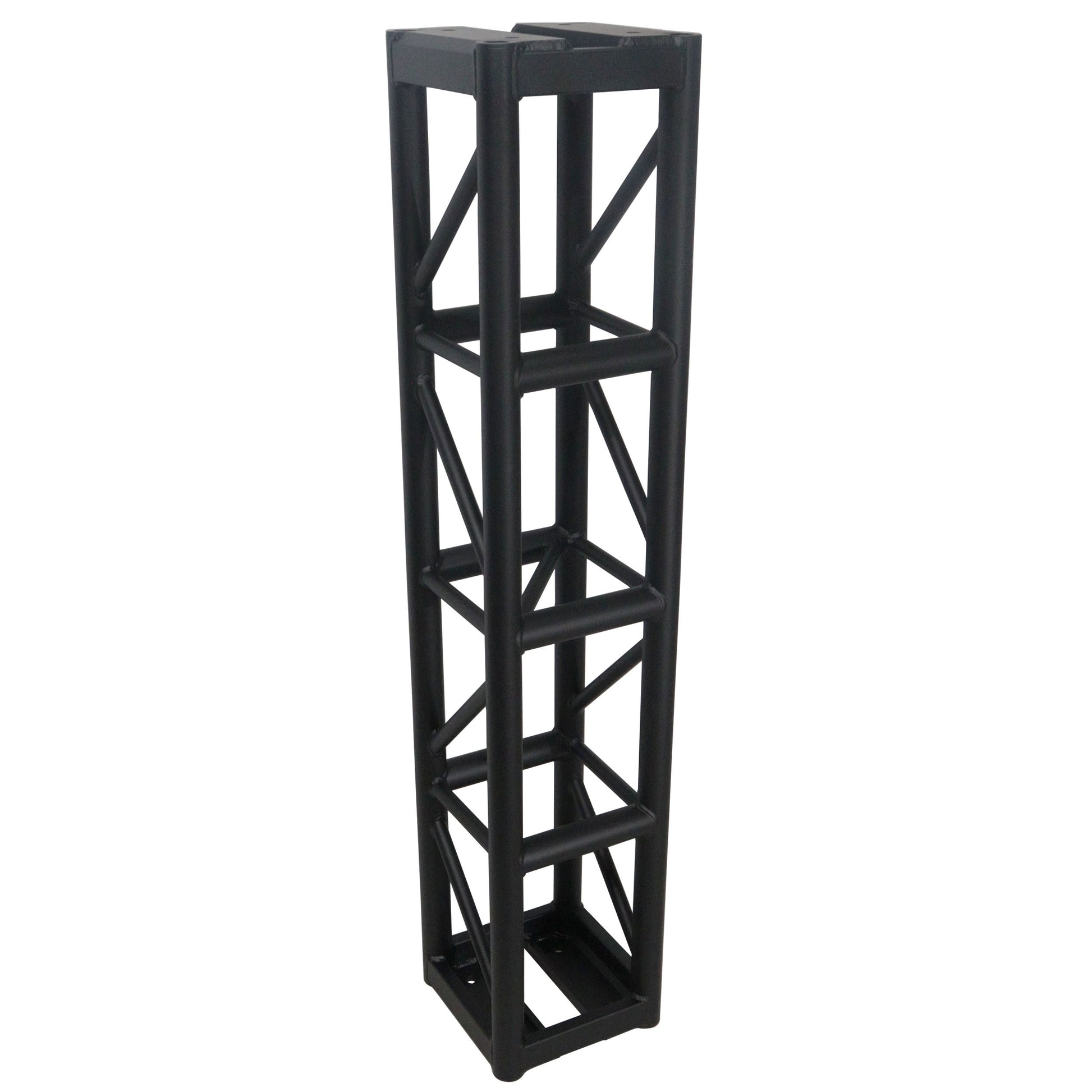

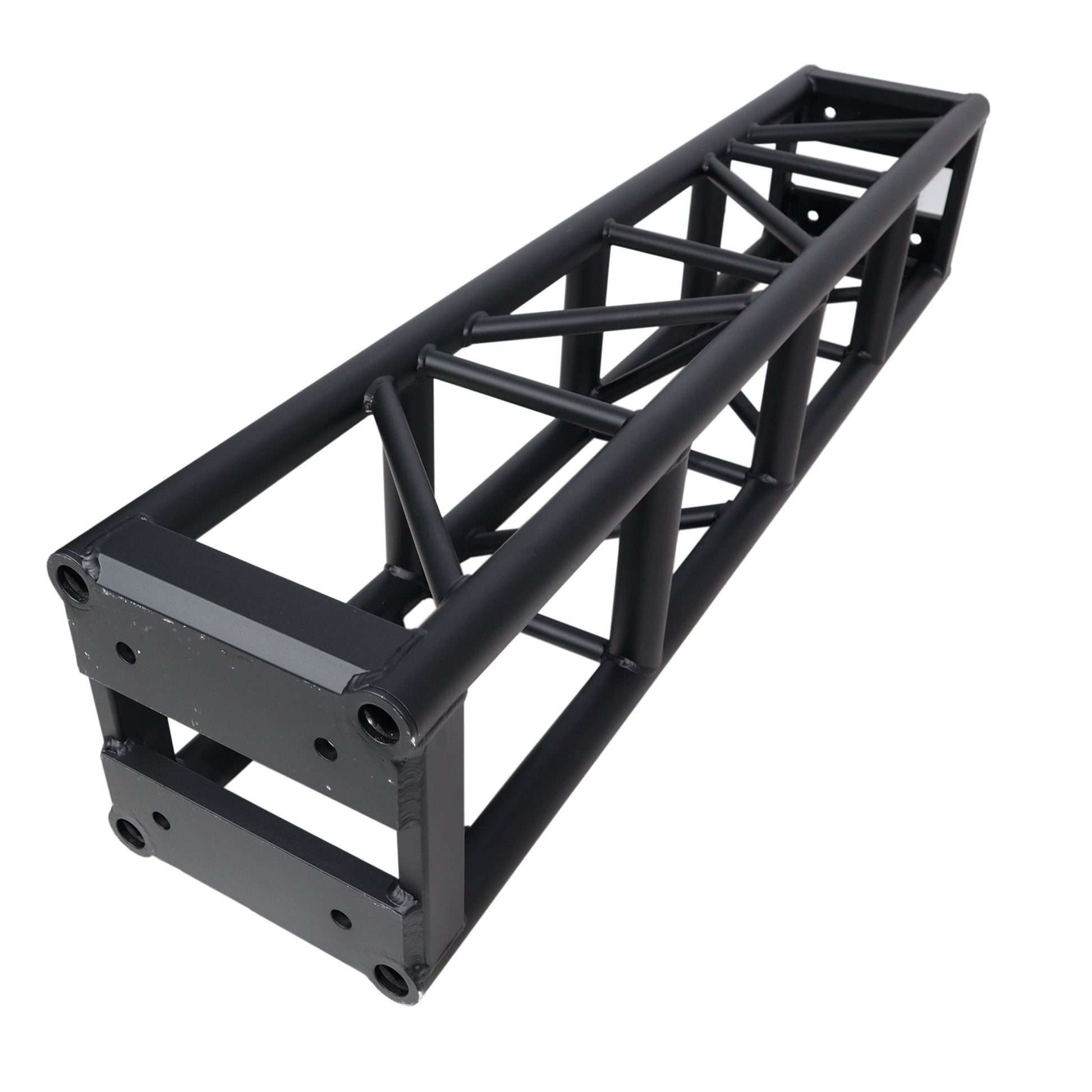

ProX BoltX Professional Box Truss Segment 12" Bolted Aluminum | 5 ft | Black
ProX BoltX Professional Box Truss Segment 12" Bolted Aluminum | 5 ft | Black
SoundPro Item: 128725 | Part Number: XT-BT1205BLK
Usually ships in 5-7 business days
- TUV-Certified Welding By GSI SLV-Certified Welders Ensures Verified Structural Quality

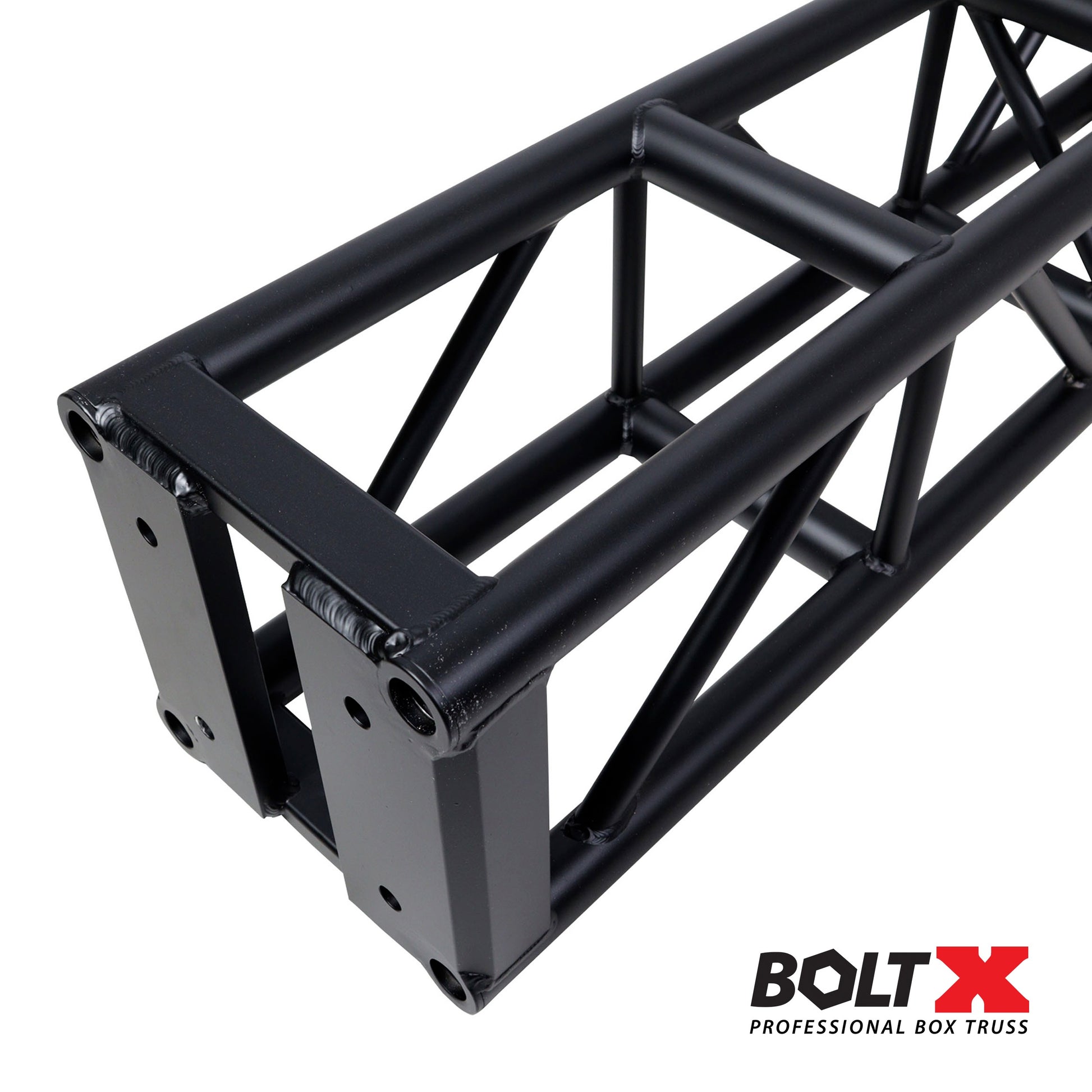

- Innovative End Plates Welded On Both Sides For Superior Strength And Durability
- Corner Circular Rings Protect Chord Ends From Drops And Concrete Floor Damage
- Industry-Standard 6.75" Bolt Center Pattern Connects To Most 12" Box Truss Systems
- Load Tested And Inspected During Manufacturing For Reliable On-Site Performance

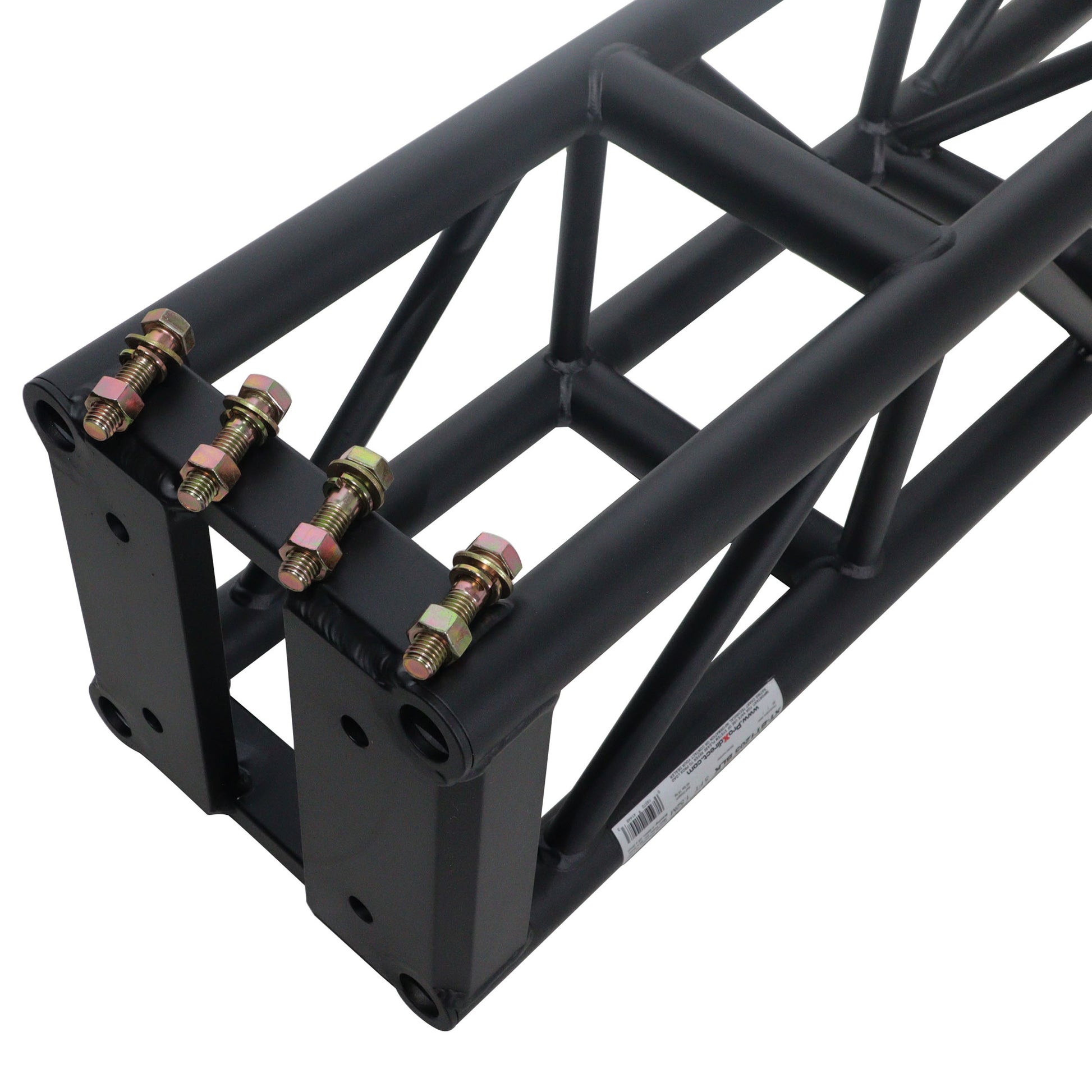

- Hardware Included With Each Section For Immediate Assembly Without Extra Sourcing

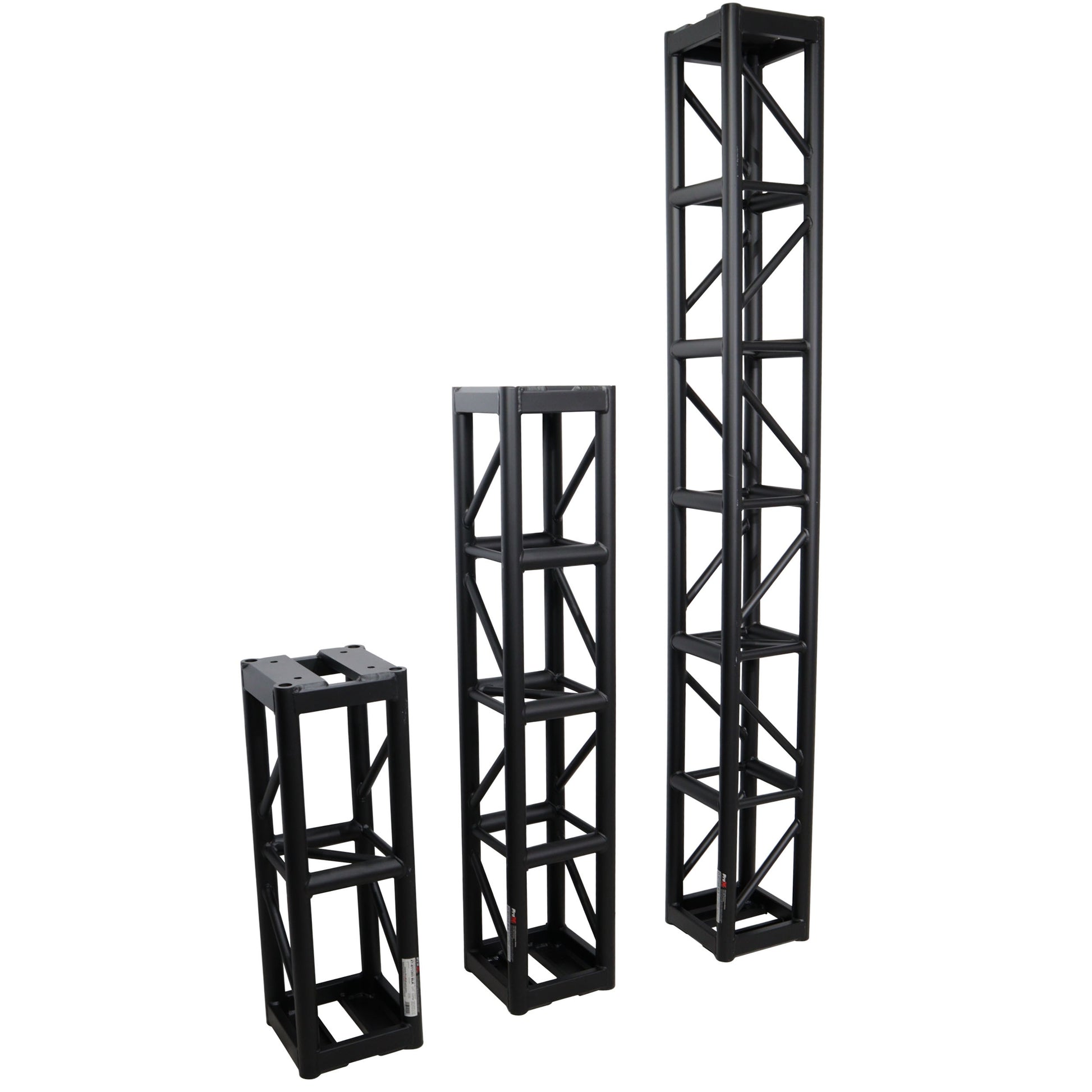

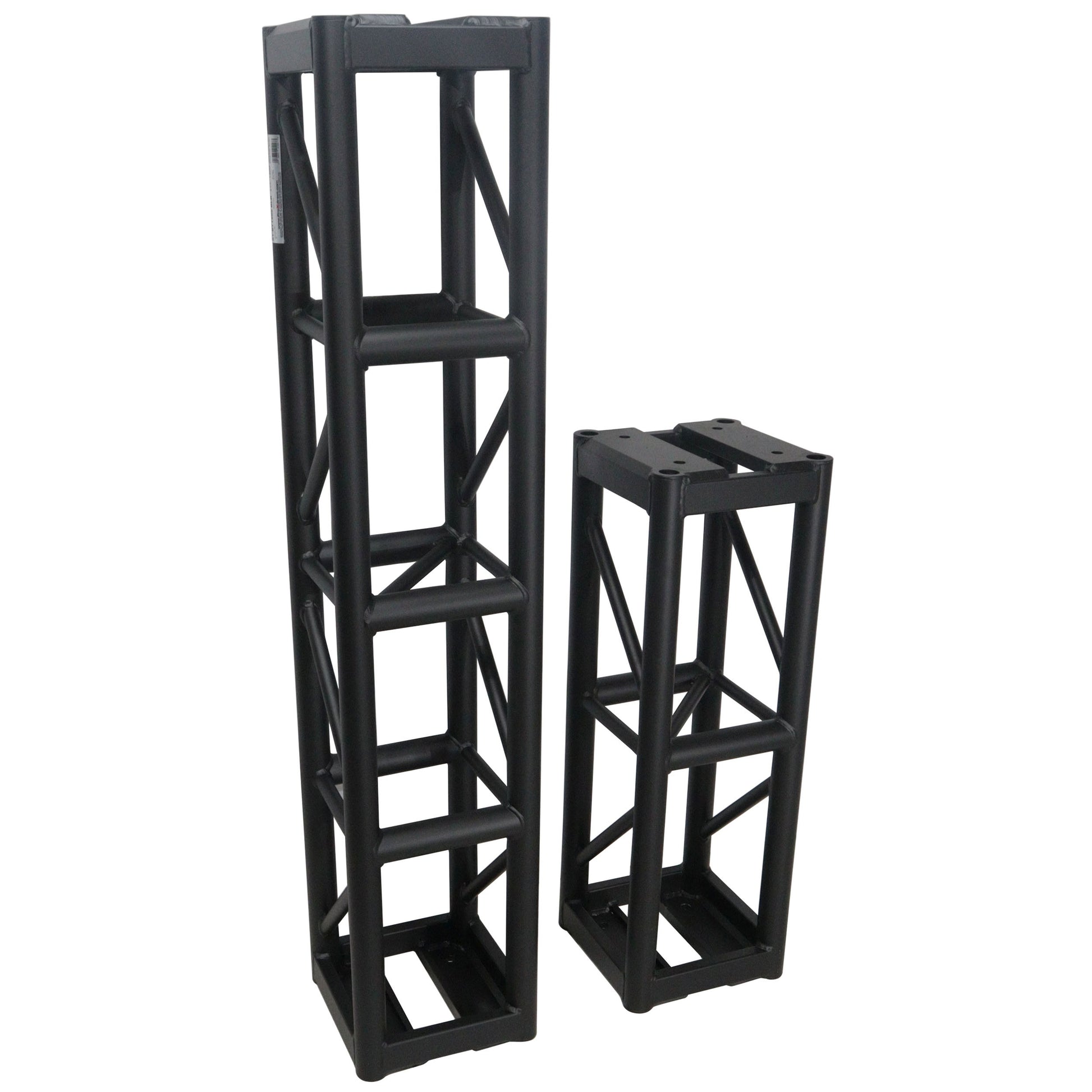

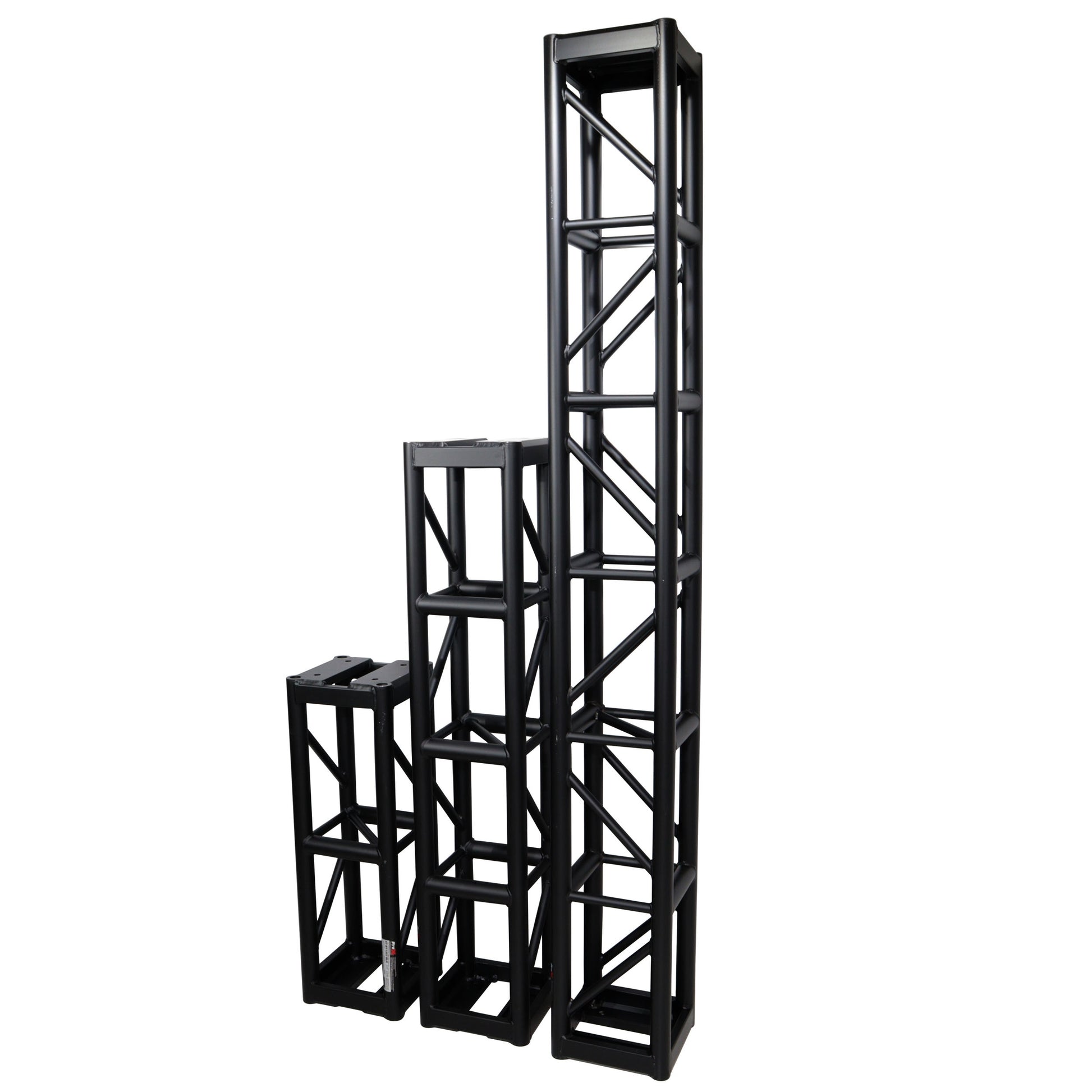

- Available In Multiple Lengths And Natural Aluminum Or Black Finishes
The ProX BoltX Professional Box Truss Segment series is built for production riggers, lighting designers, and stage contractors who need reliable, load-tested aluminum truss that integrates with existing inventory. Available in lengths from 1 ft to 10 ft and in natural aluminum or black finishes, the range covers everything from short filler sections to full span runs for concert stages, touring productions, corporate events, and fixed installations.
Every segment is fabricated from 6082-T6 aluminum alloy and welded to TUV standards by GSI SLV-certified welders, providing a verified level of quality control that generic imported truss cannot match. The end plate design uses heavy-duty aluminum welded on both sides, and exclusive circular rings at each corner protect the main chord ends from damage during drops or dragging across concrete floors. These details directly reduce the cost of ownership on high-cycle touring and rental inventories where sections are regularly handled under pressure.
Compatibility is a practical priority for production teams mixing truss from multiple vendors. The BoltX series uses the industry-standard 6.75" bolt center pattern with 5/8" holes, allowing it to connect with most other 12" professional box truss manufacturers. Each segment ships with a complete hardware set, so crews can assemble immediately on-site without sourcing additional fasteners. The precision fitment at every connection point speeds up setup and teardown, which matters on compressed festival or corporate production schedules.
Downloads
Downloads
Specifications
