ProX XT-CDF12 Folding Plate Dual Truss Clamp For Moving Heads
ProX XT-CDF12 Folding Plate Dual Truss Clamp For Moving Heads
SoundPro Item: 76684 | Part Number: XT-CDF12
Usually ships in 5-7 business days
- Folds To Fit Standard Moving Head Flight Cases Without Removing Clamps
- One Fixed And One Rotatable Clamp For Secure, Flexible Fixture Positioning
- Multiple Bolt Patterns On Plate For Broad Compatibility Across Fixture Brands
- Captive Coil Spring Holds Clamps Open Hands-Free During Rigging
- TUV Certified Welding And Construction Meets Third-Party Safety Standards
- Black Powder-Coated Steel Plate For Durability In Touring Environments

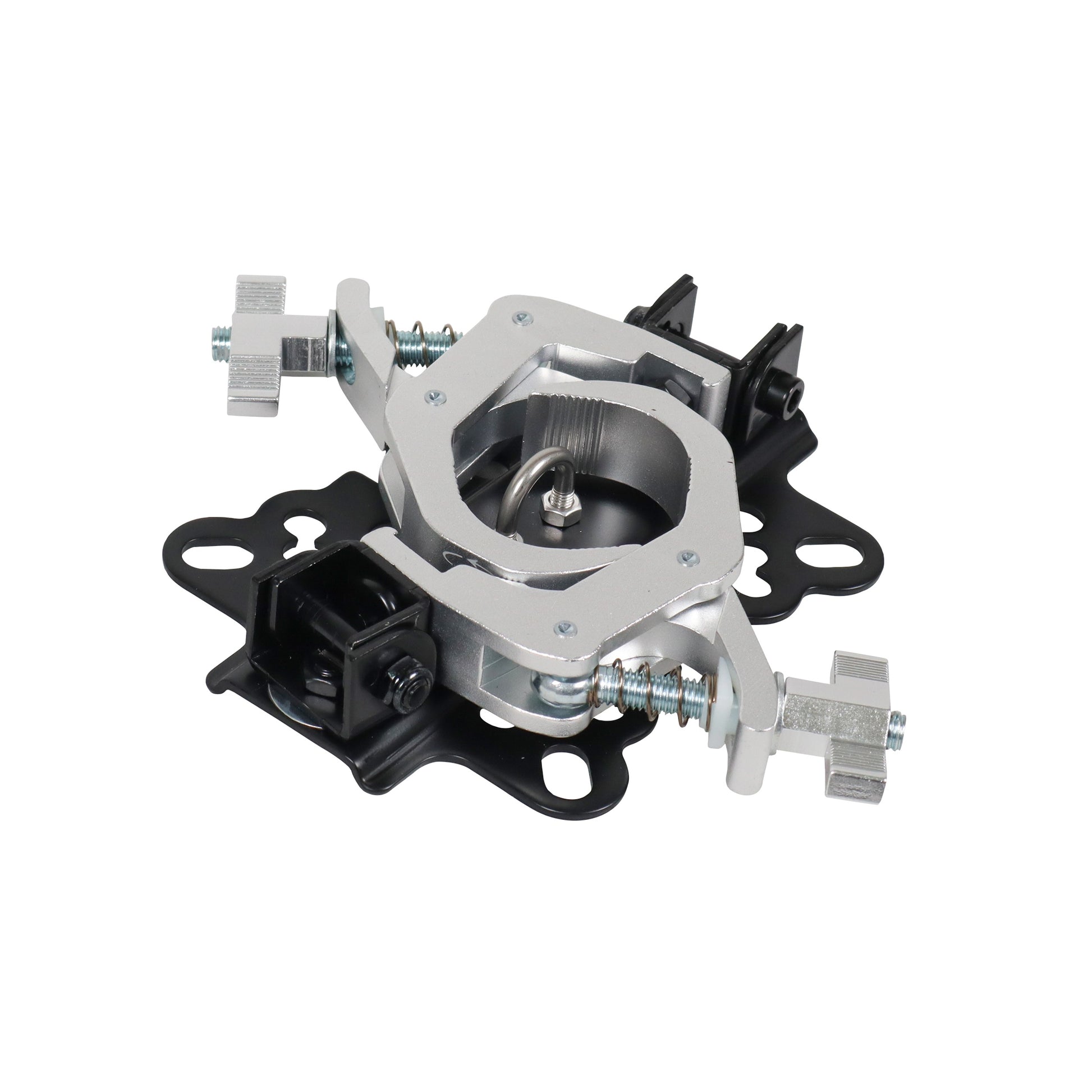

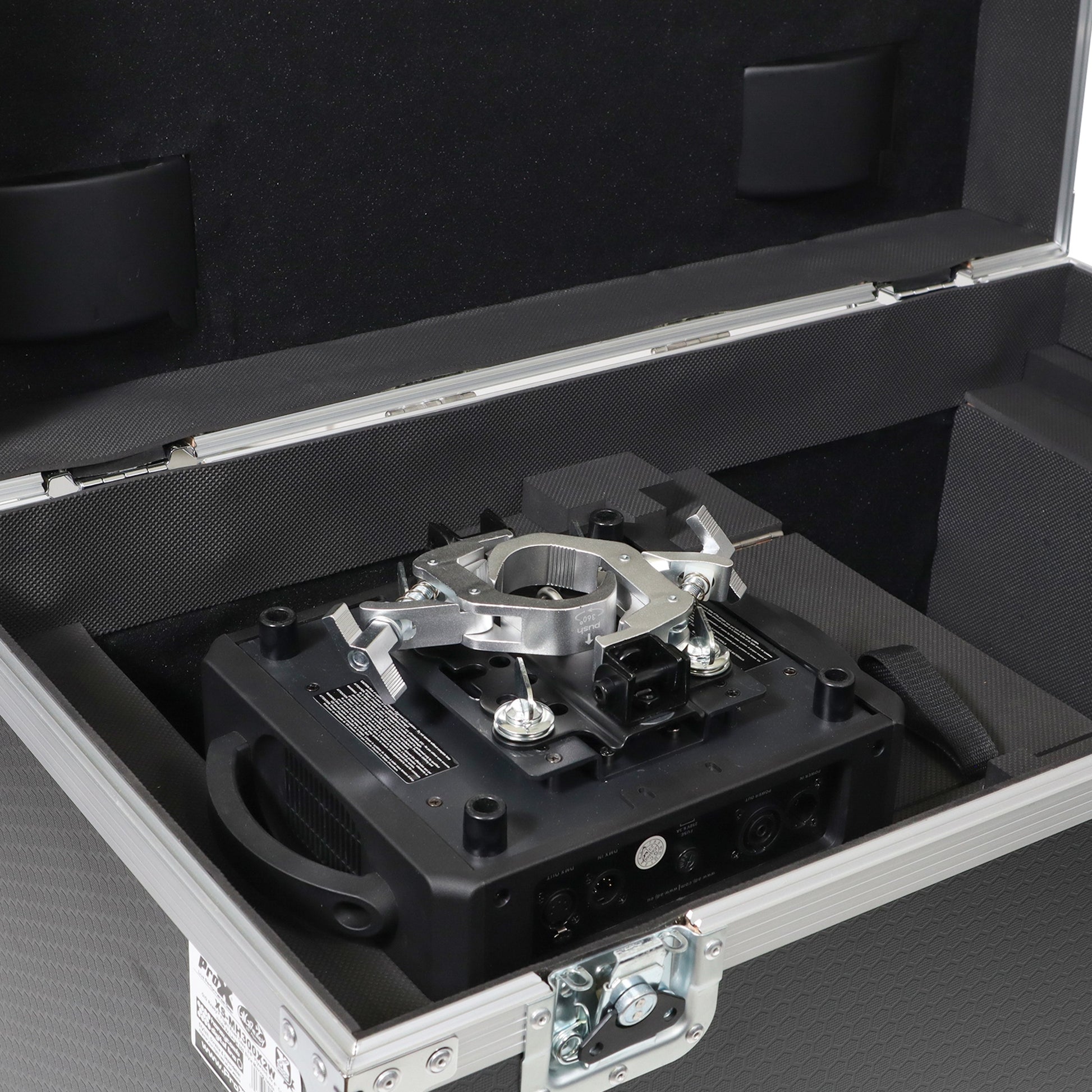

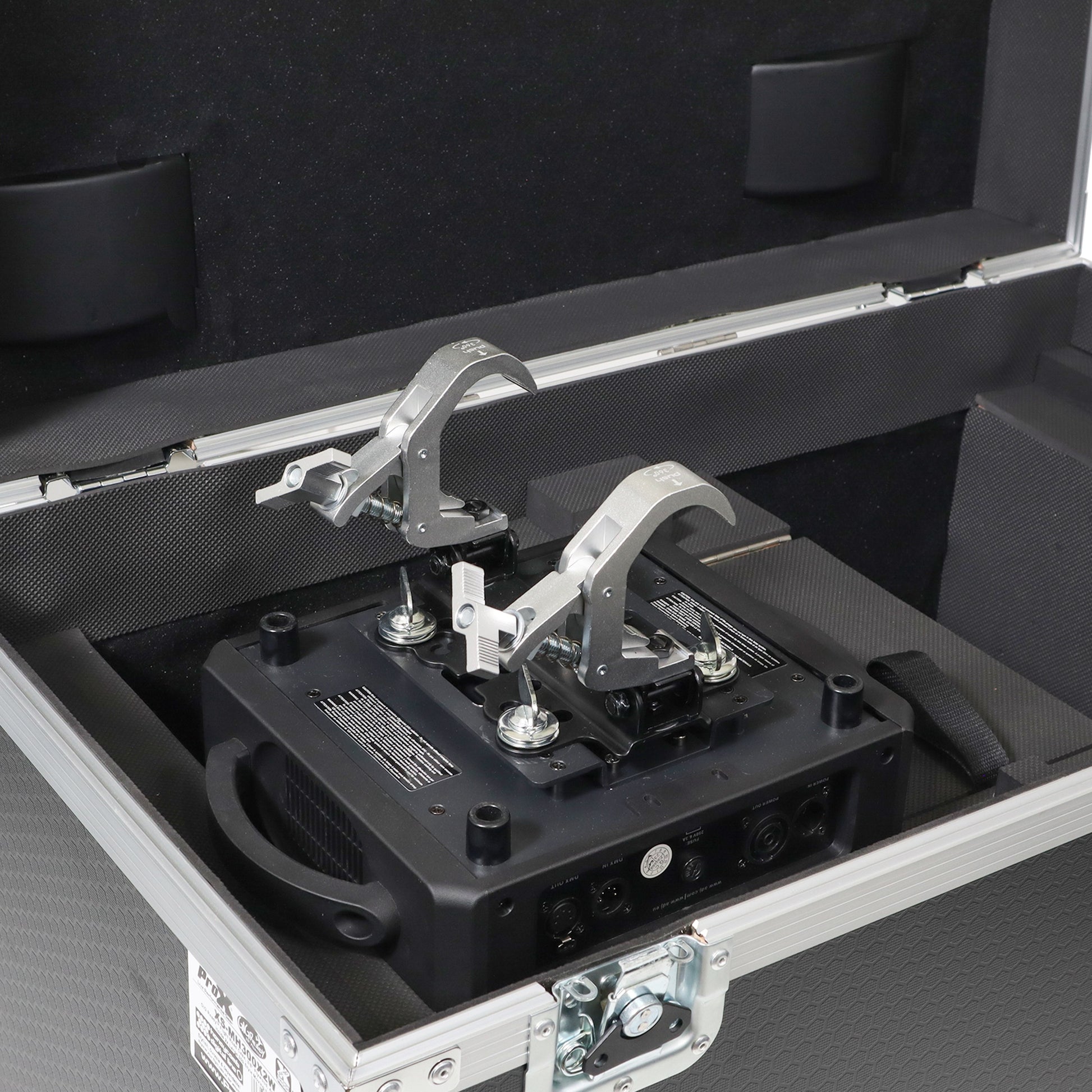

The ProX XT-CDF12 Foldaway Double Clamp Mount is built for riggers, lighting designers, and production companies who run moving head fixtures on truss. The core problem it solves is practical: standard road cases require clamps to be fully removed before the lid closes, adding time and creating opportunities for hardware to go missing during a fast strike. The XT-CDF12 folds flat to approximately 1-1/4 inches, allowing fixtures to go directly into standard moving head flight cases with the clamp assembly still attached.

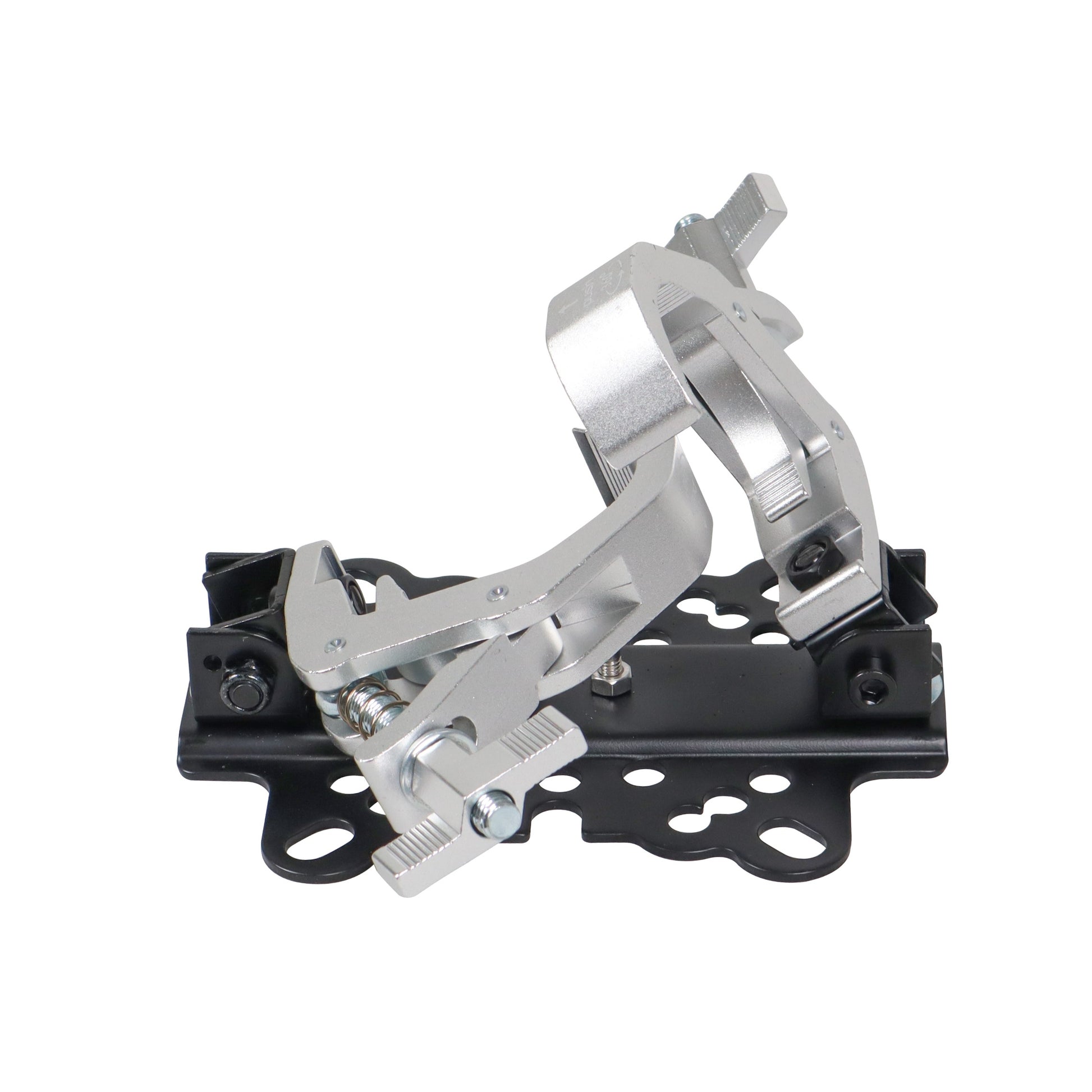

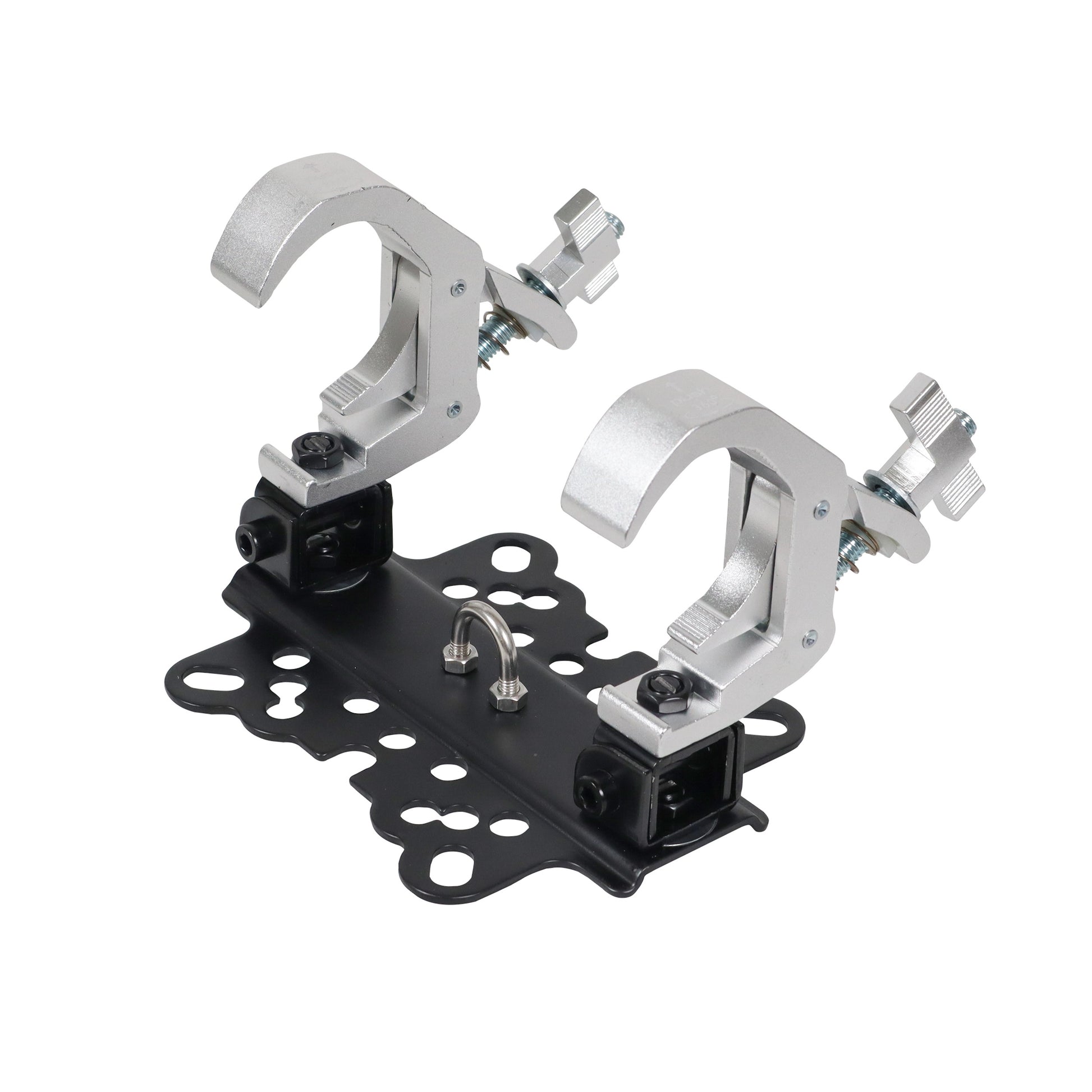

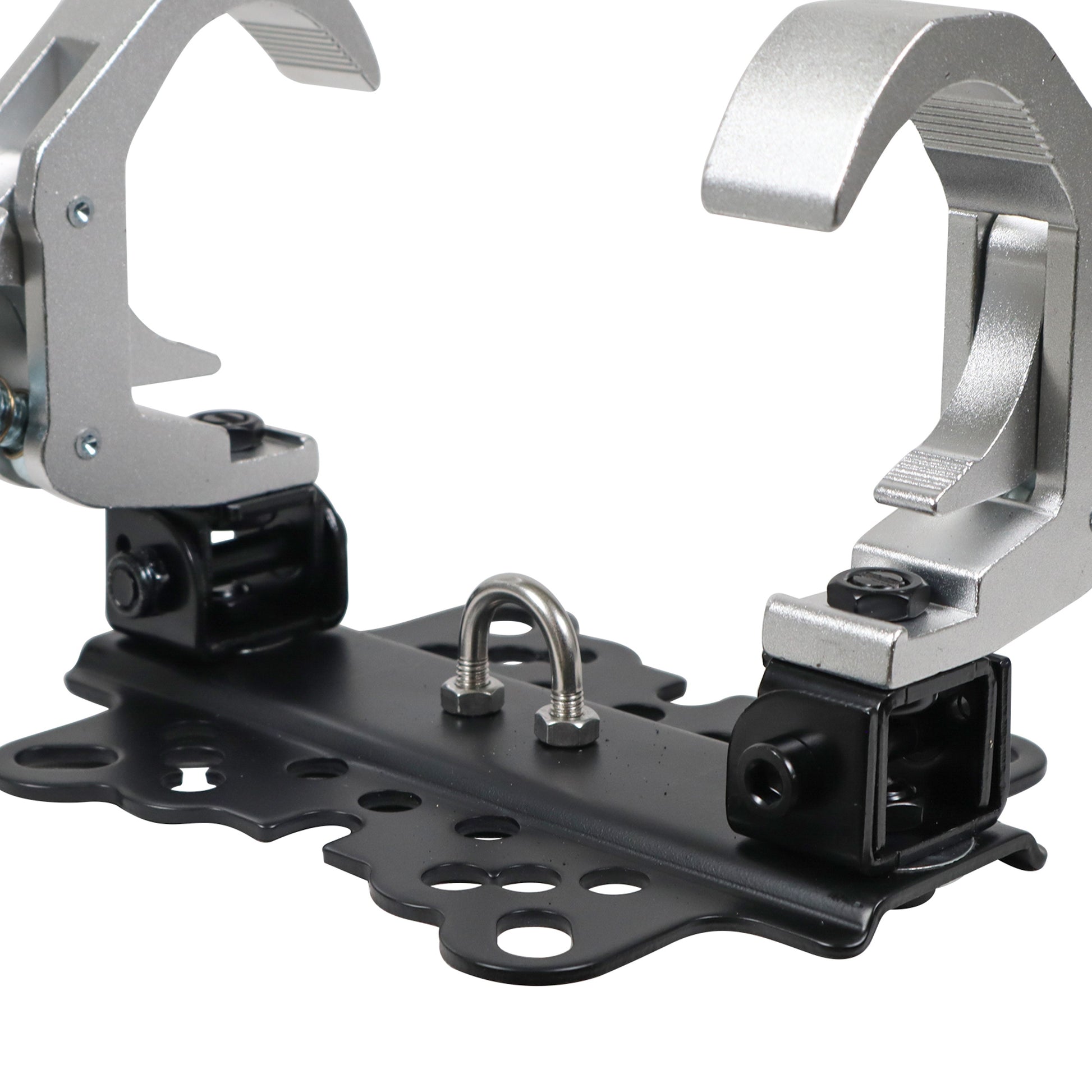

The plate uses one fixed-direction clamp and one rotatable clamp, both secured to a heavy-duty steel mounting plate drilled for multiple bolt patterns including 115mm x 105-115mm, 155mm x 115mm, and 90mm x 80mm, covering a wide range of moving head brands. Wing nuts with flat and lock washers provide secure tensioning, and captive coil springs hold the clamps open during rigging. In the folded position the clamps interlock on the plate for a compact, self-contained assembly. The mounting plate carries a black powder-coat finish and the entire assembly is TUV Certified for welding and construction, meeting third-party safety and reliability standards required by many venue and touring contracts.

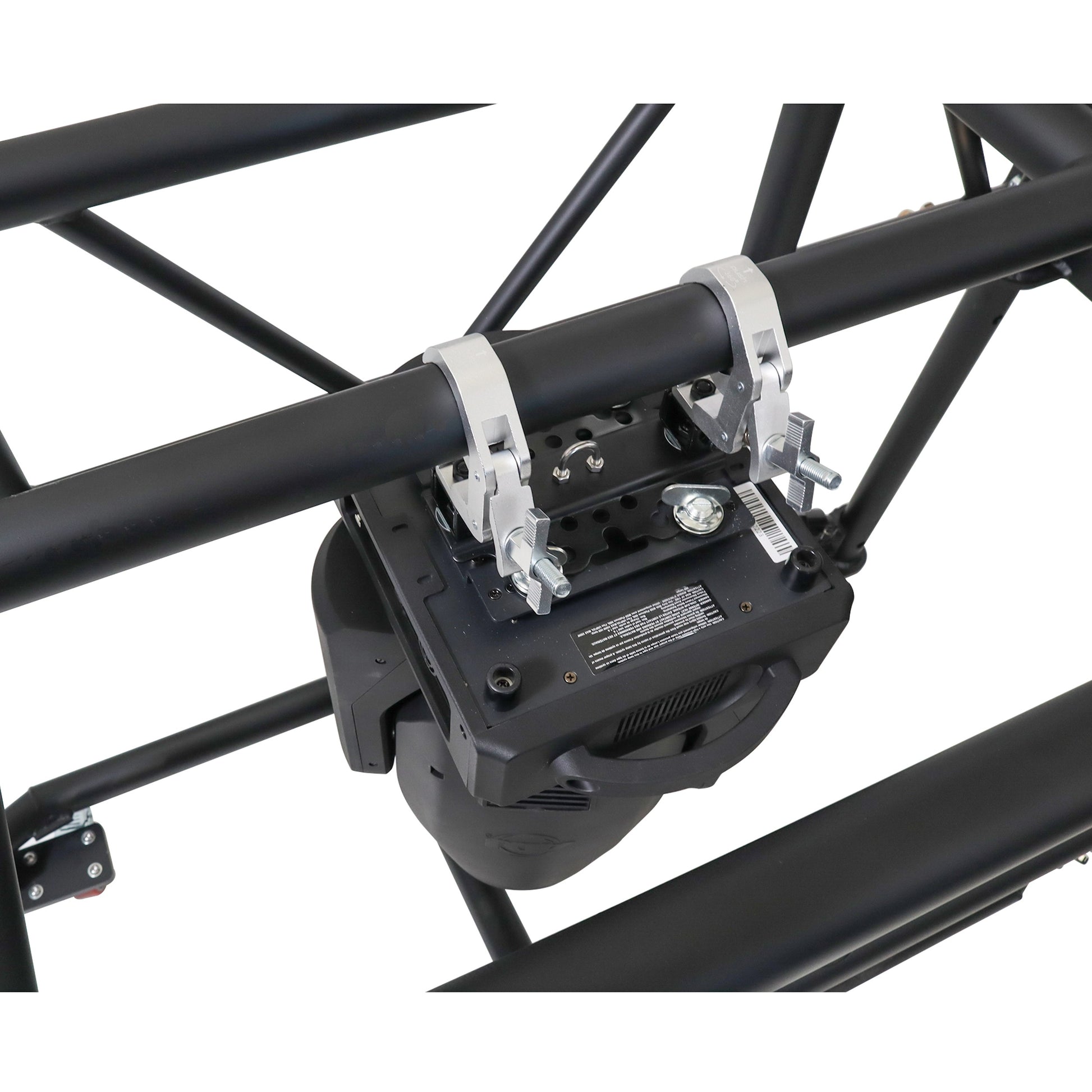

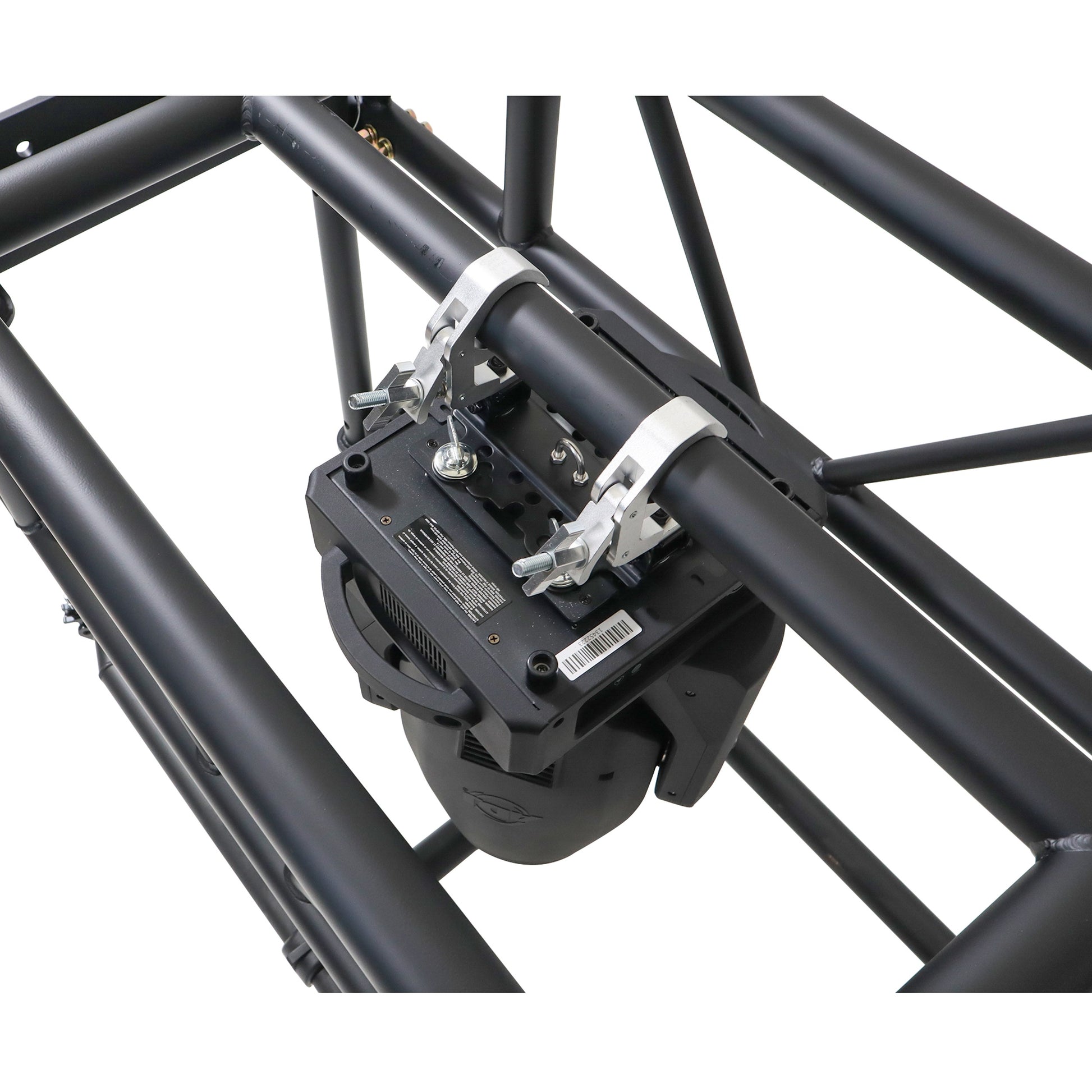

For touring production, corporate events, and club installs where rig time is a budget line item, the XT-CDF12 delivers a measurable workflow advantage over conventional clamp-and-bolt setups. Compatibility with 2-inch and 50mm truss tubes and pipes keeps it usable across the full range of standard truss systems in live production environments.
