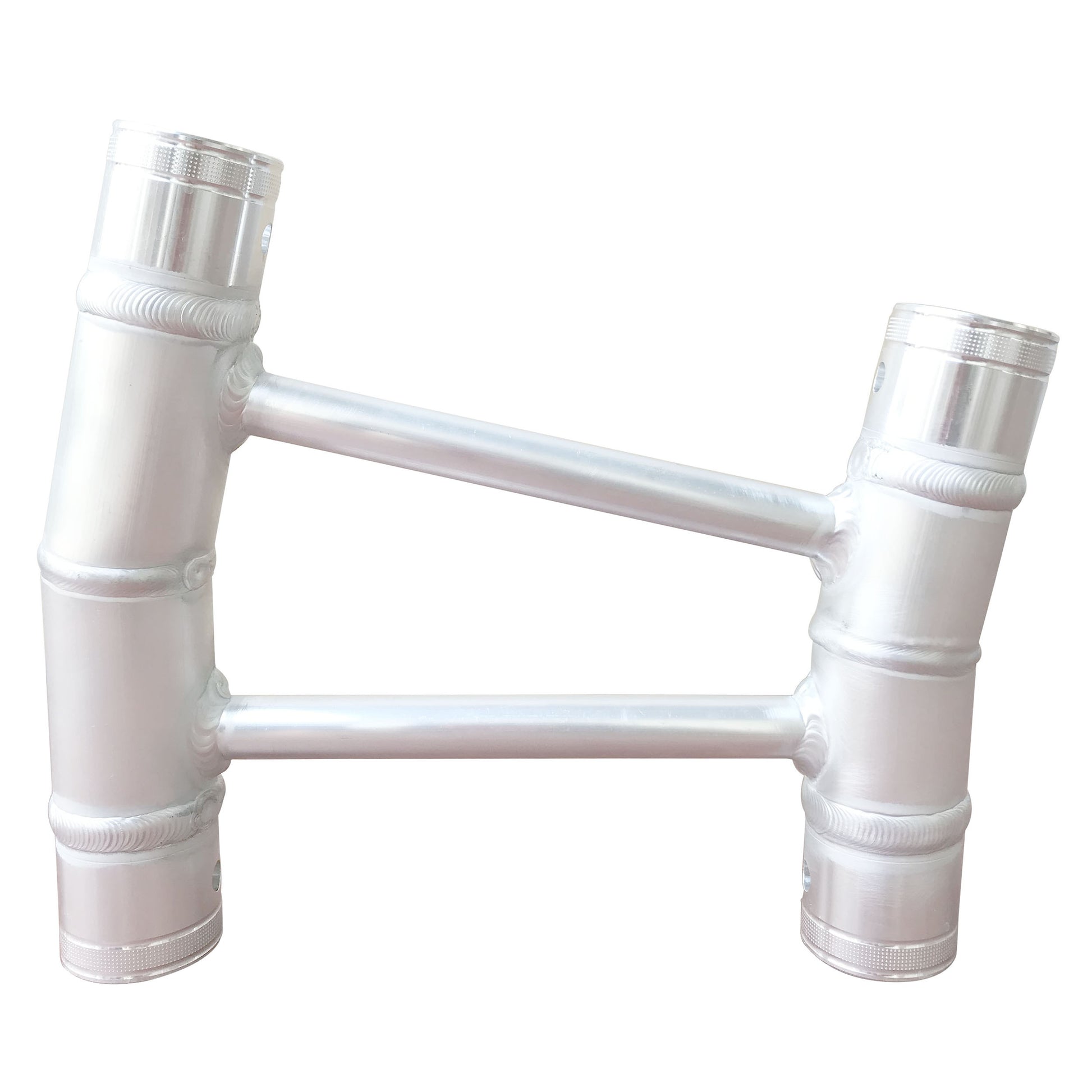

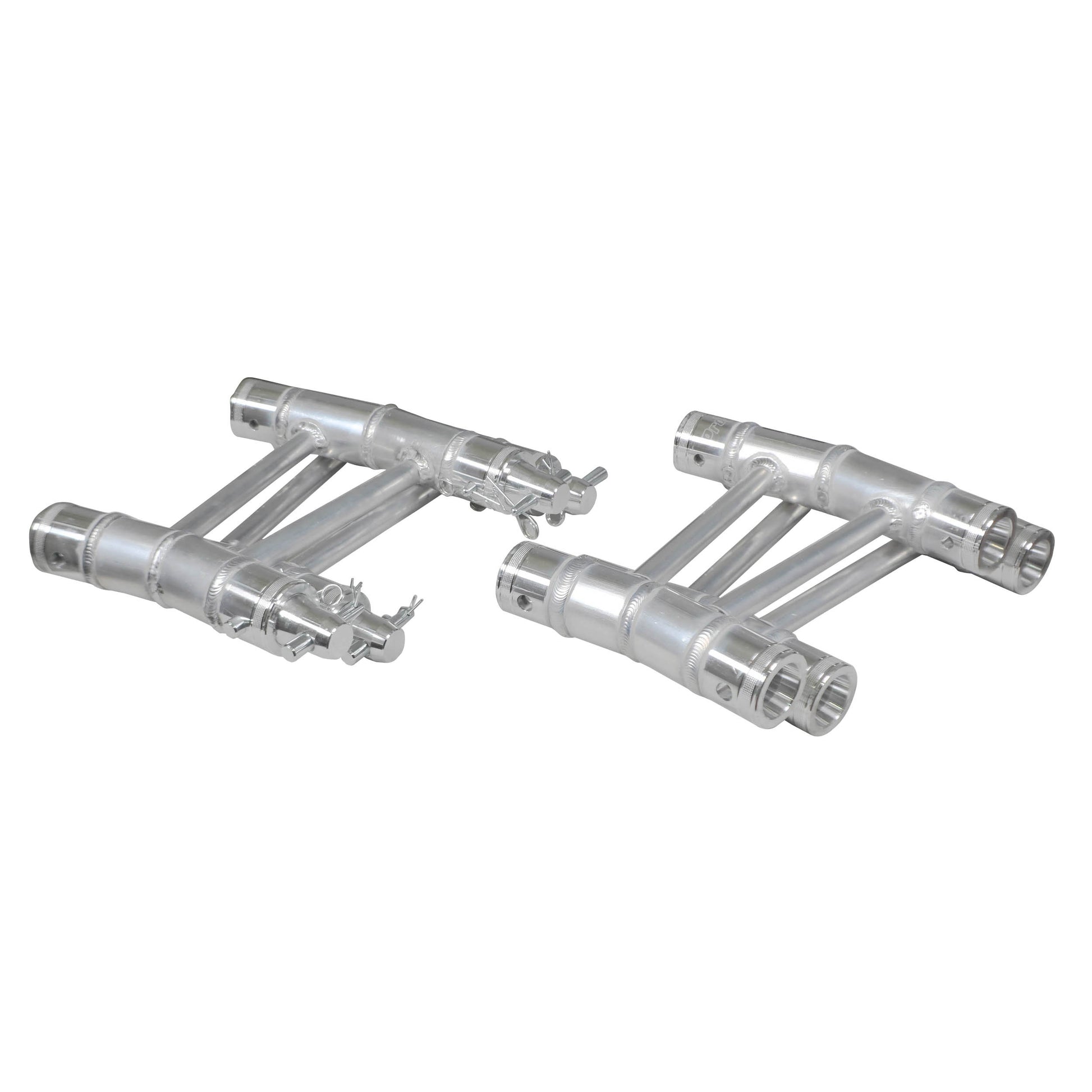

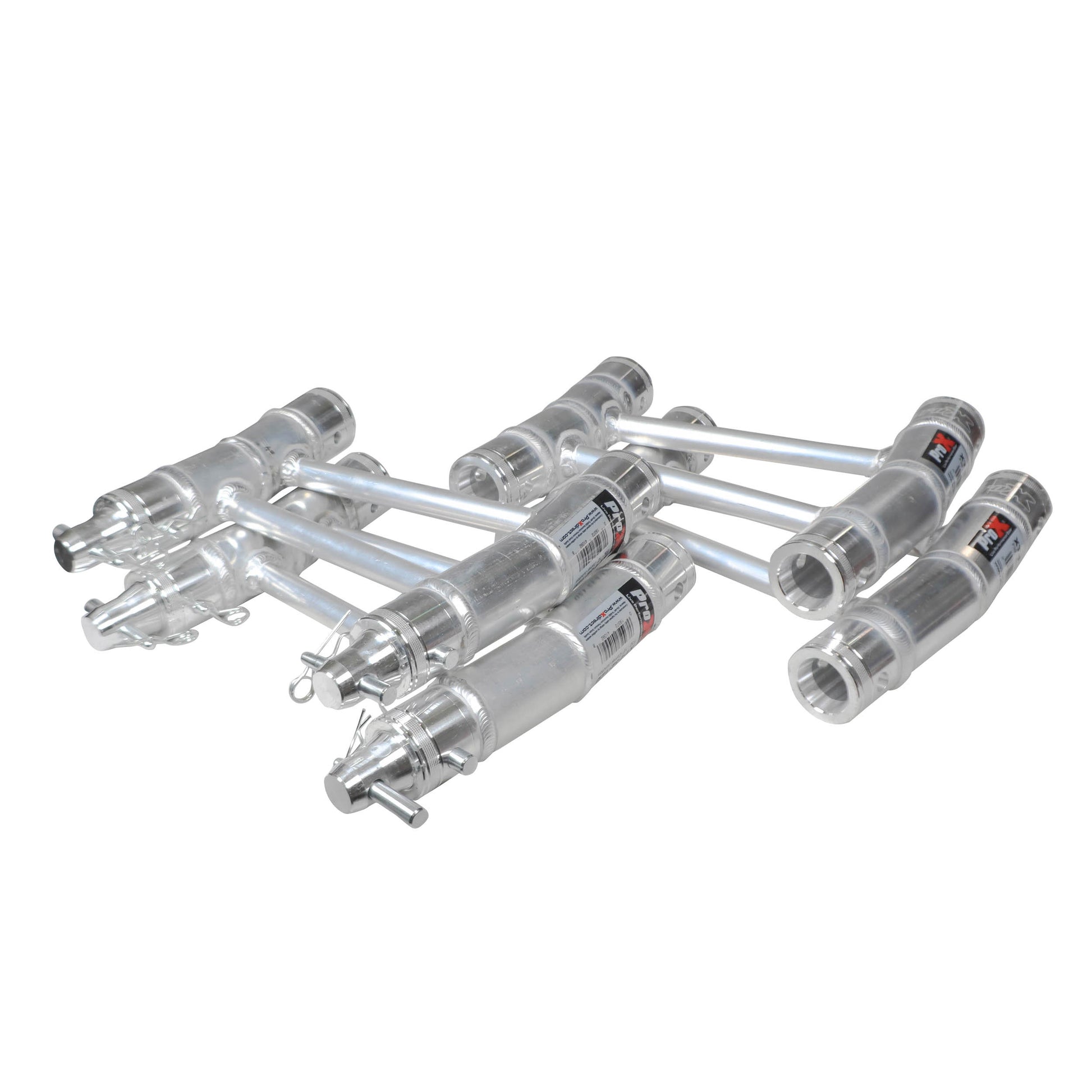

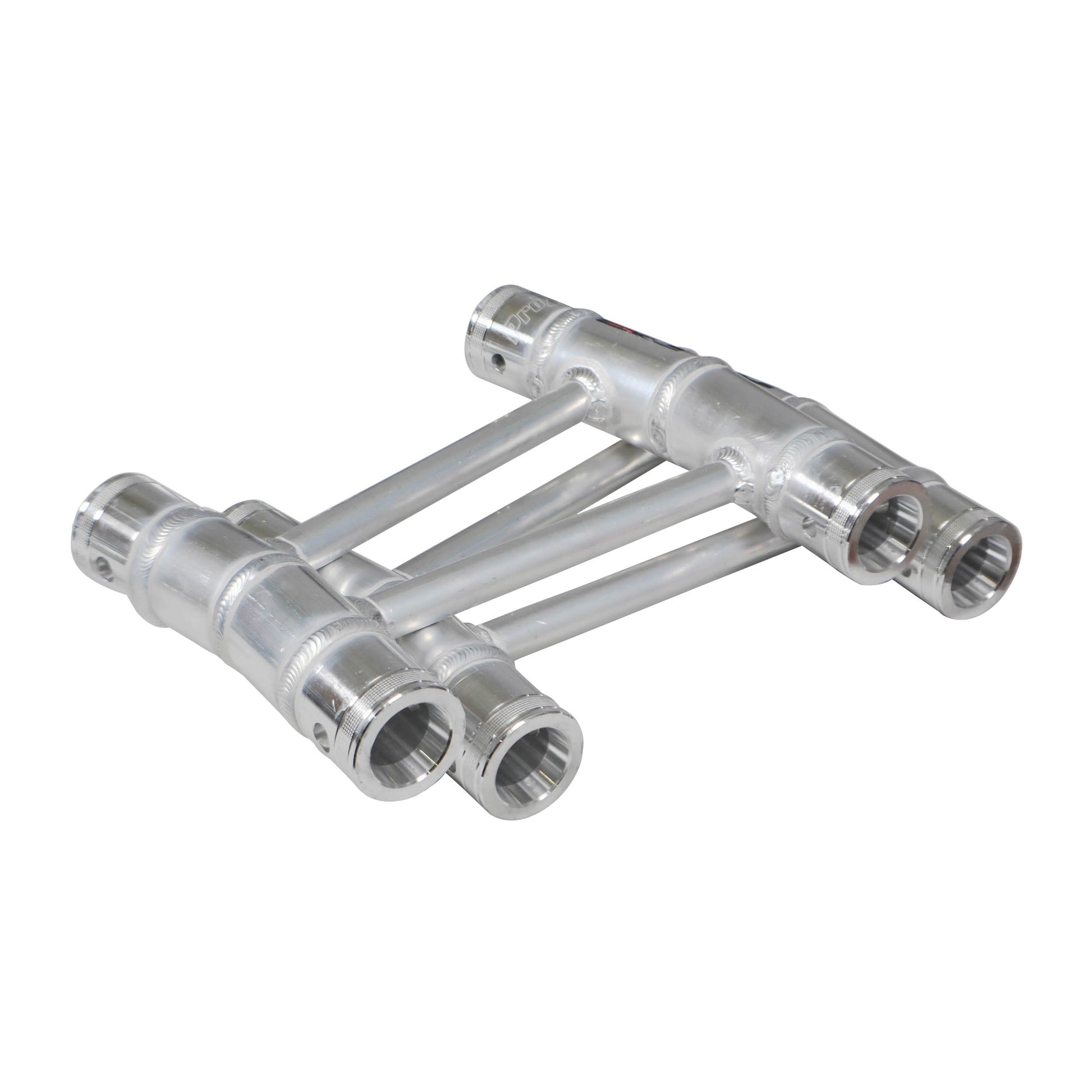

ProX F32 Truss Corner Fixed Angle Aluminum Connector | 7 Degree
ProX F32 Truss Corner Fixed Angle Aluminum Connector | 7 Degree
SoundPro Item: 76751 | Part Number: XT-F32-7D
Usually ships in 5-7 business days
- TUV-Certified Welding Ensures Structural Integrity For Professional Rigging Applications
- Factory-Direct Manufacturing Guarantees Consistent Tolerances Across Every Unit
- Conical Coupling System Provides Genderless Connection With Precise Chord Alignment
- Compatible With Most Conical Coupled F32 Trussing For Easy Integration Into Existing Rigs

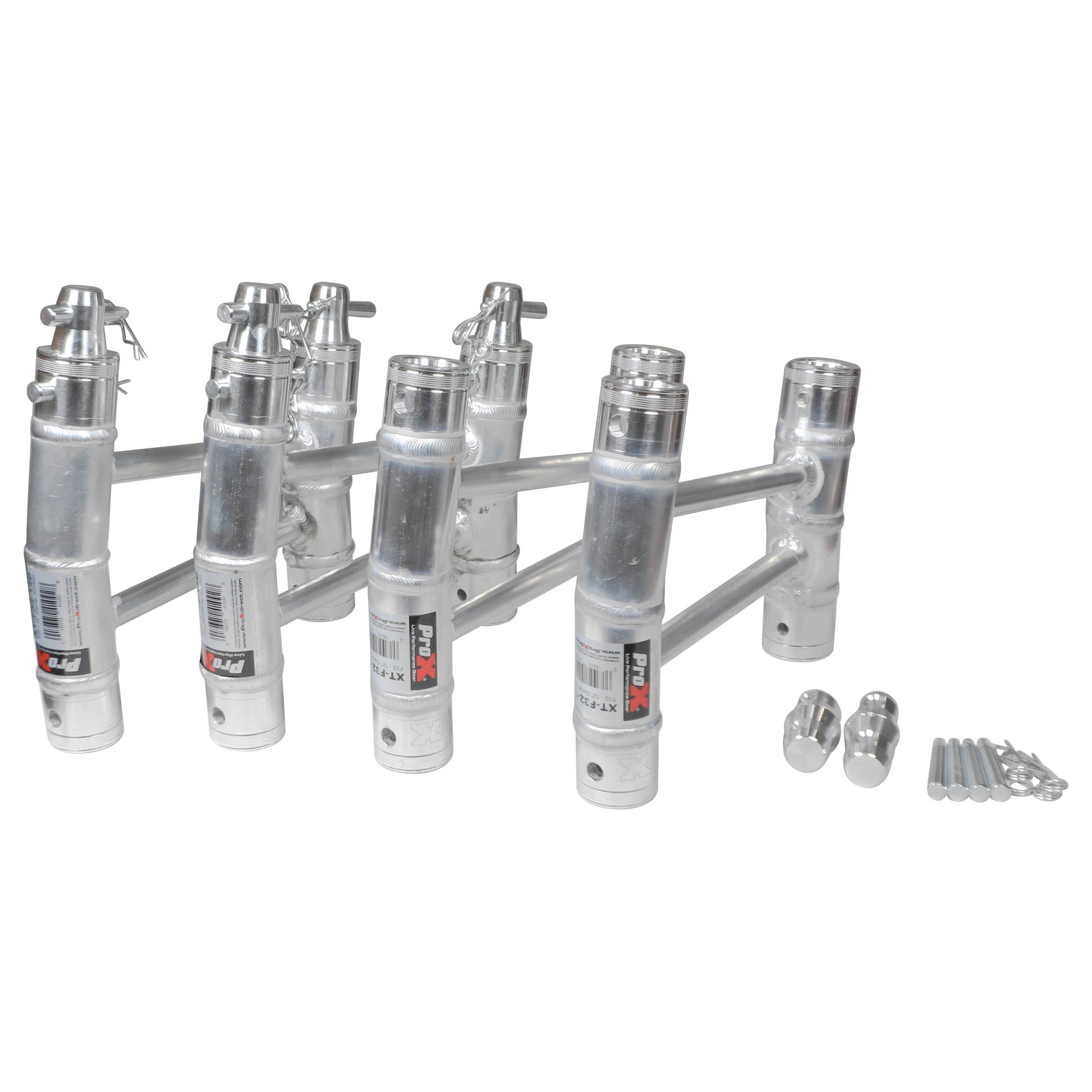

- Includes Tapered Shear Pins, Clips, And Conical Couplings For Complete Ready-To-Install Setup
- Aluminum Brush Finish Delivers A Clean Stage-Ready Appearance
- Available In Multiple Fixed Angles To Support Custom Stage And Lighting Geometry
Production designers, lighting directors, and stage riggers working on live events, theater installations, nightclubs, trade shows, and touring applications rely on precise, load-bearing truss corners to execute custom geometries that standard 90-degree corners cannot achieve. The ProX F32 Truss Corner series provides two-way, fixed-angle connectors that can be used individually or combined in multiples to build compound angles and decorative configurations while maintaining the structural integrity required for professional rigging.
Every corner in this series is fabricated from EN AW-6082 T6 aluminum alloy, a composition chosen for its high tensile strength and corrosion resistance. Welding is performed by TUV-certified welders following TUV-certified processes, a standard that generic offshore trussing rarely meets. The ProX Conical Coupling System delivers genderless connections with precise chord alignment and increased rigidity at stress points, and the tapered shear pins with clips and two conical couplings ship included so the unit is ready to integrate into an existing F32 rig without sourcing separate hardware.
Because ProX manufactures in its own factory rather than sourcing generic product, tolerances and finish quality are held to consistent standards across runs. The aluminum brush finish provides a clean stage appearance, and the conical coupling design significantly reduces assembly time compared to bolt-circle alternatives. Available in multiple fixed angles to match the specific geometry of each production design.
Downloads
Downloads
Specifications
