ProX XT-F35SQ984 F35 5-Chord Truss Segment for LED Video Panels
ProX XT-F35SQ984 F35 5-Chord Truss Segment for LED Video Panels
SoundPro Item: 205533 | Part Number: XT-F35SQ984
Usually ships in 5-7 business days

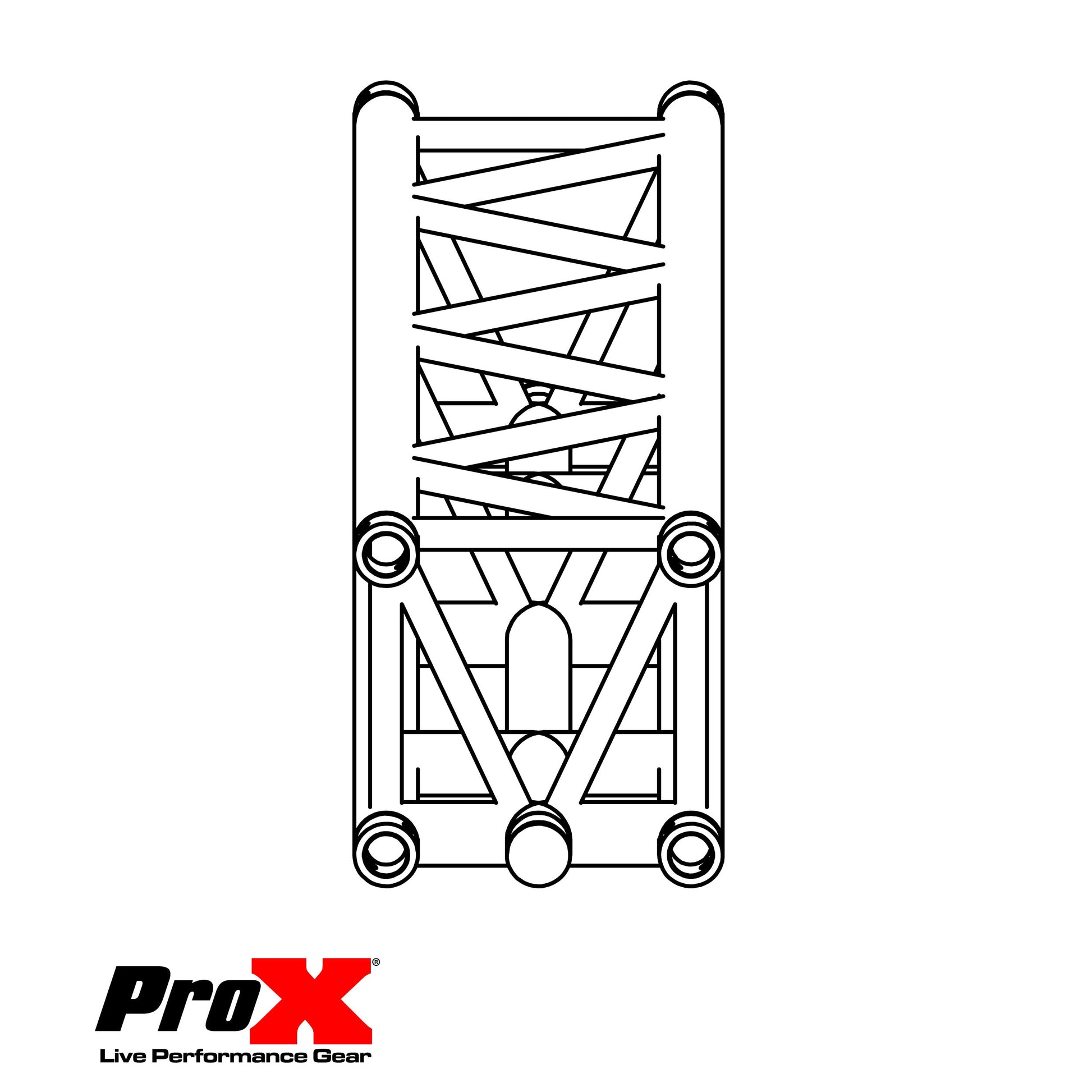

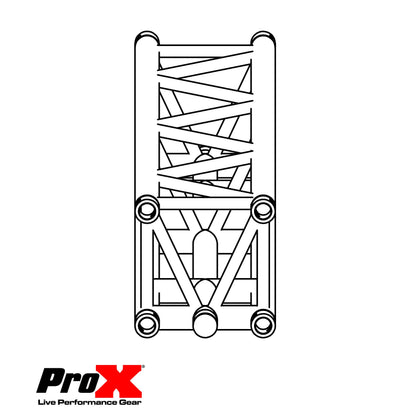

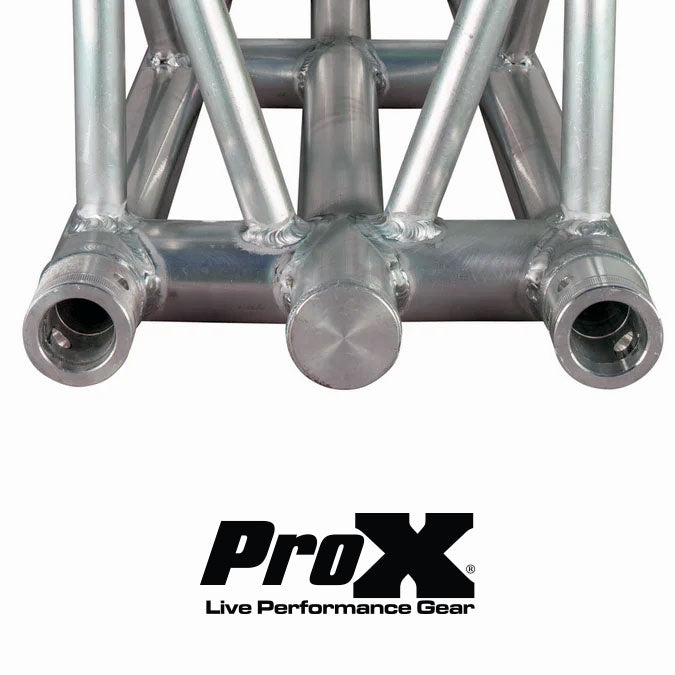

- Reinforced Fifth Center Chord Provides A Dedicated Hang Point For LED Video Walls
- Balanced Central Hang Point Eliminates Torsion And Uneven Load Stress From Front-Loaded Panels
- F34 And 290mm Compatible Design Enables Mixed-System Builds With Existing Box Truss Infrastructure
- Top Or Bottom Orientation Flexibility Supports Center Or Perimeter Hang Configurations
- TUV-Certified Welding Ensures Consistent Structural Integrity Across Every Segment

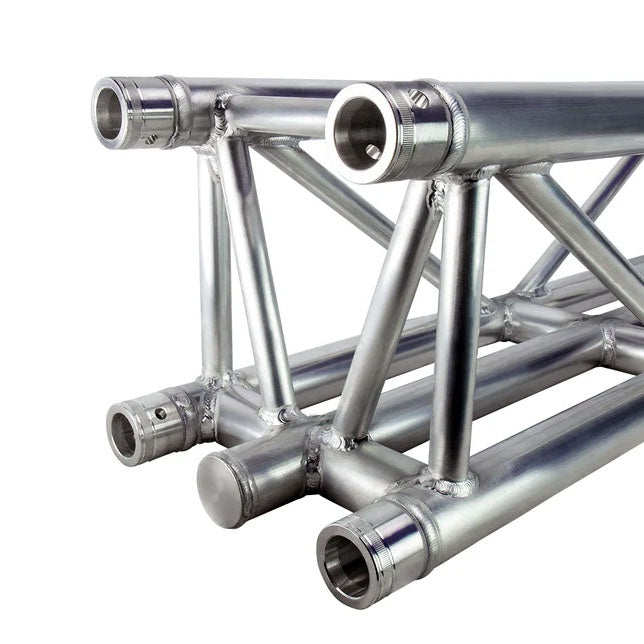

- Conical Coupling System Works With Most Industry-Standard Conical Truss Connections
- Hardware Included With Each Segment Covers Truss Pins And Safety Clips For Immediate Deployment
Production riggers and staging integrators building medium-to-large LED video walls face a structural gap with standard box truss. F34 systems are built for general lighting and scenic loads, but LED panels introduce front-loaded, centralized weight that benefits from a dedicated central hang point. The ProX F35 5-Chord Truss system addresses this directly by adding a fifth center chord engineered specifically for LED panel suspension, reducing torsion and eliminating the uneven load stress that compromises both safety and appearance on conventional box truss.

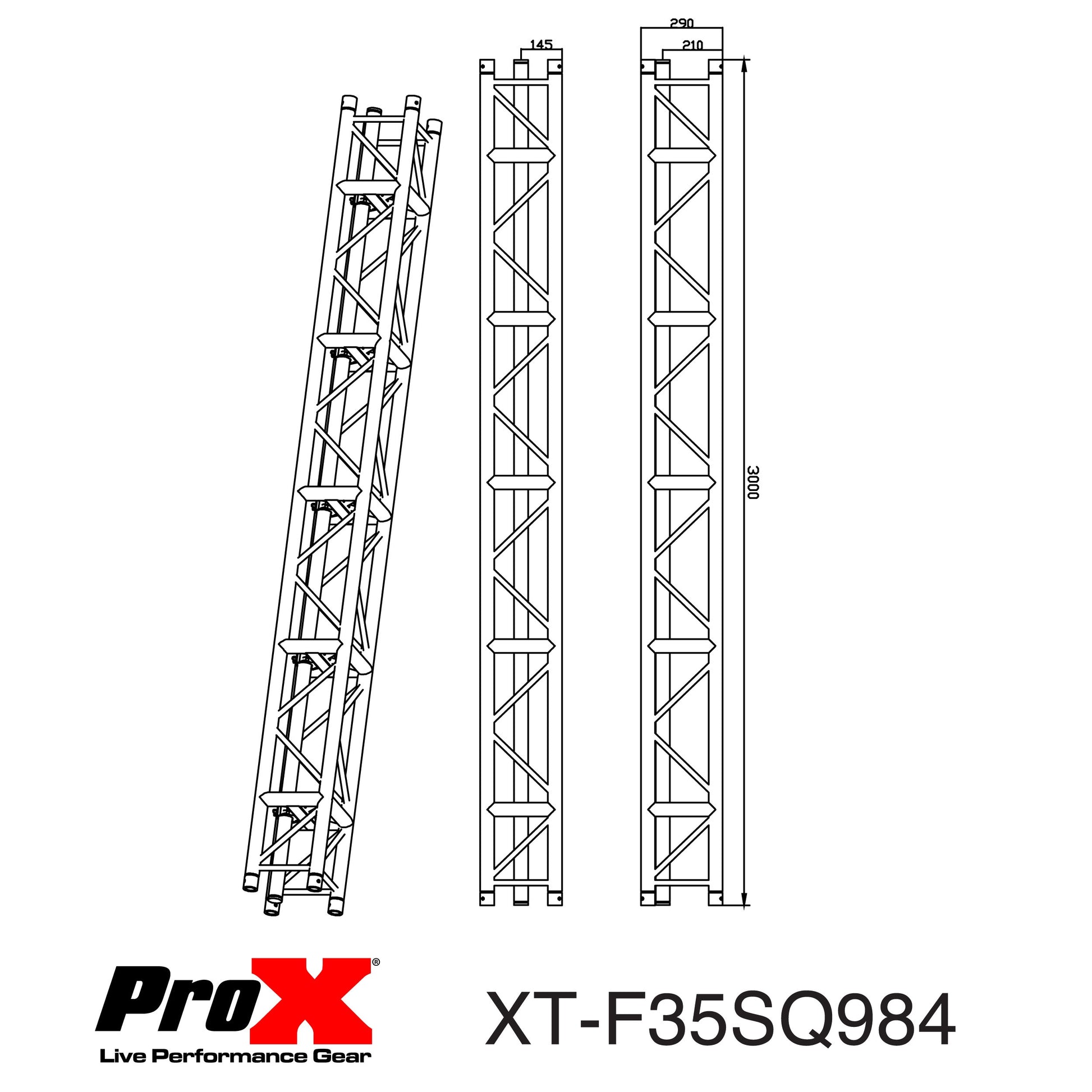

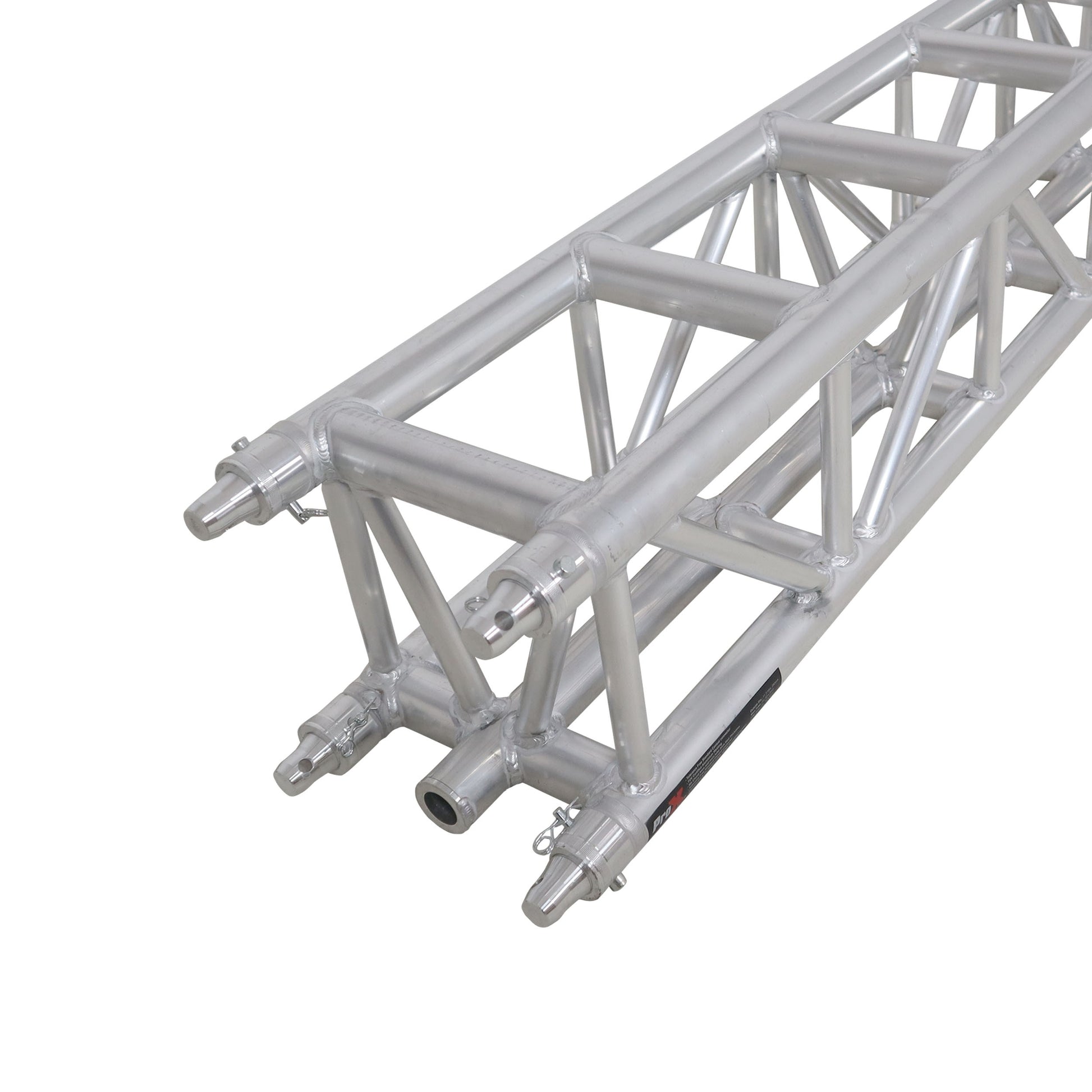

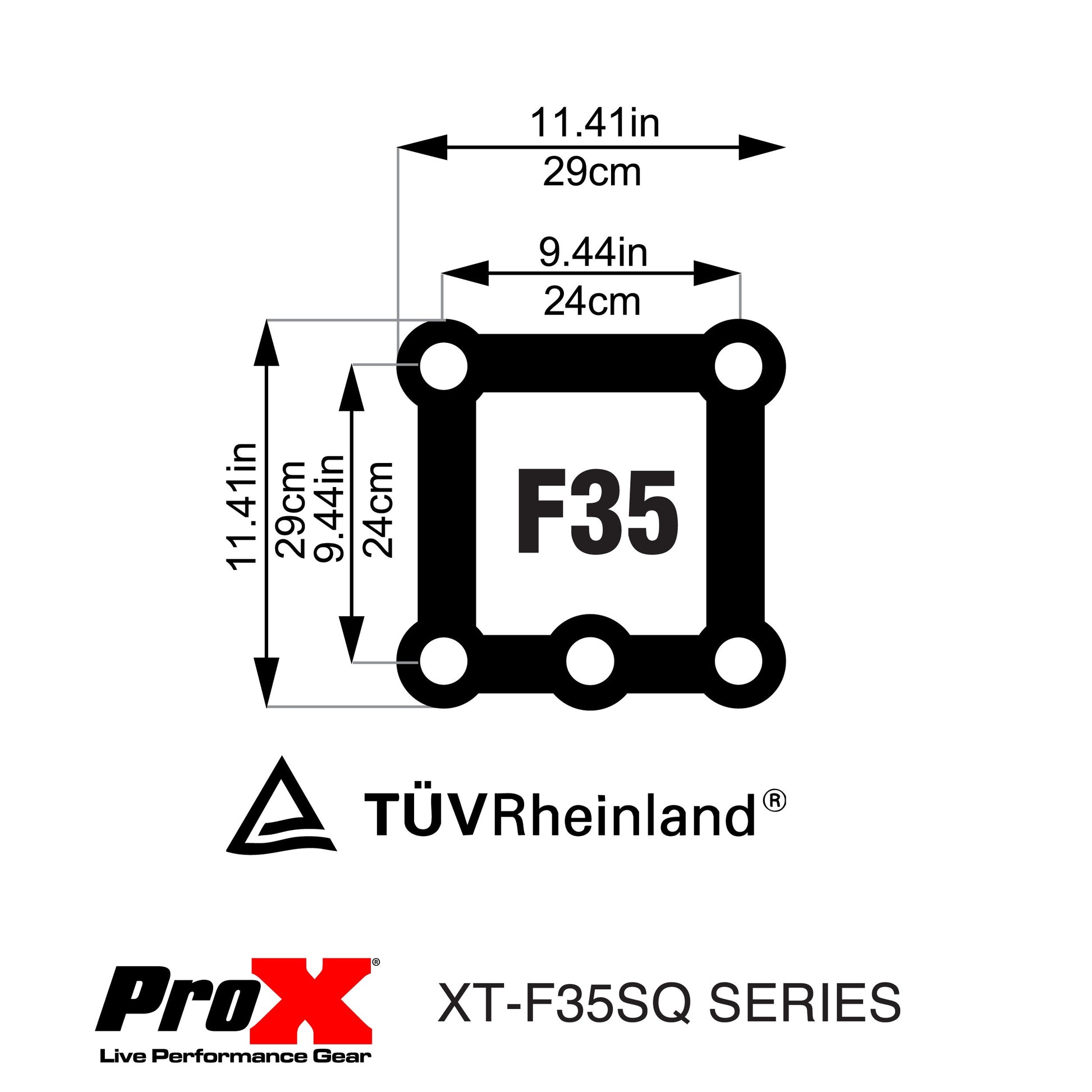

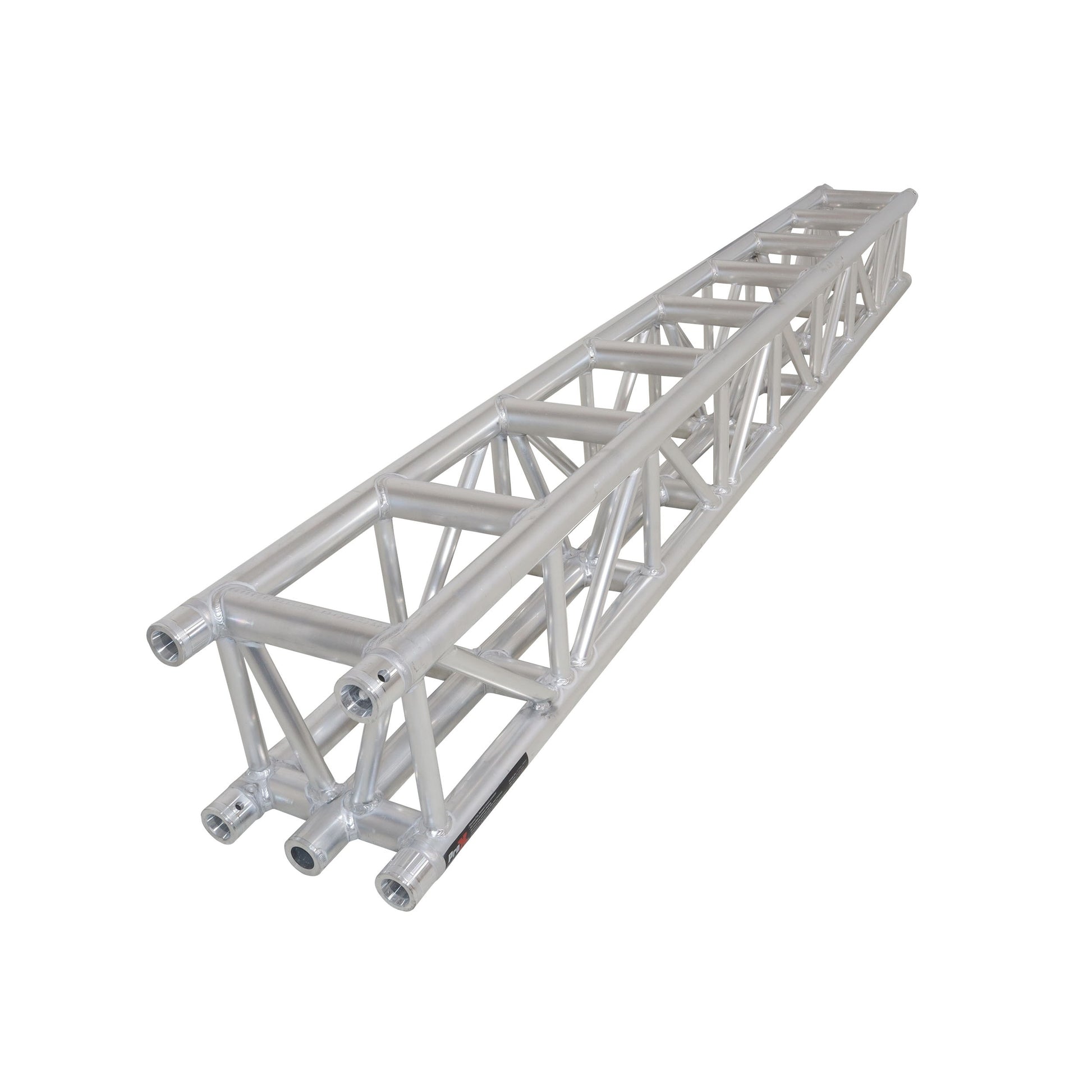

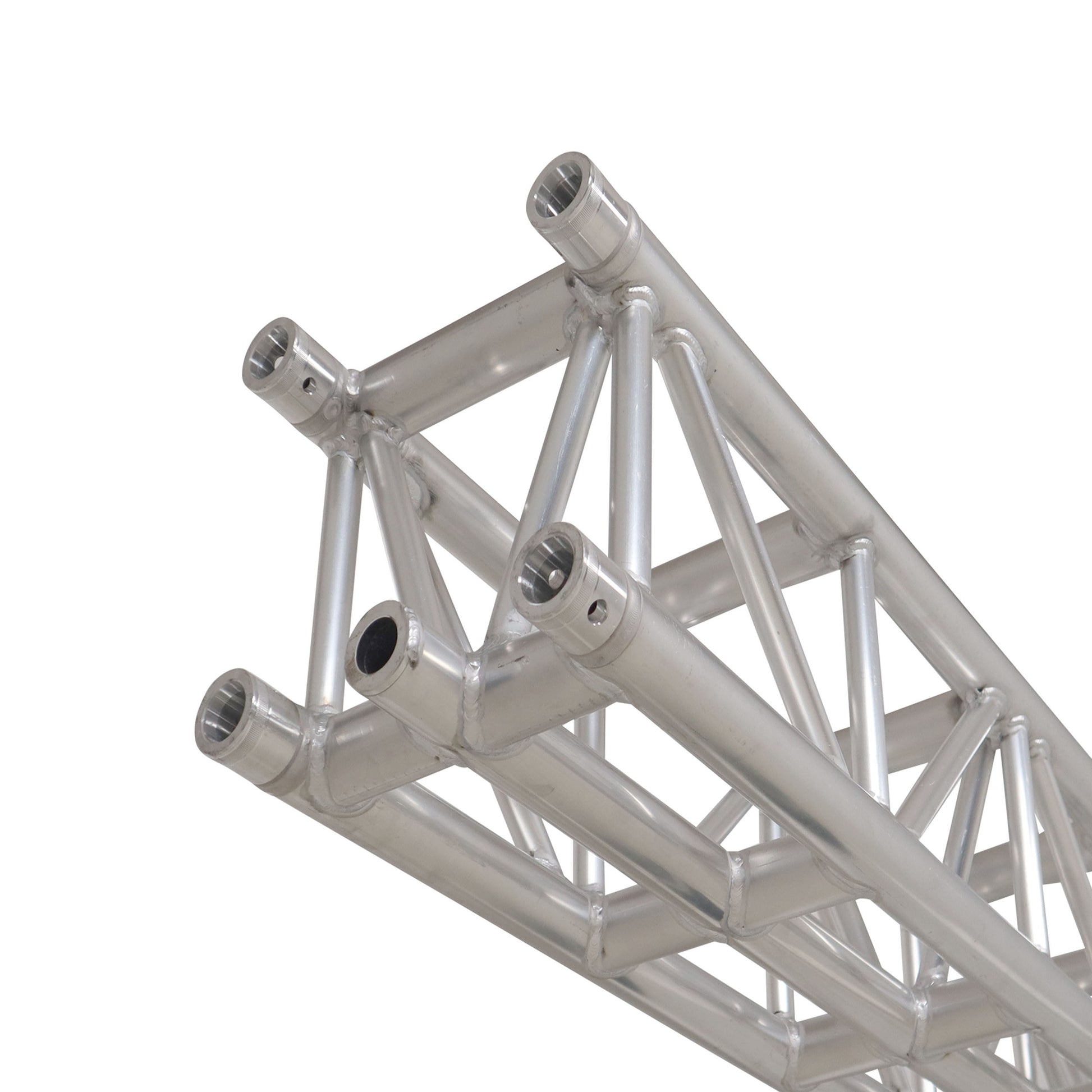

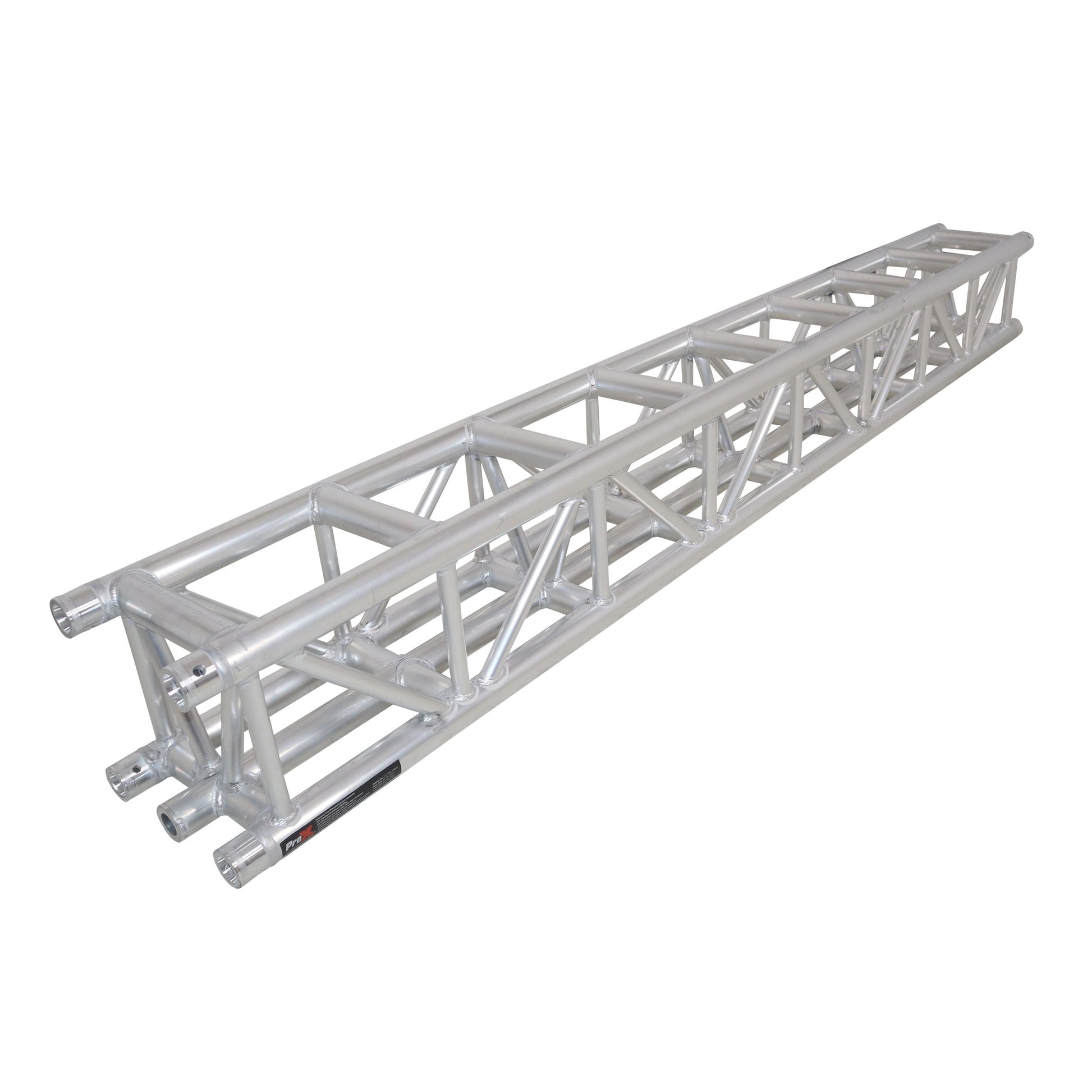

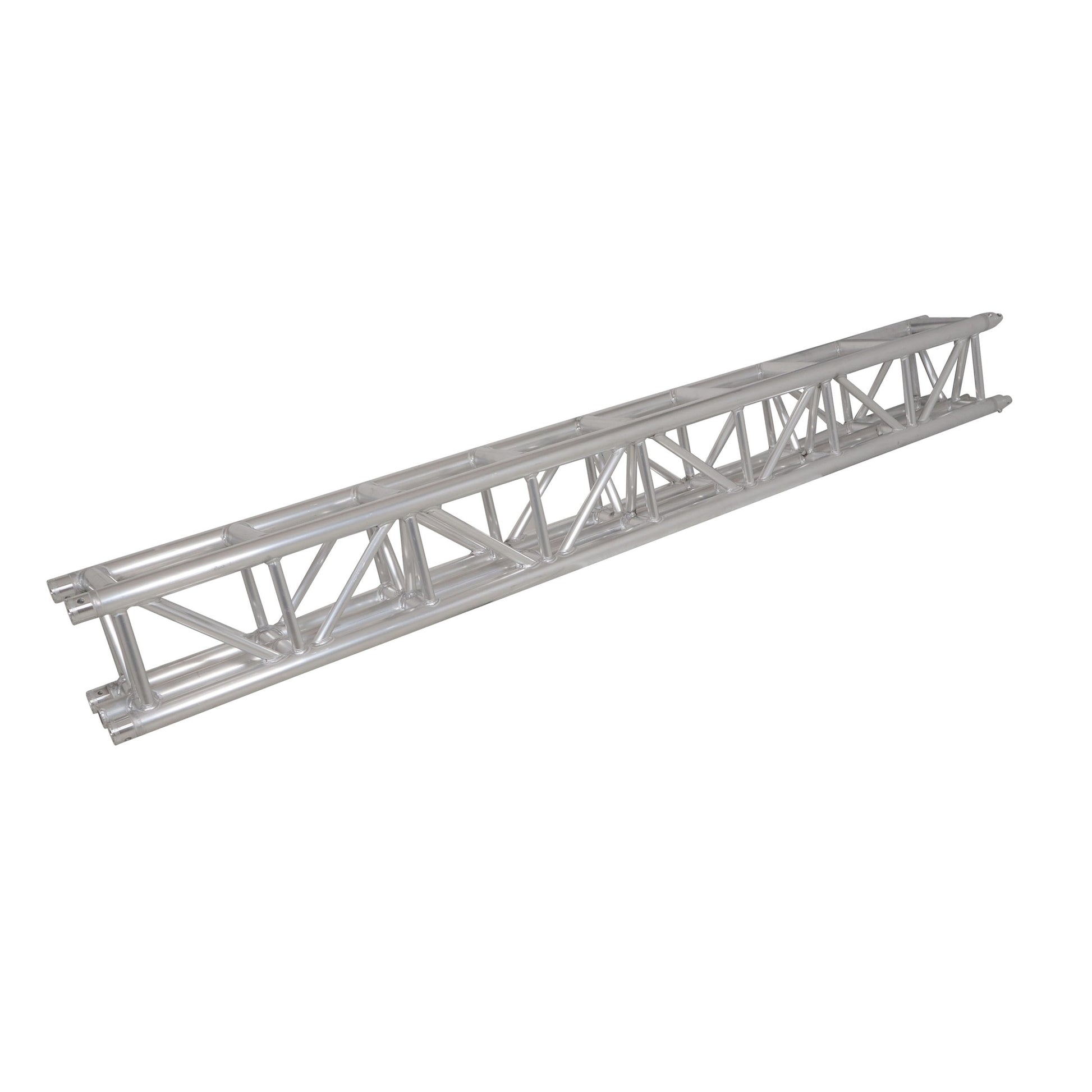

The XT-F35SQ984 is a 9.84 ft (3.00 m) segment fabricated from high-grade aluminum with a 50mm main tube structure and TUV-certified welding throughout. The 50mm fifth chord is heavier-walled than the primary tubes, acting as a dedicated, load-balanced hang point for LED panels without requiring supplemental rigging hardware or improvised solutions. A conical coupling system ensures compatibility with most industry-standard truss systems, and the segment is dimensionally compatible with F34 and 290mm box truss for mixed-system configurations where F35 tops an existing F34 tower or frame.

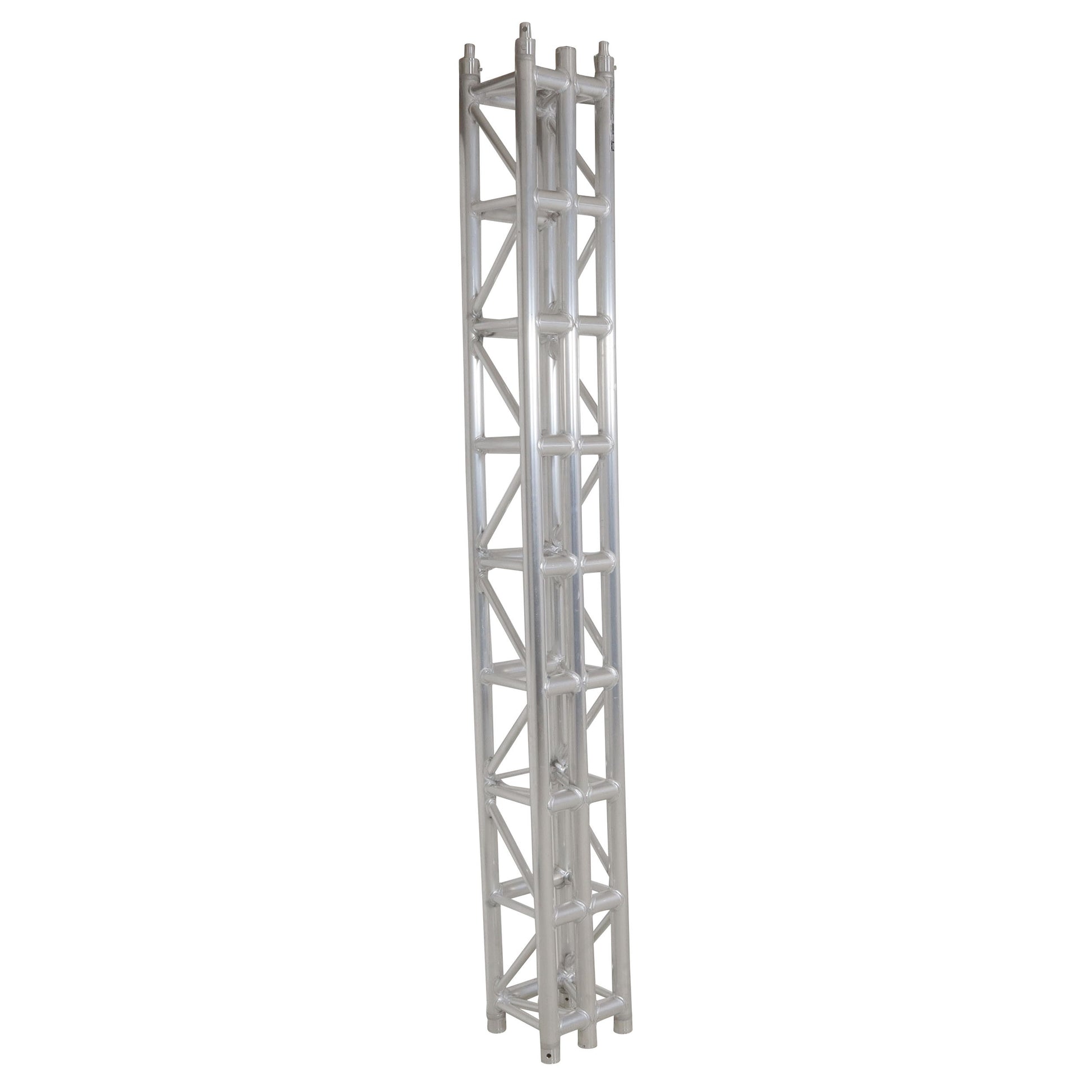

This segment is suited for touring productions, rental staging companies, and permanent installation teams who need structural confidence in high-visibility LED wall builds. It can be oriented facing up or down to serve as either a center or perimeter hang point, and each unit ships with connecting hardware including truss pins and safety clips. For medium-scale LED walls, ProX recommends pairing F35 horizontal runs with standard F34 towers for an optimized, cost-efficient structural system.
