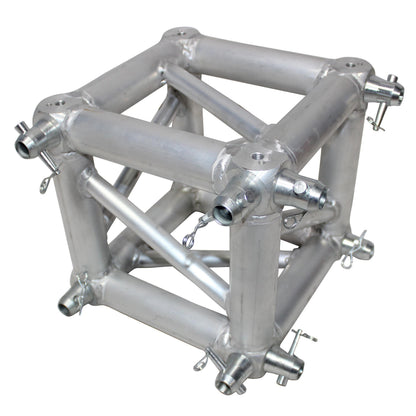

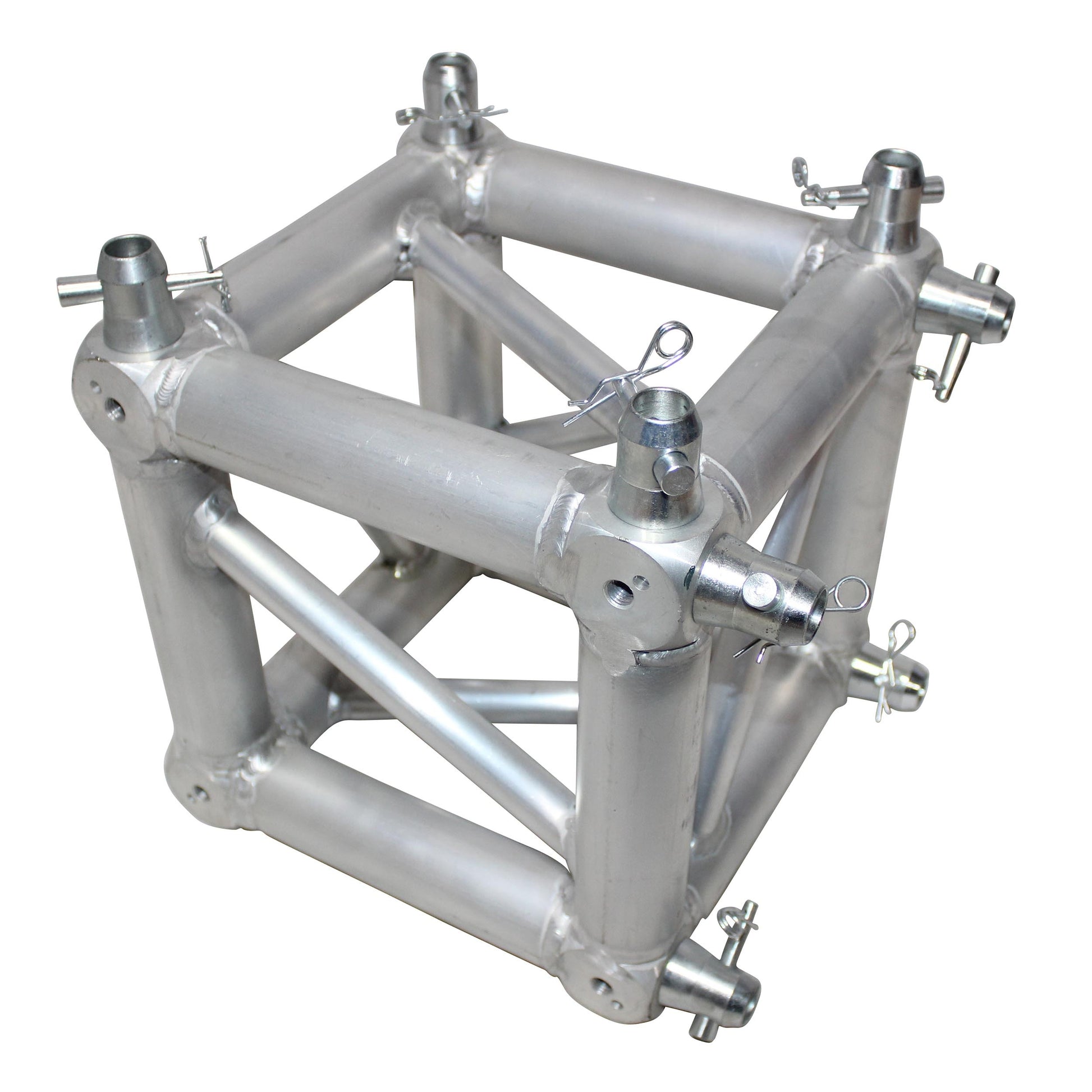

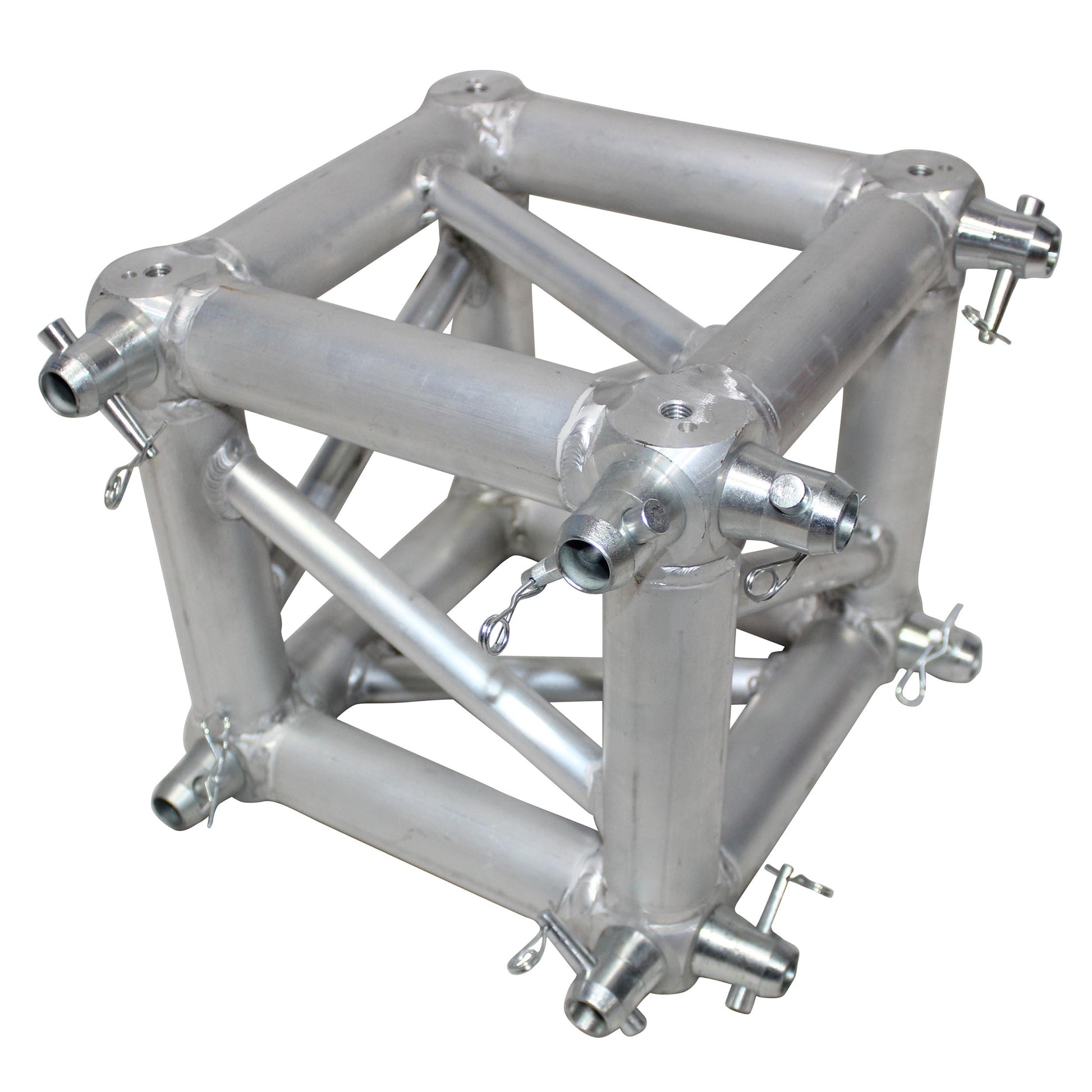

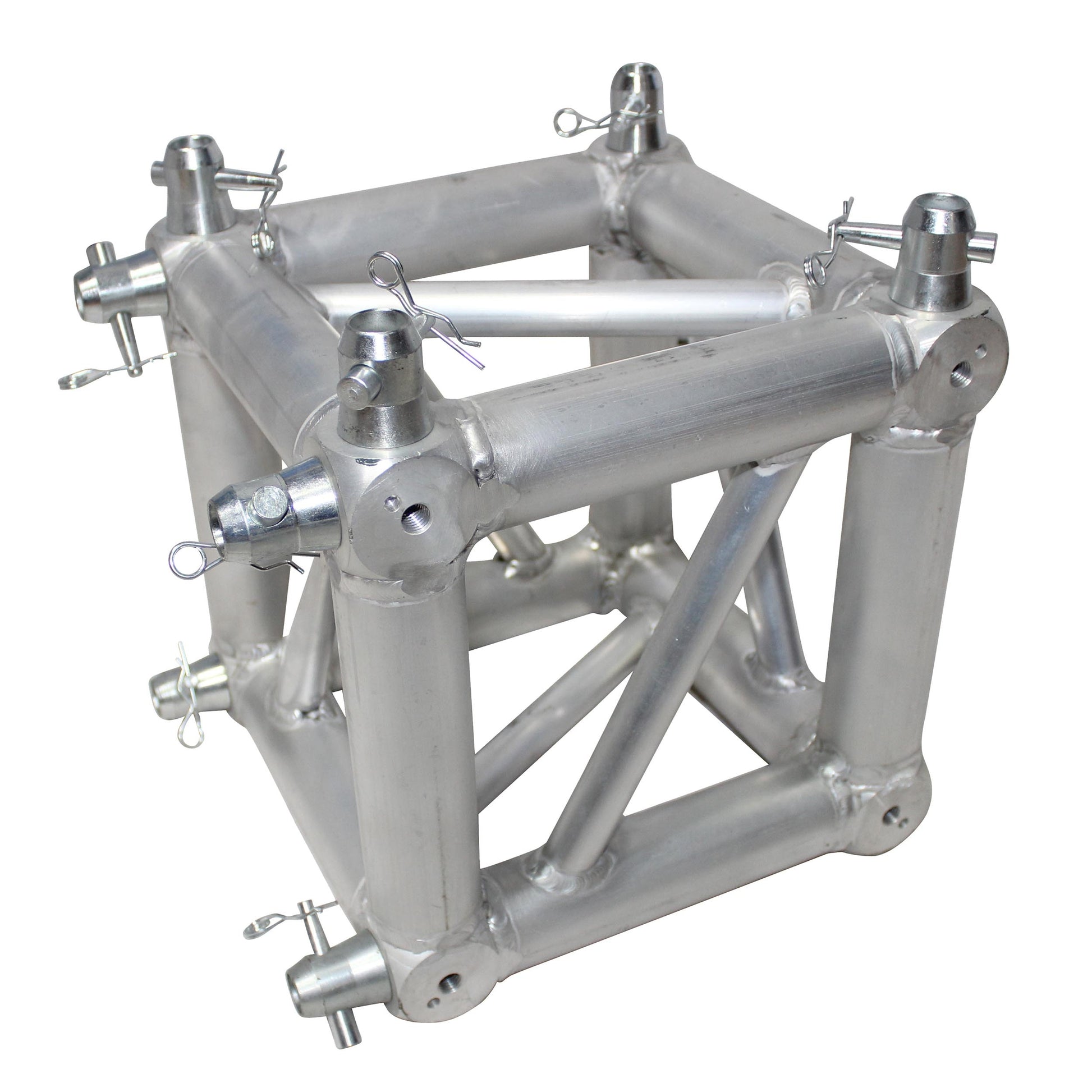

ProX XT-JB6W 6 Way Square Truss Junction Block For F34 | 2 Way (8 Half Conical Couplers) | Silver
ProX XT-JB6W 6 Way Square Truss Junction Block For F34 | 2 Way (8 Half Conical Couplers) | Silver
SoundPro Item: 77091 | Part Number: XT-JB6W-2W
Usually ships in 5-7 business days
- Tolerance-Free Conical Connector System Mates With F34 Truss From Multiple Manufacturers
- TUV-Certified Aluminum Welding Provides Third-Party Structural Verification
- EN-AWT6 6082 Aluminum Construction Delivers Rigidity With Reduced Weight
- Available In Multiple Configurations To Match Connection Requirements
- Available In Silver And Black Powder Coated Finishes For Design Flexibility
- Includes Connecting Hardware Set For Ready-To-Deploy Installation
- Factory-Controlled Manufacturing Ensures Consistent Industry-Standard Dimensions

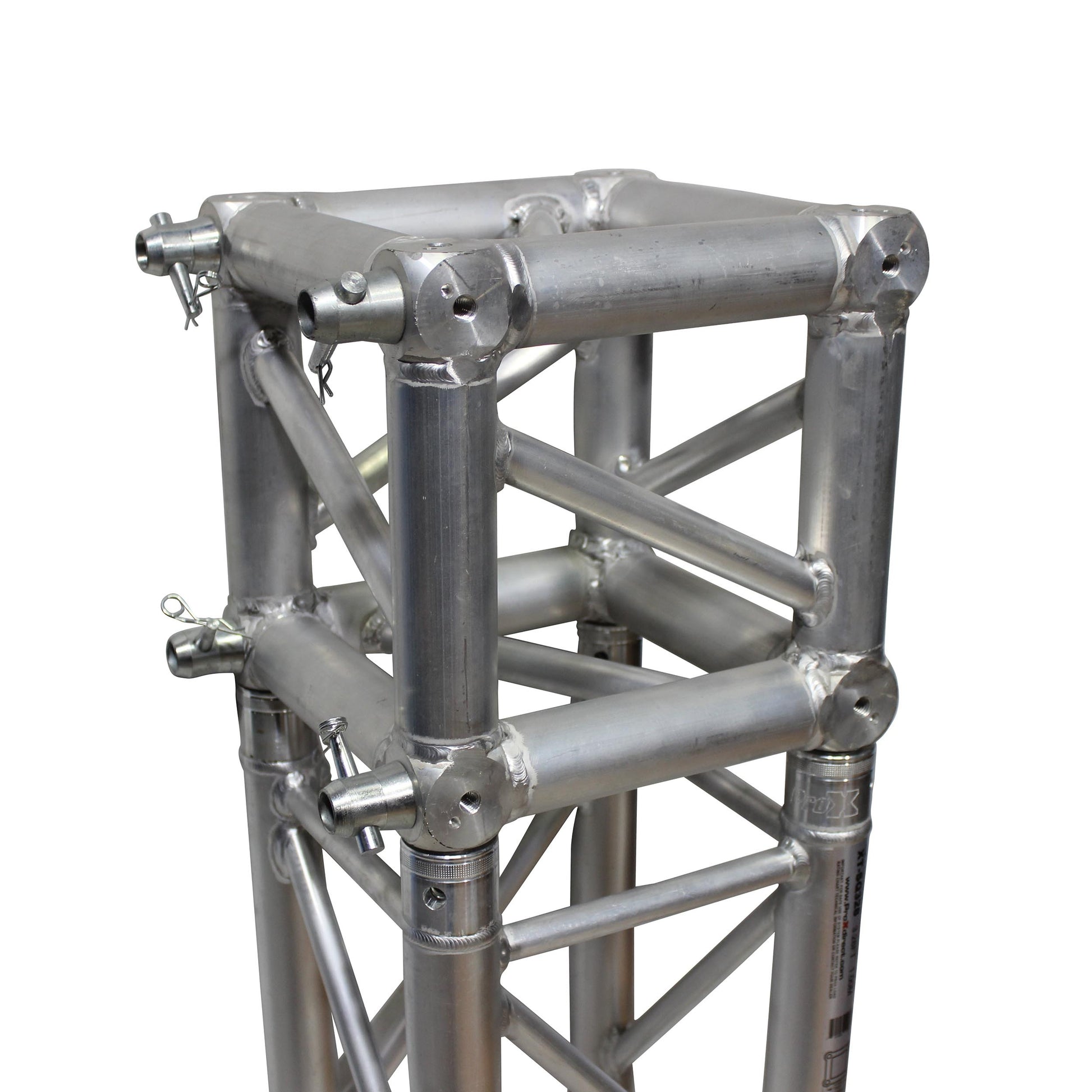

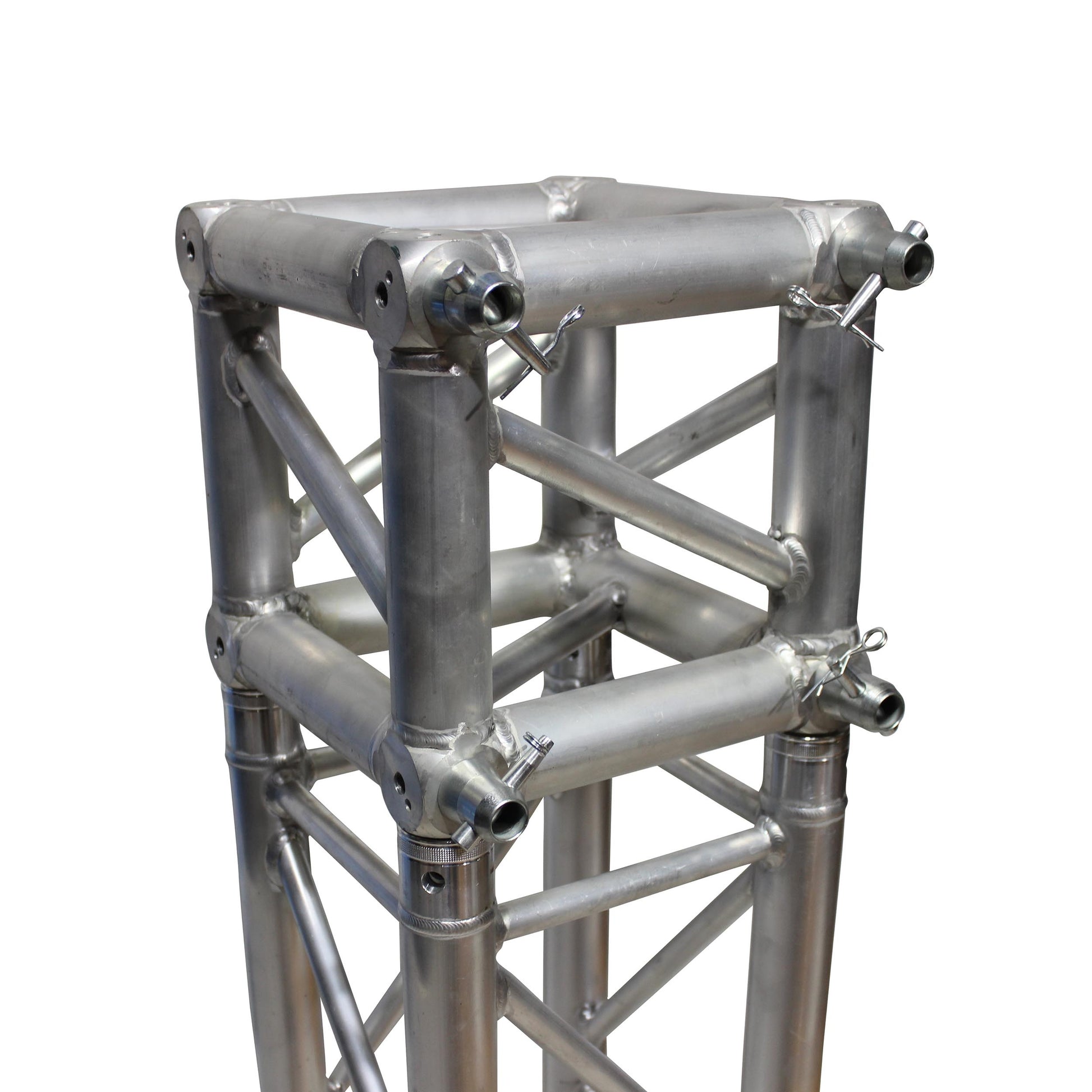

The ProX XT-JB6W series square truss junction block is built for production riggers, lighting integrators, and touring crews who need a reliable, multi-directional connection hub for F34 square truss systems. The block functions as a universal connecting point, letting crews branch or terminate truss runs in configurations suited to stages, trade show booths, corporate events, and permanent installed environments. The tolerance-free conical connector system mates with other F34-compatible truss from multiple manufacturers, giving integrators flexibility when mixing brands on larger builds.

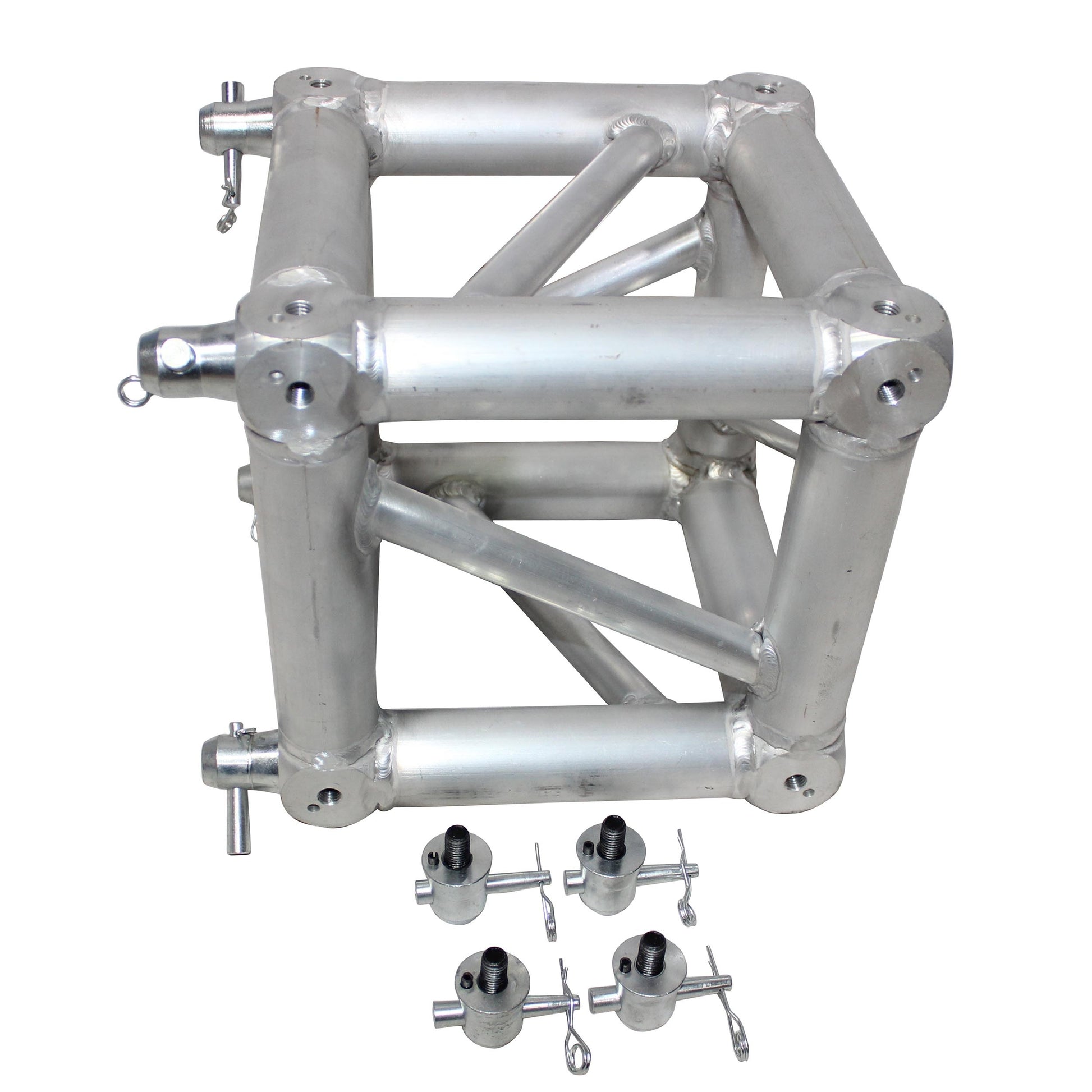

Each block is fabricated from EN-AWT6 6082 aluminum with 3mm tube walls and 2" outer-diameter main tubing, delivering the structural rigidity required for overhead rigging without the weight penalty of steel. TUV-certified aluminum welding provides third-party verification of weld quality and structural integrity, a critical consideration for any load-bearing overhead application. The junction block ships with connecting hardware included, and additional conical couplers are available separately for expanded connectivity. Configuration and finish options are available to match project requirements, whether the priority is maximizing connection points or blending into a specific stage aesthetic.
ProX manufactures this series in its own factory to maintain dimensional consistency with industry-standard F34 truss, ensuring cross-compatibility with corners, base plates, and accessories from other manufacturers. Always consult the ProX Truss Load Bearing Chart before rigging to confirm safe working load limits for the intended application.
