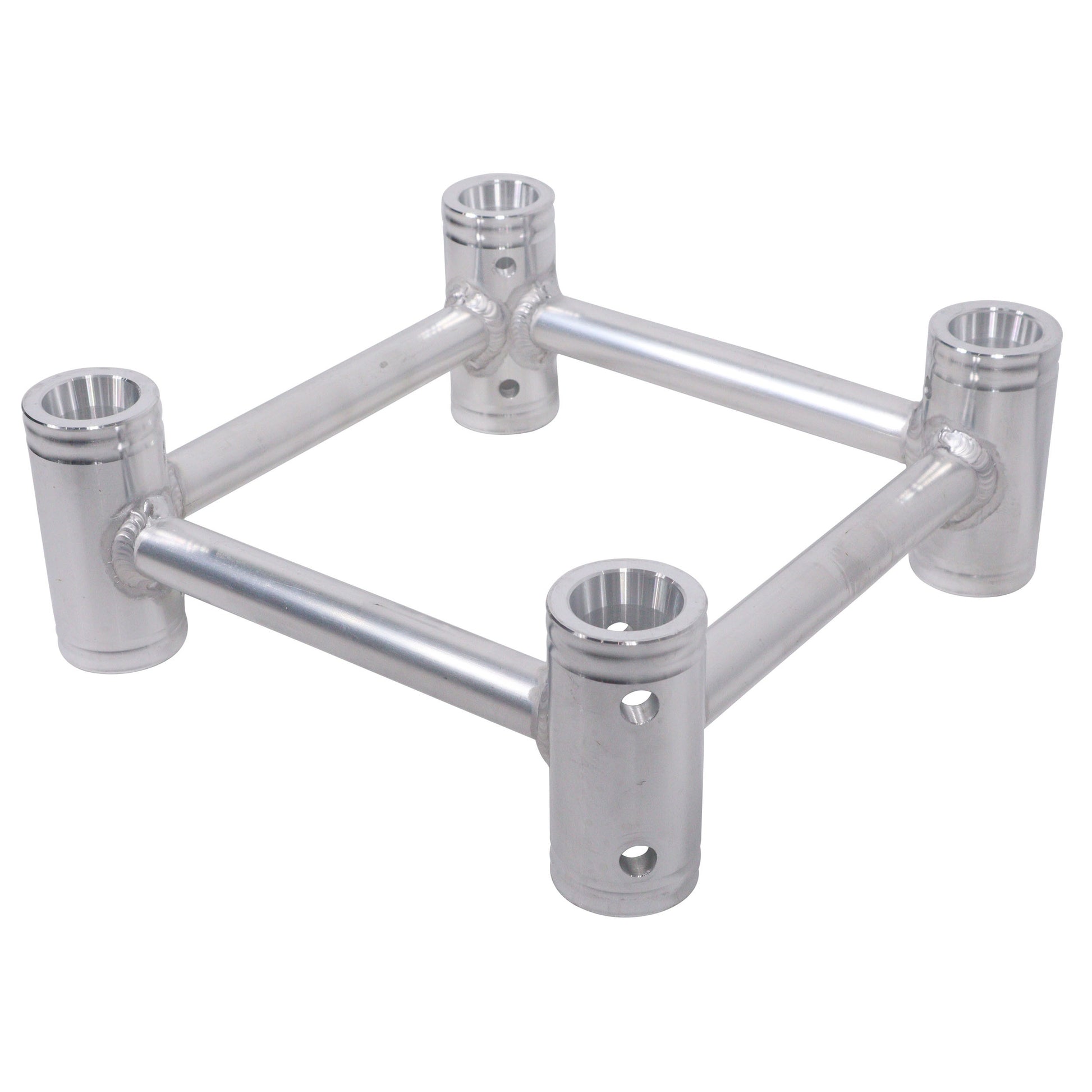

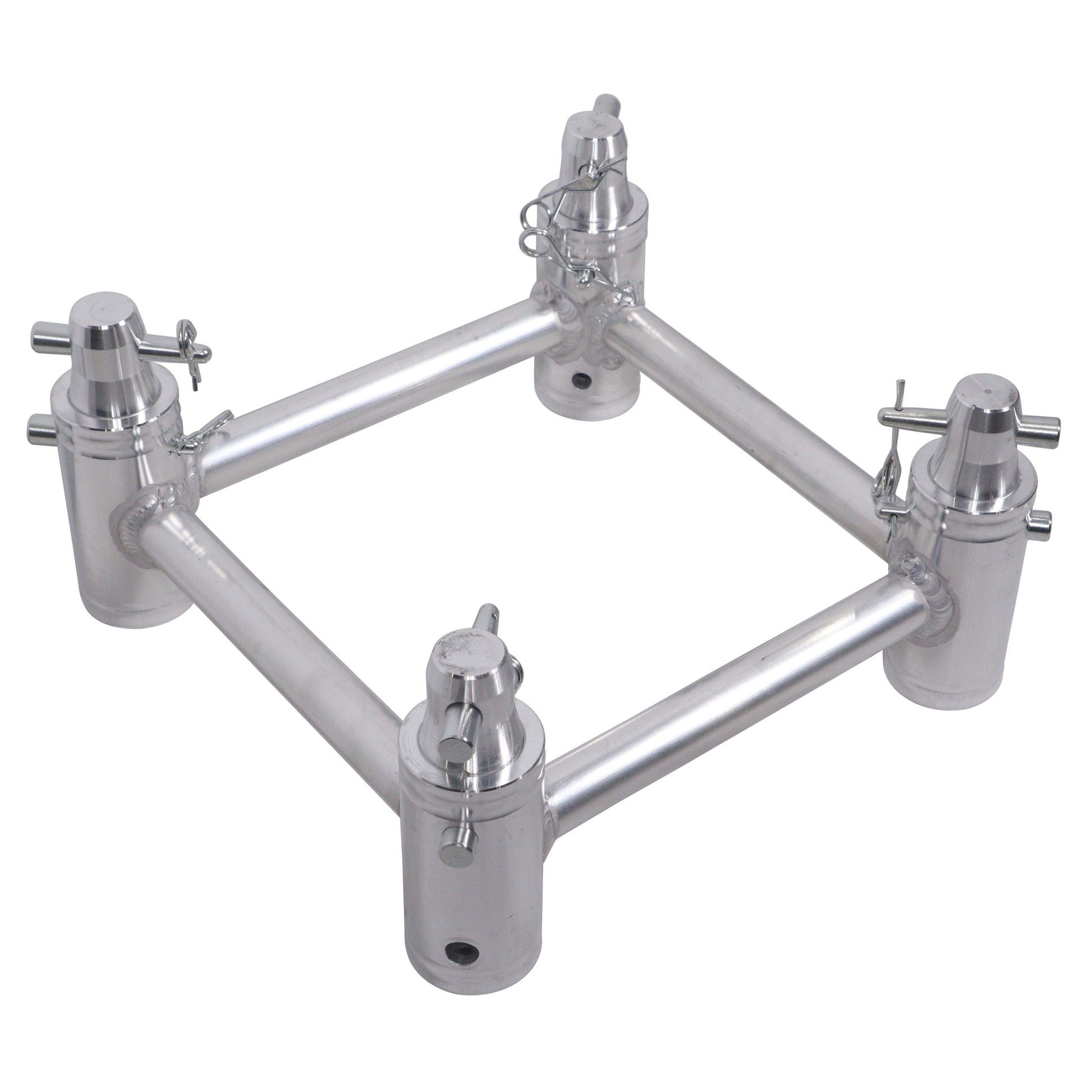

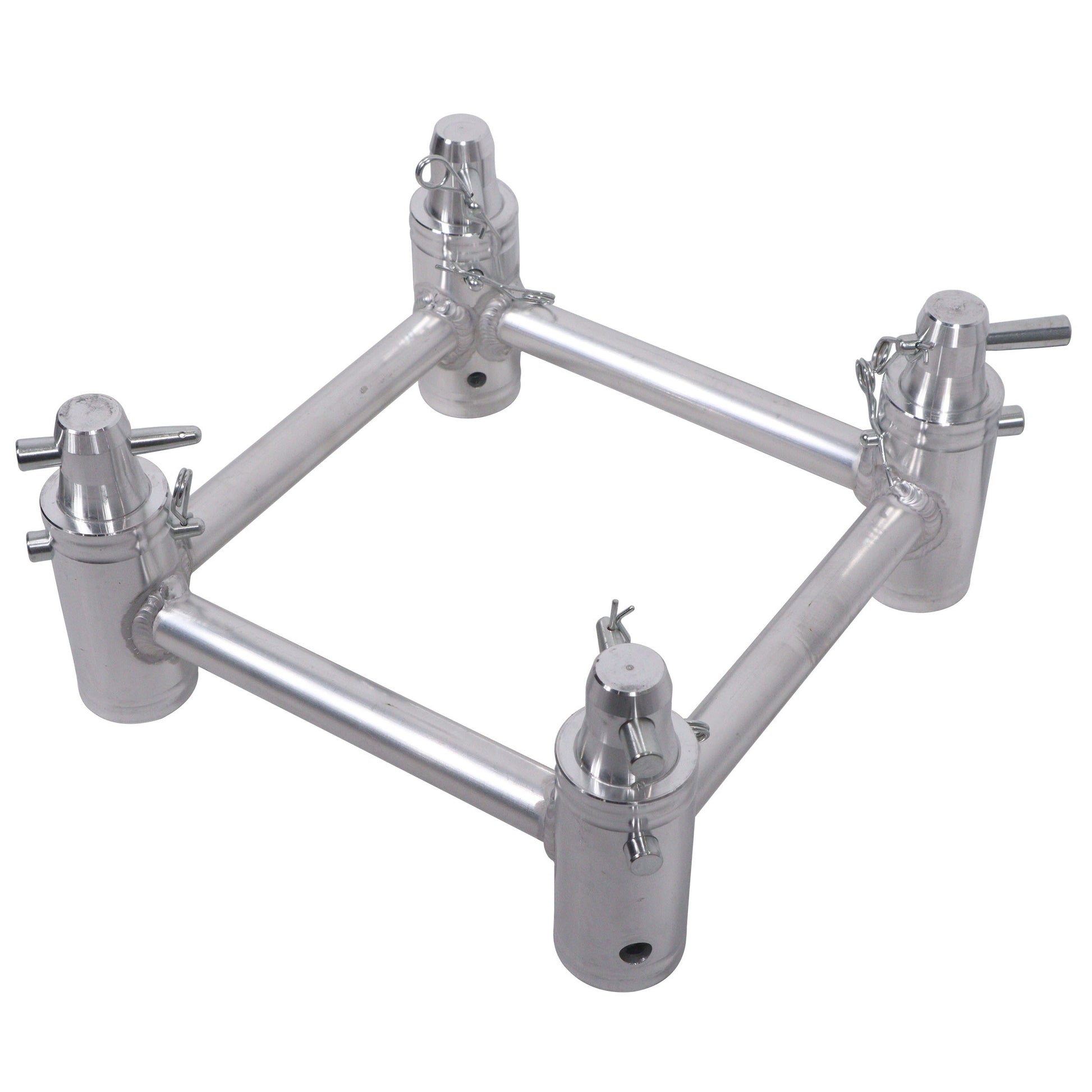

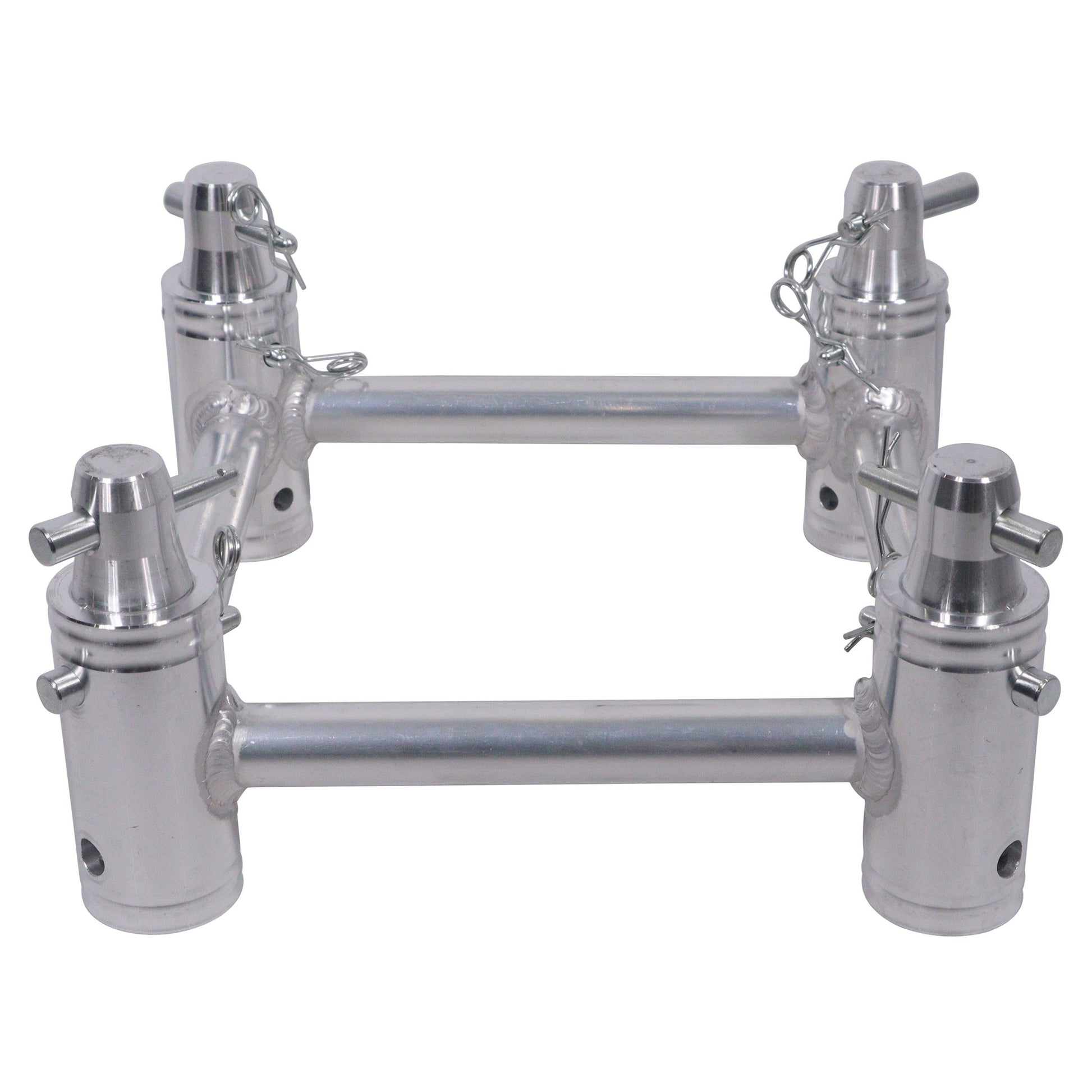

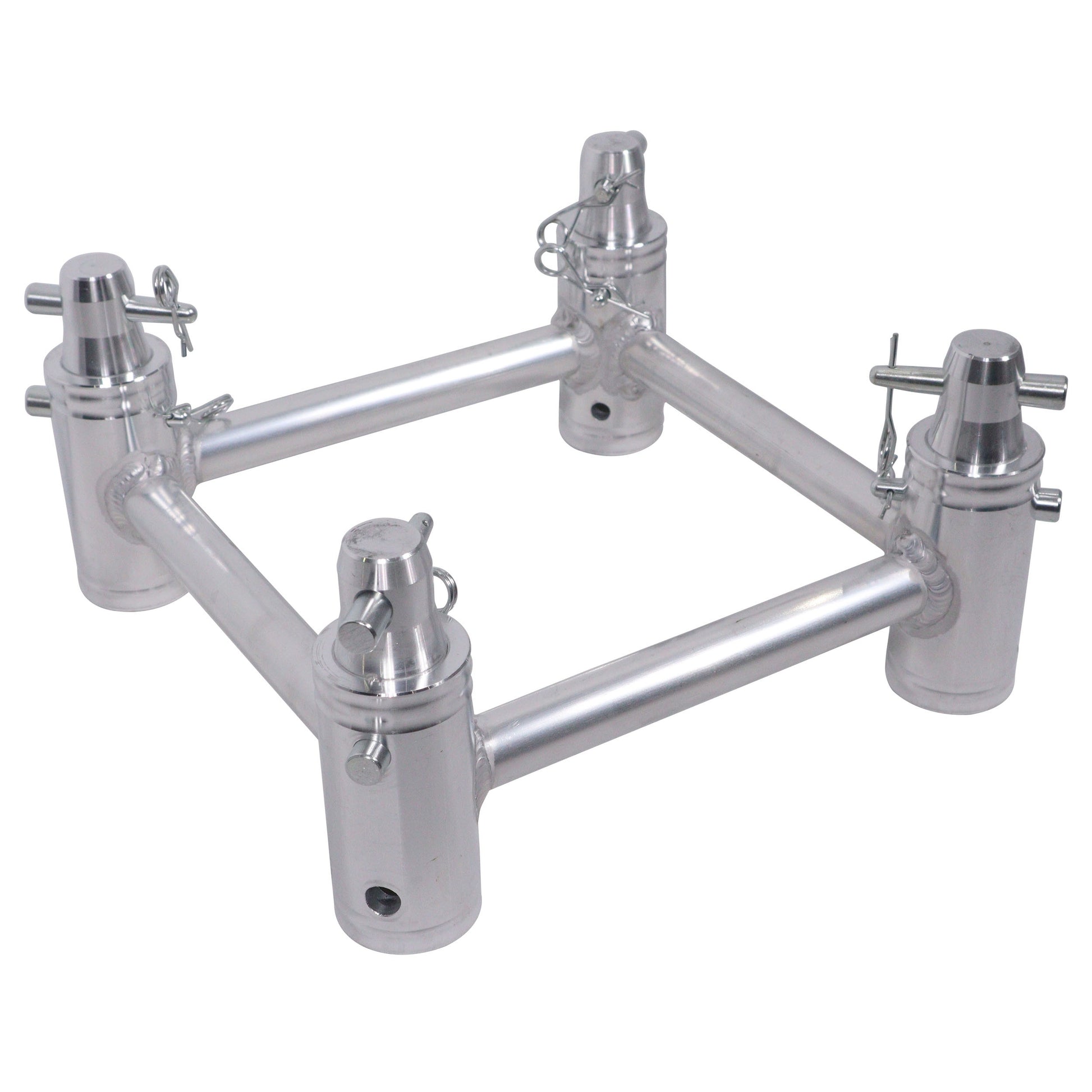

ProX XT F34 Square Truss Segment EN-AWT6 Aluminum With Conical Connector | 0.34 ft (0.105M)
ProX XT F34 Square Truss Segment EN-AWT6 Aluminum With Conical Connector | 0.34 ft (0.105M)
SoundPro Item: 140099 | Part Number: XT-SQ034
Usually ships in 5-7 business days
- TUV-Certified Aluminum Welding Provides Third-Party Verified Weld Integrity For Safety Documentation
- Conical Coupling System Creates Genderless Self-Aligning Connections For Faster Setup And Breakdown
- EN-AWT6 6082 Aluminum Construction Delivers Structural Strength With Reduced Overall Weight
- F34 Industry-Standard Dimensions Allow Compatibility With Most Other Conical Connector Truss Brands
- Factory-Controlled Manufacturing Tolerances Ensure Consistent Fitment At Every Connection Point
- Available In Thirteen Lengths To Suit Precise Rigging Design Requirements
- Includes Connecting Hardware Set For Immediate Assembly
The ProX XT-SQ series F34 square truss is engineered for production professionals, rental companies, and integrators who require a dependable structural platform for lighting, audio, and staging systems. Manufactured from EN-AWT6 6082 aluminum in ProX's own factory, every segment meets exacting dimensional tolerances that translate to consistent, tight connections across complex multi-segment builds. TUV-certified aluminum welding provides third-party verification of weld integrity, a meaningful advantage over uncertified alternatives when safety documentation is required for venue permits or rigging inspections.

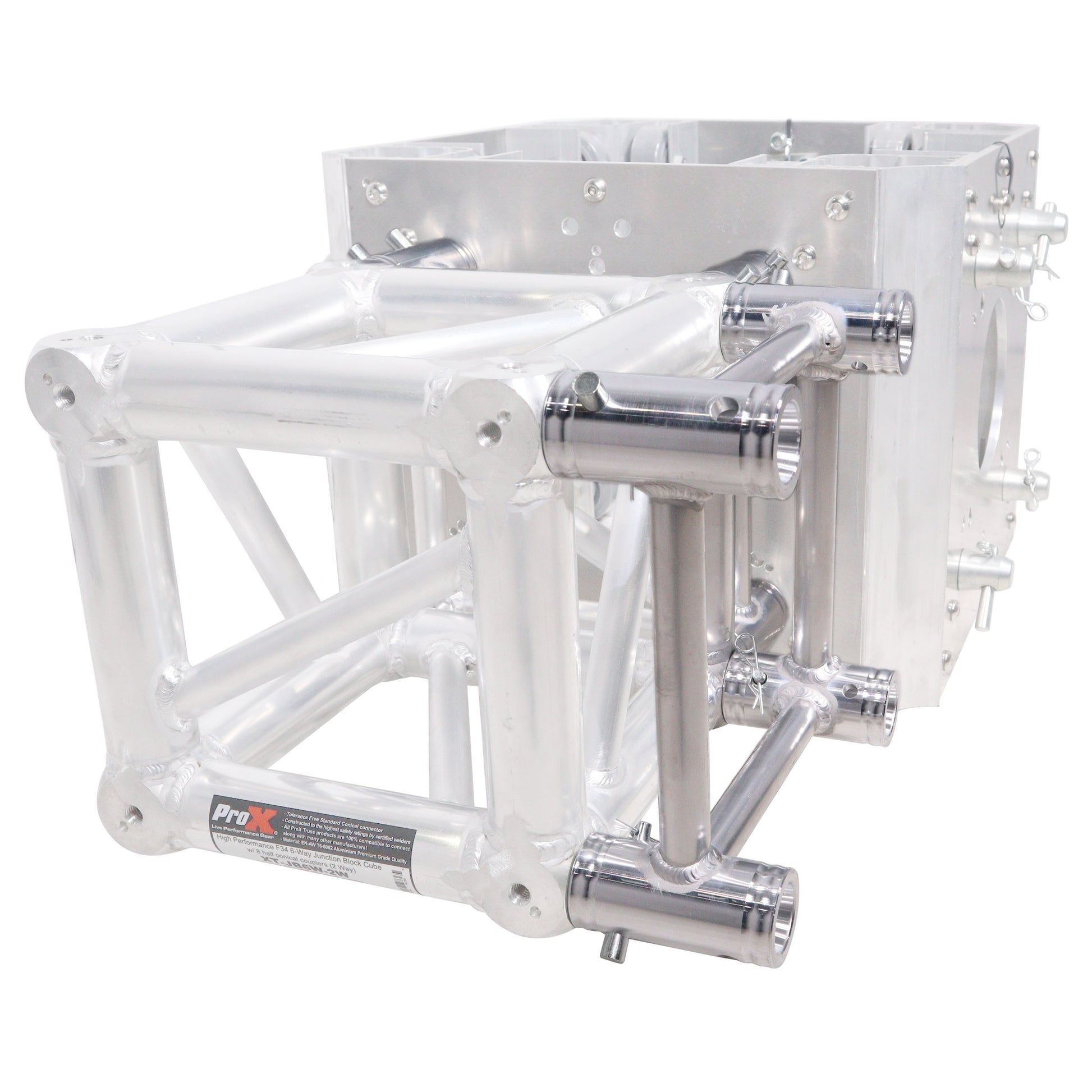

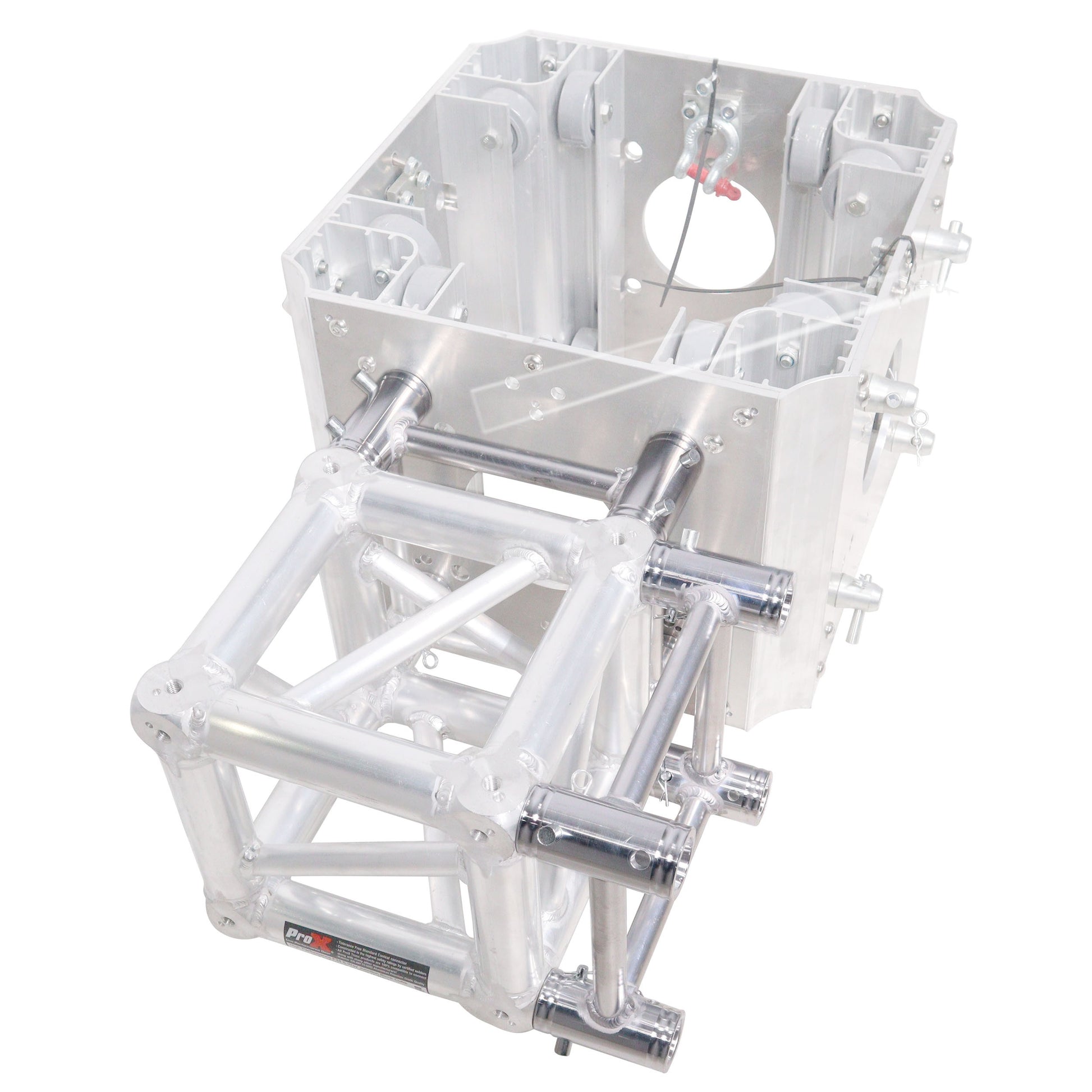

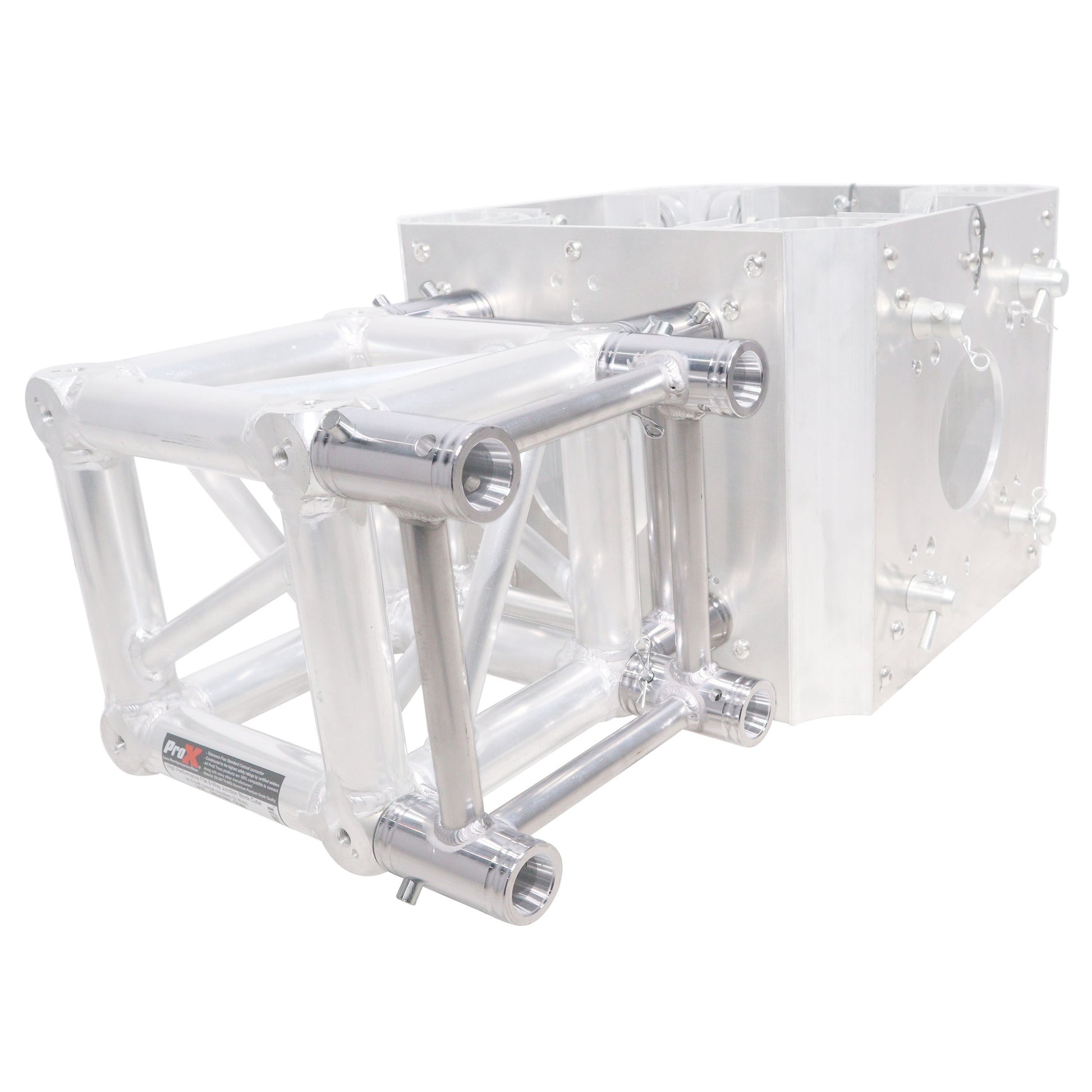

The conical coupling system at the heart of the XT-SQ series delivers genderless connections that self-align chord tubes and fastening points with precision. This reduces slop at joints, maintains structural rigidity under dynamic loads, and speeds assembly and breakdown with nothing more than a small brass or aluminum hammer. The system shares industry-standard F34 dimensions, allowing these segments to interface with compatible trusses from most other manufacturers, which is a practical benefit for rental houses integrating ProX stock into existing inventories or touring companies working across multiple vendors.
The XT-SQ series is suited to a wide range of professional contexts: live outdoor and indoor concert productions, permanent nightclub and theater installations, church and house-of-worship builds, trade show structures, and retail display frameworks. ProX also offers a full ecosystem of compatible accessories including clamps, base plates, top plates, box corners, hanging points, and spacers, enabling complete custom rigging designs from a single supplier. Segments are available across thirteen lengths, giving system designers precise dimensional control without relying on filler sections or custom fabrication.
Downloads
Downloads
Specifications
