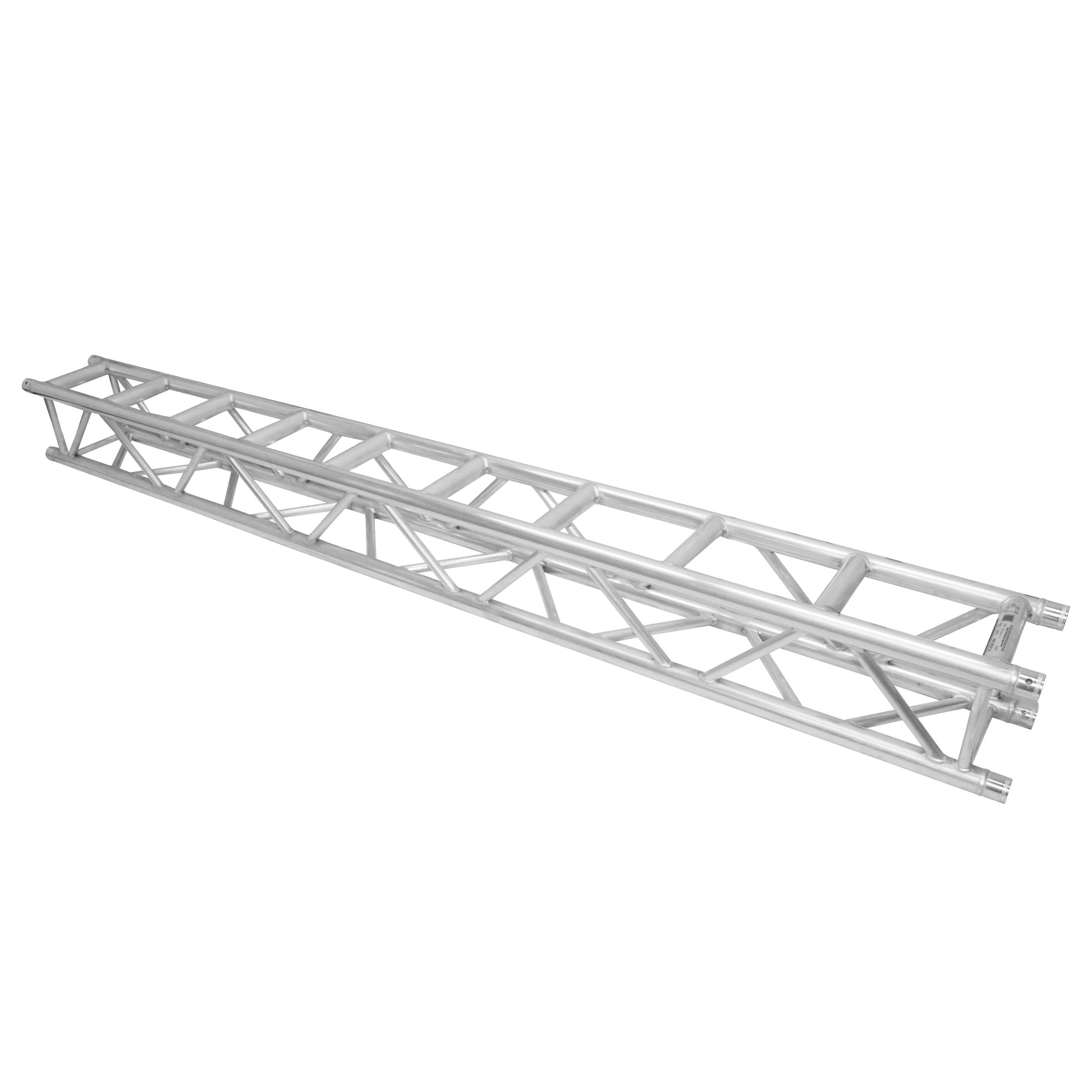

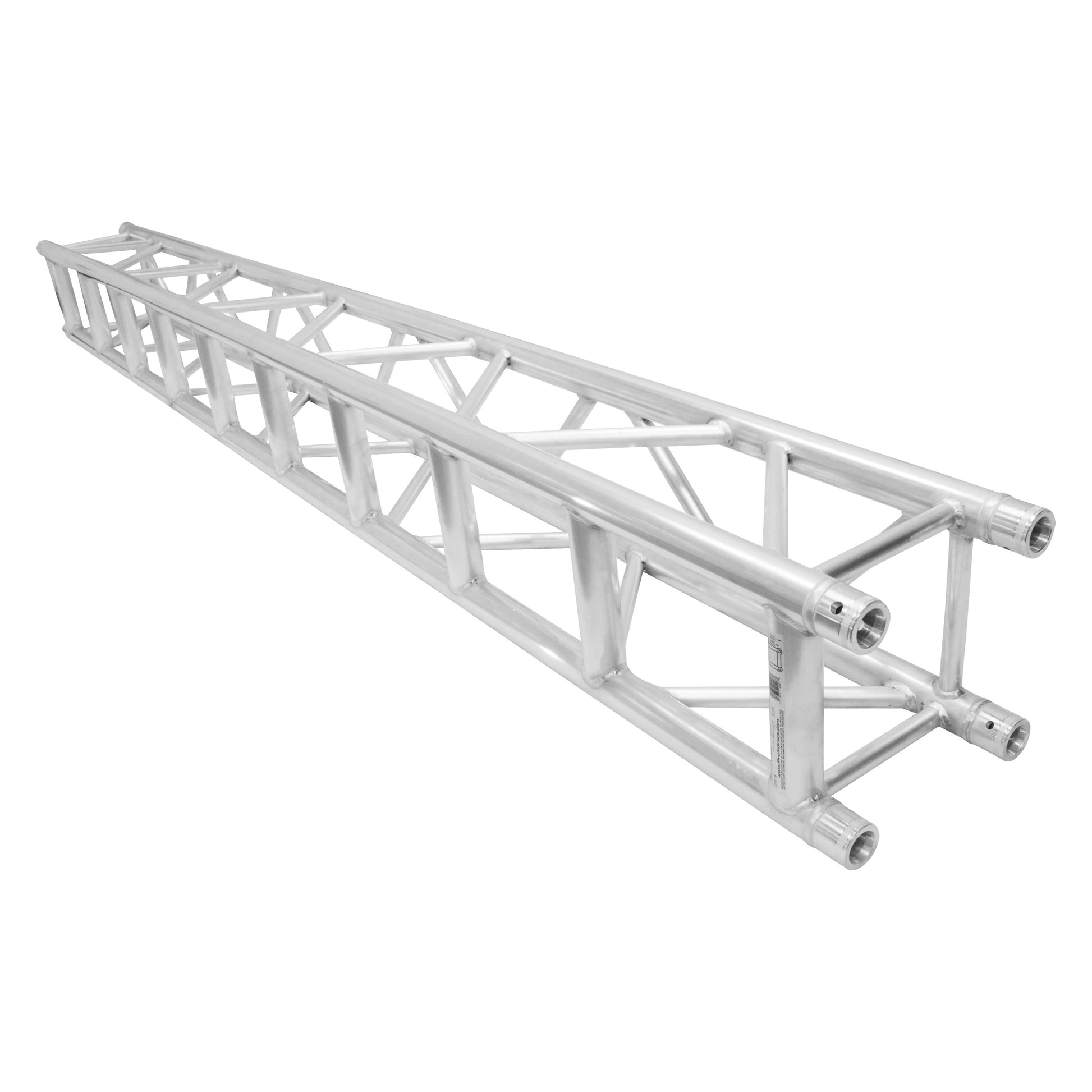

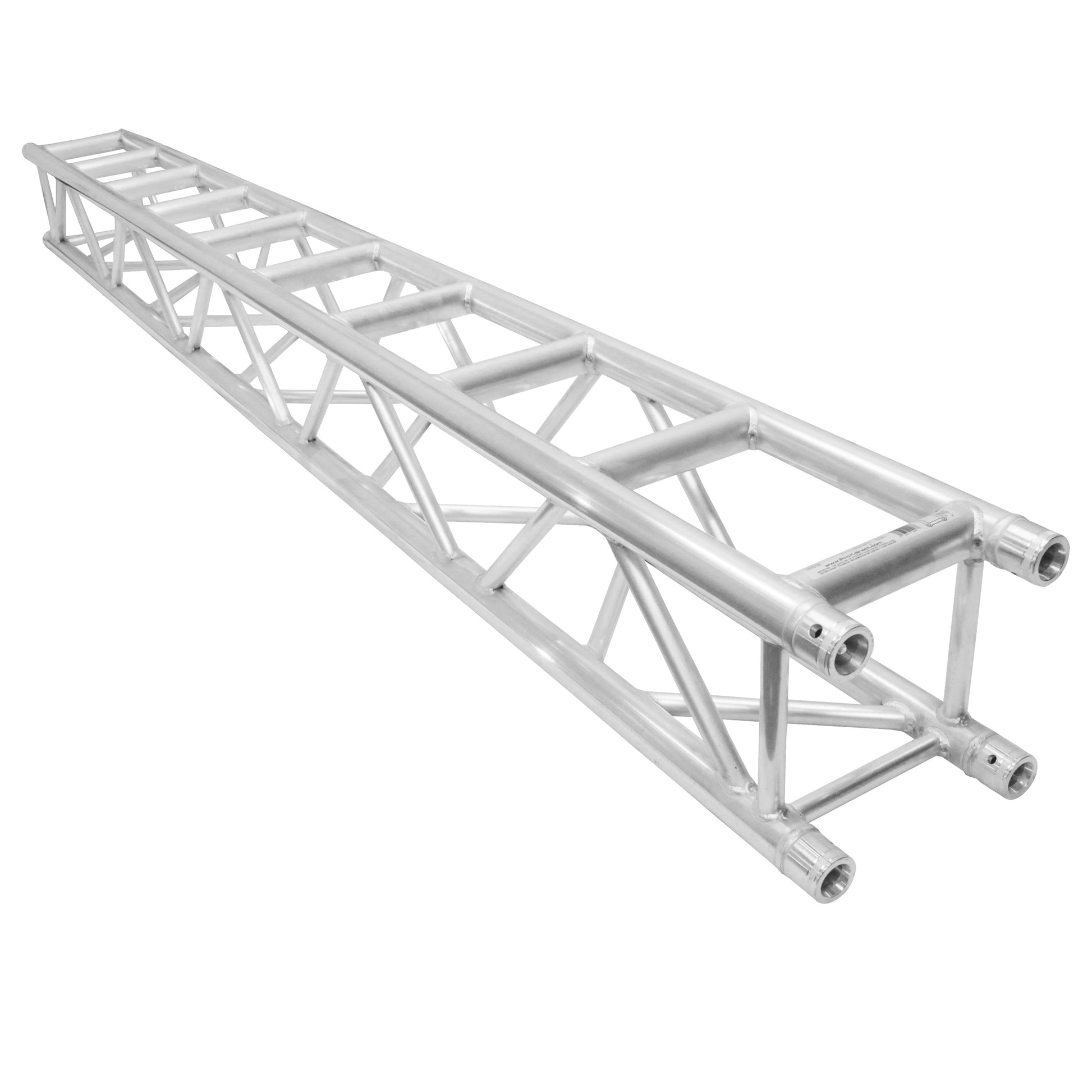

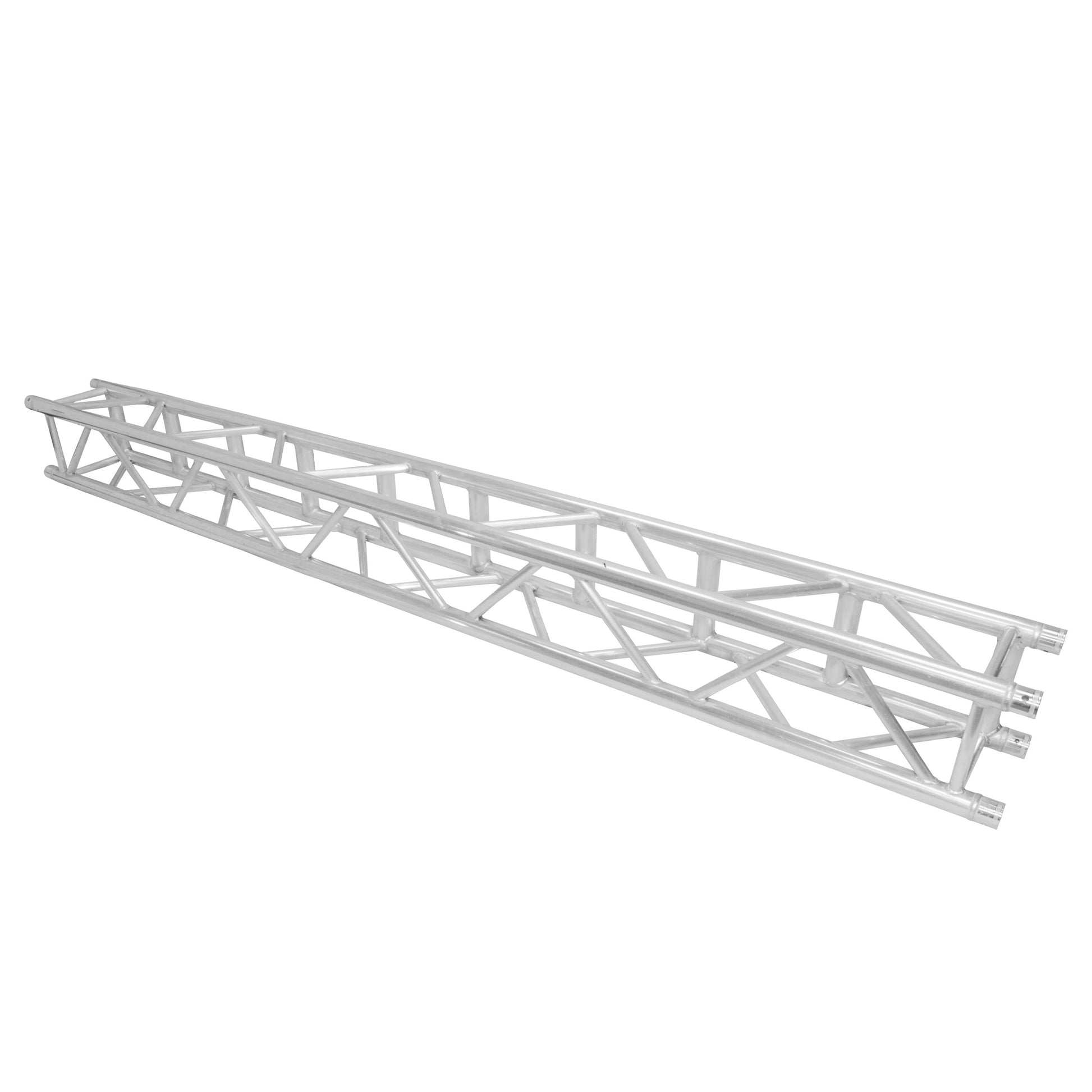

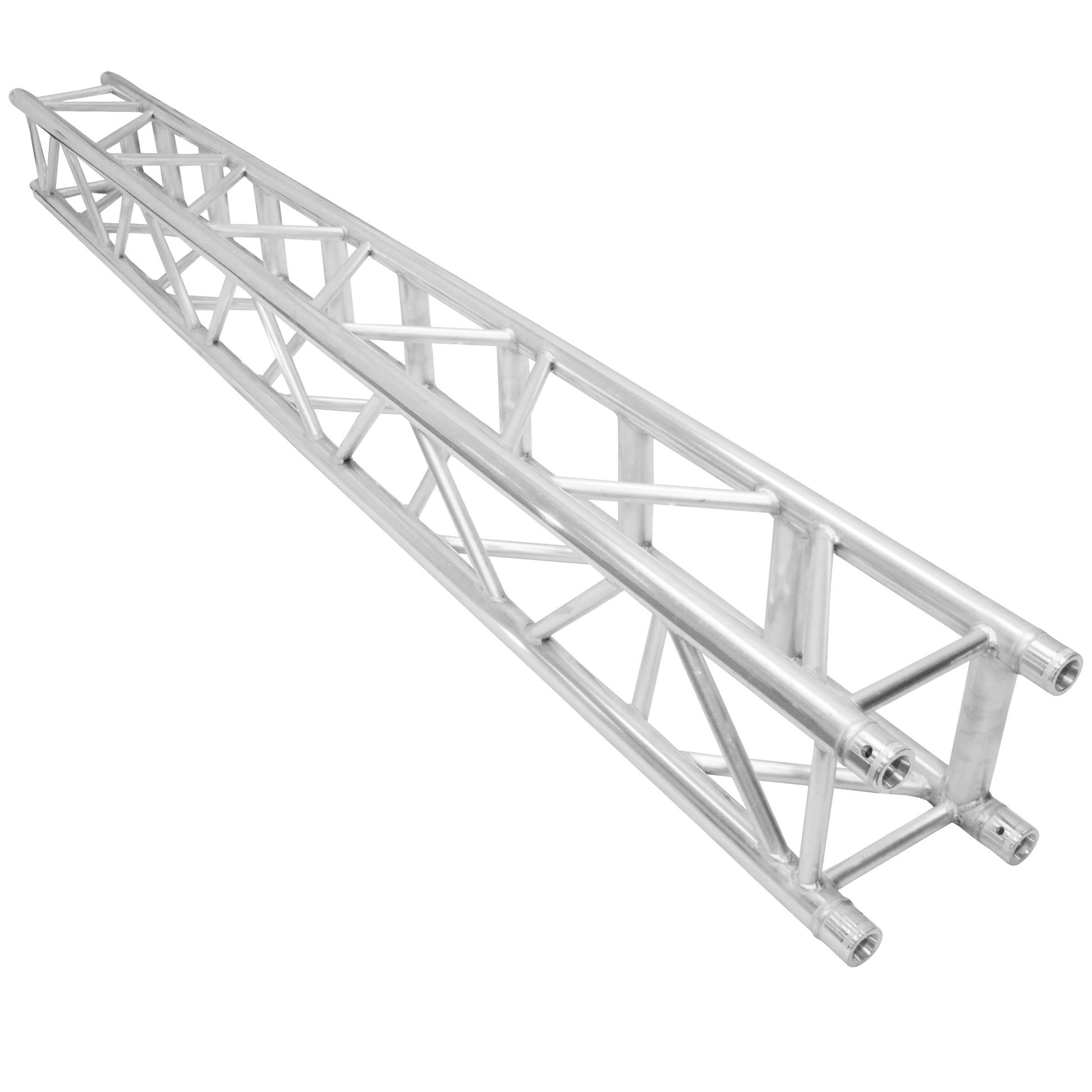

ProX XT F34 Professional Ladder Truss Segment Climbable Square Truss | 9.84 ft (3M)
ProX XT F34 Professional Ladder Truss Segment Climbable Square Truss | 9.84 ft (3M)
SoundPro Item: 77359 | Part Number: XT-SQPL984
Usually ships in 5-7 business days
- TUV Certified Welding Provides Third-Party Verified Weld Quality For Production Safety
- Conical Connector System Mates With Most F34 Truss Brands For Flexible Integration
- EN-AWT6 6082 Certified Aluminum Construction For Structural Integrity
- One-Side Ladder Design Enables Safe Climbing At Vertical Lift And Support Points
- Available In Six Lengths From 0.5M To 3M To Match Any Rig Configuration
- In-House Manufacturing To Specific Tolerances For Consistent Dimensional Repeatability
- Truss Pins And Clips Included For Immediate On-Site Assembly
The ProX XT F34 Professional Ladder Truss Segment series is engineered for riggers, production crews, and staging integrators who need a safe, climbable access point within a square truss system. Each segment features one ladder side with evenly spaced rungs, making it well-suited for placement at the lift and support points of indoor truss roofing systems, concert stages, nightclub installations, trade show structures, and mobile production rigs. The 3mm wall tubing on the main tubes gives this series structural integrity equal to thicker-walled alternatives, and the load chart for the standard XT-SQ truss applies directly, simplifying engineering review for production managers and riggers.
The conical connector system on every segment in this series mates with most other manufacturers' F34 trussing products, eliminating compatibility concerns when integrating into existing rigs or hybrid systems from multiple brands. All welding is TUV certified, providing third-party verification of weld quality for productions that demand documented safety credentials. Segments are available in six lengths from 0.5M to 3M, giving integrators precise control over vertical climb height at each support point without cutting or modifying hardware. Truss pins and clips are included with every segment so crews can begin assembly immediately on site.
ProX manufactures these segments to its own internal specifications, ensuring dimensional consistency across the product line and reliable repeatability when ordering additional sections for expanding or duplicating a rig. The ladder side is designed for vertical orientation only. When used horizontally, the ladder side must face down. The XT-SQ loading chart governs all load calculations for this series.
