ProX XTF-T106D Top Loading Steel Lifting Tower 496 lb Capacity
ProX XTF-T106D Top Loading Steel Lifting Tower 496 lb Capacity
SoundPro Item: 128774 | Part Number: XTF-T106D
Usually ships in 5-7 business days
- Five-Stage Extensible Steel Construction Achieves Full Operational Height
- Automatic Locking Steel Pin Secures Tower At Any Desired Height
- SELOIL Bearing Pulleys On High-Strength Steel Cable For Smooth Lift Operation

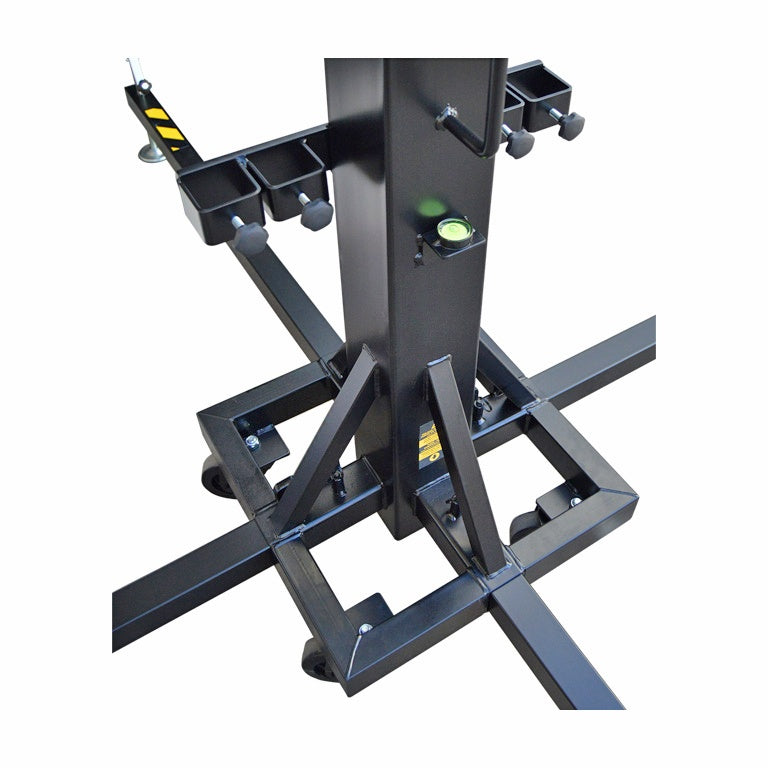

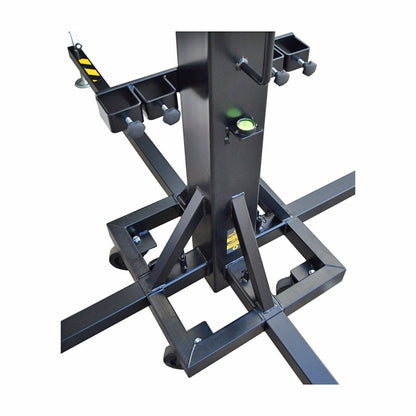

- Non-Slip Rubber Feet With Levelers Allow Stable Setup On Uneven Terrain
- High-Capacity Winch Provides Controlled Mechanical Advantage During Operation
- Manufactured In Spain By Fantek To Professional Production Standards

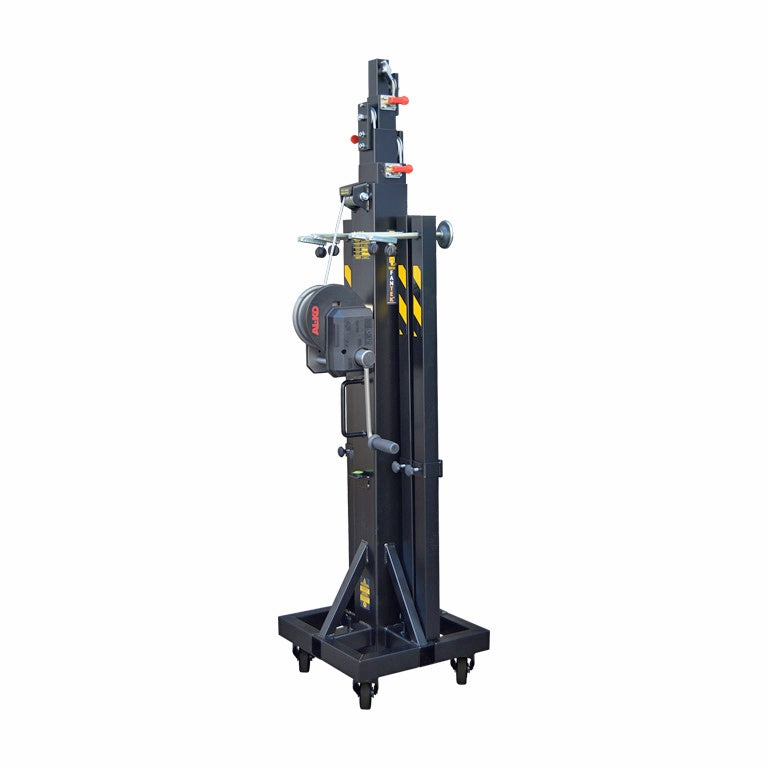

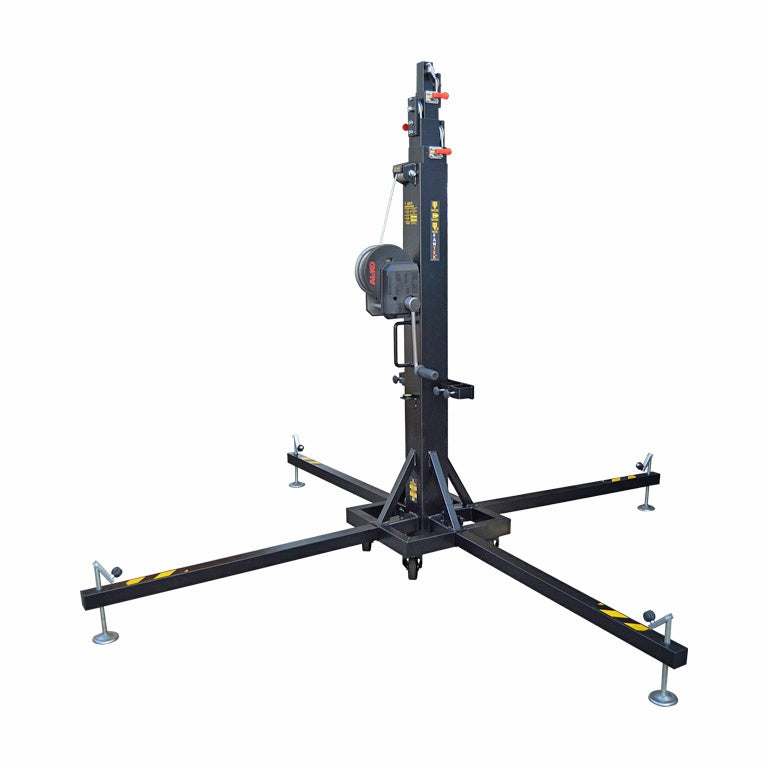

The ProX XTF-T106D is a professional top-loading lifting tower built for live event production, touring rigs, and installed performance venues that need reliable vertical lift for lighting, speakers, or truss elements. Engineered and manufactured in Spain by Fantek, it delivers a 496 lb maximum load capacity at a maximum height of 21.06 ft using five extensible steel profiles driven by high-strength steel cable and ribbed pulleys with SELOIL bearings. When transport or storage is required, the tower folds down to a 6.03 ft height, keeping it manageable for stage crews working tight load-in schedules.

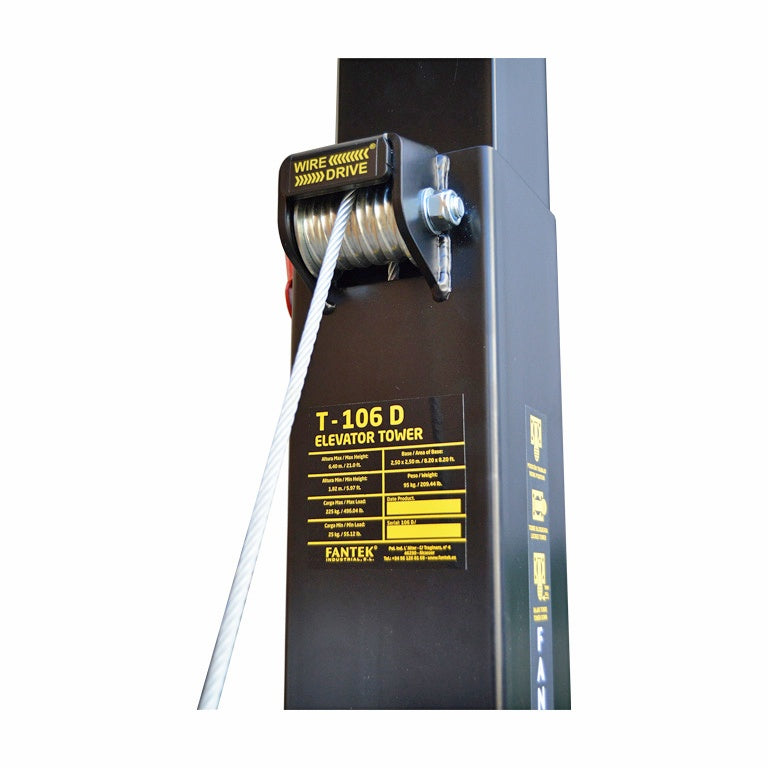

What sets the XTF-T106D apart from lighter-duty alternatives is its combination of structural precision and field-practical design. The automatic locking steel pin secures the tower at the desired height without additional hardware or adjustment, reducing setup time under show pressure. Legs fitted with non-slip rubber feet and built-in levelers allow stable deployment on uneven stage floors, outdoor platforms, or concrete that is not perfectly flat. The integrated winch is rated at 1,984 lb, providing a significant mechanical advantage over the lifted load and keeping operation controlled and safe. For integrators and production companies evaluating lifting solutions, the XTF-T106D represents a purpose-built European-manufactured product with verified load ratings and repeatable field performance.
Downloads
Downloads
Specifications
