ProX LED Screen Display Panel Video Fly Wall Truss Ground Support System | 20 ft W x 23 ft H

ProX LED Screen Display Panel Video Fly Wall Truss Ground Support System | 20 ft W x 23 ft H

SoundPro Item: 77512 | Part Number: XTP-GS2023

$9,799.99
$27,199.99 $9,799.99
Your Price Sold out
MSRP: $27,199.99 | MAP: $9,799.99

Usually ships in 5-7 business days

  • EN-AWT6 6082 Aluminum Construction Delivers Strength With Reduced System Weight
  • TUV Certified Welding Provides Third-Party Structural Verification For Venue Compliance
  • Tolerance-Free Standard Conical Connectors Mate With Other Major F34 Truss Brands
  • Wheeled Tower Bases With Leveling Jacks Allow Precise Positioning On Uneven Surfaces
  • Outrigger Stabilizers Extend Footprint For Safer Ground Support In Live Event Environments
  • Complete Package Ships With Hoist, Towers, Truss, And Hardware For Single-Source Procurement
  • Available In Multiple Width Configurations To Match Varying LED Wall Footprints
Log in or register for YOUR best price

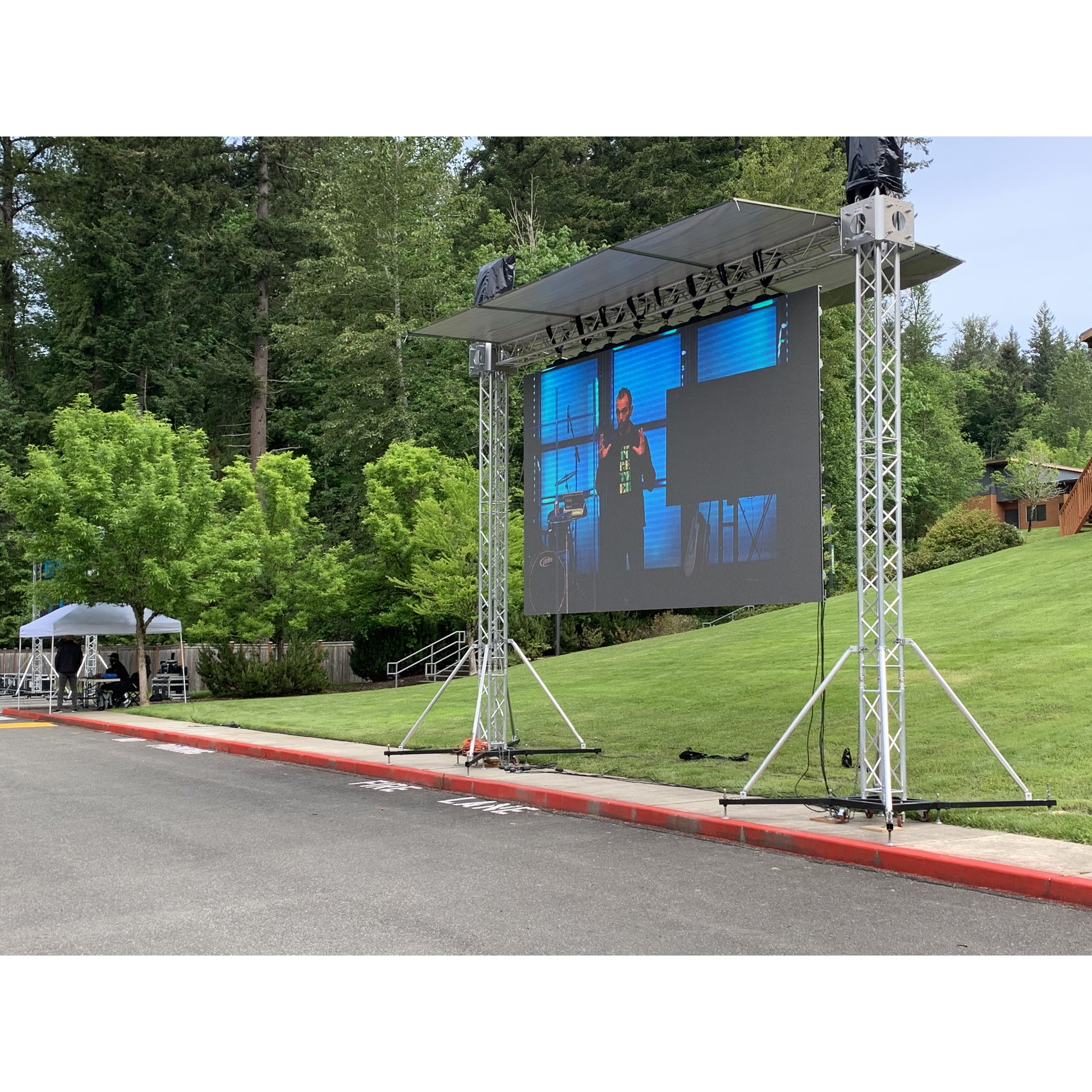

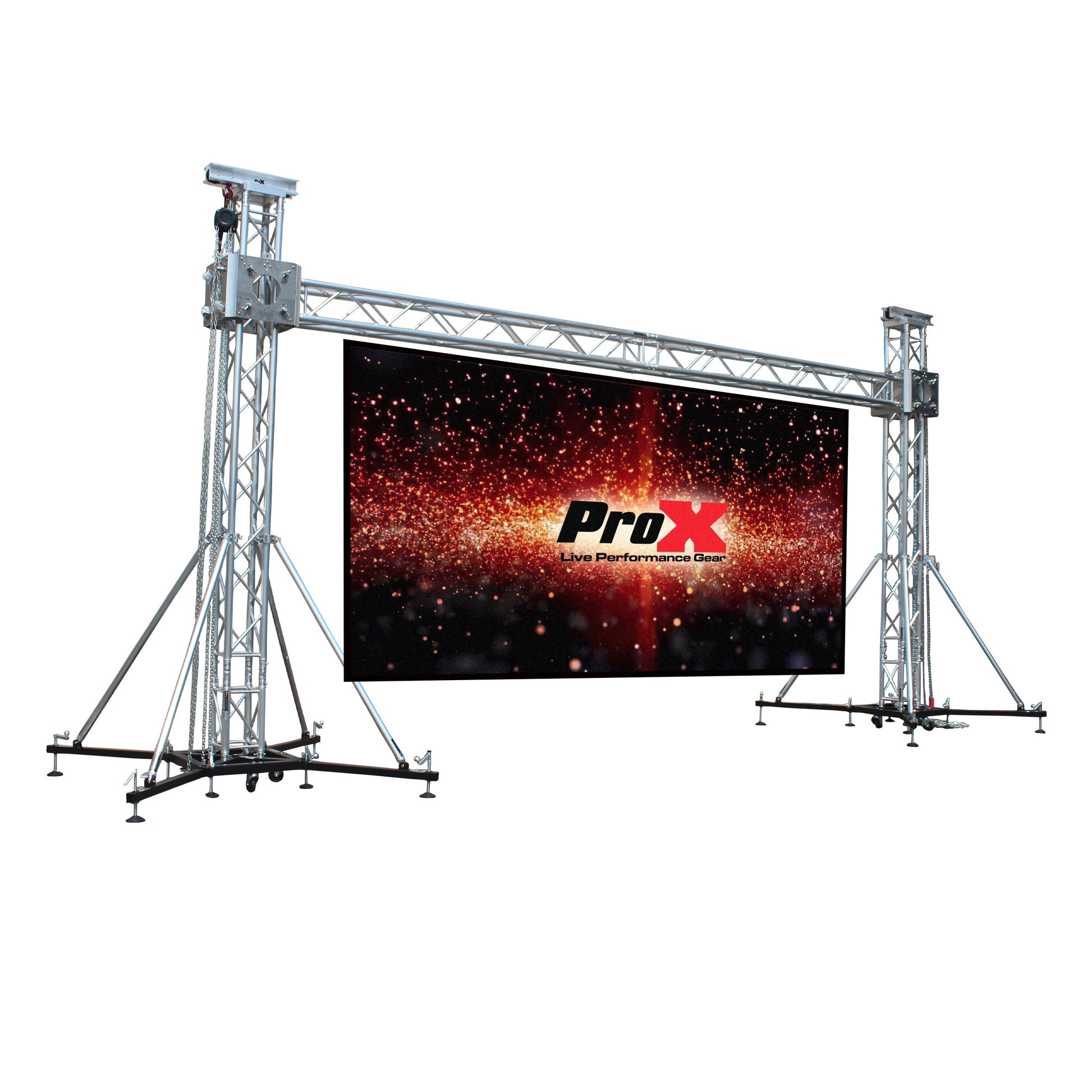

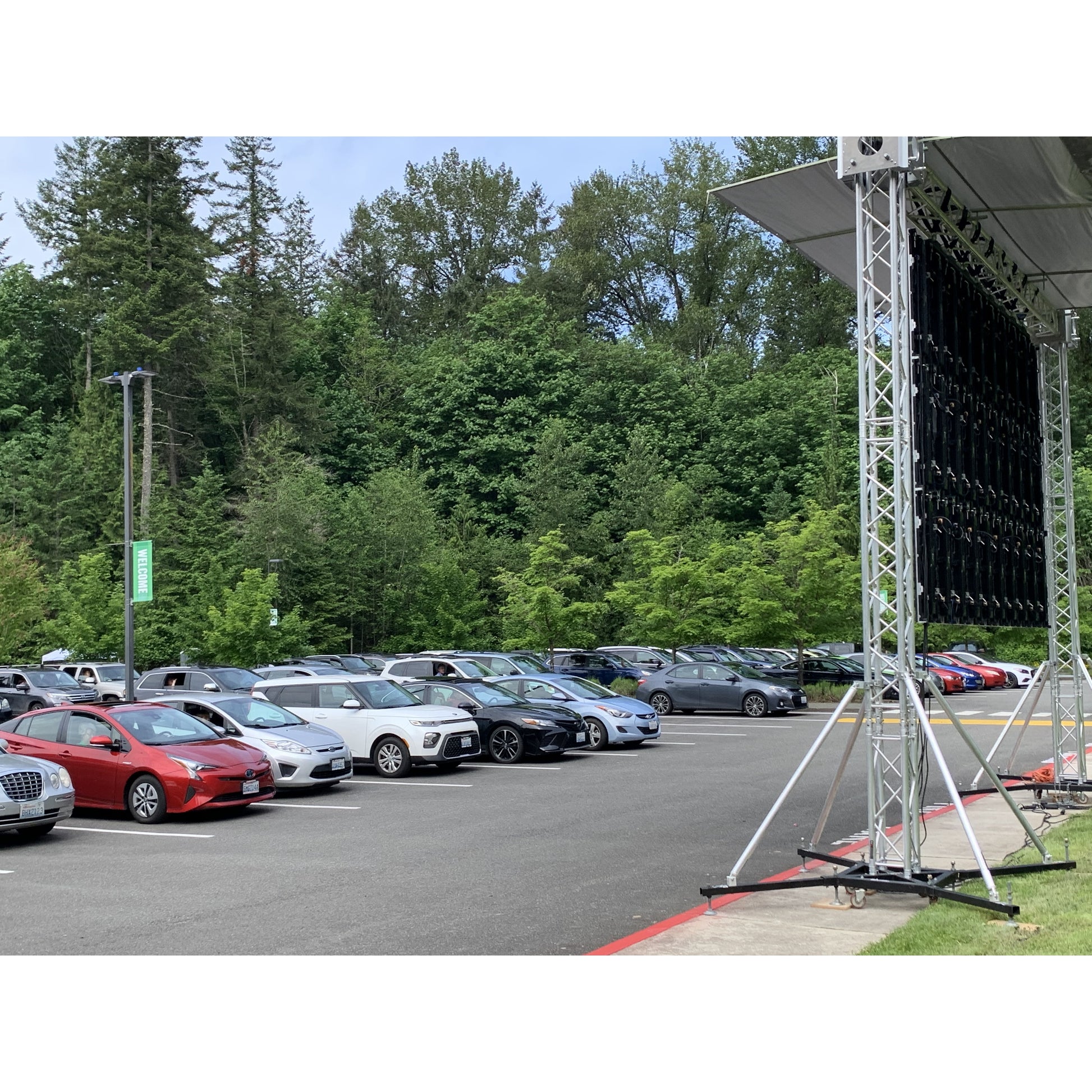

Production managers, AV integrators, and staging companies specifying a turnkey ground support solution for LED video walls will find the ProX XT-SQ Series LED Panel Support System ready for the demands of live outdoor productions, touring festivals, nightclub installs, and permanent venue deployments. Each package ships as a complete system: heavy-duty F34 square aluminum truss sections, modular vertical tower bases on wheels with leveling jacks, outrigger stabilizers, sleeve block corners, top hoist sections, hinge joints, and a manual chain hoist. No sourcing individual components from multiple vendors. Every piece is engineered to work together out of the box.

The XT-SQ Series truss is manufactured from EN-AWT6 6082 aluminum in a ProX-owned facility under TUV-certified welding standards, placing it alongside the most respected truss brands in touring and installation. The tolerance-free standard conical connector system mates directly with F34 trussing from other major manufacturers, protecting any investment in existing infrastructure and allowing mixed-brand configurations on complex stages. Wheeled tower bases with leveling jacks and bolt-pattern compatibility across F34, F44, and 12-inch bolt truss formats give integrators flexibility across projects. The system is available in multiple width configurations to match the LED wall footprint at hand, eliminating the guesswork of custom rigging design.

TUV certification covers the aluminum welding process, providing third-party verification of structural integrity required by many venue safety authorities and insurance underwriters. Professional rigger installation and load chart verification are required before use. This system is the right choice when a single-source, pre-engineered LED wall support package is needed for high-visibility productions where rigging improvisation is not an option.

Downloads

View full details

Specifications

Certifications
Welding Certification
TUV Certified Aluminum Welding
Truss Specifications (XT-SQ Series)
Truss Height
11.42" / 290mm
Truss Width
11.42" / 290mm
Weight Per Section
21 lbs per 3.28 ft / 9.5kg per meter
Main Tube Diameter
2" / 50mm
Wall Thickness
0.08" / 2mm
Brace Diameter
0.75" / 20mm
Connector Type
Tolerance-Free Standard Conical
Construction
Material
EN-AWT6 6082 Aluminum
Component Dimensions and Weight
XT-SQ328 (x2) Exterior
39.36"H x 11.42"W x 11.42"L - 19.00 lbs
XT-TOPCM (x2) Exterior
11.50"H x 9.50"W x 24.00"L - 26.40 lbs
XT-BLOCK-MK2 (x2) Exterior
18.50"H x 22.50"W x 22.50"L - 77.30 lbs
XT-SQ984 (x6) Exterior
118.08"H x 12.00"W x 12.00"L - 42.00 lbs
Included Items
XT-SQ984
6 x 9.84 ft (3.00m) F34 Square Truss Segment, 2mm Wall
XT-MCH ONE TX2-30FT MK2
1 x Sets of 2 1T Manual Chain Stage Hoist with 30 ft Chain
XT-BLOCK-MK2
2 x Ground Support Sleeve Block 4-Way Corner for F34 Truss
XT-TOPCM
2 x Top Truss Section for Electric Motor or Manual Chain Hoist
XT-HINGEX4
2 x Pack of 4 Conical Tube Ground Support Post Hinge Joint, Fits F31 F32 F34
XT-GSBMK3
2 x Wheeled Vertical Tower Base with Leveling Jacks, Fits F34/F44/12" Bolt Truss
XT-SQ328
2 x 3.28 ft (1.00m) F34 Square Truss Segment, 2mm Wall
XT-GSOUTS3X2
4 x Ground Support Outrigger Stabilizer Set for XT-GSB Tower Base
XTP-GSBPACK3
2 included
Shipping
Box 1 (XT-GSOUTS3X2, 4 boxes)
75.00"H x 6.00"W x 6.00"L - 40.00 lbs
Box 2 (XT-SQ328, 2 boxes)
41.50"H x 12.50"W x 12.50"L - 21.00 lbs
Box 3 (XT-GSBMK3, 2 boxes)
9.00"H x 29.00"W x 29.00"L - 70.00 lbs
Box 4 (XT-HINGEX4, 2 boxes)
5.00"H x 5.00"W x 5.00"L - 10.00 lbs
Box 5 (XT-TOPCM, 2 boxes)
12.00"H x 10.00"W x 25.00"L - 28.00 lbs
Box 6 (XT-BLOCK-MK2, 2 boxes)
20.00"H x 24.00"W x 24.00"L - 80.00 lbs
Box 7 (XT-SQ984, 6 boxes)
14.00"H x 14.00"W x 120.00"L - 46.00 lbs
Suggested Shipping Method
LTL
Pallet Size
120" x 40" x 75"
Total Pallet Weight
850 lbs
Identifiers
UPC
019372414322
