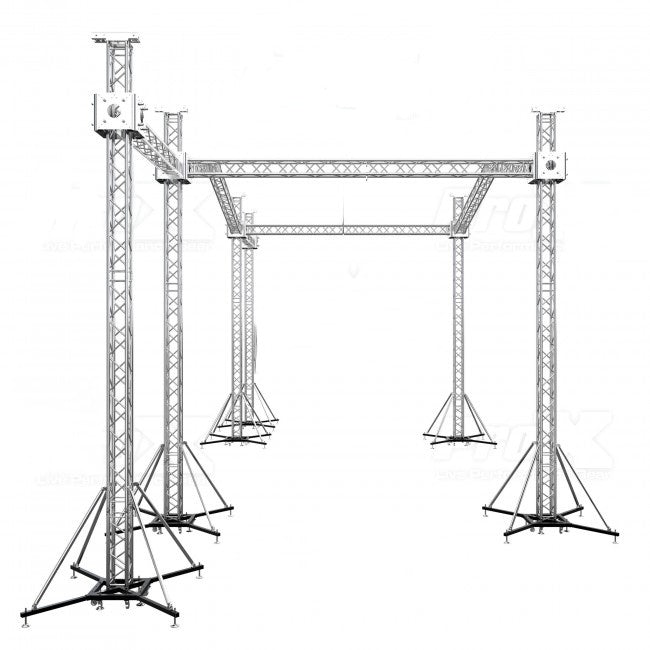

ProX Stage Roofing Truss System with Ground Support and Chain Hoists F34 Aluminum Complete Package | 30 ft W x 20 ft L x 23 ft H | PR2 12D With Speaker Wings

ProX Stage Roofing Truss System with Ground Support and Chain Hoists F34 Aluminum Complete Package | 30 ft W x 20 ft L x 23 ft H | PR2 12D With Speaker Wings

SoundPro Item: 128751 | Part Number: XTP-GS302023-PR2-12D

$34,999.99
$93,439.99 $34,999.99
Your Price Sold out
MSRP: $93,439.99 | MAP: $34,999.99

Usually ships in 5-7 business days

  • Complete F34 Ground Support Package Includes All Structural Components For A Full Roof Build
  • TUV-Certified Aluminum And Steel Welding Meets Third-Party Safety And Documentation Standards
  • Sleeve Block Lifting System Allows Controlled Roof Elevation Along Each Vertical Tower
  • Tolerance-Free Conical Connectors Ensure Cross-Compatible Fit With Standard F34 Truss Systems
  • Wheeled Tower Bases With Leveling Jacks Enable Stable Installation On Uneven Surfaces
  • Outrigger Stabilizer Sets Widen Tower Footprint For Increased Lateral Stability
  • Available In Standard Flat Roof And Speaker Wing Configurations Across Multiple Footprints
Log in or register for YOUR best price

The ProX F34 Stage Roofing Truss System with Ground Support and Chain Hoists is a complete, turn-key aluminum roof structure engineered for staging professionals who need a reliable overhead grid without sourcing components from multiple vendors. Each package ships as a matched set of F34 square truss segments, sleeve block lifting assemblies, wheeled tower bases with leveling jacks, outrigger stabilizers, hinge joints, tower head sections, and manual chain hoists. The sleeve block travels along each vertical tower column and is mechanically secured at the tower head once the roof grid reaches the target height, giving crews controlled, repeatable elevation without improvised rigging. The F34 box truss segments use 2mm wall aluminum with tolerance-free conical connectors, making them cross-compatible with other manufacturers' F34 systems already in a rental inventory.

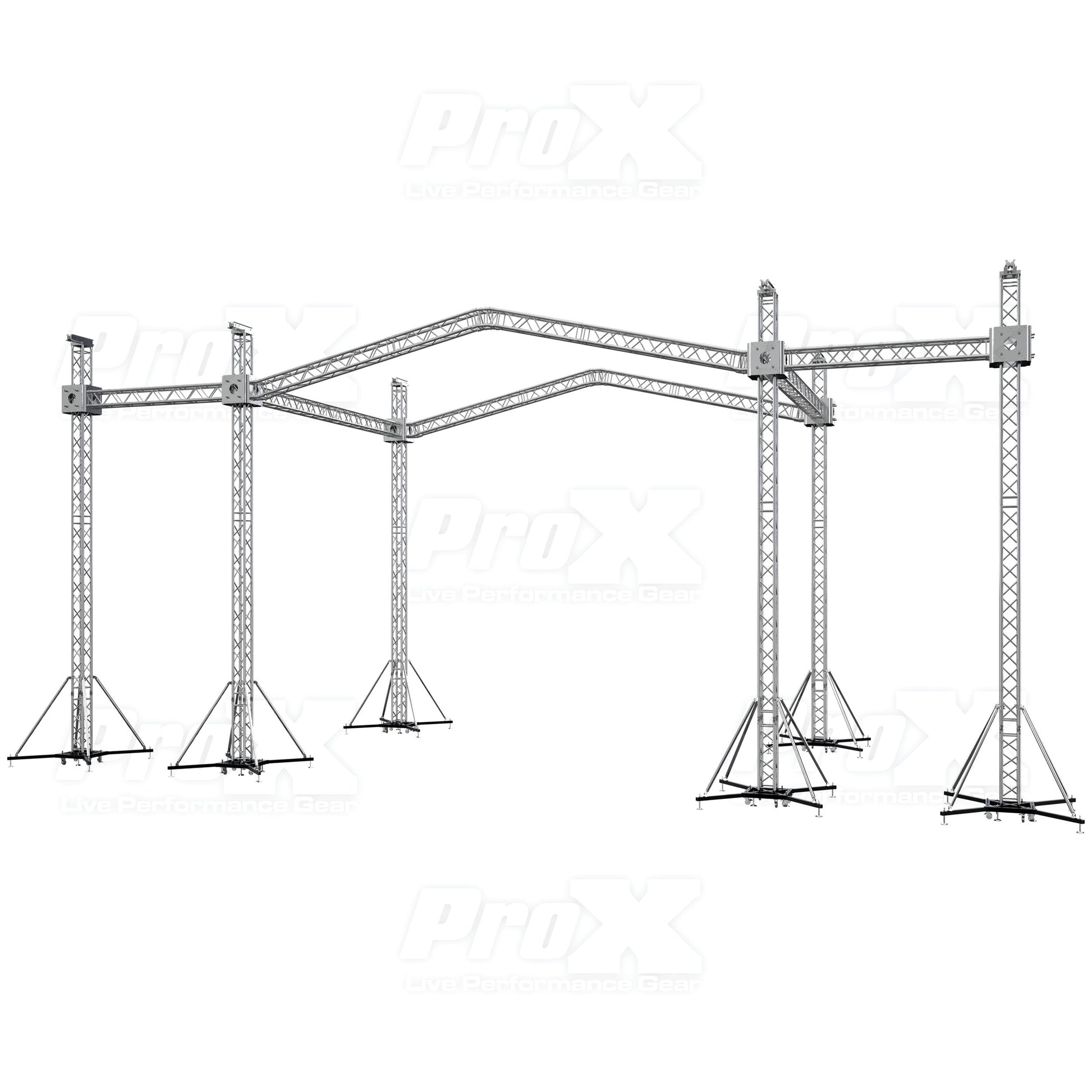

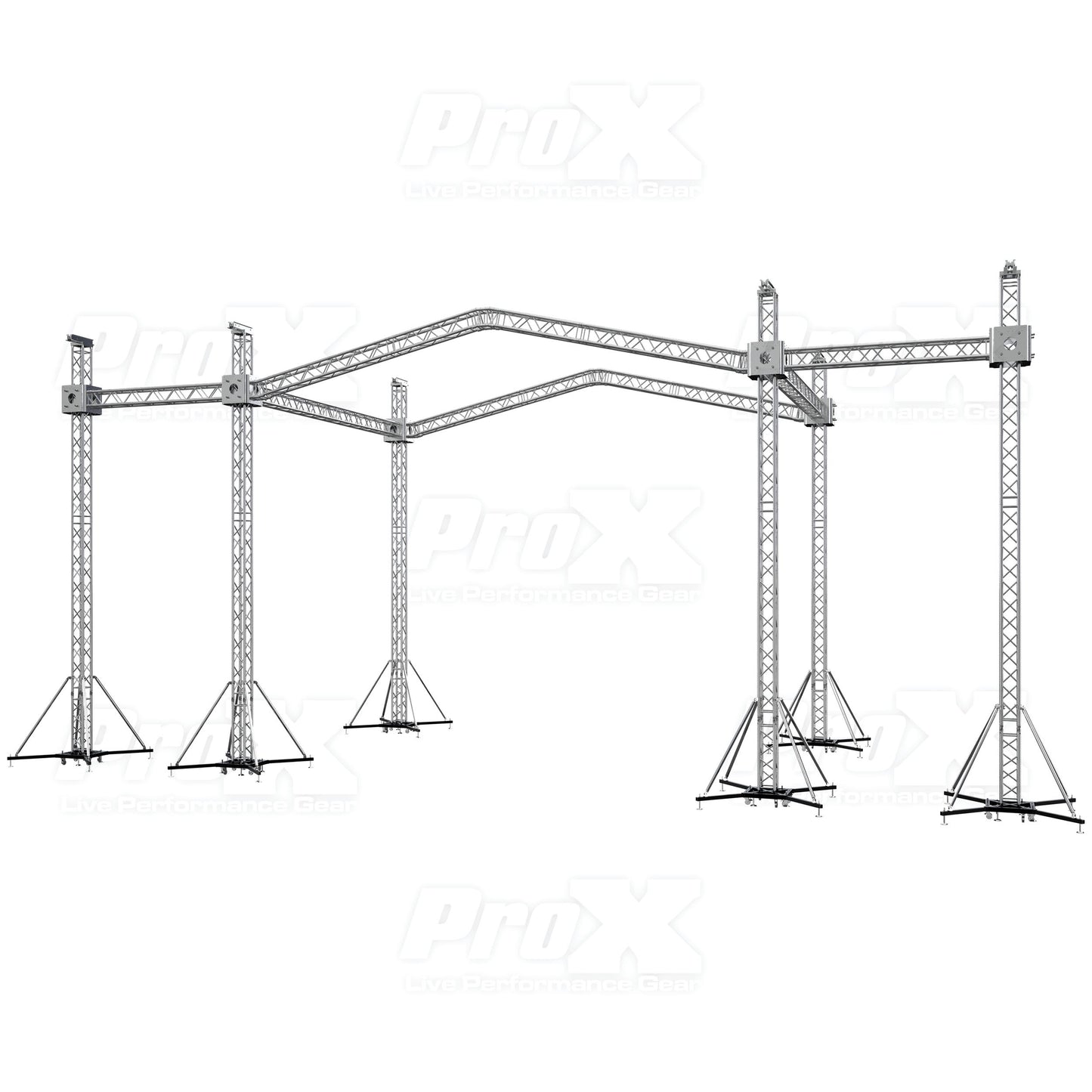

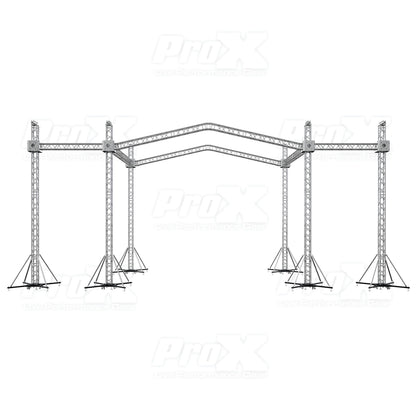

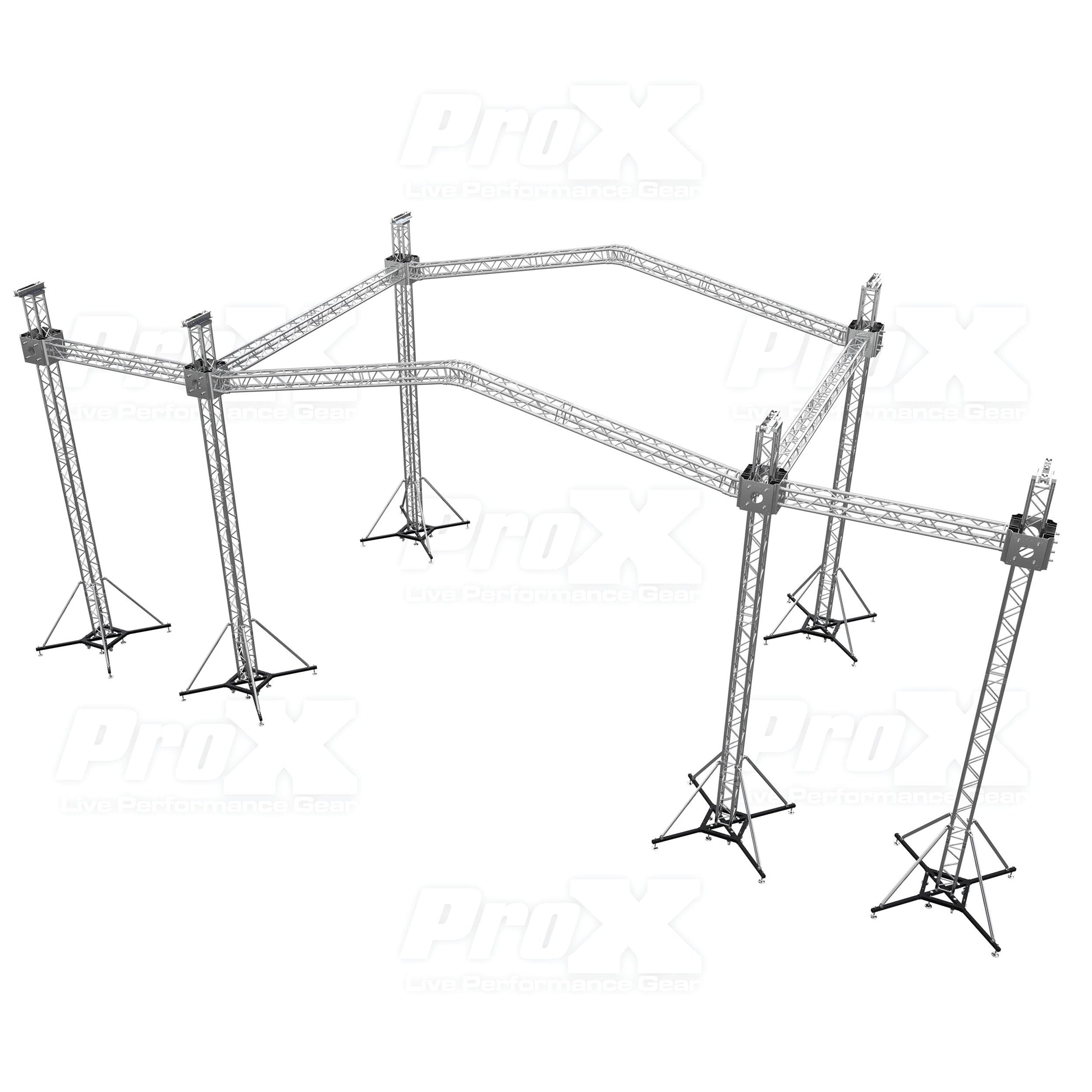

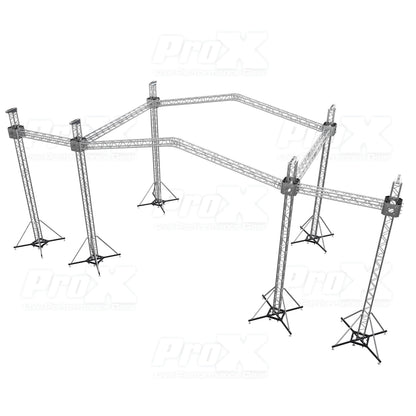

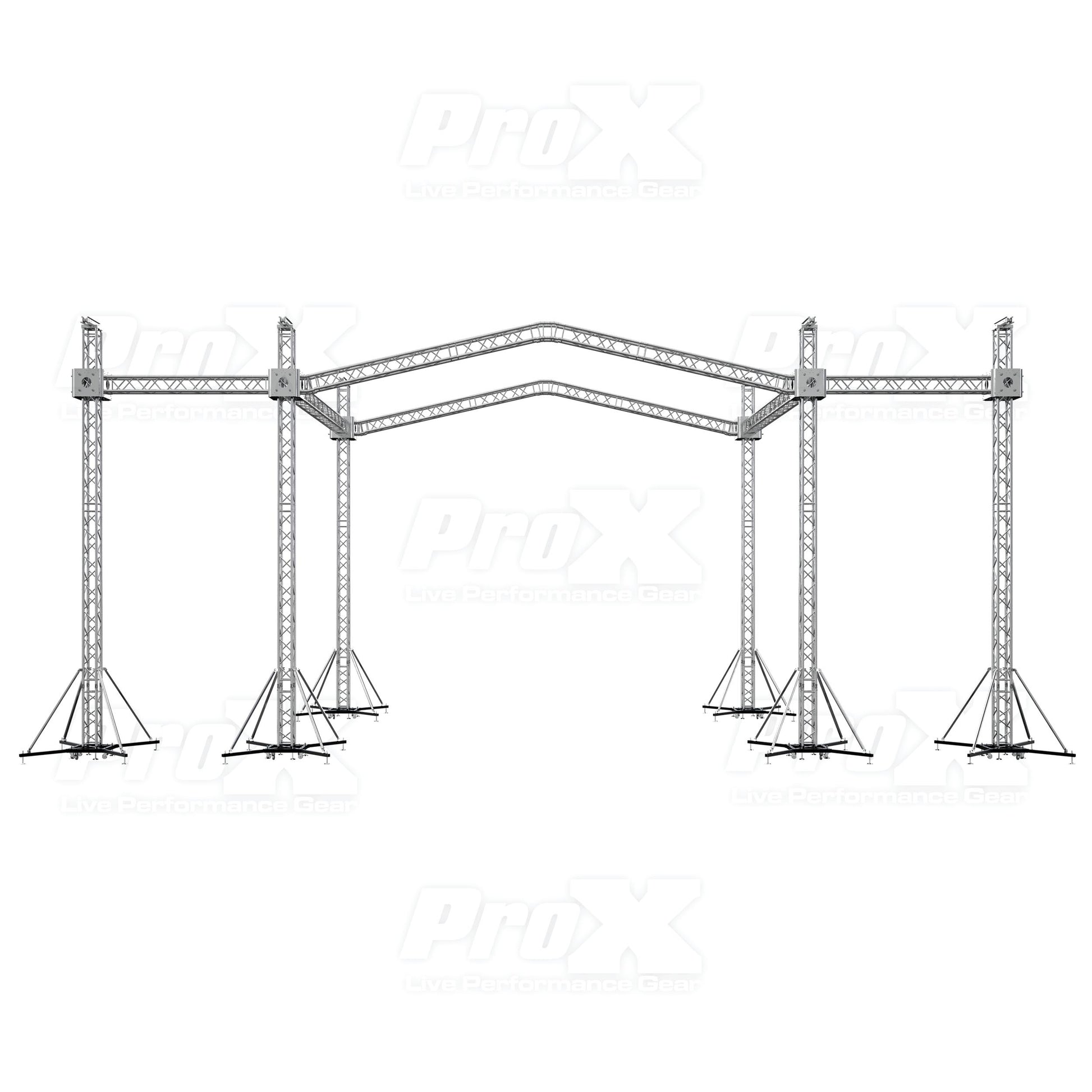

The systems in this family span multiple footprints and roof configurations to match the scale of the production. Standard flat roof configurations suit compact festival stages, DJ productions, corporate events, and houses of worship where a clean, unobstructed overhead grid is the priority. Speaker wing configurations add lateral truss extensions that allow front-of-house arrays and side fills to be flown directly from the structure, eliminating ground stands and reclaiming floor space. The 12D curved roof variants use angled corner connectors to create an arched profile suited to larger productions where aesthetics and load distribution across a wider span both matter. All configurations share the same tower hardware, base system, and F34 truss standard, so components move between builds as production scale changes.

All welding carries TUV third-party certification, providing the documentation that professional riggers and venue safety officers require before approving a load plan. The wheeled ground support bases accept leveling jacks for installation on uneven surfaces, and the outrigger stabilizer sets widen the footprint of each tower for increased lateral stability. Ballast, guy wires, and anchoring systems are not included but are required for most outdoor installations per engineering drawings. A professional rigger must verify the truss loading chart before use.

Downloads

View full details

Specifications

Certifications
Welding Certification
TUV Certified Aluminum/Steel Welding
Dimensions
System Width
30 ft
System Length
20 ft
System Height
23 ft
XT-SQF34 Truss Cross-Section Height
11.42"
XT-SQF34 Truss Cross-Section Width
11.42"
XT-SQF34 Main Tube Diameter
2" / 50mm
XT-SQF34 Wall Thickness
0.08" / 2mm
XT-SQF34 Brace Diameter
0.75" / 20mm
XT-SQ984 Unit Dimensions (x16)
118.08"H x 12.00"W x 12.00"L
XT-SQ705 Unit Dimensions (x8)
not separately listed in exterior dims for this SKU
XT-SQ12D Unit Dimensions (x8)
11.42"H x 11.42"W x 10.00"L
XT-SQ656 Unit Dimensions (x2)
78.72"H x 11.42"W x 11.42"L
XT-SQ328 Unit Dimensions (x6)
39.36"H x 11.42"W x 11.42"L
XT-TOPCM Unit Dimensions (x6)
11.50"H x 9.50"W x 24.00"L
XT-BLOCK-MK2 Unit Dimensions (x6)
18.50"H x 22.50"W x 22.50"L
Weight
XT-SQF34 Weight Per Meter
21 lbs / 9.5 kg per 3.28 ft
XT-SQ984 Unit Weight (x16)
42.00 lbs
XT-SQ12D Unit Weight (x8)
8.00 lbs
XT-SQ656 Unit Weight (x2)
31.00 lbs
XT-SQ328 Unit Weight (x6)
19.00 lbs
XT-TOPCM Unit Weight (x6)
26.40 lbs
XT-BLOCK-MK2 Unit Weight (x6)
77.30 lbs
Construction
Material
EN-AWT6 6082 Aluminum and Welded Steel (Painted Black)
Truss Standard
F34
Wall Thickness
2mm
Connector Type
Tolerance-Free Standard Conical
Included Items
XT-SQ984 F34 Square Truss Segment 9.84 ft
16
XT-SQ705 F34 Square Truss Segment 7.05 ft
8
XT-SQ12D 12 Degree F34 Square Truss Angle Connector
8
XT-SQ656 F34 Square Truss Segment 6.56 ft
2
XT-SQ328 F34 Square Truss Segment 3.28 ft
6
XT-MCH ONE TX2-30FT MK2 Manual Chain Hoist Sets
3
XT-BLOCK-MK2 Ground Support Sleeve Block 4-Way Corner
6
XT-TOPCM Top Truss Section for Chain Hoist
6
XT-GSBMK3 Wheeled Vertical Tower Ground Support Base
6
XT-HINGEX4 Pack of 4 Conical Hinge Joints
6
XT-GSOUTS3X2 Ground Support Outrigger Stabilizer Set of 2
12
XTP-GSBPACK3 Truss Tower Lift Systems
6
Shipping
Shipping Method
LTL
Box 1 - XT-GSOUTS3X2 (12 boxes)
75.00"H x 6.00"W x 6.00"L - 40.00 lbs
Box 2 - XT-HINGEX4 (6 boxes)
5.00"H x 5.00"W x 5.00"L - 10.00 lbs
Box 3 - XT-SQ328 (6 boxes)
41.50"H x 12.50"W x 12.50"L - 21.00 lbs
Box 4 - XT-GSBMK3 (6 boxes)
9.00"H x 29.00"W x 29.00"L - 70.00 lbs
Box 5 - XT-TOPCM (6 boxes)
12.00"H x 10.00"W x 25.00"L - 28.00 lbs
Box 6 - XT-BLOCK-MK2 (6 boxes)
20.00"H x 24.00"W x 24.00"L - 80.00 lbs
Box 7 - XT-SQ656 (2 boxes)
80.50"H x 13.00"W x 13.00"L - 35.00 lbs
Box 8 - XT-SQ12D (8 boxes)
12.00"H x 12.00"W x 12.00"L - 9.00 lbs
Box 9 - XT-SQ705 (8 boxes)
13.00"H x 13.00"W x 86.00"L - 30.00 lbs
Box 10 - XT-SQ984 (16 boxes)
14.00"H x 14.00"W x 120.00"L - 46.00 lbs
Identifiers
UPC
804589617570
