ProX Stage Roofing Truss System with Ground Support and Chain Hoists F34 Aluminum Complete Package | 30 ft W x 20 ft L x 23 ft H | PR3 12D With Speaker Wings
ProX Stage Roofing Truss System with Ground Support and Chain Hoists F34 Aluminum Complete Package | 30 ft W x 20 ft L x 23 ft H | PR3 12D With Speaker Wings
SoundPro Item: 77538 | Part Number: XTP-GS302023-PR3-12D
Usually ships in 5-7 business days
- Complete F34 Ground Support Package Includes All Structural Components For A Full Roof Build
- TUV-Certified Aluminum And Steel Welding Meets Third-Party Safety And Documentation Standards
- Sleeve Block Lifting System Allows Controlled Roof Elevation Along Each Vertical Tower
- Tolerance-Free Conical Connectors Ensure Cross-Compatible Fit With Standard F34 Truss Systems
- Wheeled Tower Bases With Leveling Jacks Enable Stable Installation On Uneven Surfaces
- Outrigger Stabilizer Sets Widen Tower Footprint For Increased Lateral Stability
- Available In Standard Flat Roof And Speaker Wing Configurations Across Multiple Footprints

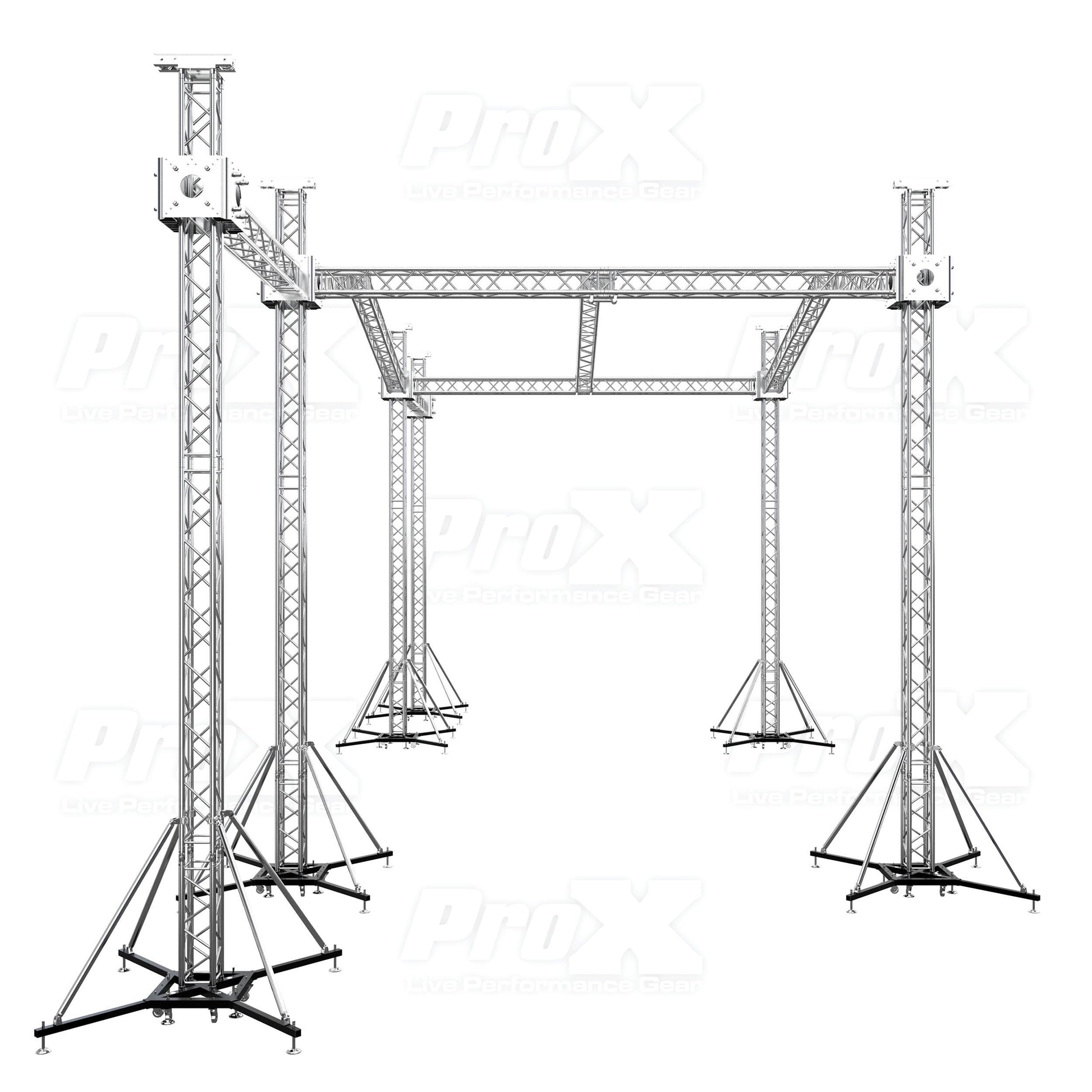

The ProX F34 Stage Roofing Truss System with Ground Support and Chain Hoists is a complete, turn-key aluminum roof structure engineered for staging professionals who need a reliable overhead grid without sourcing components from multiple vendors. Each package ships as a matched set of F34 square truss segments, sleeve block lifting assemblies, wheeled tower bases with leveling jacks, outrigger stabilizers, hinge joints, tower head sections, and manual chain hoists. The sleeve block travels along each vertical tower column and is mechanically secured at the tower head once the roof grid reaches the target height, giving crews controlled, repeatable elevation without improvised rigging. The F34 box truss segments use 2mm wall aluminum with tolerance-free conical connectors, making them cross-compatible with other manufacturers' F34 systems already in a rental inventory.

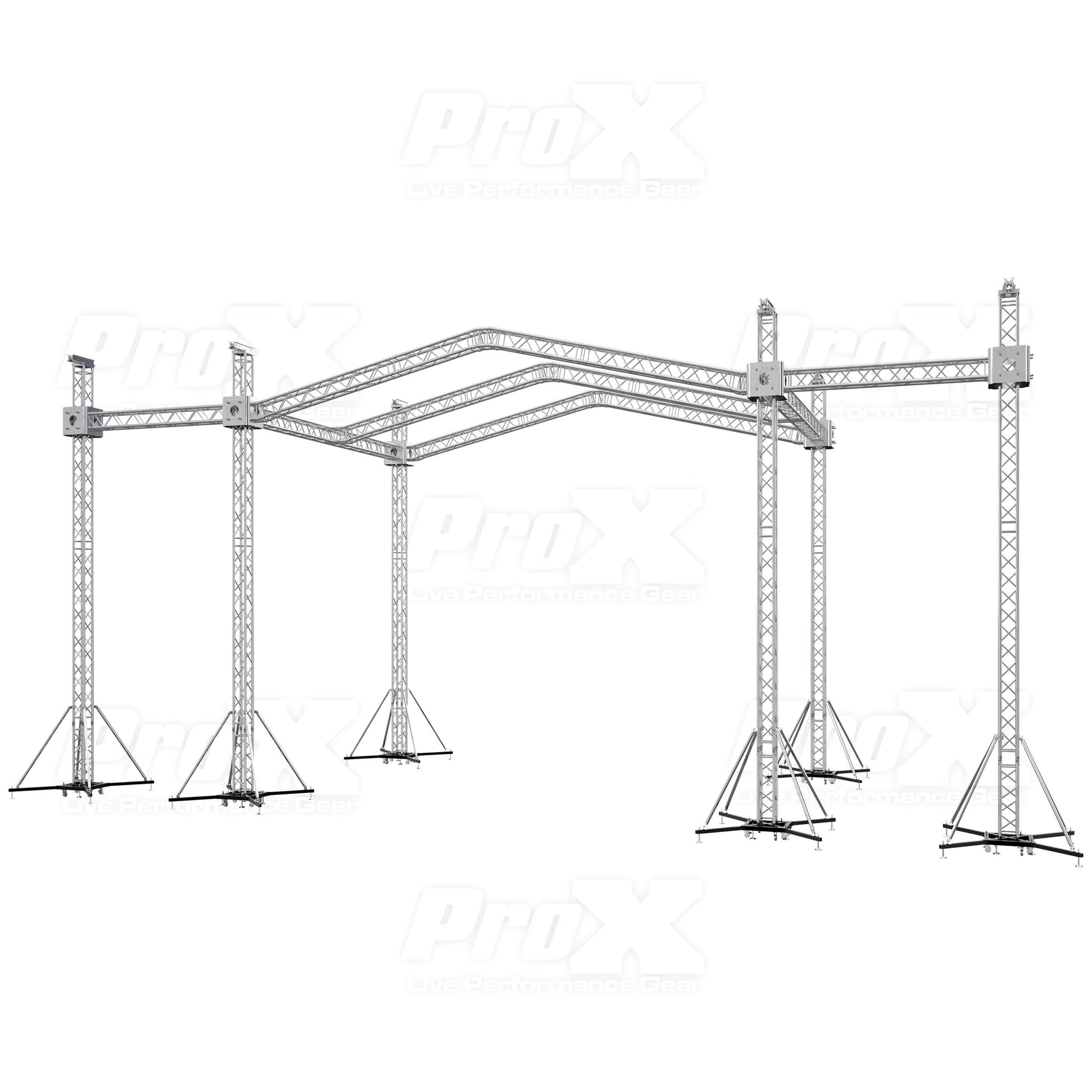

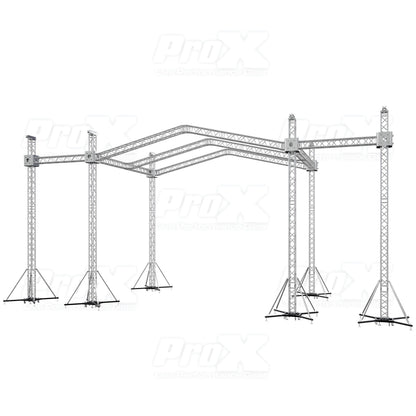

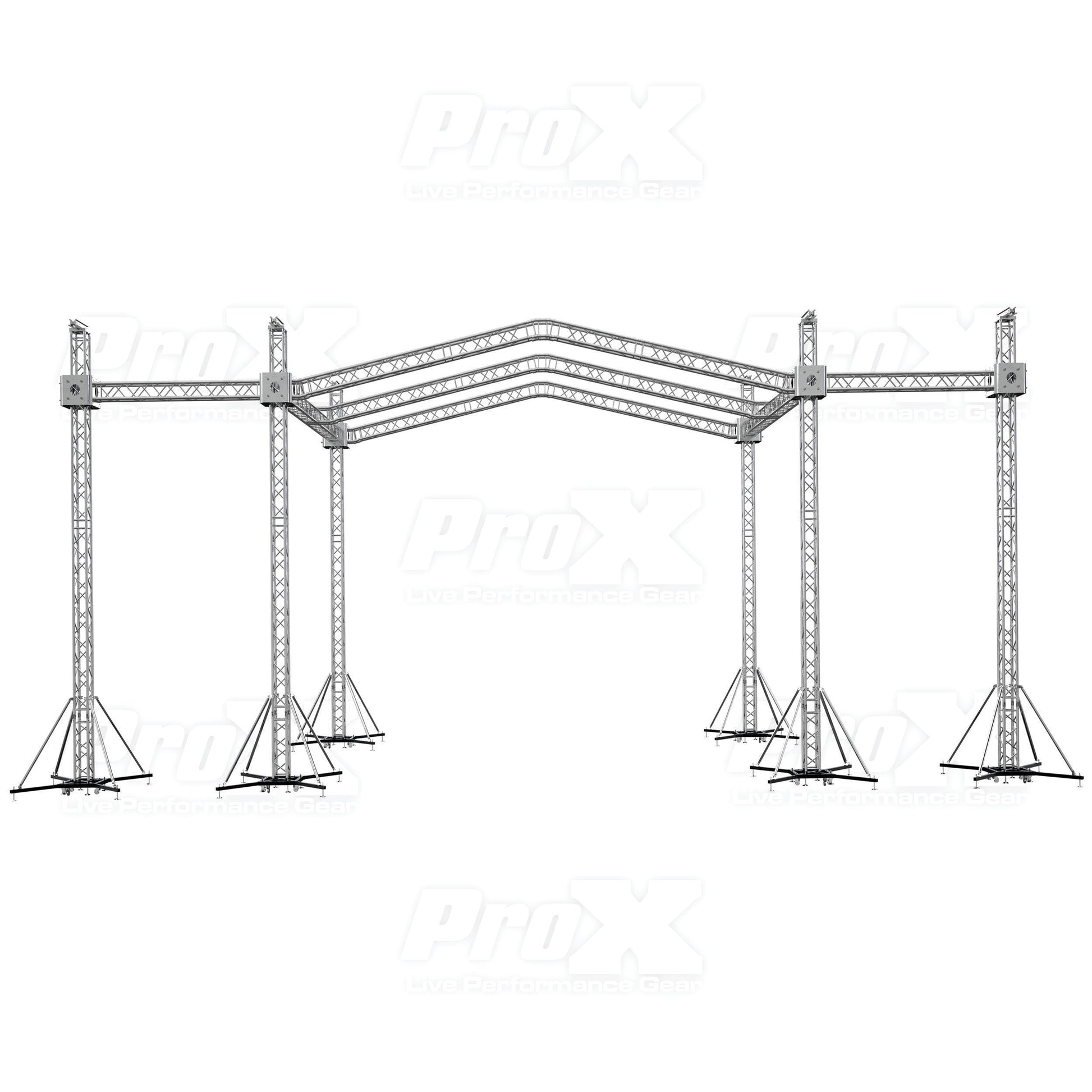

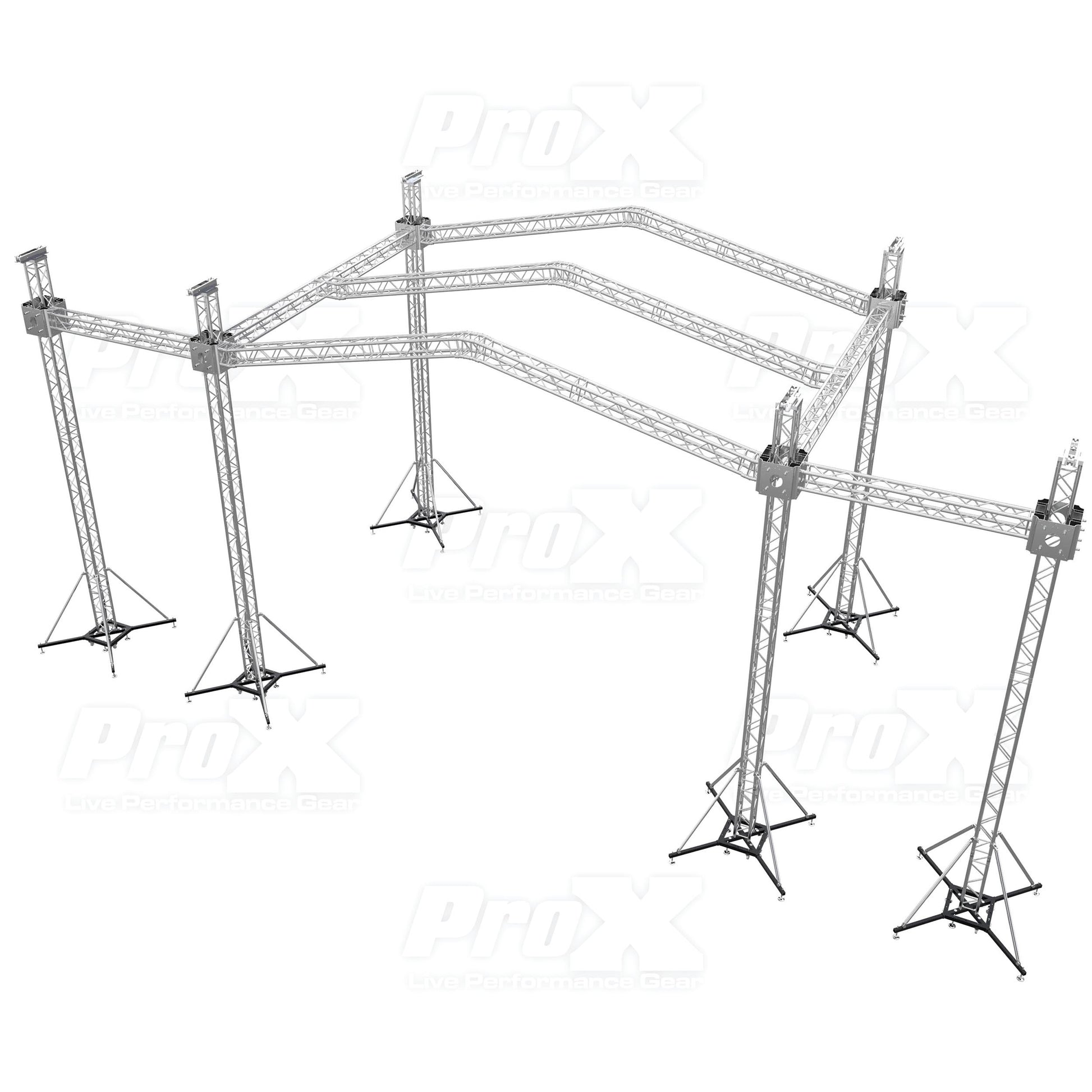

The systems in this family span multiple footprints and roof configurations to match the scale of the production. Standard flat roof configurations suit compact festival stages, DJ productions, corporate events, and houses of worship where a clean, unobstructed overhead grid is the priority. Speaker wing configurations add lateral truss extensions that allow front-of-house arrays and side fills to be flown directly from the structure, eliminating ground stands and reclaiming floor space. The 12D curved roof variants use angled corner connectors to create an arched profile suited to larger productions where aesthetics and load distribution across a wider span both matter. All configurations share the same tower hardware, base system, and F34 truss standard, so components move between builds as production scale changes.
All welding carries TUV third-party certification, providing the documentation that professional riggers and venue safety officers require before approving a load plan. The wheeled ground support bases accept leveling jacks for installation on uneven surfaces, and the outrigger stabilizer sets widen the footprint of each tower for increased lateral stability. Ballast, guy wires, and anchoring systems are not included but are required for most outdoor installations per engineering drawings. A professional rigger must verify the truss loading chart before use.
