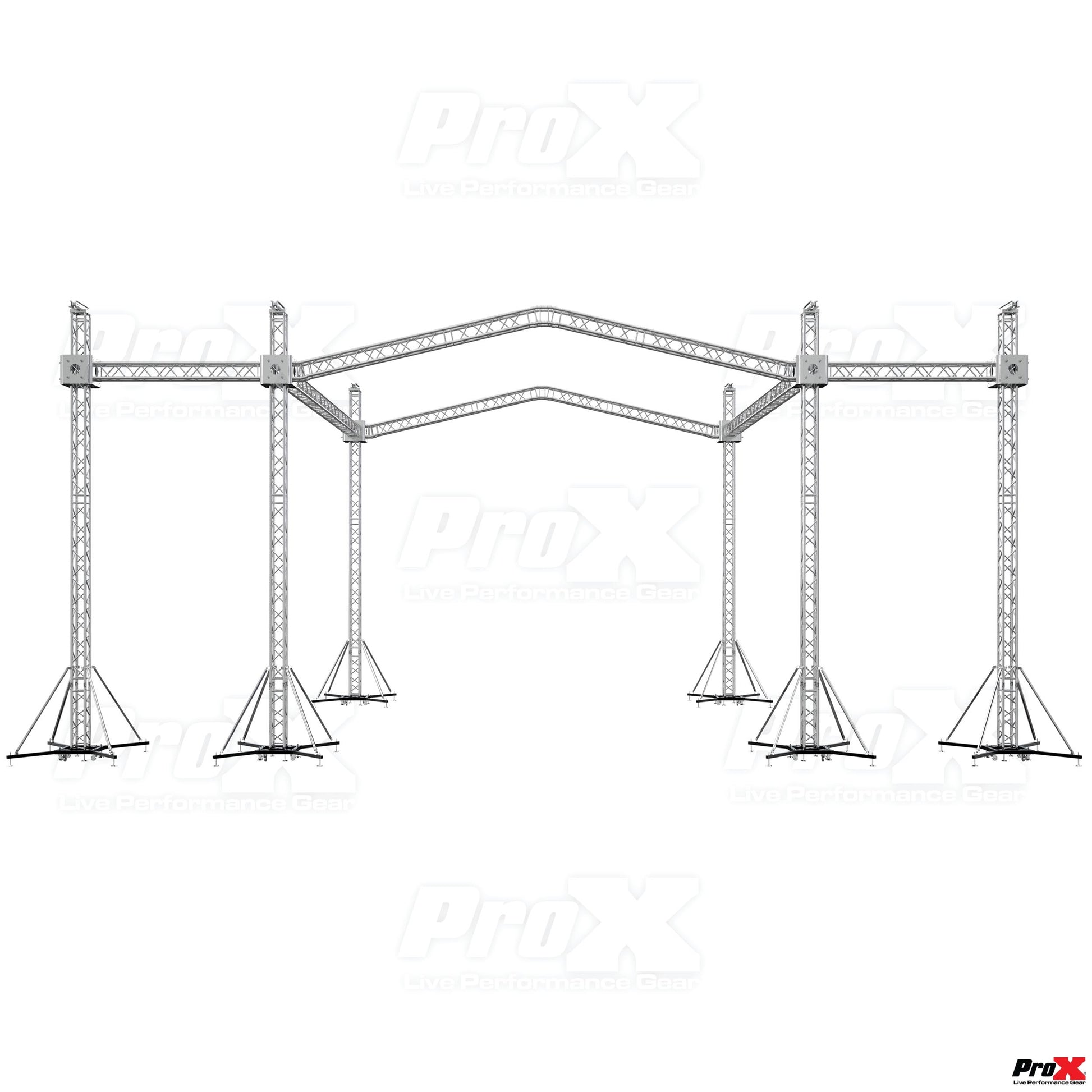

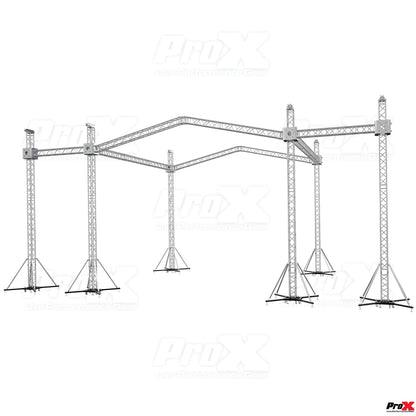

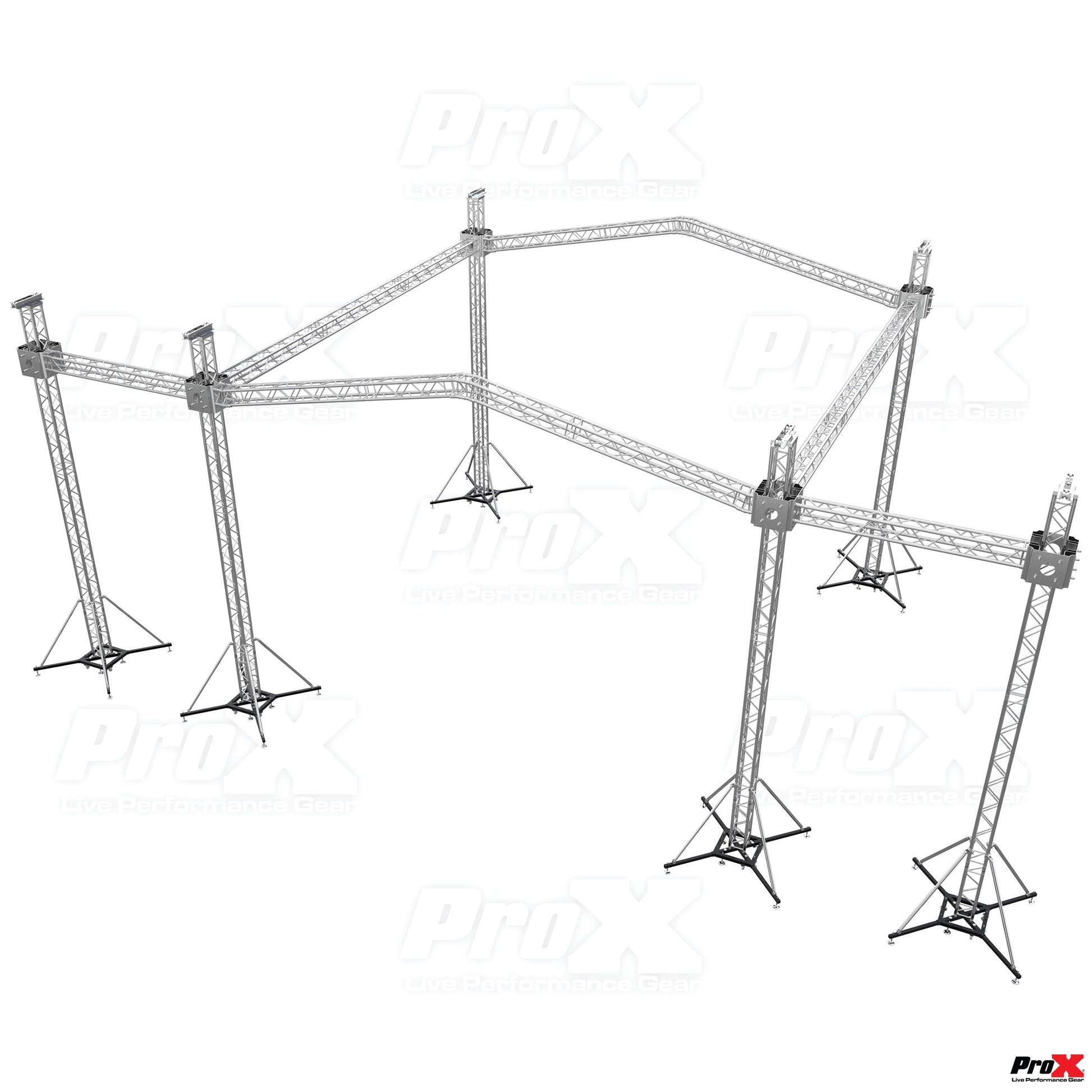

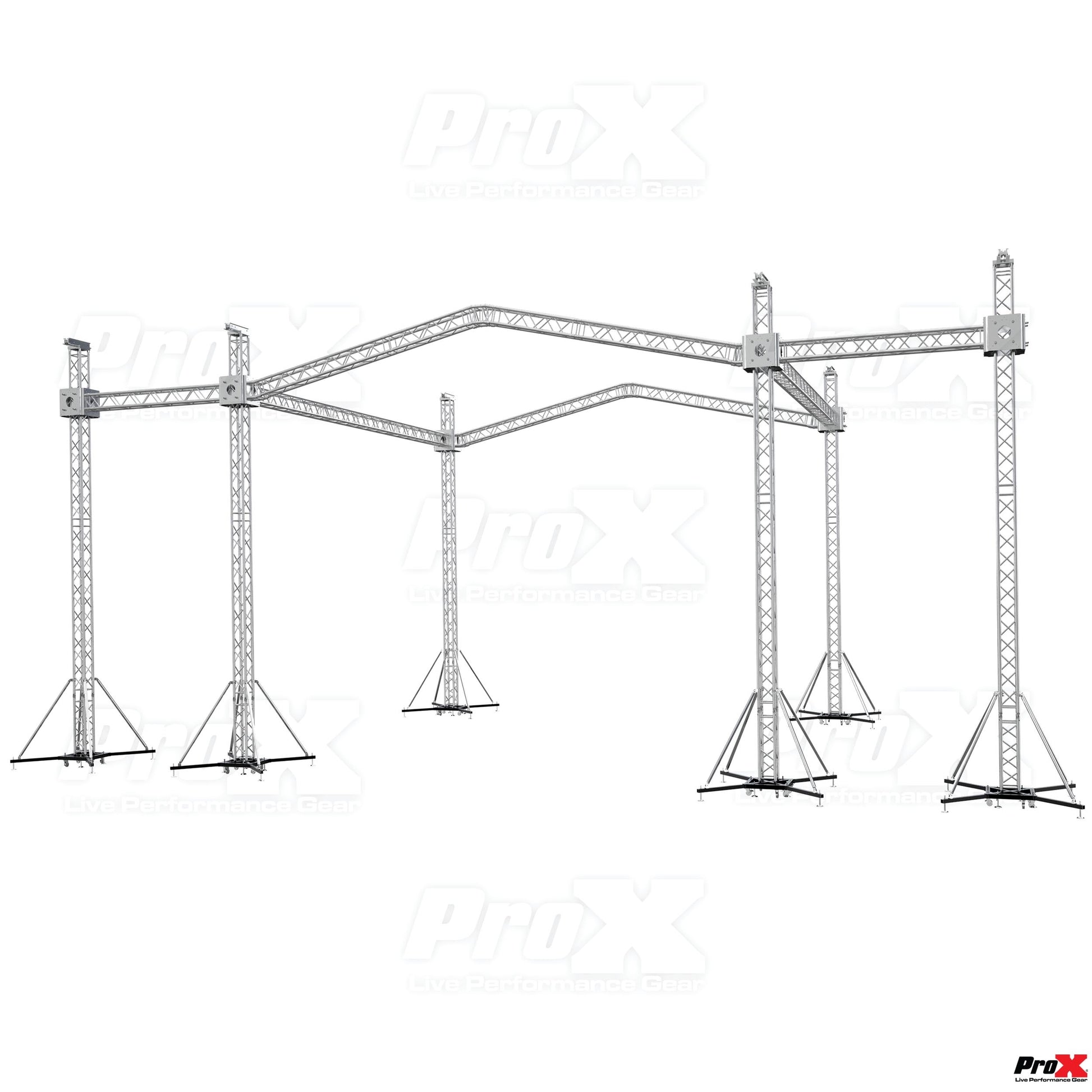

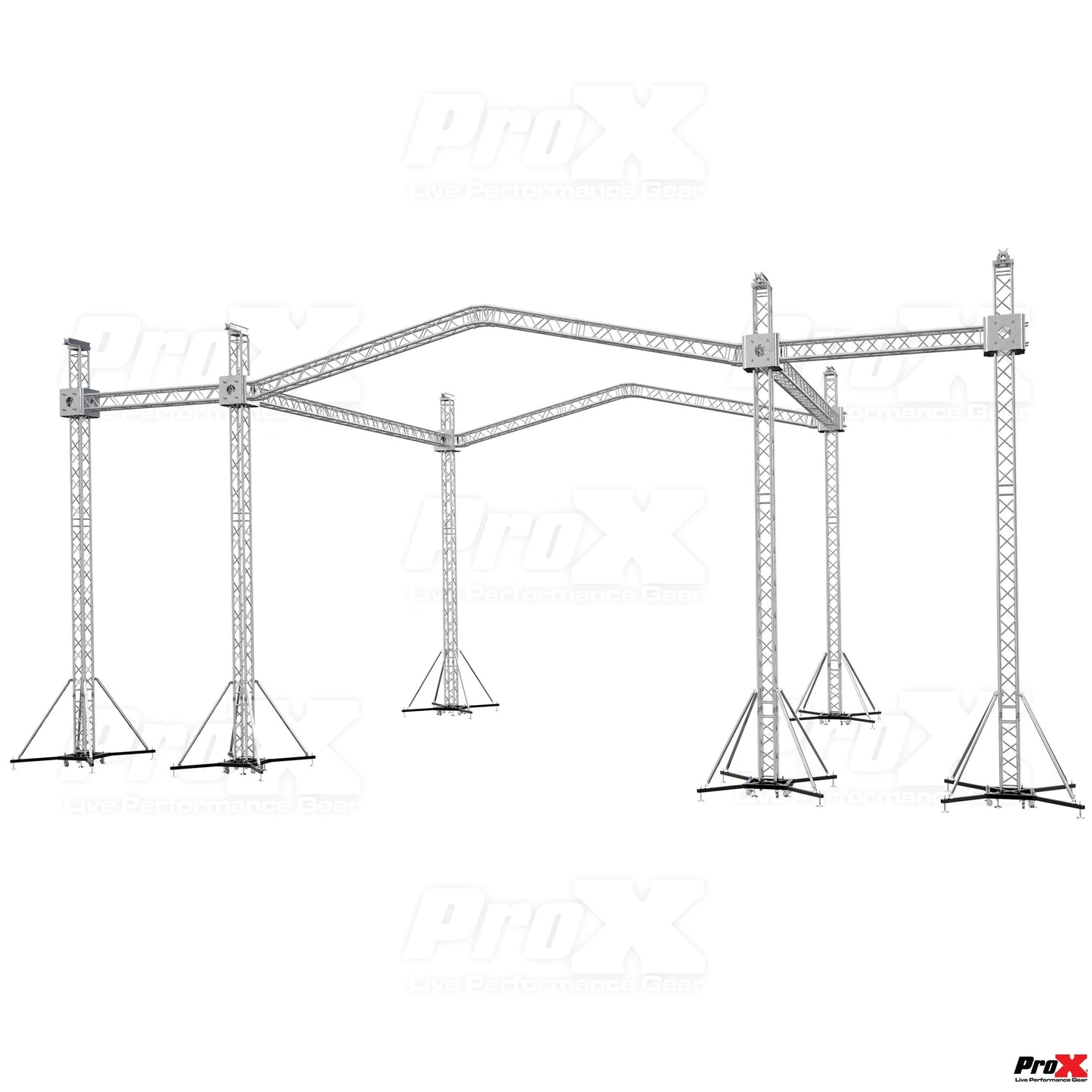

ProX Stage Roofing Truss System with Ground Support and Chain Hoists F34 Aluminum Complete Package | 30 ft W x 30 ft L x 23 ft H | PR2 12D With Speaker Wings

ProX Stage Roofing Truss System with Ground Support and Chain Hoists F34 Aluminum Complete Package | 30 ft W x 30 ft L x 23 ft H | PR2 12D With Speaker Wings

SoundPro Item: 77548 | Part Number: XTP-GS303023-PR2-12D

$35,999.99
$96,159.99 $35,999.99
Your Price Sold out
MSRP: $96,159.99 | MAP: $35,999.99

Usually ships in 5-7 business days

  • Complete F34 Ground Support Package Includes All Structural Components For A Full Roof Build
  • TUV-Certified Aluminum And Steel Welding Meets Third-Party Safety And Documentation Standards
  • Sleeve Block Lifting System Allows Controlled Roof Elevation Along Each Vertical Tower
  • Tolerance-Free Conical Connectors Ensure Cross-Compatible Fit With Standard F34 Truss Systems
  • Wheeled Tower Bases With Leveling Jacks Enable Stable Installation On Uneven Surfaces
  • Outrigger Stabilizer Sets Widen Tower Footprint For Increased Lateral Stability
  • Available In Standard Flat Roof And Speaker Wing Configurations Across Multiple Footprints
Log in or register for YOUR best price

The ProX F34 Stage Roofing Truss System with Ground Support and Chain Hoists is a complete, turn-key aluminum roof structure engineered for staging professionals who need a reliable overhead grid without sourcing components from multiple vendors. Each package ships as a matched set of F34 square truss segments, sleeve block lifting assemblies, wheeled tower bases with leveling jacks, outrigger stabilizers, hinge joints, tower head sections, and manual chain hoists. The sleeve block travels along each vertical tower column and is mechanically secured at the tower head once the roof grid reaches the target height, giving crews controlled, repeatable elevation without improvised rigging. The F34 box truss segments use 2mm wall aluminum with tolerance-free conical connectors, making them cross-compatible with other manufacturers' F34 systems already in a rental inventory.

The systems in this family span multiple footprints and roof configurations to match the scale of the production. Standard flat roof configurations suit compact festival stages, DJ productions, corporate events, and houses of worship where a clean, unobstructed overhead grid is the priority. Speaker wing configurations add lateral truss extensions that allow front-of-house arrays and side fills to be flown directly from the structure, eliminating ground stands and reclaiming floor space. The 12D curved roof variants use angled corner connectors to create an arched profile suited to larger productions where aesthetics and load distribution across a wider span both matter. All configurations share the same tower hardware, base system, and F34 truss standard, so components move between builds as production scale changes.

All welding carries TUV third-party certification, providing the documentation that professional riggers and venue safety officers require before approving a load plan. The wheeled ground support bases accept leveling jacks for installation on uneven surfaces, and the outrigger stabilizer sets widen the footprint of each tower for increased lateral stability. Ballast, guy wires, and anchoring systems are not included but are required for most outdoor installations per engineering drawings. A professional rigger must verify the truss loading chart before use.

Downloads

View full details

Specifications

Certifications
Welding Certification
TUV Certified
Dimensions
System Width
30 ft
System Depth
30 ft
System Height
23 ft
Truss Profile Height
11.42"
Truss Profile Width
11.42"
Main Tube Diameter
2" / 50mm
Wall Thickness
0.08" / 2mm
Brace Diameter
0.75" / 20mm
Weight
Truss Weight Per Meter
21 lbs / 9.5 kg per 3.28 ft
Construction
Truss Material
EN-AWT6 6082 Aluminum and Welded Steel (Painted Black)
Truss Standard
F34 Square Box Truss, 2mm Wall
Included Items
XT-SQ984 F34 Square Truss Segment 9.84 ft / 3.00 m
18 pcs
XT-SQ705 F34 Square Truss Segment 7.05 ft / 2.15 m
8 pcs
XT-SQ656 F34 Square Truss Segment 6.56 ft / 2.00 m
2 pcs
XT-SQ328 F34 Square Truss Segment 3.28 ft / 1.00 m
6 pcs
XT-SQ12D 12 Degree F34 Square Truss Angle Connector 2mm Wall
8 pcs
XT-BLOCK-MK2 Ground Support Sleeve Block 4-Way Corner
6 pcs
XT-TOPCM Top Truss Section for Chain Hoist
6 pcs
XT-GSBMK3 Universal Vertical Tower Ground Support Base With Wheels and Leveling Jacks
6 pcs
XT-HINGEX4 Pack of 4 Conical Tube Ground Support Post Hinge Joints
6 pcs
XT-GSOUTS3X2 Ground Support Outrigger Stabilizer Set of 2
12 pcs
XT-MCH ONE TX2-30FT MK2 Manual Chain Hoist Sets
3 pcs
XTP-GSBPACK3 Truss Tower Lift Systems
6 pcs
Shipping
Shipping Method
LTL
Box 1 - XT-SQ328 (6)
41.50" H x 12.50" W x 12.50" L, 21.00 lbs
Box 2 - XT-GSOUTS3X2 (12)
75.00" H x 6.00" W x 6.00" L, 40.00 lbs
Box 3 - XT-HINGEX4 (6)
5.00" H x 5.00" W x 5.00" L, 10.00 lbs
Box 4 - XT-GSBMK3 (6)
9.00" H x 29.00" W x 29.00" L, 70.00 lbs
Box 5 - XT-TOPCM (6)
12.00" H x 10.00" W x 25.00" L, 28.00 lbs
Box 6 - XT-BLOCK-MK2 (6)
20.00" H x 24.00" W x 24.00" L, 80.00 lbs
Box 7 - XT-SQ12D (8)
12.00" H x 12.00" W x 12.00" L, 9.00 lbs
Box 8 - XT-SQ656 (2)
80.50" H x 13.00" W x 13.00" L, 35.00 lbs
Box 9 - XT-SQ705 (8)
13.00" H x 13.00" W x 86.00" L, 30.00 lbs
Box 10 - XT-SQ984 (18)
14.00" H x 14.00" W x 120.00" L, 46.00 lbs
Identifiers
UPC
804589617587
