ProX LED Video Display Panel Ground Support System Package in Black | 4M W x 2M H (13.12 ft x 6.56 ft)
ProX LED Video Display Panel Ground Support System Package in Black | 4M W x 2M H (13.12 ft x 6.56 ft)
SoundPro Item: 202698 | Part Number: XTP-GSLED4X200BLK
Usually ships in 5-7 business days
- ,pole truss with a telescoping offset clamp and allow crews to dial in panel column alignment precisely across the full wall width. Compatible with both 500 x 500 mm and 500 x 1000 mm panels, these plates eliminate the guesswork that slows down ground-stack builds with mismatched hardware.
Every component in the package ships in all-black finish so the structure stays low visibility behind the LED content on stage, in a studio, or at a corporate venue. The repeatable build sequence and consistent component connections let smaller crews get the wall standing quickly on a compressed load-in schedule. Ballast is required for safe operation and is not included. ProX recommends ballast weight equal to the total installed LED panel weight. Outdoor or wind-exposed installations require review and approval by a qualified structural engineer prior to setup. LED panels are not included.

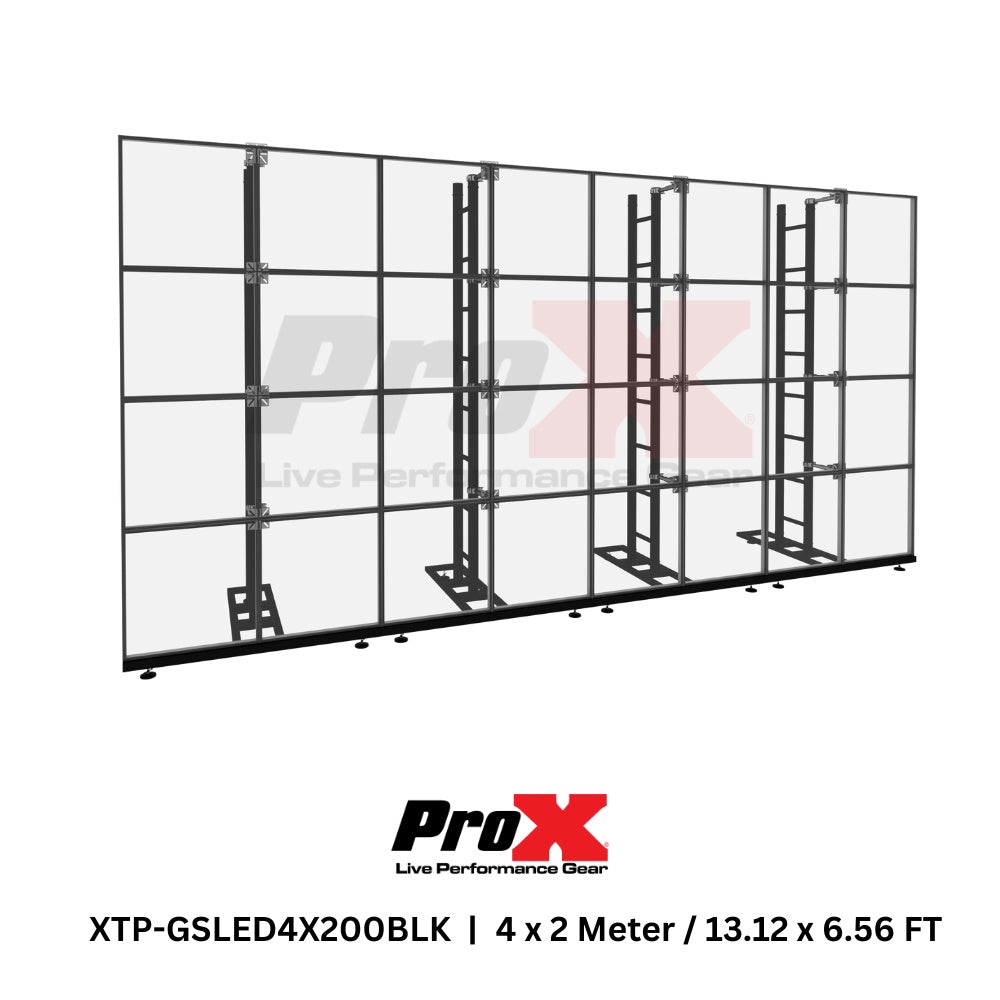

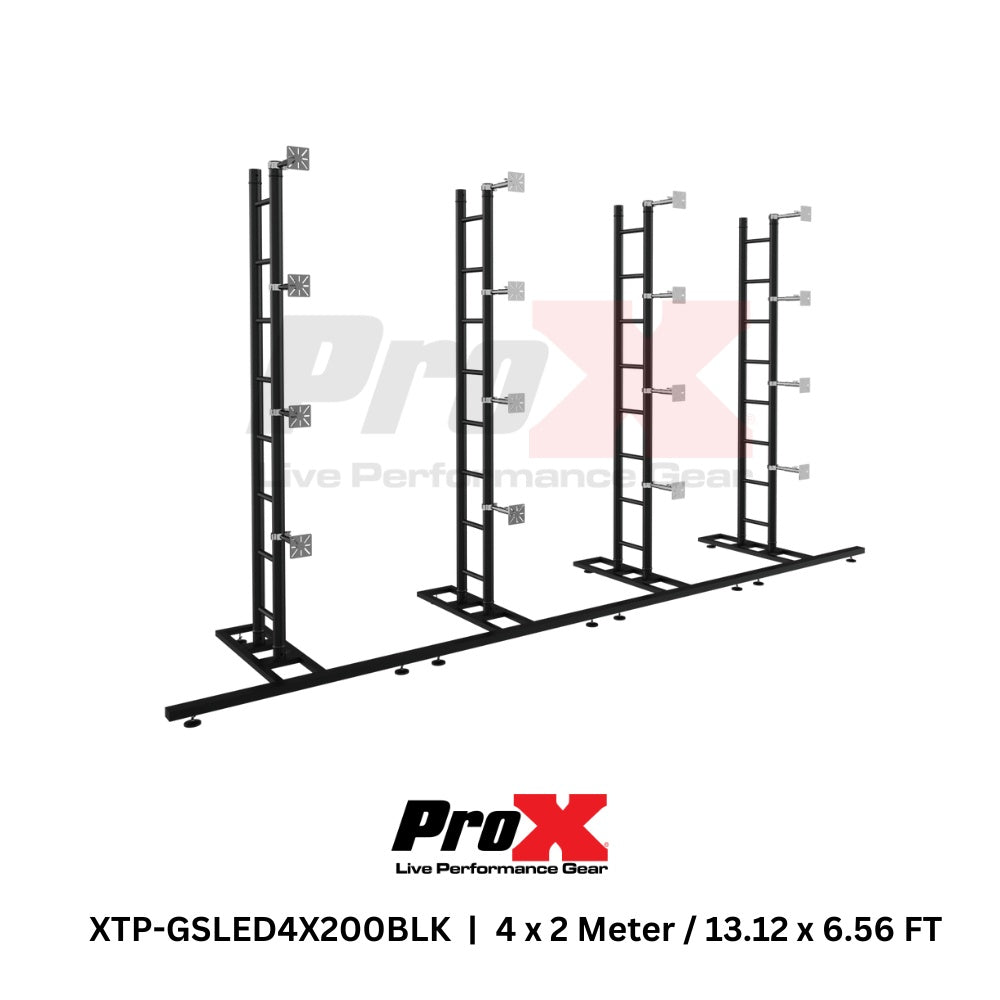

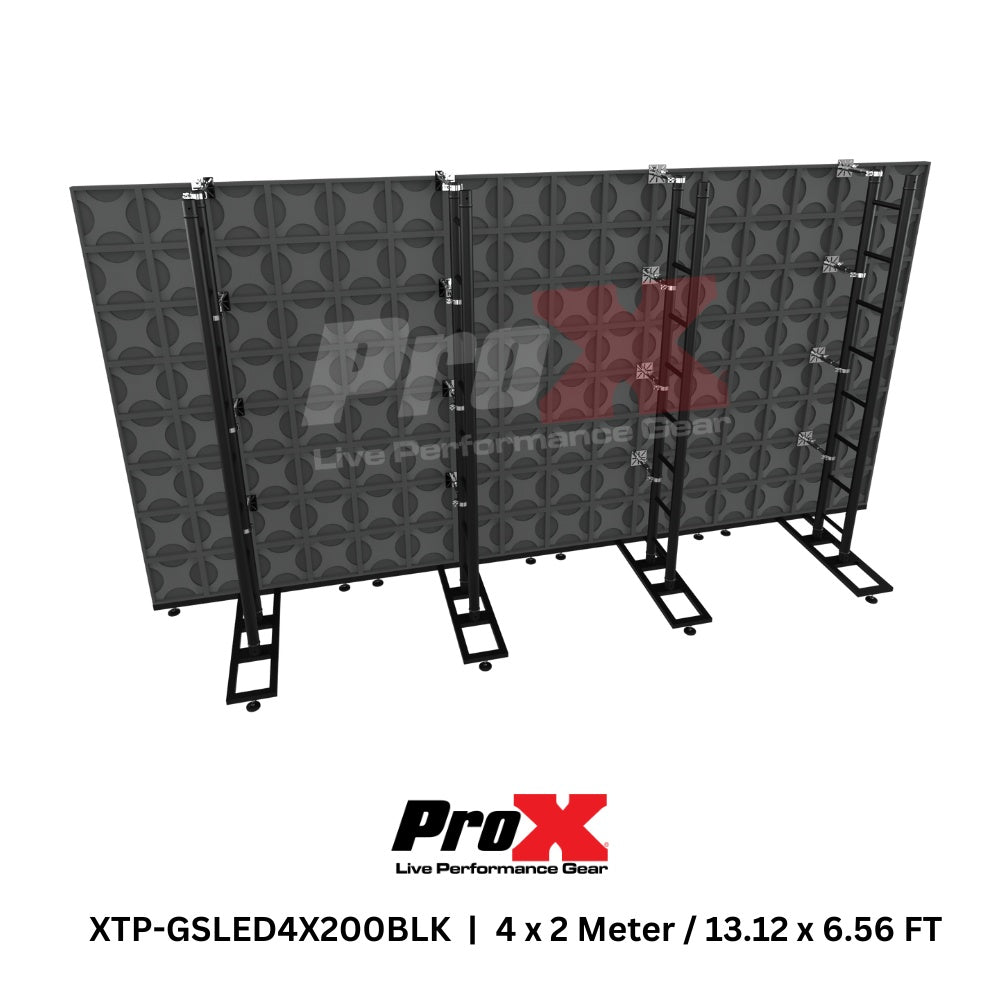

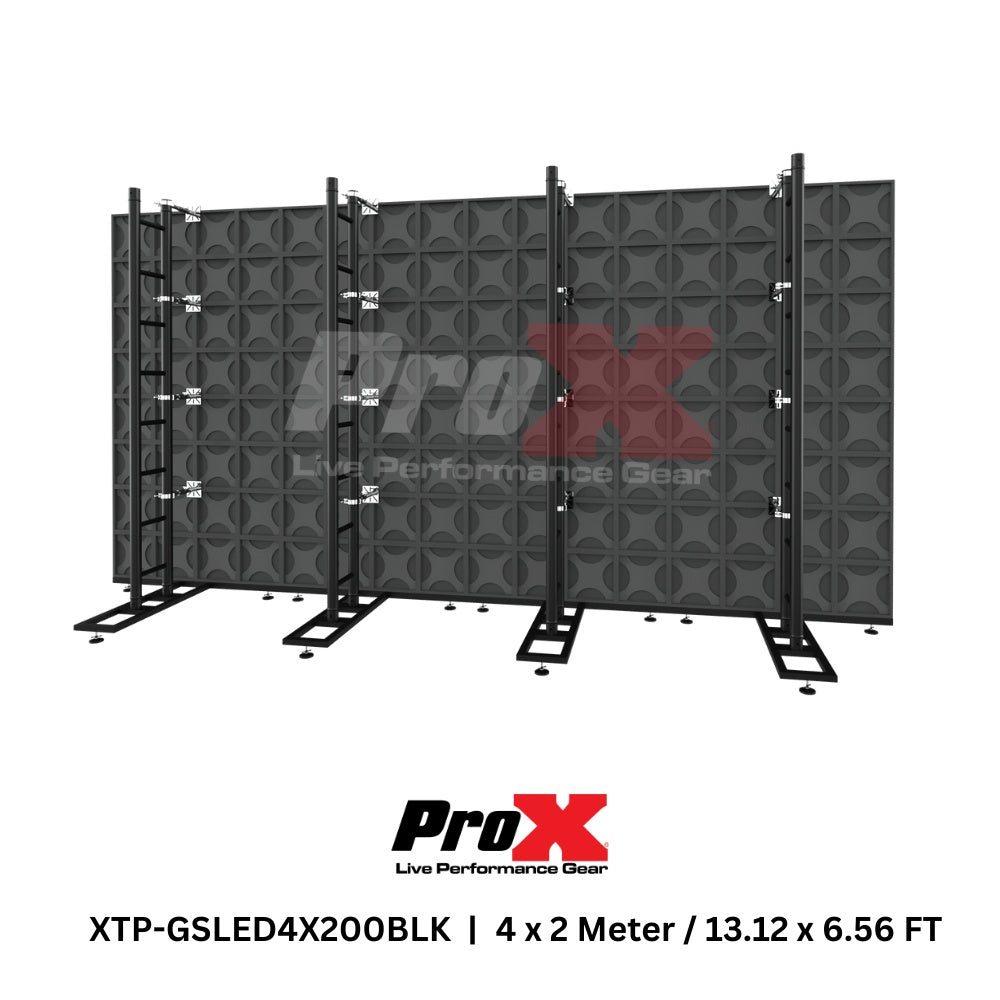

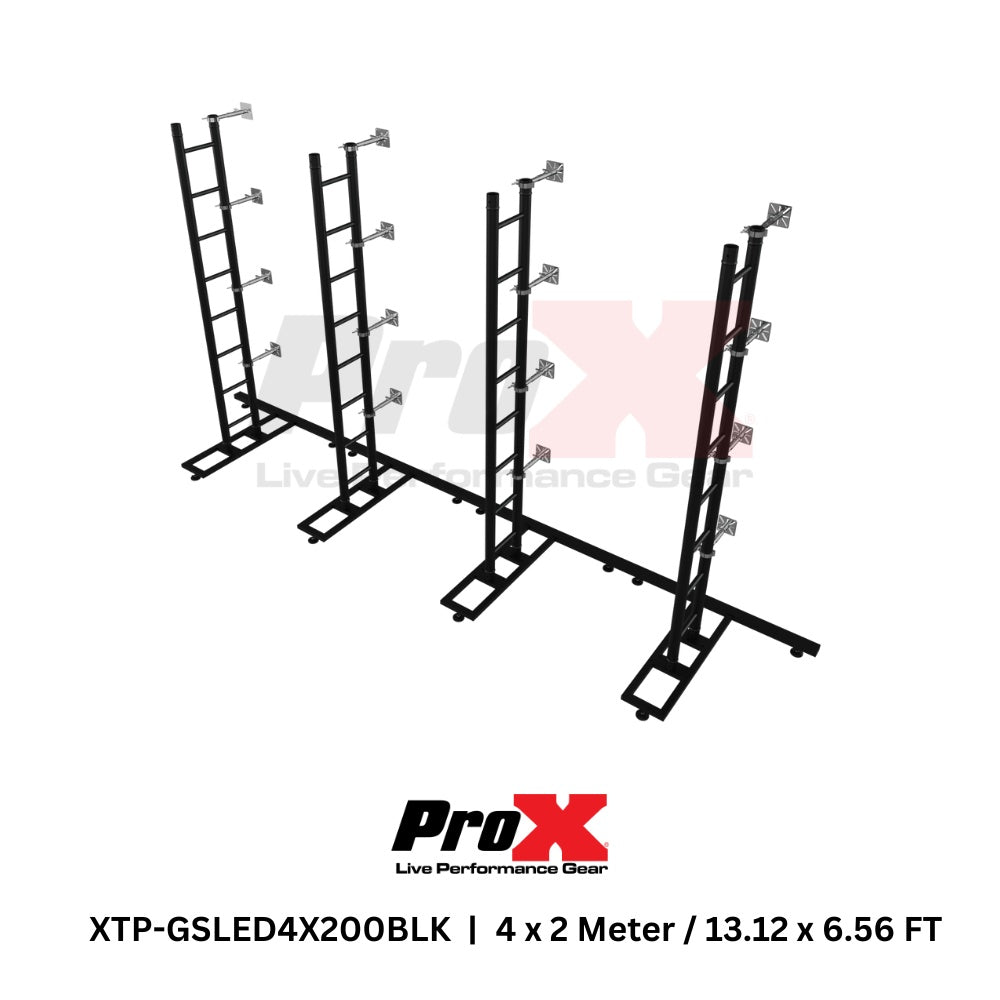

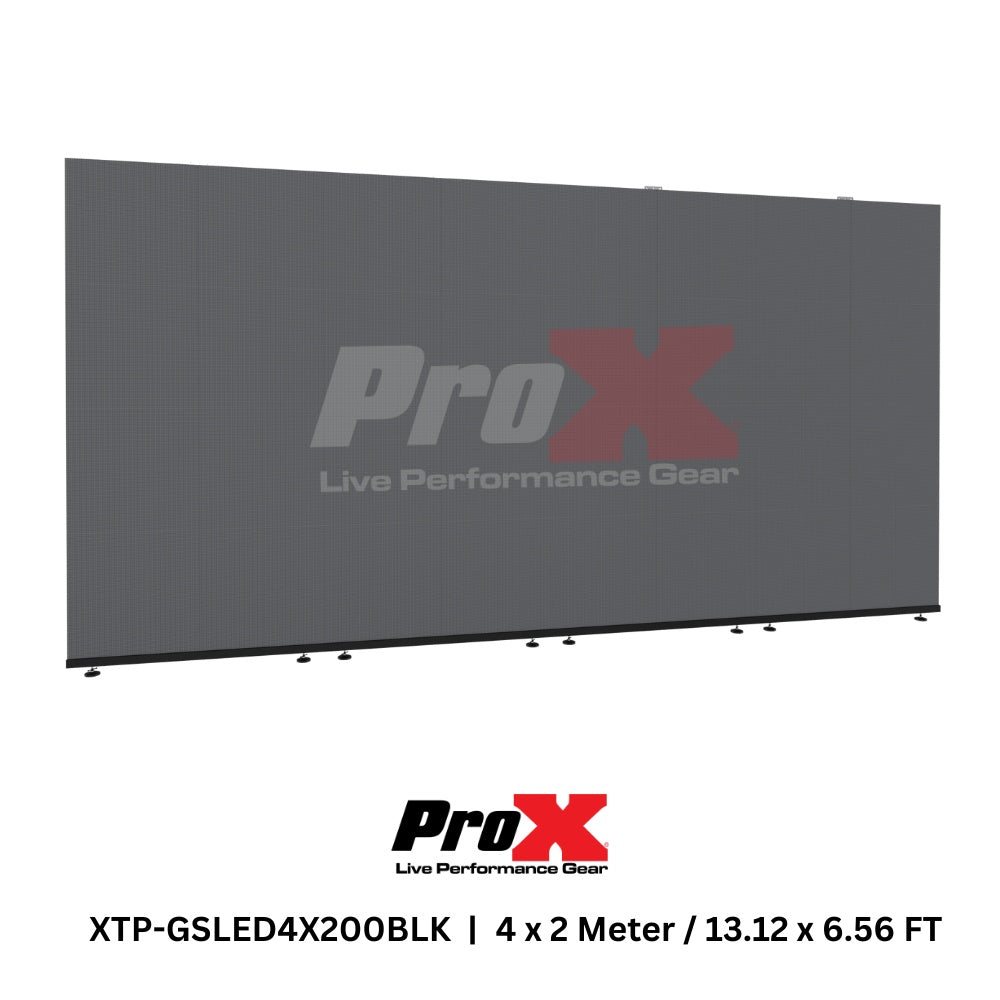

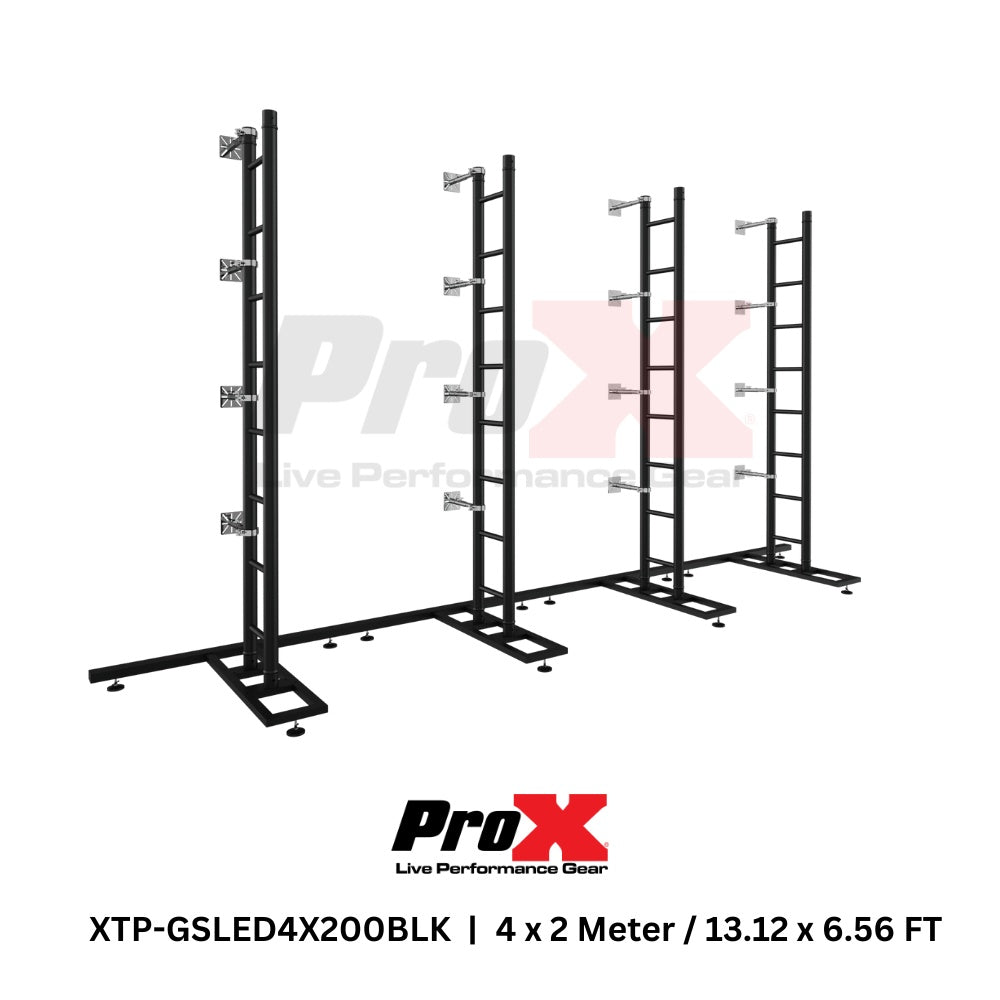

ProX LED Video Display Panel Ground Support System Packages are engineered for rental houses, touring crews, corporate AV teams, broadcast facilities, and houses of worship that need to deploy a clean, professional LED video wall at floor level without access to overhead rigging points. Each package ships as a complete structural system: compact F32 I-Beam truss segments, XT-GSWSB MK2 stabilizing T-bases, and XT-TC5LEDPABLK panel mounting plates, all in matching black, ready to build a freestanding wall from a single order. Available configurations cover a range of wall sizes to match the scale of the production, from smaller corporate and event builds to large format touring and broadcast installations.
The XT-GSWSB MK2 T-bases anchor the system at floor level with a compact footprint that takes up far less truck and warehouse space than conventional ground support stands. Each base supports one vertical F32 I-Beam truss segment and is rated for up to two vertical columns of 500 x 500 mm LED panels, subject to panel weight, ballast, and engineering approval. The F32 I-Beam profile with 2mm wall construction is a proven industry standard for LED wall vertical support. The XT-TC5LEDPABLK mounting plates attach to 2
