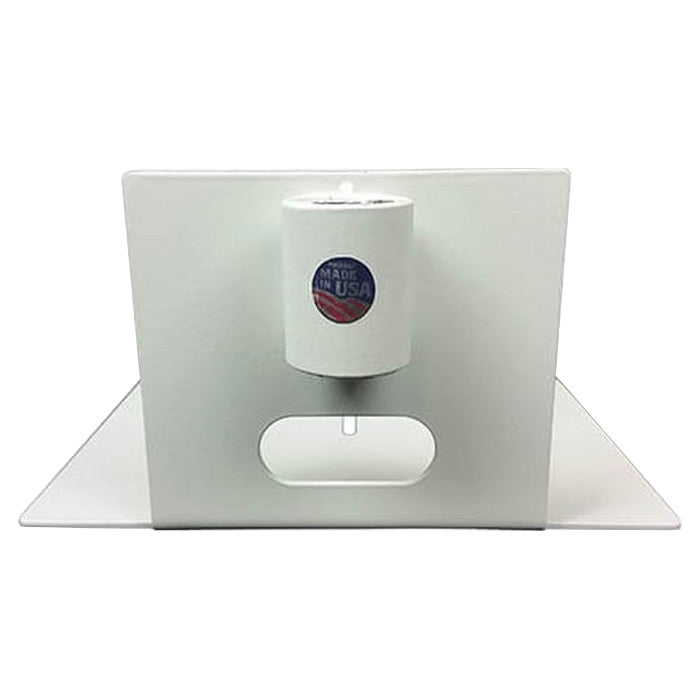

PTZOptics HCM-1C-WH PTZ Camera Small Pole Mount

Find the ideal mounting location for your PTZ cameras with the PTZOptics HCM-1C-WH PTZ Camera Small Pole Mount.

PTZOptics camera pole mounts are made in Pennsylvania from high-quality steel. The finished product is available with a white powder coat finish, which is designed to provide a durable product that will last you many years. This mount has been designed to be compatible with almost all PTZ cameras and features the industry-standard 1/4″-20 (Quarter-Twenty) mounting screw connection. Therefore this mount will work with all PTZOptics cameras and most small based SONY, Panasonic, Vaddio, Cisco, Polycom, DataVideo and Lumens cameras. With a ten-year warranty on every mount, we stand behind the quality of these camera mounts.

Get the perfect mounting height and viewing angle for your camera using a pole mount attached to a secure mounting location. Professional installers can use long lengths of pipe to place cameras in the perfect locations.

Please note: PTZOptics Pole Mounts do not include pipe and ceiling flange needed for a complete installation.

All of the hardware you need to attach your PTZ camera to an existing 1″ pole is included. Therefore you will receive the ceiling, a 1-1/4-20 mounting screw, a 10-32 x 1/4″ cup point set screw, a 3/32″ long arm hex wrench (for set screw) and two 14″ washers.

Please note: When attaching the pole mount to your 1″ pipe tighten until pipe can no longer be tightened with a pipe wrench. If you are using a 1.5″ plate or flange, you must use a 1.5″-1″ reducing bushing which is described in more detail in the included manual.

PTZOptics Pole Mounts are designed by video production professionals for the most demanding applications. If you need to secure any standard PTZ camera to a pole, this is the camera pole mount for you. Please read through our detailed user manual to learn more.

You can mount your camera upright or inverted using the universal design and included quarter-twenty mounting hardware. Additional washers are included to make sure almost any camera can be installed properly and held in the desired location. Once your camera has been installed you can run cabling through the pipe or dress to outside of pipe for a clean installation aesthetic.
