PTZOptics Move SE SDI/HDMI/USB/IP PTZ Camera | Zoom: 20x, Color: Gray
PTZOptics Move SE SDI/HDMI/USB/IP PTZ Camera | Zoom: 20x, Color: Gray
SoundPro Item: 139716 | Part Number: PT20X-SE-GY-G3
Usually ships in 5-7 business days
- Video resolutions up to 1080p 60 FPS
- Built-in auto-tracking capabilities
- 12X, 20X or 30X optical zoom lense options
- High performance in low light scenarios with Wide Dynamic Range
- 2D & 3D noise reduction with our latest “low noise CMOS sensor”
- Serial (RS232 & RS485) & IP control (LAN/WAN)
- H.264, HEVC/H.265*, & MJPEG video compression when IP streaming
- Simultaneous USB 2.0, HDMI 2.0, 3G-SDI streaming (SRT, RTSP, RTMP) (HDMI & SDI are not simultaneous)
- PoE (Power over Ethernet) or 12VDC power supply
- Photobooth capable
- 5-year warranty
The PTZOptics Move SE offers built-in auto-tracking at resolutions up to 1080p at 60fps. Available outputs include SRT, RTSP, RTMP, SDI, HDMI and USB for unrivaled performance and versatility. Compatible with most video production software, including OBS, vMix, Wirecast and more.
- Image Sensor & Lens
- Video Sensor: 1/2.8’’, CMOS, Effective Pixel: 2.07M
- Resolution and Frame Rate: 1080p-60/50/30/25/59.94/29.97, 1080i-60/50/59.94, 720p-60/50/59.94
- Digital Zoom: Off (1920x1080), 2X (960x540), 3X (640x360), 4X, (480x270), 8X (240x135), 16X (128x72)
- Min. Lux: 0.5 Lux @ (F1.8, AGC ON)
- Shutter: 1/30s ~ 1/10000s
- Lens
- 12x: f = 4.1mm ~ 49.2mm, F1.8 ~ F2.68
- 20x: f = 4.42mm ~ 88.5mm, F1.8 ~ F2.8
- 30x: f = 4.42mm ~ 132.6mm, F1.8 ~ F2.8
- White Balance: Auto, Indoor, Outdoor, One Push, Manual, VAR
- Backlight Compensation: Supported
- Digital Noise Reduction: 2D & 3D Digital Noise Reductions
- Field of View
- 12x: Horizontal: 6.9° (tele) ~ 72.5° (wide), Vertical: 3.9° (tele) ~ 44.8° (wide)
- 20x: Horizontal: 3.4° (tele) ~ 60.7° (wide), Vertical: 1.9° (tele) ~ 34.1° (wide)
- 30x: Horizontal: 2.3° (tele) ~ 60.7° (wide), Vertical: 1.28° (tele) ~ 34.1° (wide)
- Pan/Tilt Movement
- Pan Movement: ±170°
- Pan Speed: 1.7° ~ 100°/s
- Tilt Movement: +90° to -30
- Tilt Speed: 1.7° ~ 69.9°
- Image Flip, Mirror and Freeze: Supported
- Presets: 255 Presets
- Preset Accuracy: 0.1°
- Power Options
- Power Supply: DC 12V
- Input Power: 2A (Max)
- Physical
- Material: Aluminum, Plastic
- Color: White and Gray
- Dimensions (WxDxH)
- 5.6x6.7x6.5" (7.88” H max height w/ tilt up)
- 142x169x164mm (189mm H max height w/ tilt up)m
- Weight: 3.2 lbs (1.445 kg)
- Working Environment: Indoor
- Operating Temperature: 14°F ~ 104°F (-10°C to 40°C)
- Storage Temperature: -40°F ~ 140°F (-40°C to 60°C)

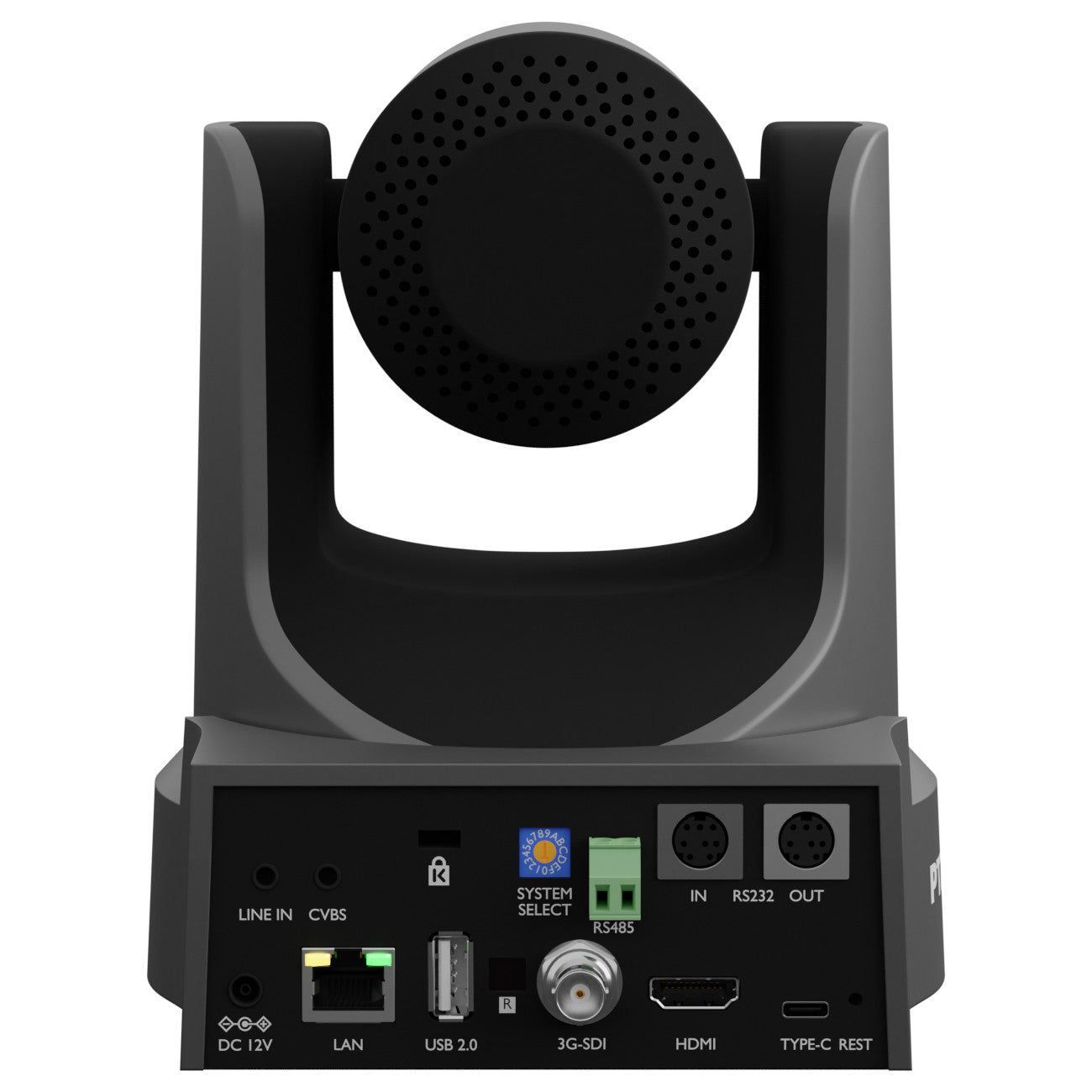

- Rear Board Connectors
- HD Video Output
- 1x RJ45: 10/100 Adaptive Ethernet Port 424M standard
- 1x HDMI: version 1.3
- 1x 3G-SDI: BNC type, 800mVP-p, 75Ω, along to SMPTE 424M standard, USB 3.0 Type C
- 1x USB 3.0 Type C
- Audio Interface: 1x 3.5mm Line level Input
- Communication Interface
- 1x 8 pin Mini-din RS232 input, Max distance: 98.5ft / 30m, protocol: VISCA / Pelco-D / Pelco-P
- 1x 8 pin Mini-din RS232 output, Max distance 98.5ft / 30m, protocol: VISCA / Pelco-D / Pelco-P
- 1x 2 pin Phoenix port, RS485 input / output, Max distance 3,937ft / 1200m, protocol: VISCA / Pelco-D / Pelco-P
- IR: 4x IR Addresses, Max distance 30ft / 9m
- Power Jack: JEITA type (DC IN 12V)
- HD Video Output
