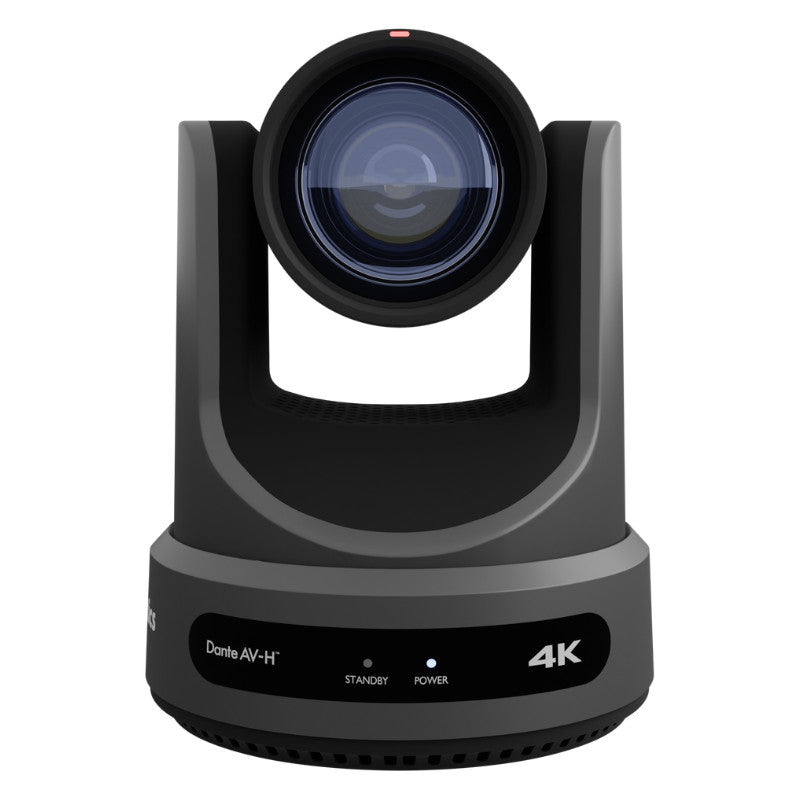

• PTZOptics Link 4K Dante-Enabled PTZ Camera 12x

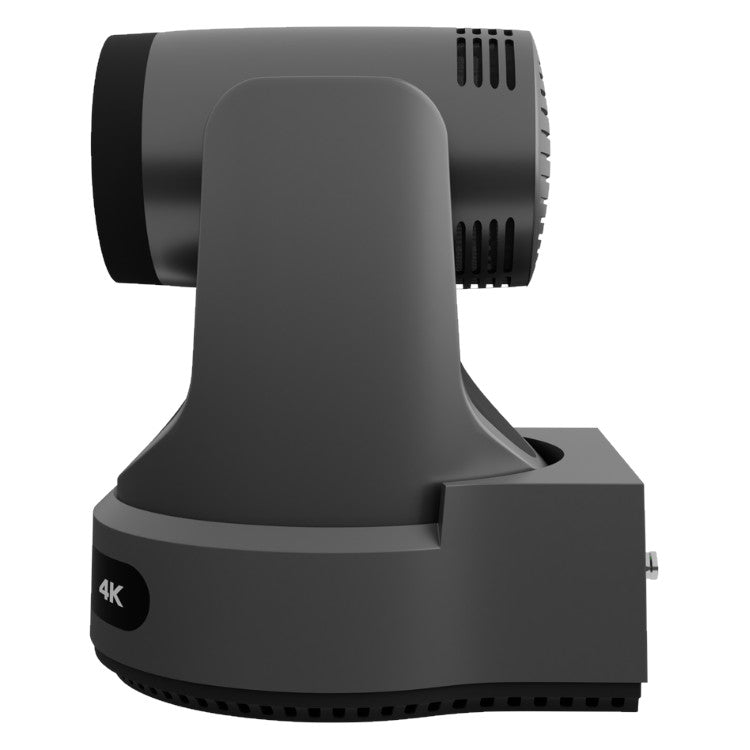

  • PTZOptics Link 4K Dante-Enabled PTZ Camera 12x left

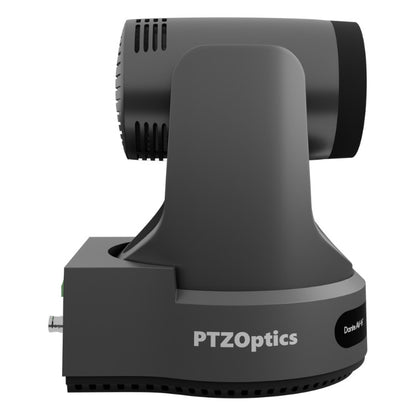

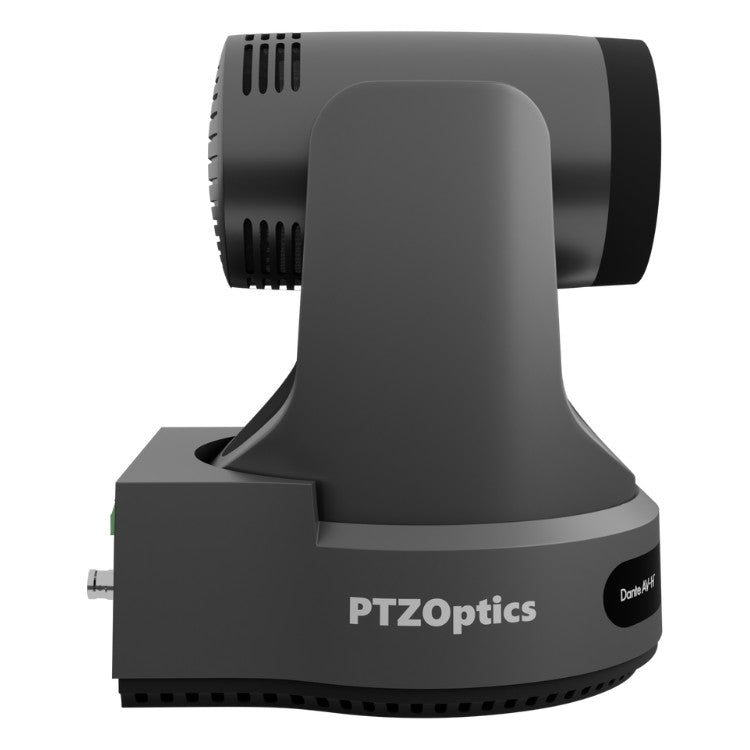

  • PTZOptics Link 4K Dante-Enabled PTZ Camera 12x right

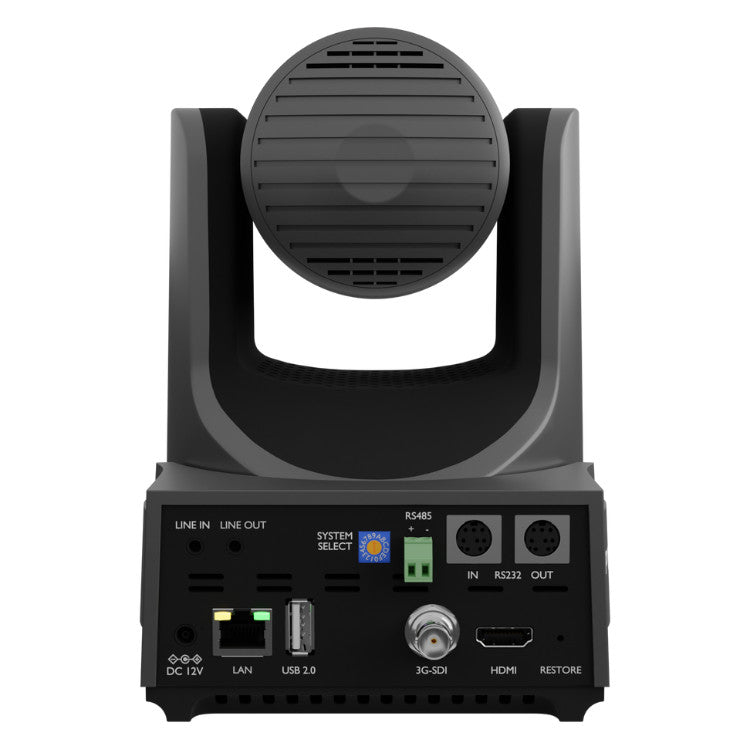

  • PTZOptics Link 4K Dante-Enabled PTZ Camera 12x back
1 4

PTZOptics Link 4K Dante-Enabled PTZ Camera | Zoom: 12x, Color: Gray

PTZOptics Link 4K Dante-Enabled PTZ Camera | Zoom: 12x, Color: Gray

SoundPro Item: 139996 | Part Number: PT12X-LINK-4K-GY

$1,999.00
$2,199.00 $1,999.00
Your Price Sold out
MSRP: $2,199.00 | MAP: $1,999.00

Usually ships in 5-7 business days

  • 72.5° (12X) or 60.7° (20X) or 59.2° (30X) horizontal field of view
  • High performance in low light scenarios with Wide Dynamic Range
  • Ultra HD 3840x2160p resolutions up to 60 FPS
  • 3D noise reduction with our latest low noise CMOS sensor
  • Serial (RS232 & RS485) & IP control (LAN/WAN)
  • H.264, H.265, & MJPEG video compression when IP streaming
  • USB 2.0, HDMI 2.0 / 3G-SDI (HDMI & SDI are not simultaneous)
  • PoE+ (Power over Ethernet) or 12VDC power supply
  • Beamforming microphone
  • AI Video based auto tracking
  • Dante AV-H™ (Limited to 1080p60)
  • Built in tally light
  • Photobooth capable
  • 5-year warranty
Log in or register for YOUR best price

The PTZOptics 4K Link offers built-in auto-tracking at 4K at 60fps (1080p at 60fps over SDI) and features Dante AV-H™ and a built-in tally light. Available outputs include SDI, HDMI and USB for unrivaled performance and versatility. Compatible with most video production software, including OBS, vMix, Wirecast and more.

View full details

Specifications

Dimensions
Dimensions (WxDxH) 12x and 20x
5.57x5.94x6.93” (7.91” with tilt up), 141.5x151x176mm (201mm with tilt up)30x: 6.69x7.12x8.98”, 170x181x228mm
Weight
Weight 12x and 20x
3.25 lbs (1.47 kg)30x: 4.41 lbs (2.0 kg)
Audio
Audio Interface
1x 3.5mm Line level Input
Optics
Lux
0.5 Lux @ (F1.8
Connectivity
Resolution and Frame Rate HDMI
3840x2160p-60/59.94/50/30/29.97/25, 1920x1080p60/59.94/50/30/29.97/25, 1920x1080i-60/59.94/50, 1280x720p-60/59.94SDI: 1920x1080p-60/59.94/50/30/29.97/25,1920x1080i-60/59.94/50, 1280x720p-60/59.94
Input Power
18W (Max)
Adaptive Ethernet Port1x HDMI
version 2.01x USB 2.0: type A1x 3G-SDI: BNC type, 800mVP-p, 75Ω, Along to SMPTE 424M standard
Rear Board Connectors
Communication Interface 1x 8 pin Mini-din RS232 input, Max distance: 98.5ft / 30m, protocol: VISCA / Pelco-D / Pelco-P1x 8 pin Mini-din RS232 output, Max distance 98.5ft / 30m, protocol: VISCA / Pelco-D / Pelco-P1x 2 pin Phoenix port, RS485 input / output, Max distance 3,937ft / 1200m, protocol: VISCA / Pelco-D / Pelco-P
Power Jack
JEITA type (DC IN 12V)
Construction
Image Sensor & Lens
Video Sensor
Material
Aluminum, Plastic
Color
Black, White
Environmental
Operating Temperature
14°F ~ 104°F (-10°C to 40°C)
Storage Temperature
-40°F ~ 140°F (-40°C to 60°C)
General
F2.620x
f = 6.25mm ~ 125mm, F1.58 ~
F3.9530x
f = 7.1mm ~ 210mm, F1.61 ~ F5.19.
Horizontal
6.9° (tele) ~ 72.5° (wide)
Vertical
3.9° (tele) ~ 44.8° (wide)20x:
AGC ON)Shutter
1/30s ~ 1/10000s
Pan Movement
±170°
Pan Speed
-1.7° ~ 100°/s
Tilt Movement
-30° ~ +90°
Tilt Speed
1.7° ~ 69.9°
Presets
255 Presets
Preset Accuracy
0.1°
Image Flip, Mirror and Freeze
Supported
Power Supply
DC 12V / PoE+ (802.3at)
Working Environment
Indoor
RJ45
10/100/1000M
IR
4x IR addresses, max distance 30ft / 9m
