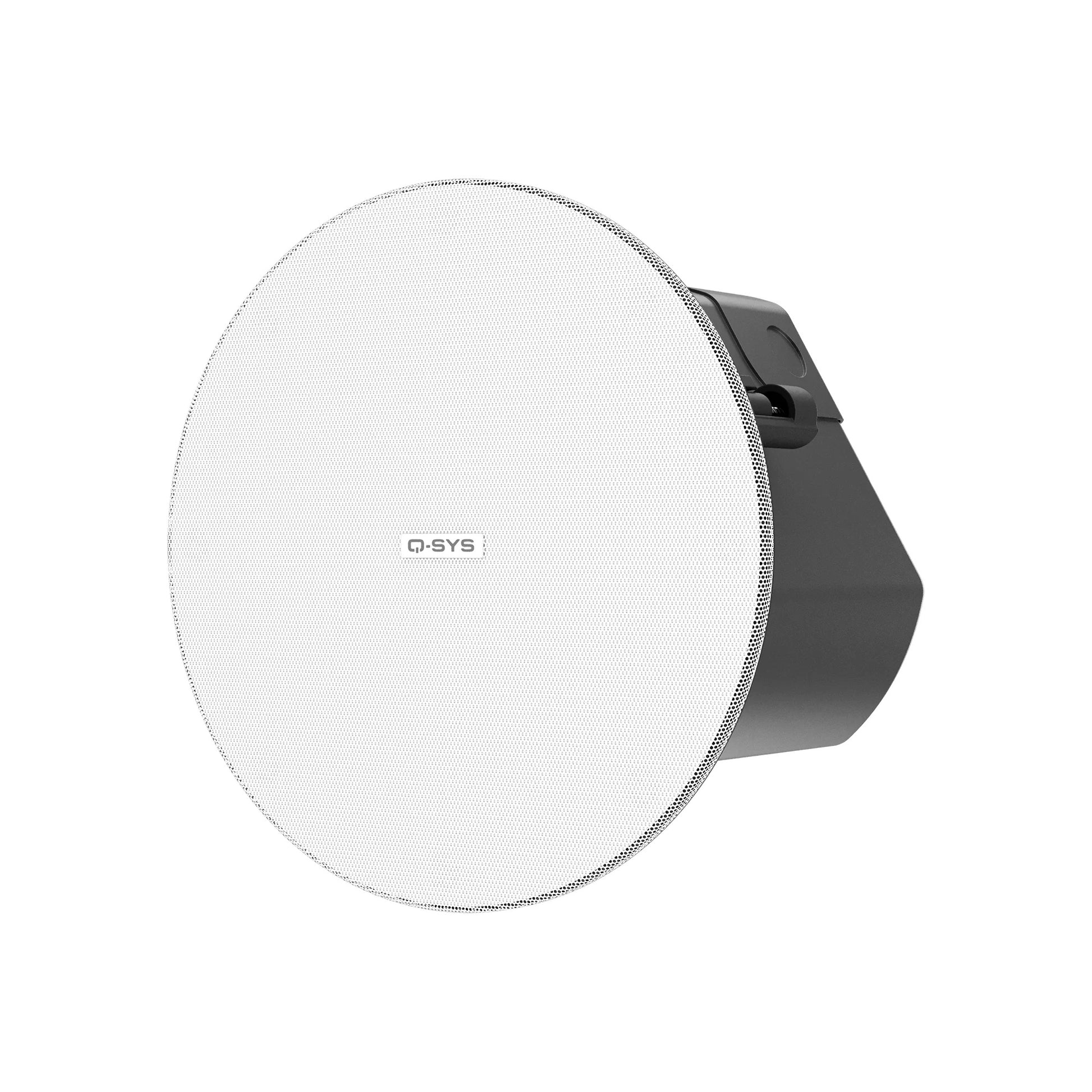

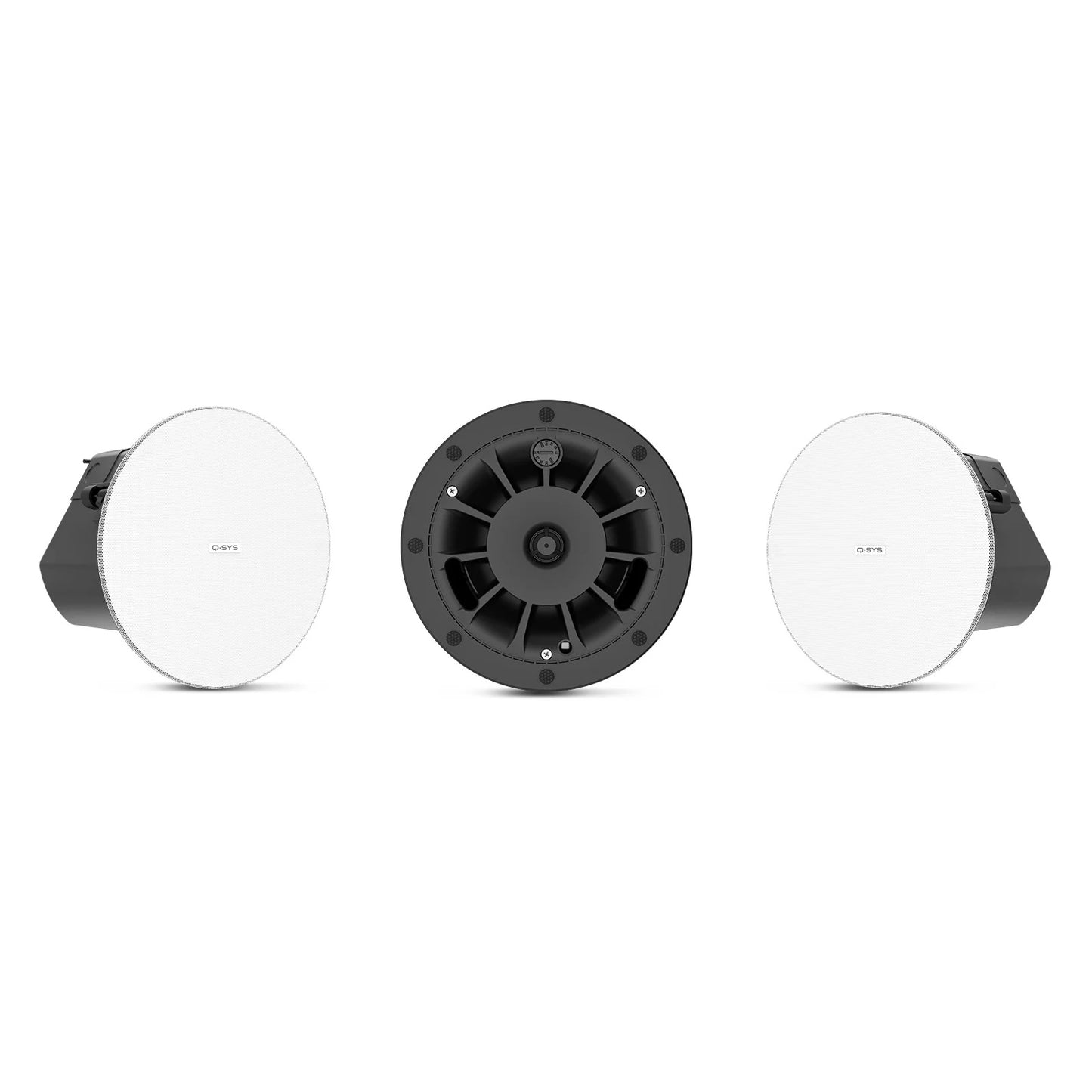

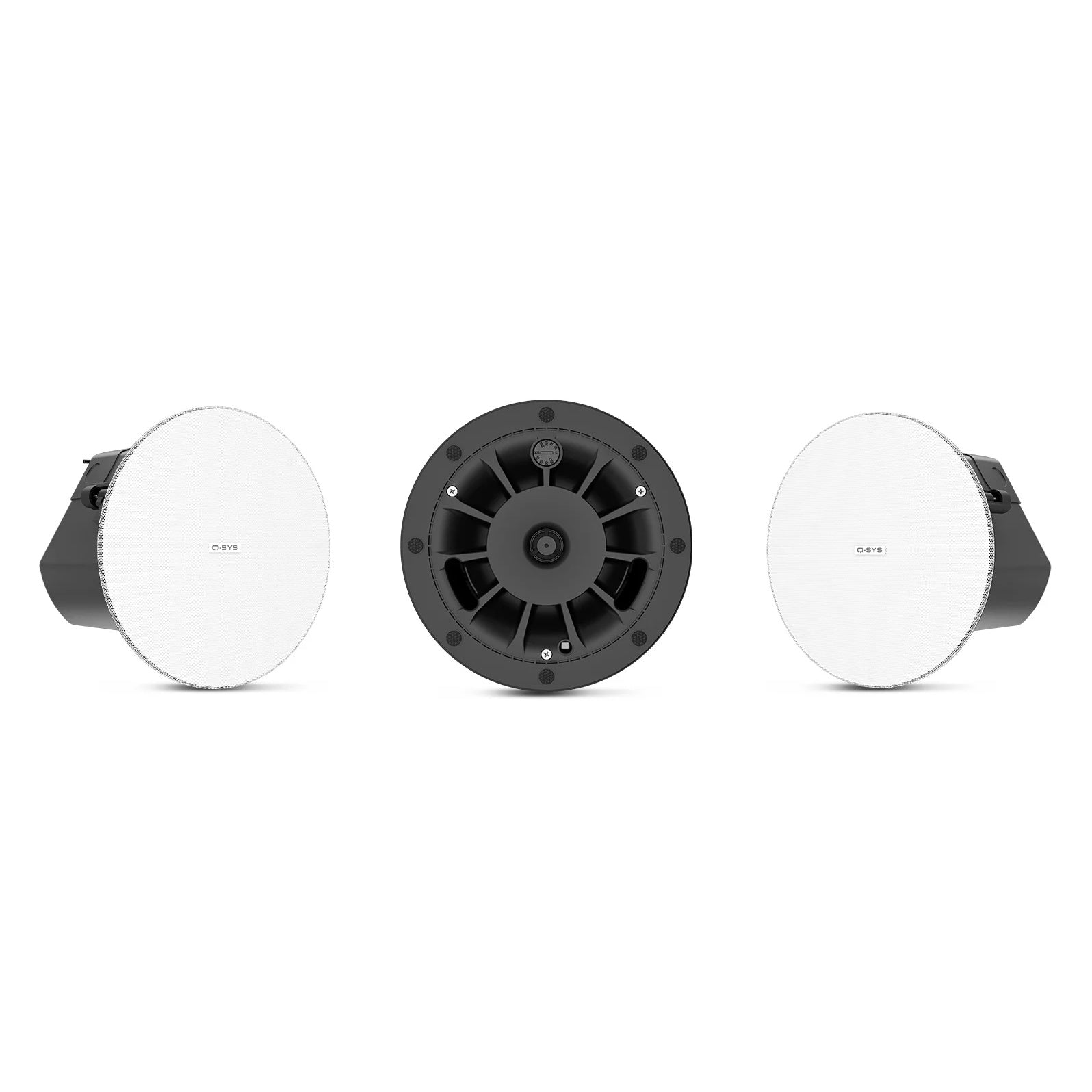

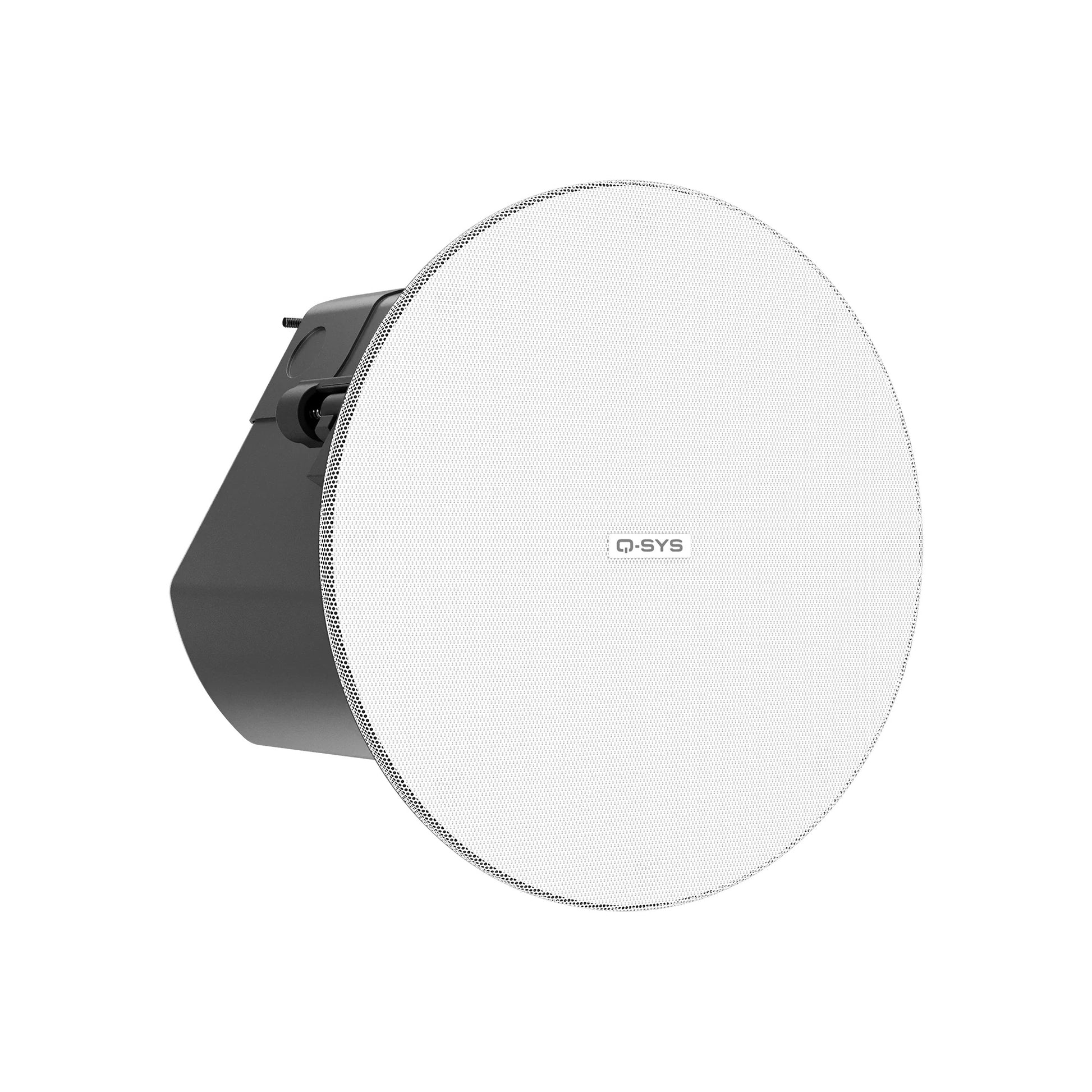

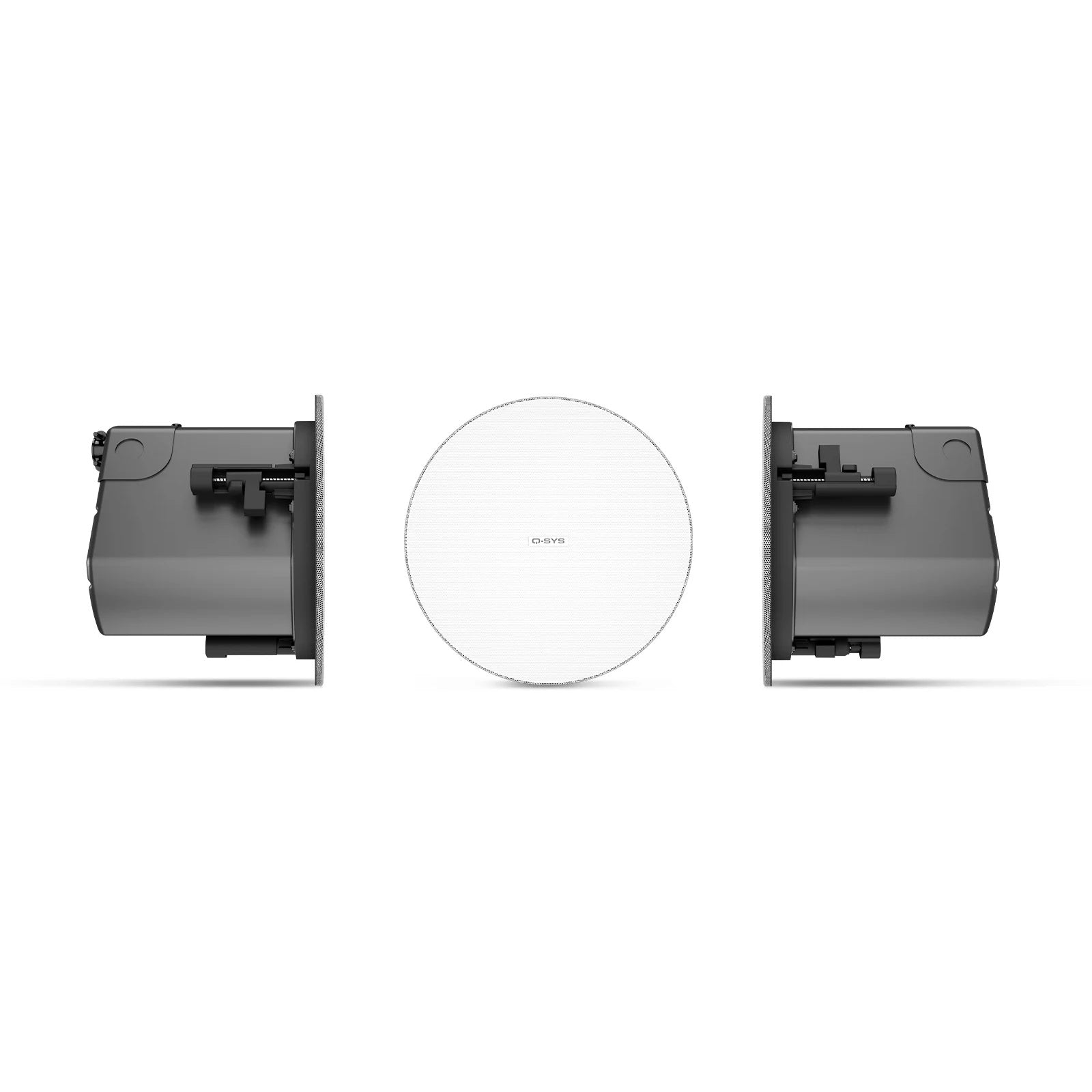

Q-SYS AcousticDesign 4.5" Two-Way Ceiling Speaker | Zero Bezel | White

Q-SYS AcousticDesign 4.5" Two-Way Ceiling Speaker | Zero Bezel | White

SoundPro Item: 142281 | Part Number: AD-C4T-ZB-WH

$250.00
$250.00 $250.00
Your Price Sold out
MSRP: $250.00 | MAP: $250.00

Usually ships in 5-7 business days

  • DMT Waveguide Ensures Smooth Uniform Frequency Response Across The Coverage Area

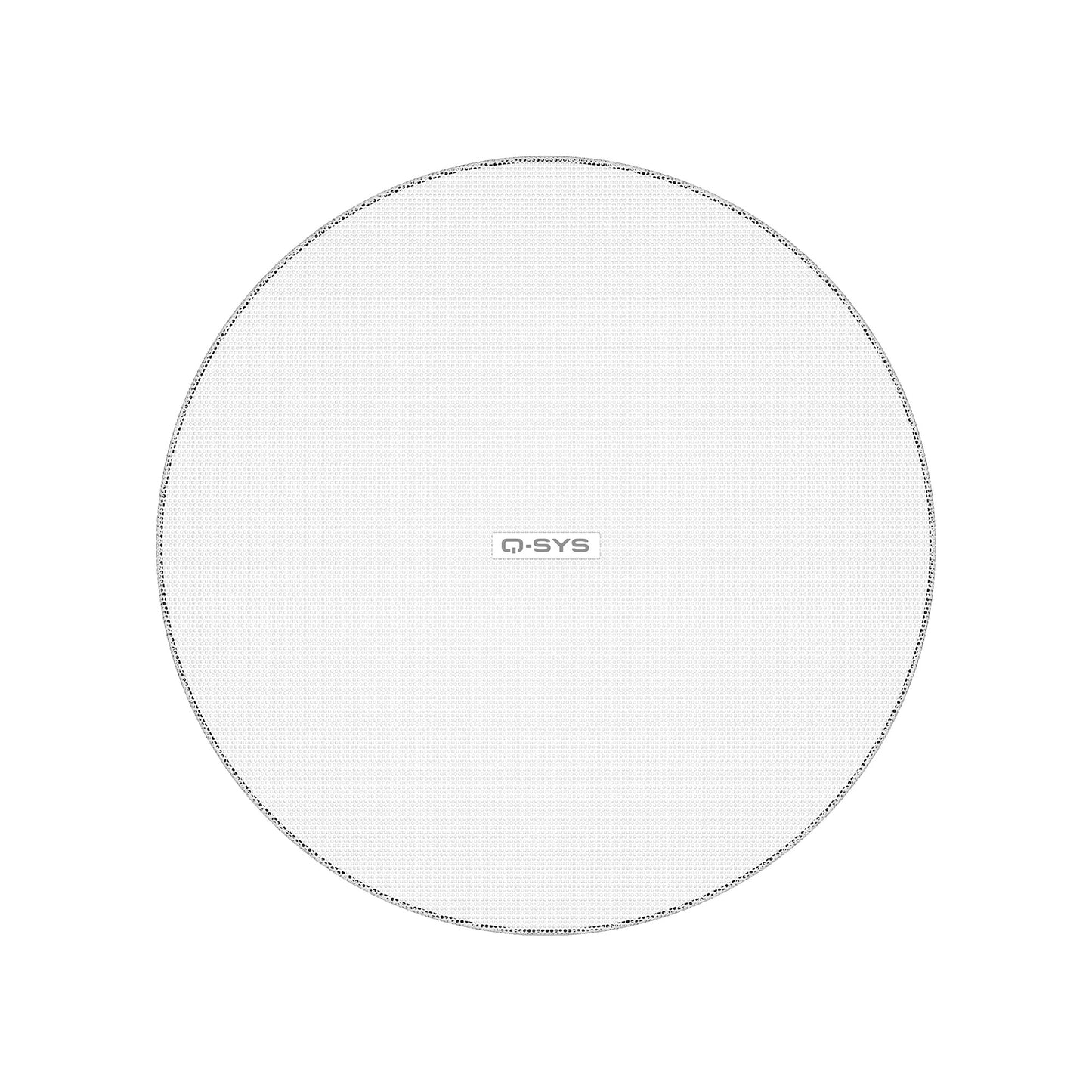

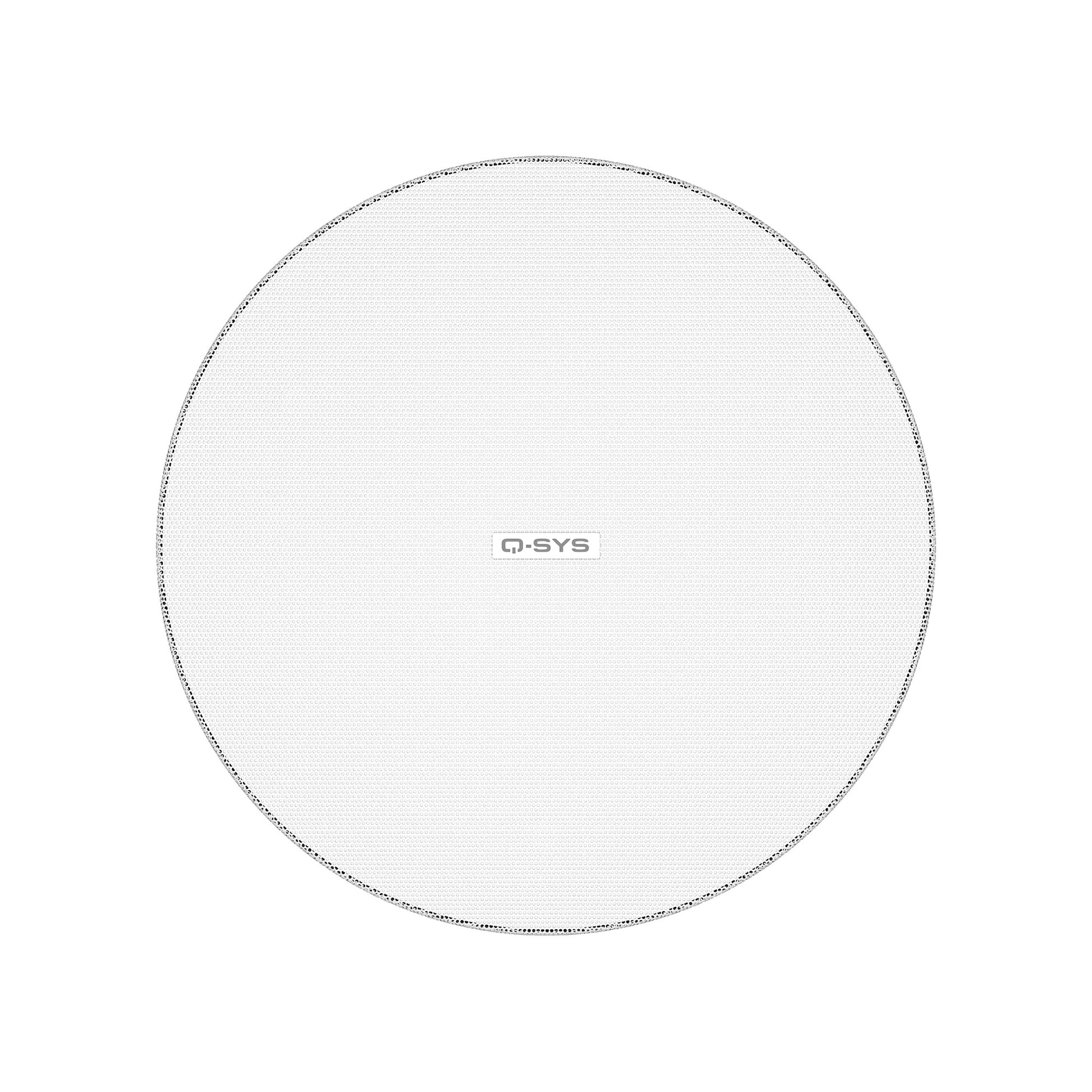

  • Snap-Fit Magnetic Grille Simplifies Servicing Without Tools

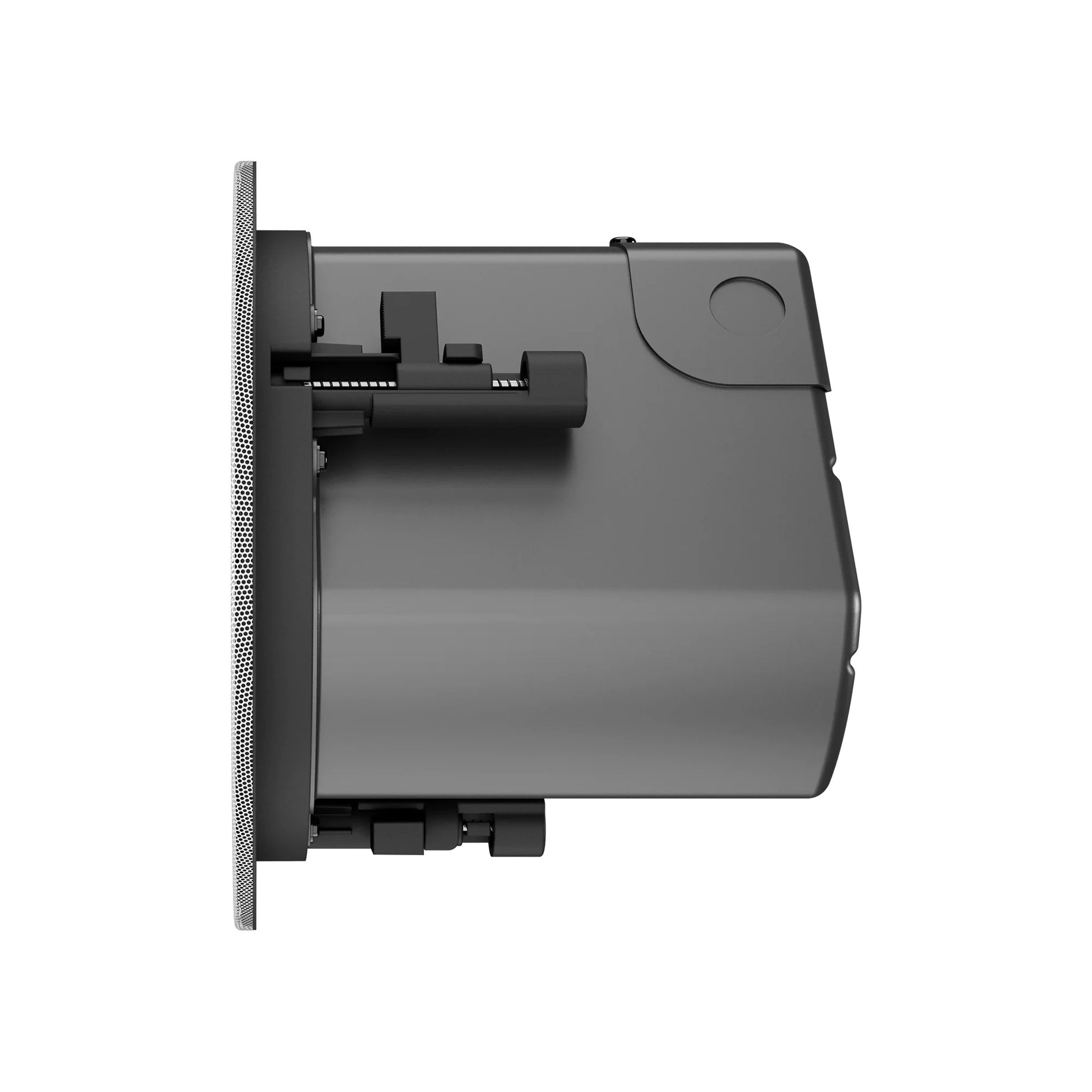

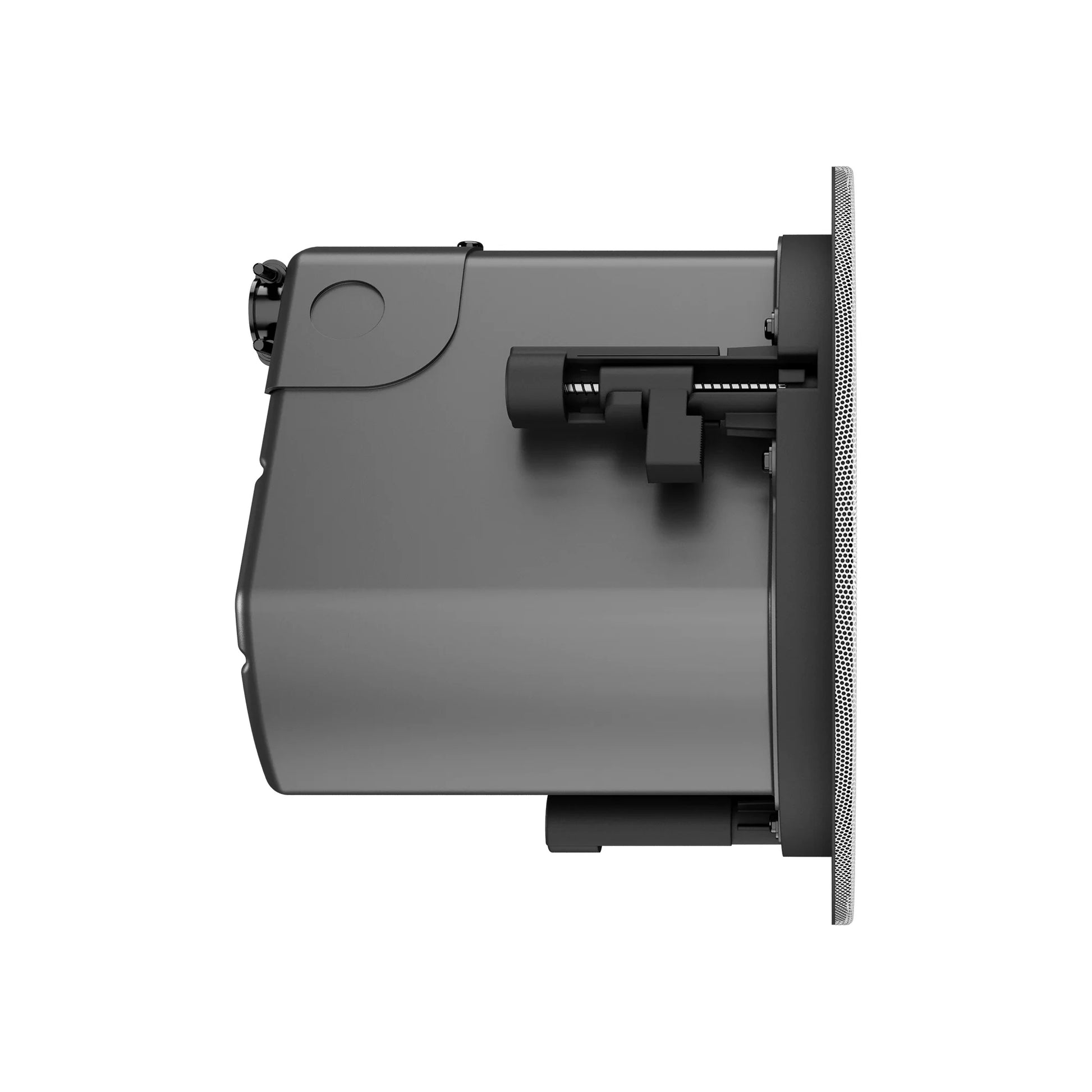

  • Three-Stage Dog-Ear Blind Mount System Enables Above-Ceiling-Free Installation
  • Low-Saturation 70/100V Transformer With 16Ω Bypass Supports Flexible System Topologies
  • Advanced Intrinsic Correction Voicings Available Via Q-SYS For System-Level DSP Tuning
  • IP-34 Rated Enclosure Supports Deployment In Semi-Exposed Indoor Environments
  • UL2043 And UL1480 Listed For Safe Use In Air Handling Plenum Spaces
Log in or register for YOUR best price

The Q-SYS AcousticDesign 4.5" two-way ceiling speaker is engineered for systems integrators and AV designers deploying distributed audio in corporate, hospitality, retail, and institutional environments. Its 150° conical DMT coverage pattern delivers consistent sound pressure across large ceiling grids without the hot spots and roll-off typical of conventional ceiling speakers, reducing the number of speakers required to cover a space effectively.

Designed to function as part of the broader Q-SYS ecosystem, these speakers support Advanced Intrinsic Correction voicings when paired with Q-SYS processors, enabling DSP-driven tuning at the system level rather than requiring external EQ work. The integrated 70/100V transformer with 16Ω bypass gives integrators full flexibility across constant-voltage and low-impedance distributed systems, making this speaker suitable for large-scale multi-zone installations as well as smaller commercial deployments.

For contractors, the 3x double-stepped dog-ear blind mount system and included C-ring with tile rails simplify installation in drop ceilings without requiring above-ceiling access. The snap-fit magnetic grille and blemish-free removable logo support clean, specification-grade finishes demanded by architects and facility managers. IP-34 ingress protection and a rated operating range of -4 to 122° F extend deployment options to semi-exposed or mechanically ventilated spaces, and the speaker is UL2043-listed for use in air handling plenums.

Downloads

View full details

Specifications

Certifications
Ingress Protection
IP-34
Safety Agency
UL1480, UL2043, NFPA90, NFPA70 (air handling spaces), UL1876 (transformer), ROHS, C-Tick X000, CE
Flammability Rating
UL94-V0 and UL94-5VB (baffle)
System Compliance
IEC60849 / EN60849
Audio
Effective Frequency Range
70 Hz – 20 kHz
Rated Noise Power
30 watts
Rated Voltage
22 volts (rms)
Sensitivity
87.5 dB
Rated Coverage (-6 dB)
150° conical DMT
Directivity Factor (Q)
4.5
Directivity Index (DI)
6.5 dB
Maximum Continuous SPL
102 dB
Maximum Peak SPL
108 dB
Nominal Impedance
16 ohms
Recommended Amplifier
60 watts
Transformer
Transformer Taps / Impedance
16Ω (bypass); 3.75W (70V) / 7.5W (100V) Tap: 1333Ω; 7.5W (70V) / 15W (100V) Tap: 667Ω; 15W (70V) / 30W (100V) Tap: 333Ω; 30W (70V) / N/A (100V) Tap: 167Ω
Connectivity
Input Connector Type
Euroblock connector with parallel output
Construction
LF Transducer
114 mm (4.5") weather resistant paper cone woofer
HF Transducer
19 mm (0.75") aluminum dome tweeter
Enclosure Material
ABS baffle on powder coated steel back can
Grille Material
Powder coated steel
Operating Environment
Indoor use
Operating Temperature Range
-4 to 122° F (-20 to 50° C)
Color
White (RAL 9003)
Dimensions
Product Diameter x Height
9.06" x 6.93" (230 x 176 mm)
Cutout Diameter
7.7" (195 mm)
Weight
Net Weight
6.4 lb (2.9 kg)
Shipping
Shipping Weight
20.5 lb (9.3 kg) pair packed
Shipping Dimensions (H x W x D)
11" x 28" x 12.5" (279 x 711 x 318 mm) pair packed
Included Items
Included Accessories
C-ring and tile rails, rail screws, euroblock connector, cut-out template, grille
Optional Accessories
AD-MR4 (pre-install mud ring)
