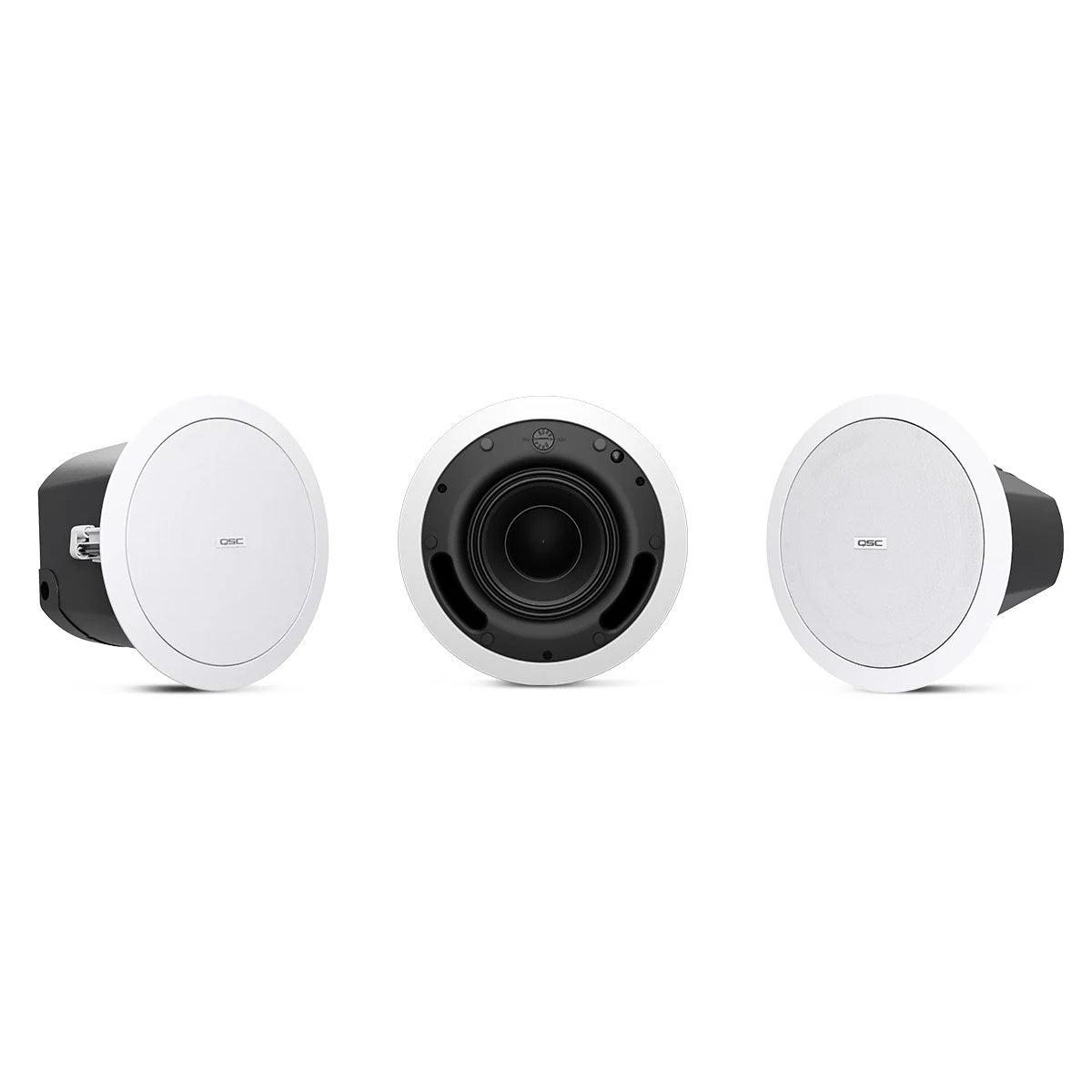

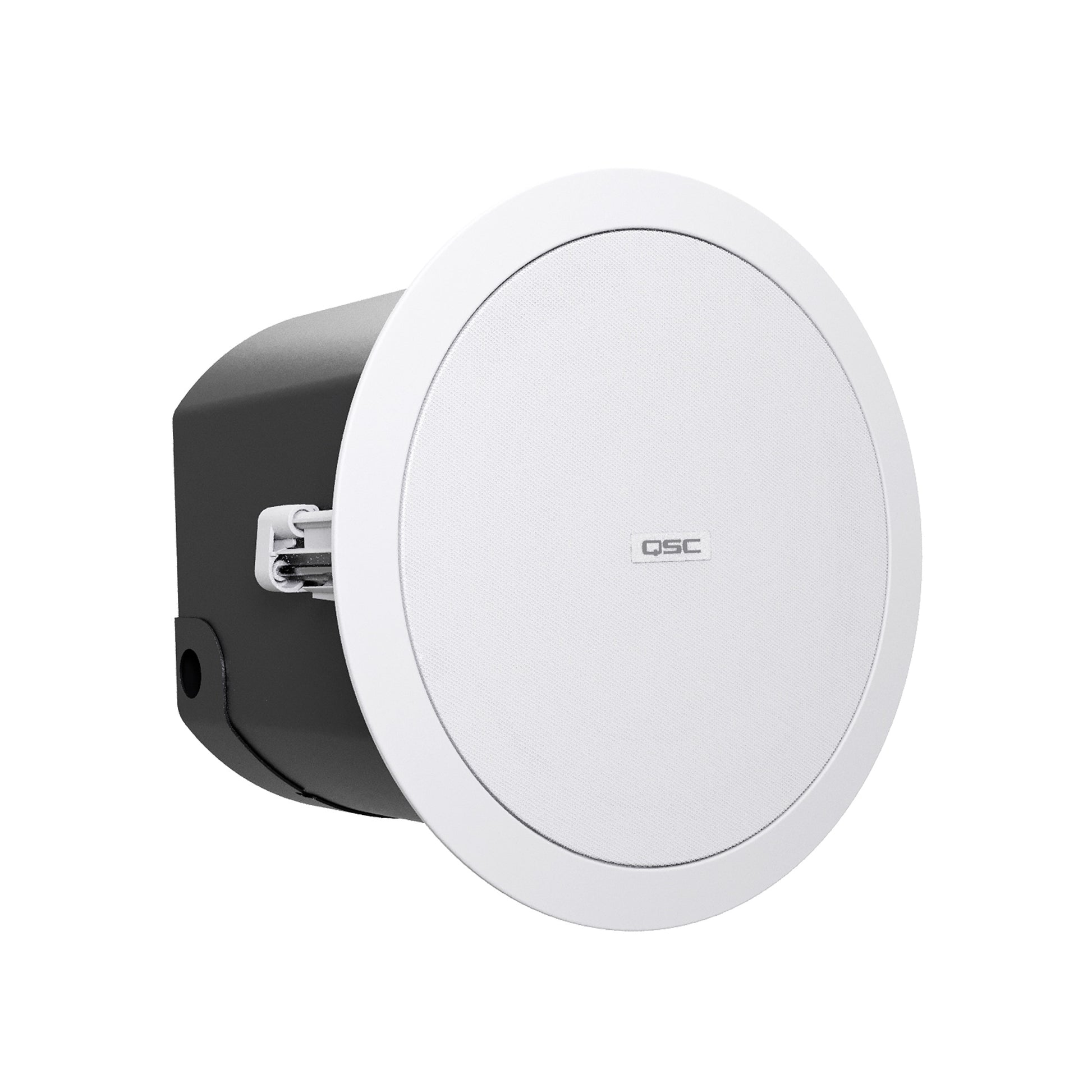

Q-SYS AcousticDesign 6.5" Two-Way Ceiling Speaker For Install | High Power, 120° conical coverage
Q-SYS AcousticDesign 6.5" Two-Way Ceiling Speaker For Install | High Power, 120° conical coverage
SoundPro Item: 139022 | Part Number: AD-C6T-HP
Usually ships in 5-7 business days
- Tighter 75° Conical Coverage Controls Sound In High-Ceiling Or Reverberant Spaces
- Advanced Intrinsic Correction Voicing Integrates Natively With Q-SYS Software
- Consistent Tonal Character Across AcousticDesign Series Supports Mixed Form Factor Installs

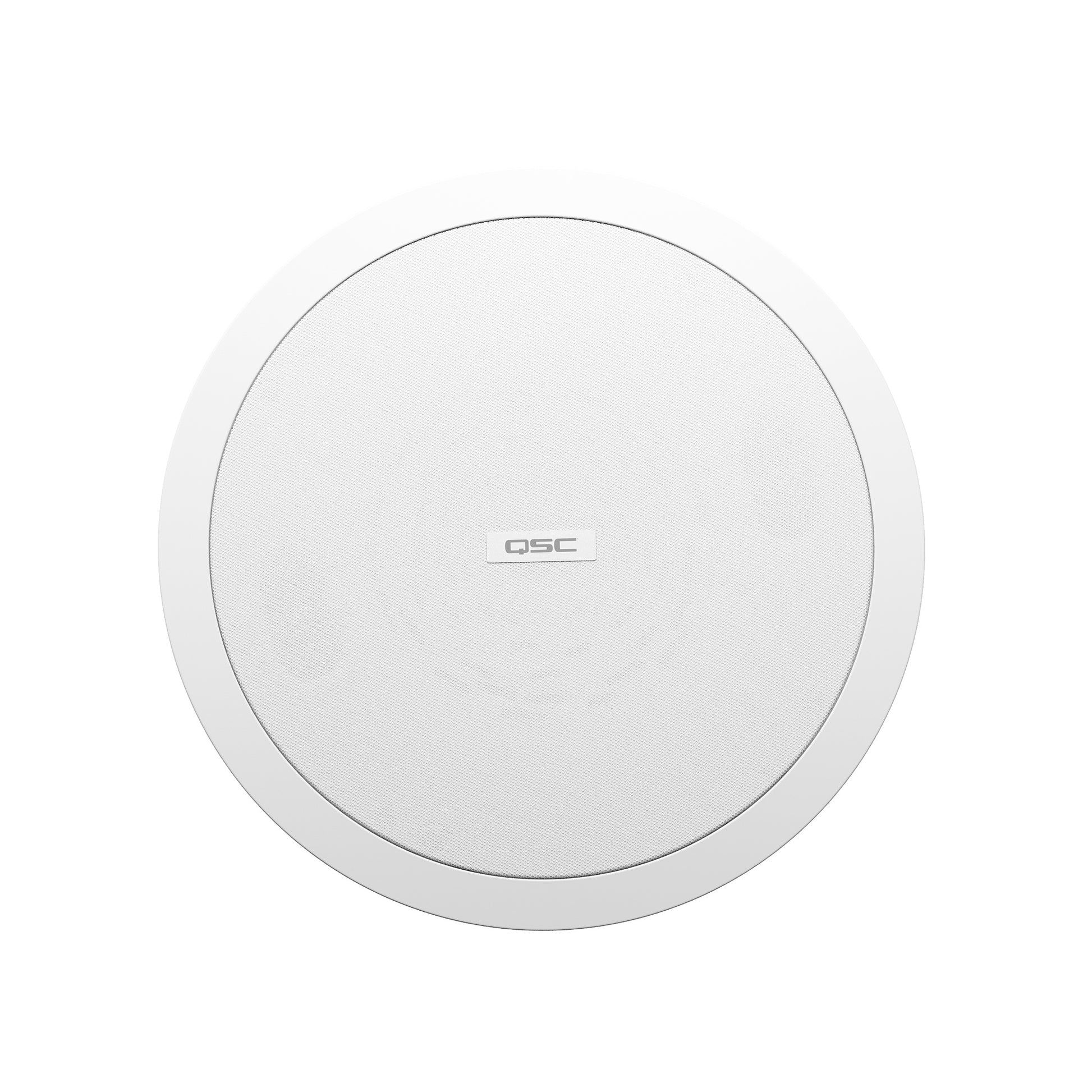

- Snap-Fit Magnetic Grille Allows Tool-Free Trim Completion After Mounting
- 3x Double-Stepped Long-Travel Dog-Ear System Enables Reliable Blind Mount Installation
- 16Ω Bypass With Multiple Taps Supports 70V And 100V Constant-Voltage Systems

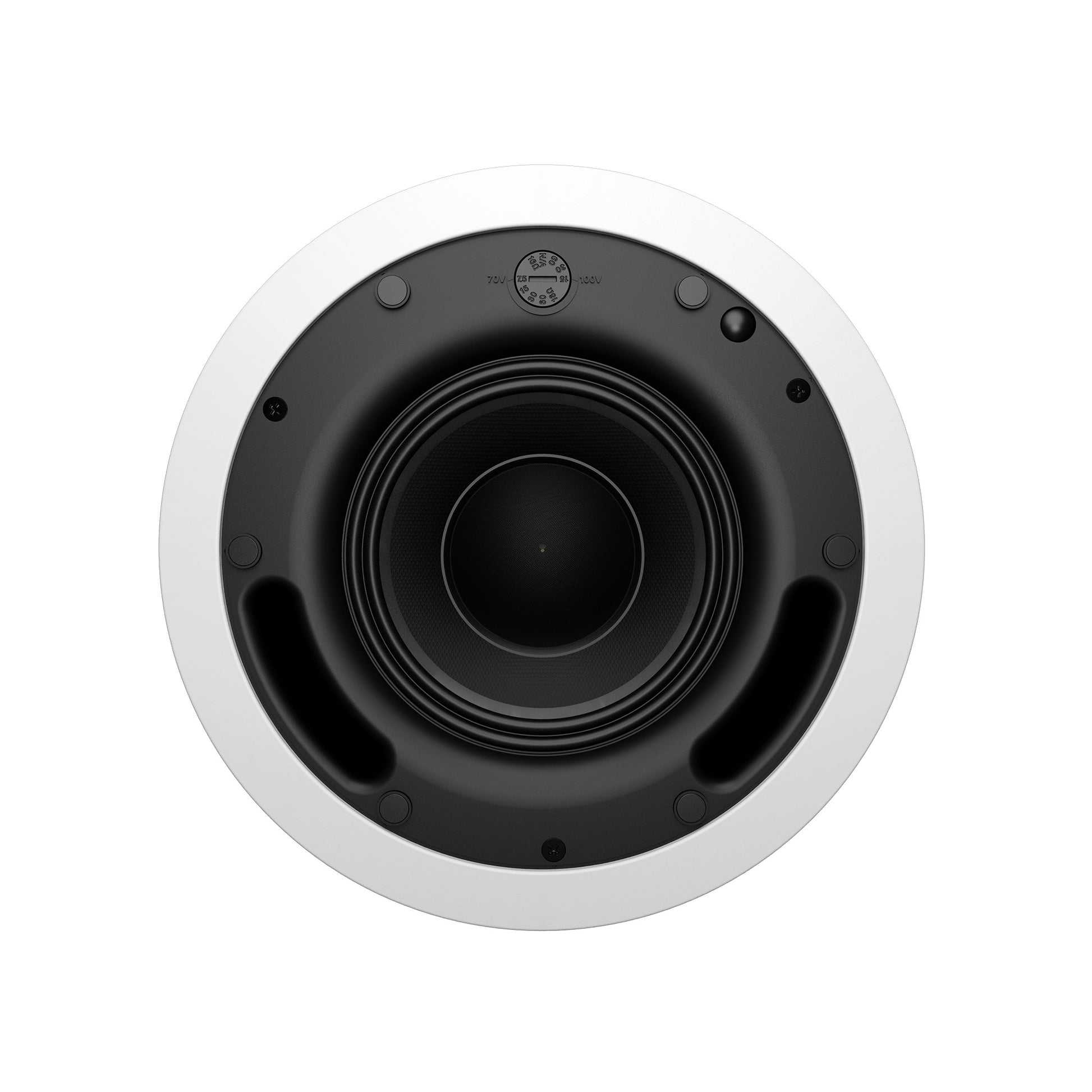

The Q-SYS AcousticDesign 6.5" two-way ceiling speaker is designed for AV integrators specifying distributed audio in spaces where ceiling height or reverberation demands tighter pattern control and higher power handling than standard ceiling speakers provide. The two-way transducer configuration — pairing a 6.5" paper cone woofer with a kapton dome compression tweeter — delivers full-range reproduction from 45 Hz to 20 kHz across a 70/100V transformer system with 16Ω bypass, making it compatible with both constant-voltage and low-impedance amplifier outputs.
For system designers working within the Q-SYS ecosystem, Advanced Intrinsic Correction voicings are available natively through Q-SYS software, enabling precise DSP alignment without external processing hardware. The AcousticDesign series maintains consistent tonal characteristics across form factors, so integrators can combine ceiling, surface, and pendant models within a single venue without audible tonal discontinuity — a meaningful advantage in multi-zone hospitality, house of worship, or corporate campus installs.

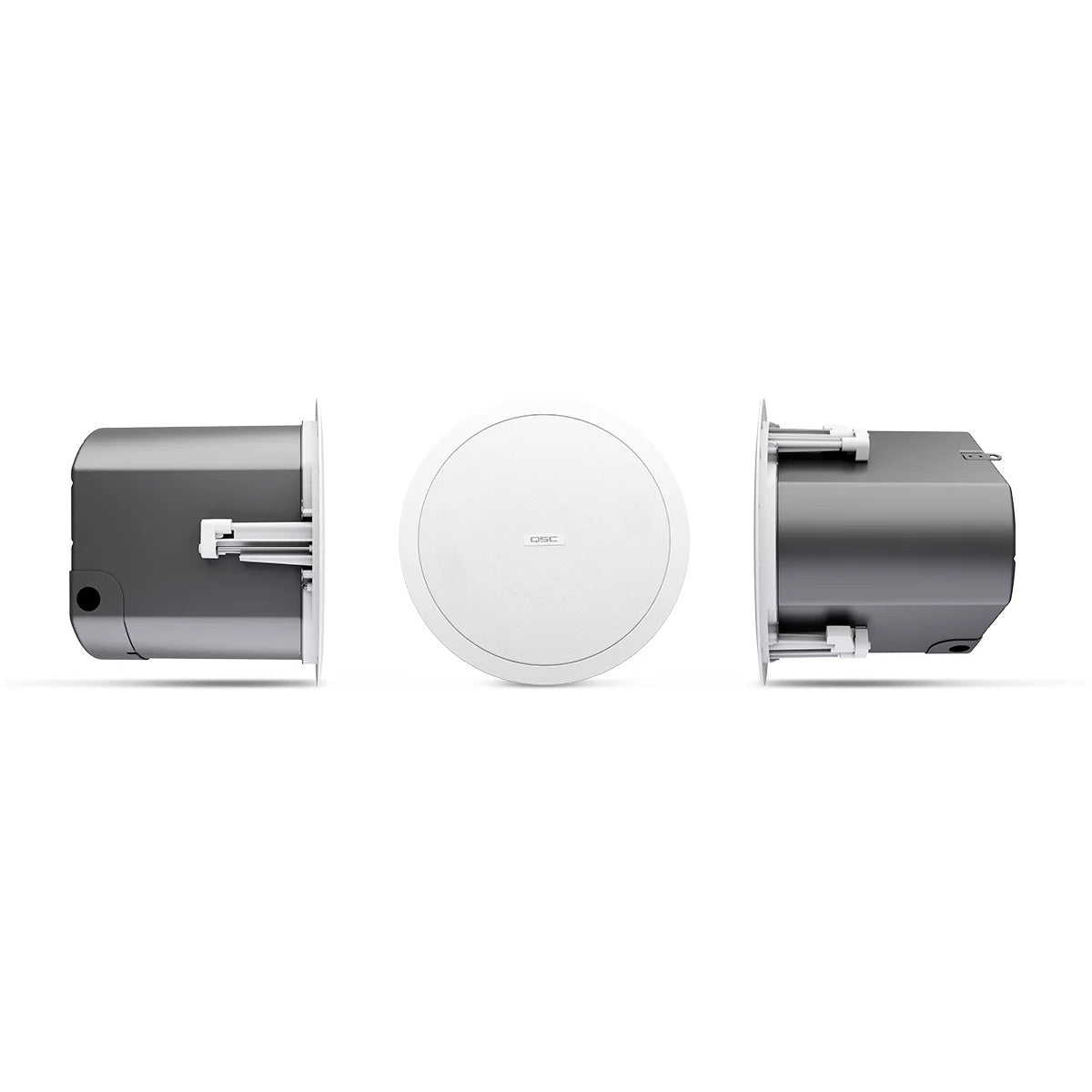

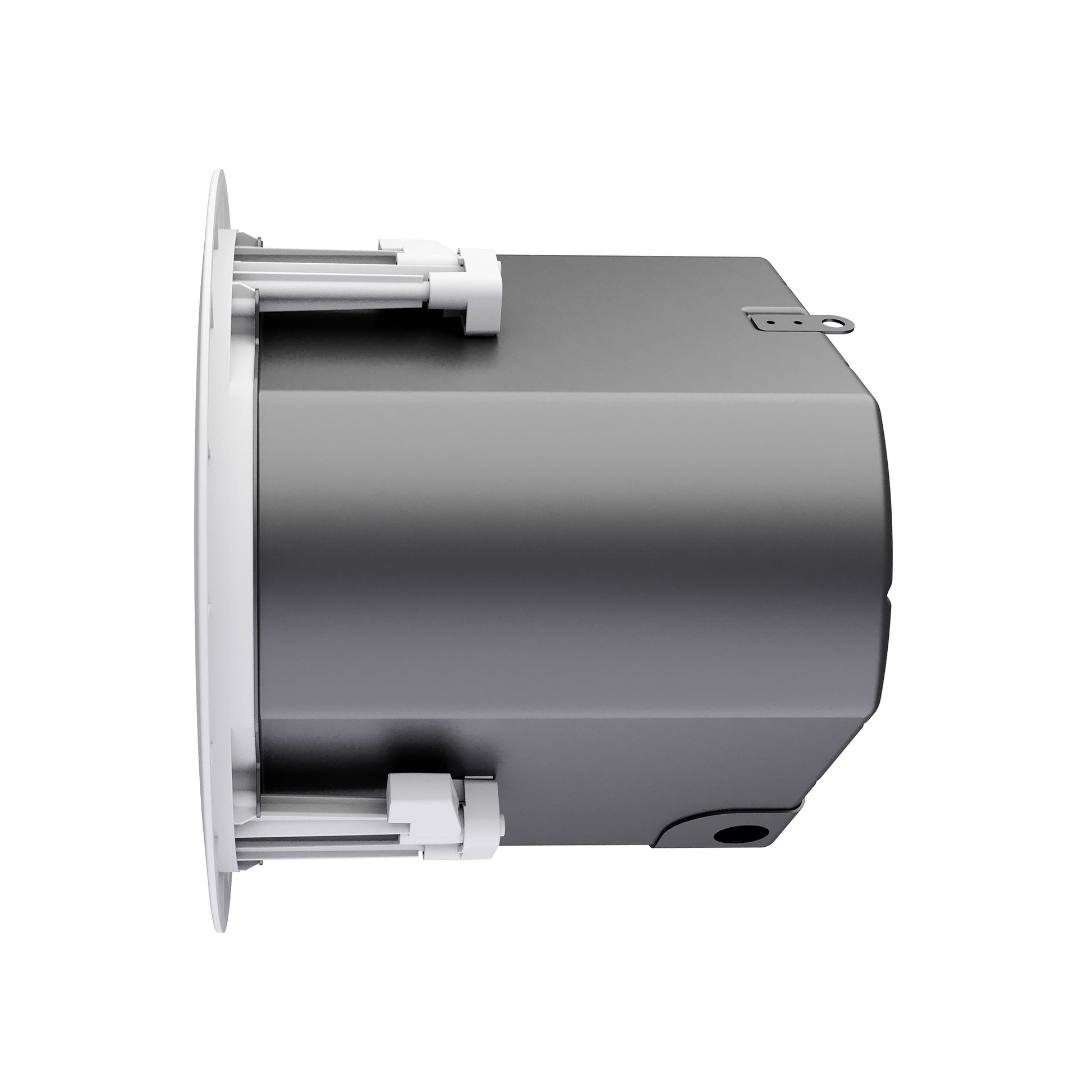

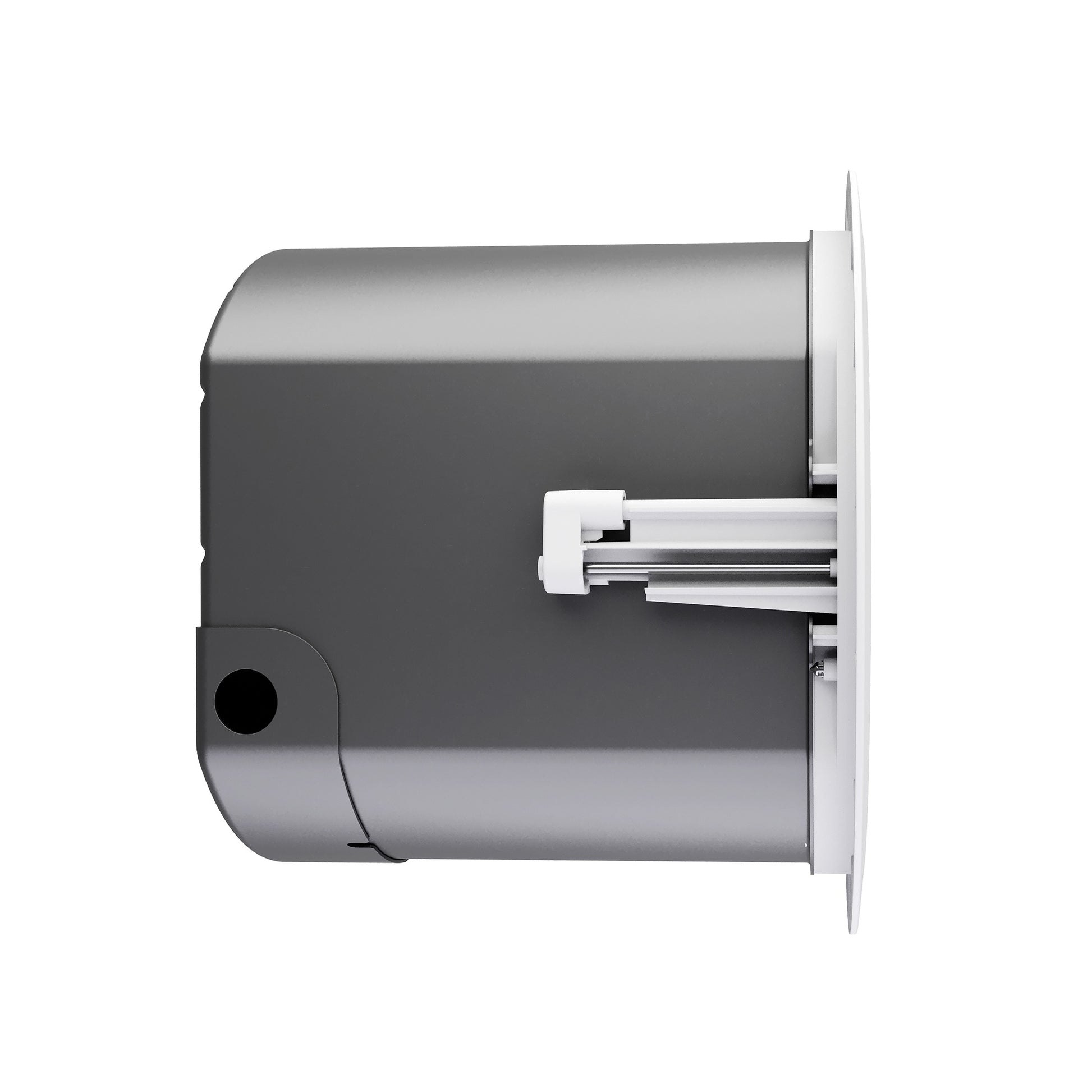

Installation is handled through a 3x double-stepped, long-travel dog-ear blind mount system with C-ring and rails included, simplifying above-ceiling work in retrofit or new construction environments. The snap-fit magnetic grille speeds up final trim without additional hardware. Optional mud ring and collar adapter accessories are available for cutout preparation and ceiling adapter compatibility.
Specifications
