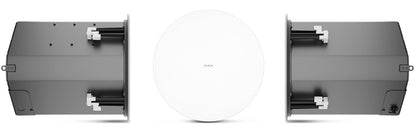

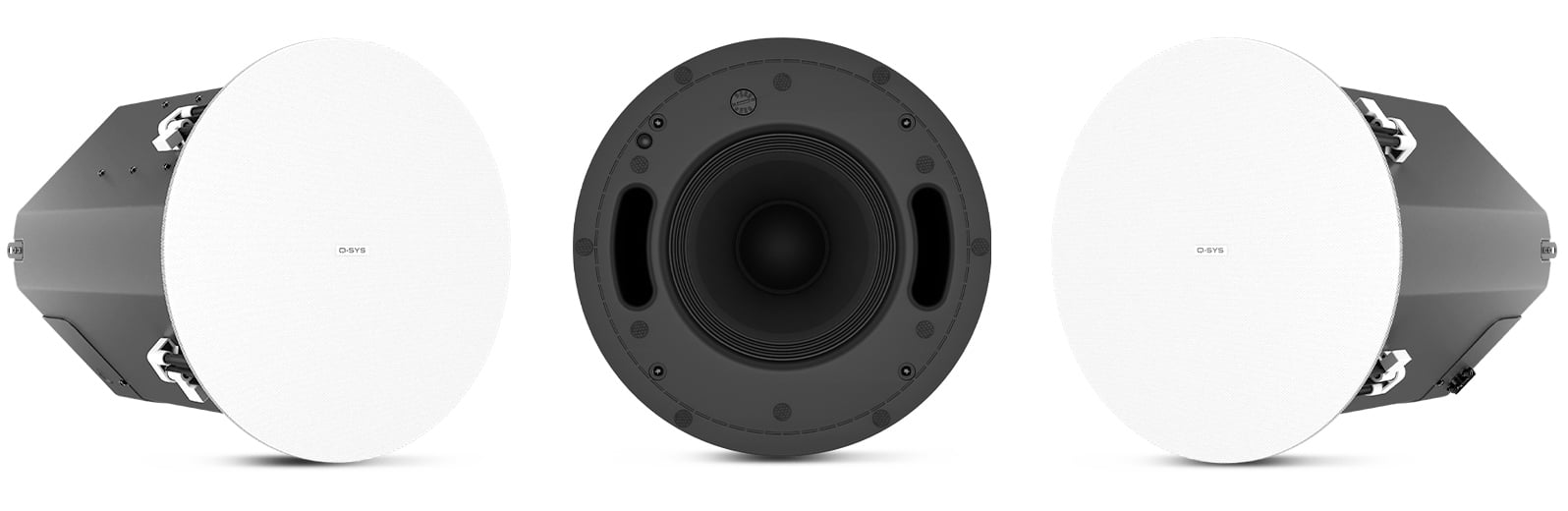

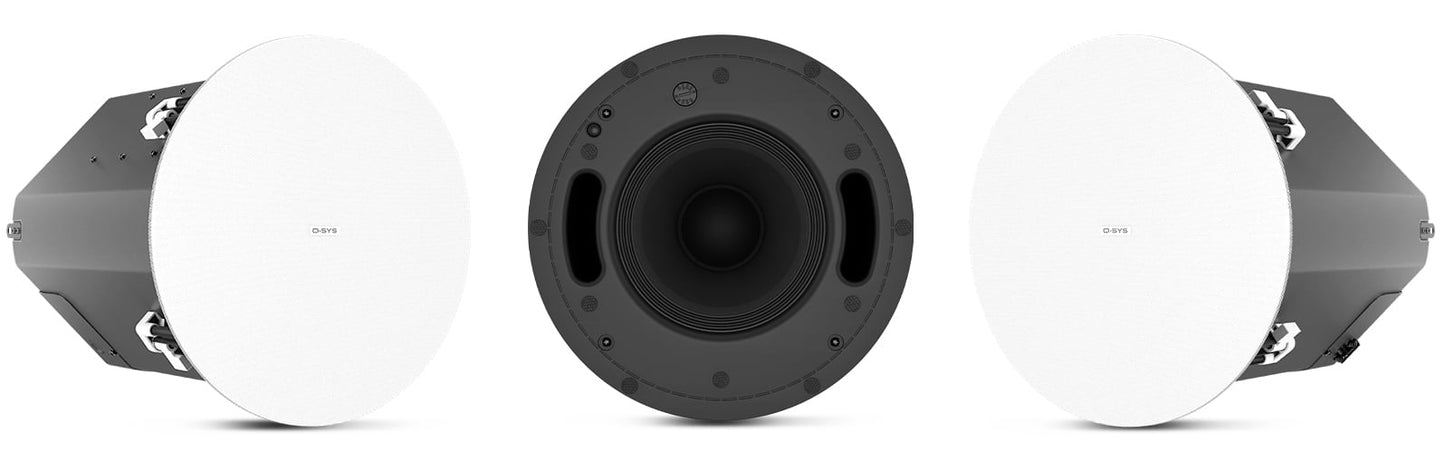

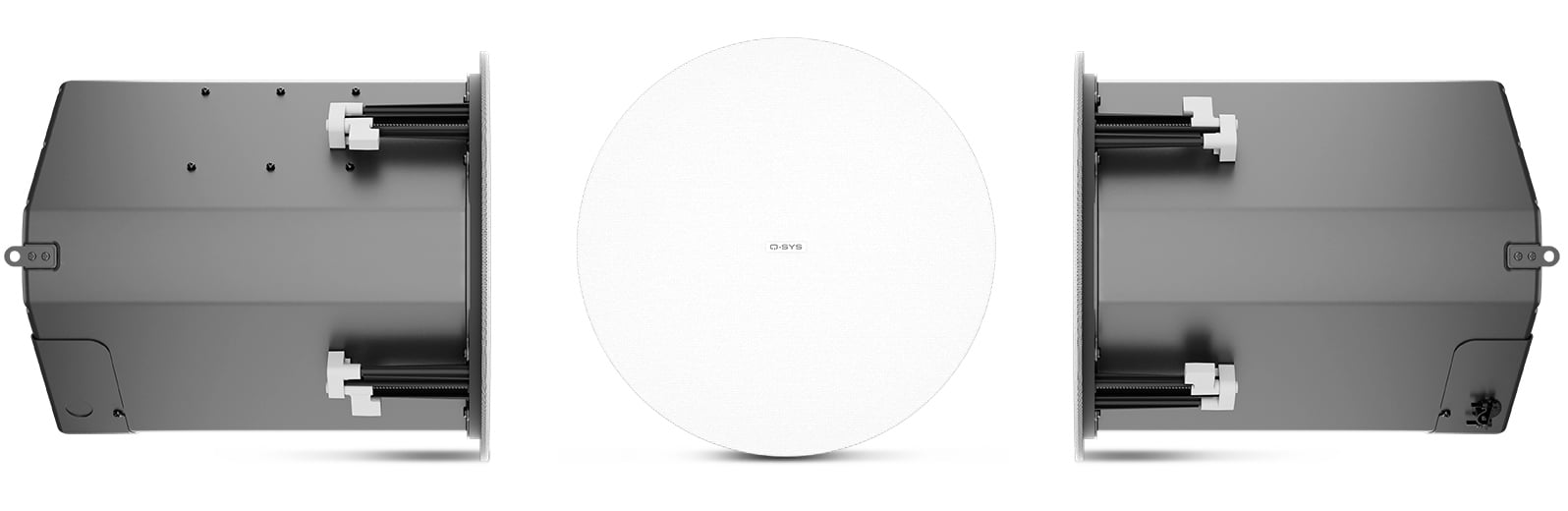

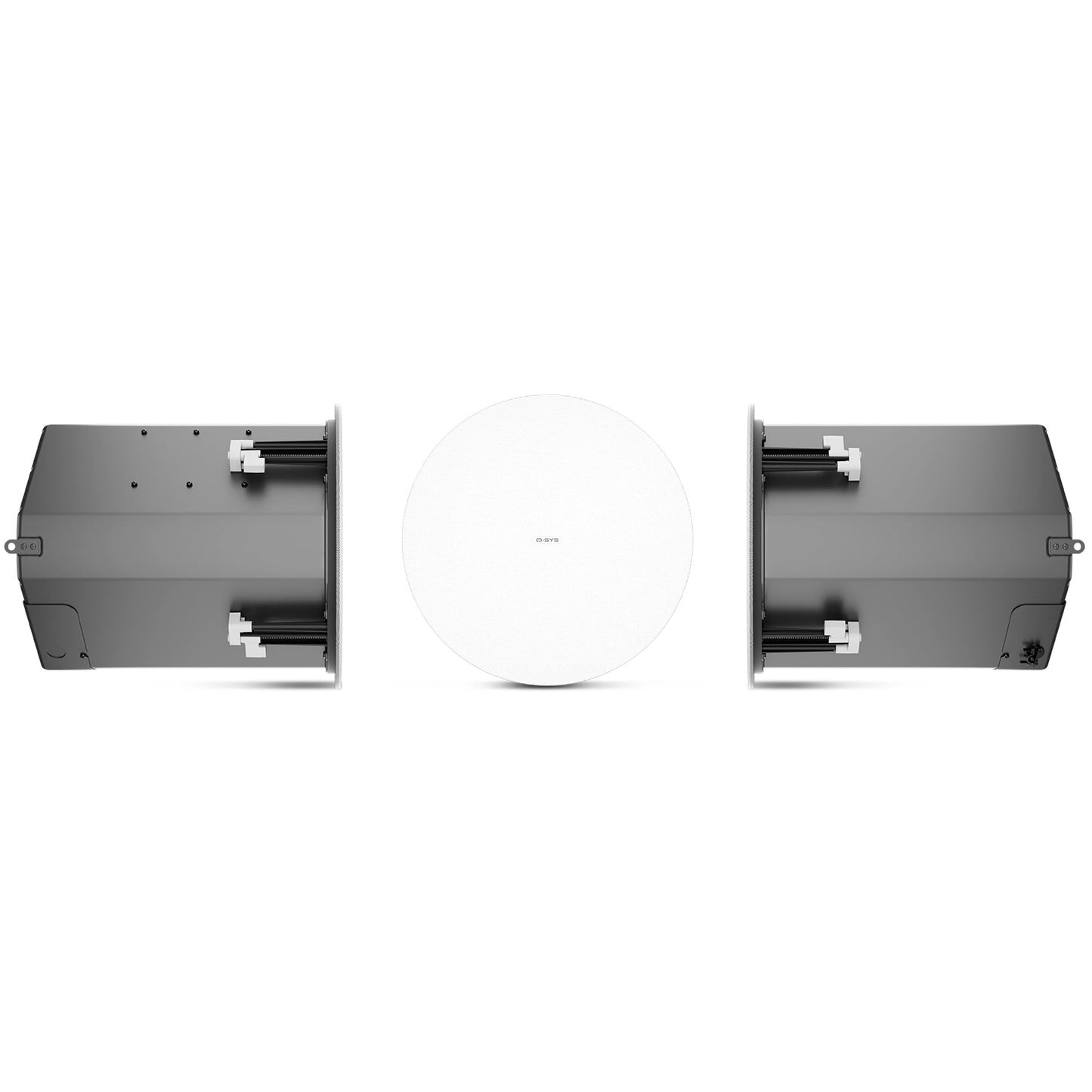

Q-SYS AD-C8T-SWZB-8-inch, ceiling-mount subwoofer

Q-SYS AD-C8T-SWZB-8-inch, ceiling-mount subwoofer

SoundPro Item: 147887 | Part Number: AD-C8T-SWZB-WH

$575.00
$575.00 $575.00
Your Price Sold out
MSRP: $575.00 | MAP: $575.00

Usually ships in 5-7 business days

  • 8-in ceiling subwoofer with bezel-less design
  • Consistent tonal characteristics across the entire AcousticDesign Series for surface, ceiling, and pendant applications
  • DMT (Directivity Matched Transition™) waveguide ensures smooth, uniform frequency response over the coverage area
  • Snap-fit magnetic grille
  • 3x double stepped, long travel dog-ear blind mount system
  • Intrinsic Correction™ voicings available via the Q-SYS Platform including CX-Q amplifiers
  • Blemish-free removable logo
  • Removable conduit cover plate, also available as accessory for pre-install wiring
  • UL1480 and UL2043 certified
  • Available in white (RAL 9003), with black grille accessory sold separately.
Log in or register for YOUR best price
View full details

Specifications

LF transducer
8 in (203 mm), 2.0 in. (50.8 mm) voice coil, ferrite
Enclosure configuration
Ceiling Subwoofer, Bass Reflex
Coverage
Omni
Filter
125 Hz Low Pass, Passive
System bandwidth (1)
-3 dB: 65 Hz - 155 Hz, -6dB: 59 Hz - 170 Hz, -10 dB: 53 Hz - 195 Hz
Sensitivity (2)
92.3 dB @ 1 W/ 1 m
Max SPL (continuous) (3)
113 dB
Max SPL (peak) (4)
125 dB
Max SPL (calculated) (5)
123 dB
Power rating
Continuous power 250 W @ 8Ω, rated Power 500 W
Bypass impedance
8 Ω
Minimum impedance
6.4 Ω @ 118 Hz
Taps (70v/100v)
25 W, 50 W, 100 W, 200 W / 50 W, 100 W, 200 W
Enclosure material
ABS baffle on powder coated steel backcan
Enclosure color
Black back-can, white grille (RAL 9010)
Connectors
4-pin 0.2 in (5 mm) Euroblock connector with parallel output
Dimensions (H x W x D)
13.5 x 13.5 x 13.75 in (342.9 x 342.9 x 349.25 mm)
Cutout dimensions
305 mm
Shipping dimensions (H x W x D)
19.5 x 17.5 x 32 in (495.3 x 444.5 x 812.8 mm), pair packed
Weight
22.4 lb (10.1kg)
Included accessories
Tile rails & screws, tile rings, cardboard cutout templates, wire connector, white grille
Optional accessories (sold separately)
AD-MR8 (pre-install mud ring), AD-C305BG-BK black grille
Ingress protection
IP-44
Safety agency
UL1480A, UL2043, NFPA 90A, NFPA70 suitable for use in air handling spaces. ROHS, CE compliant., Baffle meets UL94-V0 flammability rating; in accordance with IEC60849 / EN60849 systems.
