Q-SYS AD-S12-12-inch 2-way, 75 degree conical DMT

Q-SYS AD-S12-12-inch 2-way, 75 degree conical DMT

SoundPro Item: 13275 | Part Number: AD-S12-WH

$1,235.00
$1,235.00 $1,235.00
Your Price Sold out
MSRP: $1,235.00 | MAP: $1,235.00

Usually ships in 5-7 business days

  • 12-inch weather treated woofer; 1.4-inch compression driver
  • 75° conical DMT™ coverage
  • Maximum peak SPL 126 dB
  • Directivity Matched Transition® (DMT) ensures smooth, uniform frequency response over the coverage area

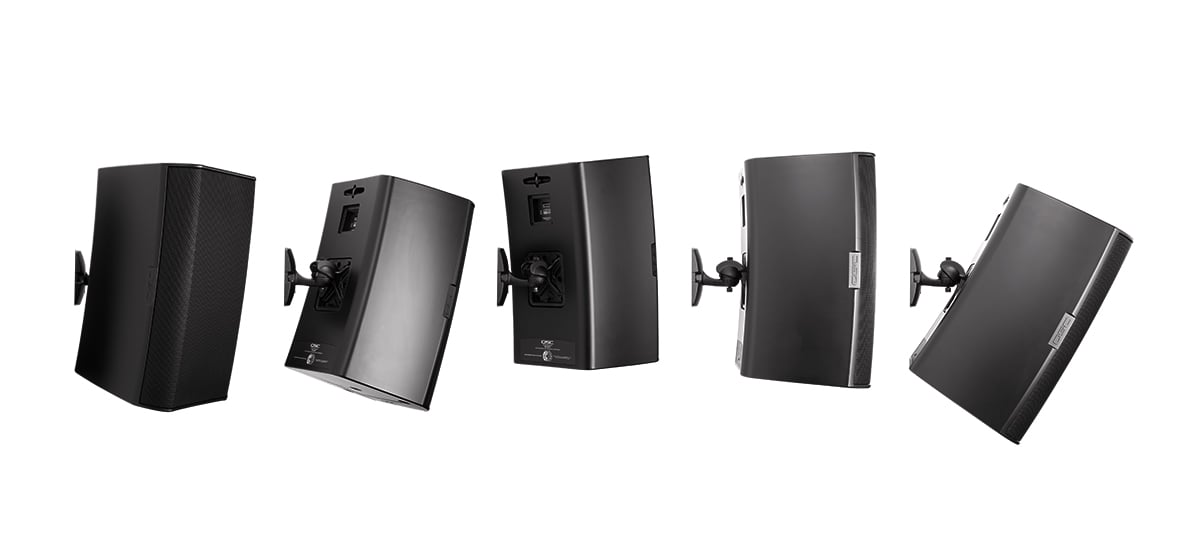

  • X-Mount™ system enables the loudspeaker to be easily installed and deployed at a variety of angles with no slippage over time
  • Optional Yoke mount and M10 Kit-C for additional installation versatility
  • Advanced Intrinsic Correction™ voicings available via Q-SYS™
  • Lightweight ABS enclosures offer long-term durability and lasting good looks

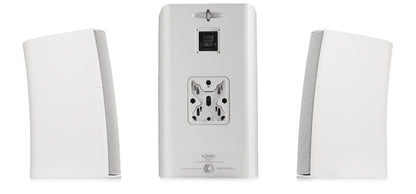

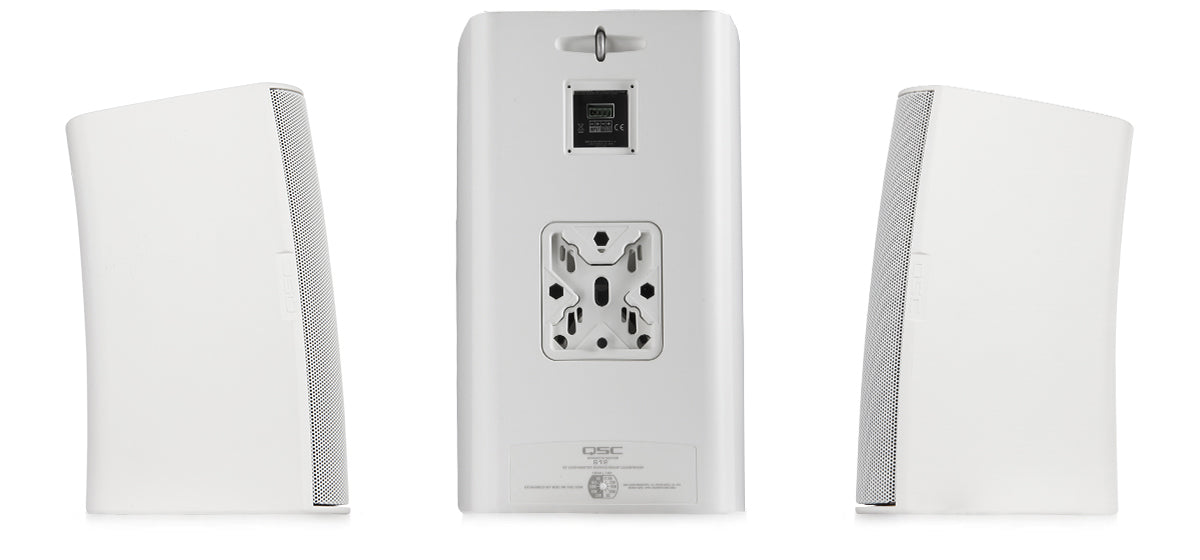

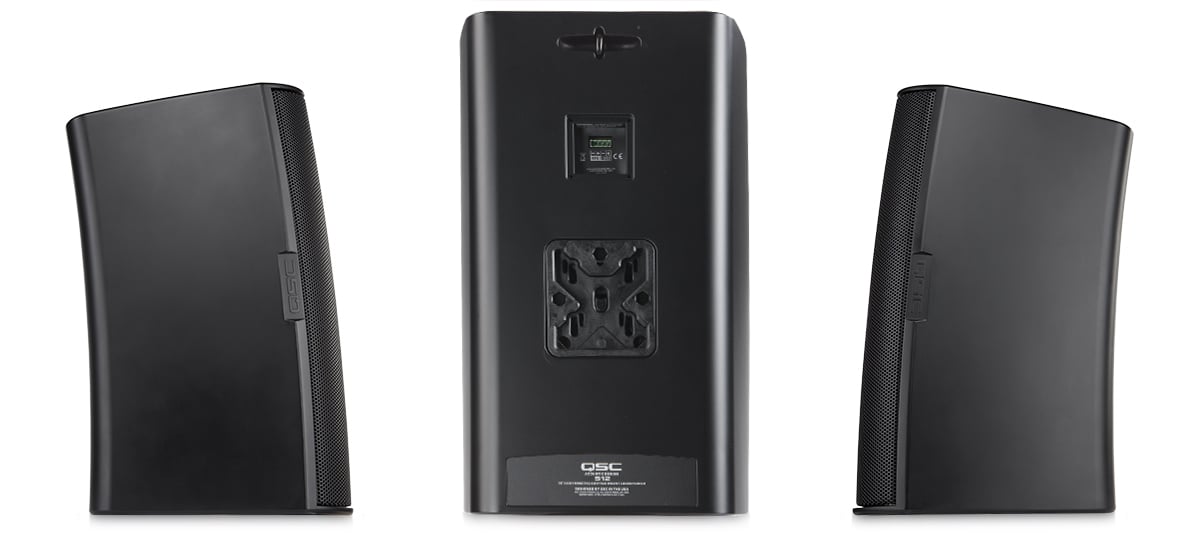

  • Sealed input panel cover and powder coated aluminum grilles for added weather resistance
  • Meets IEC60529 IP-54 for dust and splash resistance

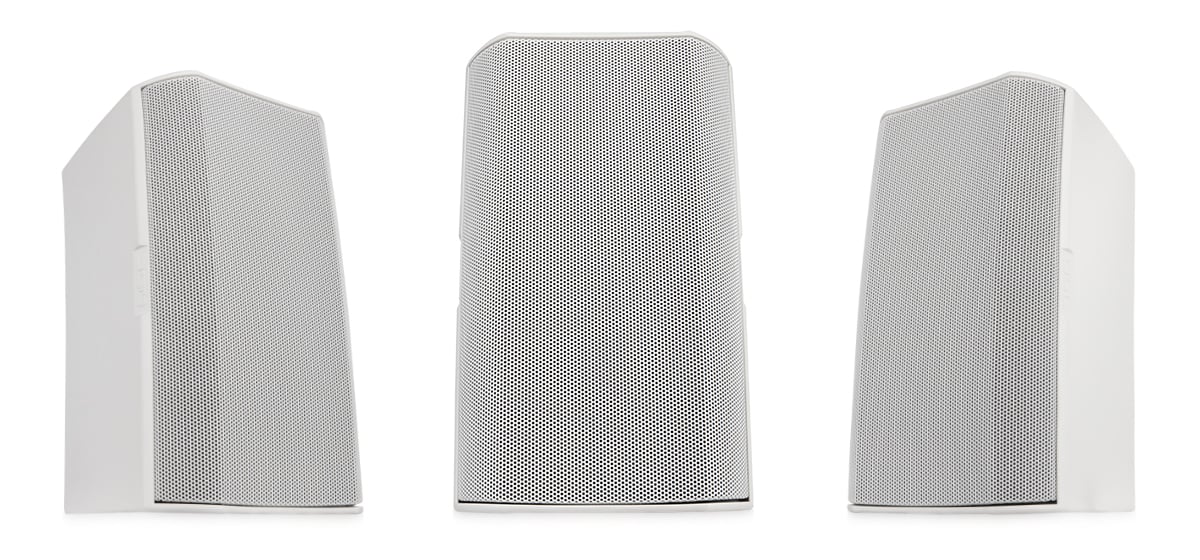

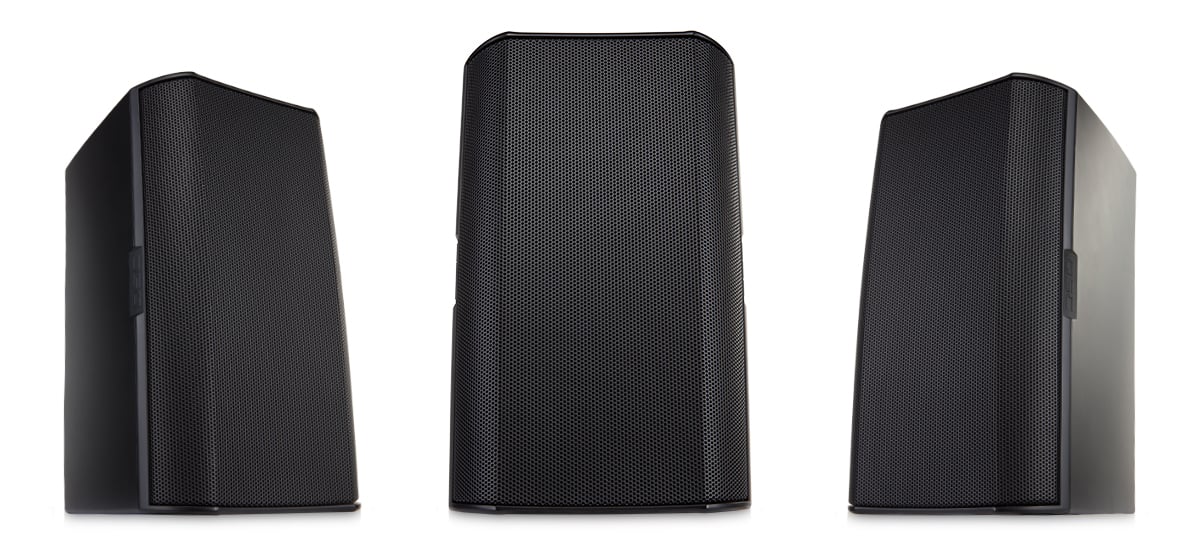

  • Available in black (RAL 9011) or white (RAL 9010)
  • Complete EASE, CF2, CAD, and BIM information available online
Log in or register for YOUR best price
View full details

Specifications

Effective frequency range1
52 Hz - 20 kHz
Rated noise power / voltage2
300 watts / 50 volts (rms)
Broadband Sensitivity3
95 dB SPL
Coverage angle (-6 dB)
75° conical DMT™
Directivity factor (Q)
12
Directivity Index
11 dB
Maximum continuous SPL4
120 dB
Maximum peak SPL4
126 dB
Rated impedance
8 ohms
Recommended amplifier power (loudspeaker "program" power)
600 watts
Transformer taps
n/a
HF transducer
1-inch exit / 1.4-inch voice coil compression driver
LF transducer
12-inch weather resistant paper cone woofer, 2.5-inch / 64 mm voice coil
Input connector type
Euroblock connector with parallel output terminals
Enclosure material
Painted ABS polymer
Grille material
Powder coated aluminum
Enclosure Details
Enclosure Details
Ingress protection
IP-54
Operating environment
Designed for indoor and outdoor use
Testing
The AD Series loudspeakers qualified for outdoor use using the following tests: Salt fog: MIL-STD-810G Method 509.5 for 100 hrs. Humidity: MIL-STD-810G Method 507.5, Natural cycle B2, cyclic high RH for 7 days High and low temperature: tested to QSC internal standards between -20° & 50° C
Product Dimensions (HWD) inches
23.4 x 13.9 x 12.7
Product Dimensions (HWD) mm
594 x 354 x 323
Net weight
35.2 lb / 16 kg
Shipping weight
46.3 lb / 21 kg
Shipping dimensions
34.5-inch x 17.9-inch x 17.2-inch (765 x 455 x 437 mm)
Included accessories
X-Mount mounting system, Euroblock connector, Input panel cover
Optional accessories
YMS12 yoke mount, M10 Kit-C
1 Free-field, -10 dB from on-axis sensitivity 2 IEC60268-1 noise signal for 2 hours 3 On-Axis, free-field sensitivity, 2.83V, 1 m 4 Calculated from rated noise voltage and sensitivity
1 Free-field, -10 dB from on-axis sensitivity 2 IEC60268-1 noise signal for 2 hours 3 On-Axis, free-field sensitivity, 2.83V, 1 m 4 Calculated from rated noise voltage and sensitivity
