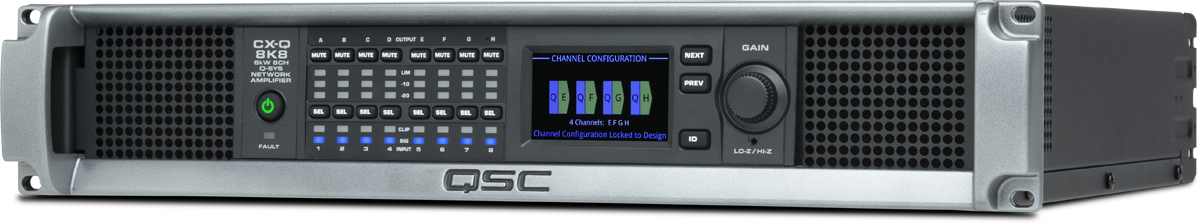

Q-SYS CX-Q 8K8-Eight-channel Network Amplifier

Q-SYS CX-Q 8K8-Eight-channel Network Amplifier

SoundPro Item: 41803 | Part Number: CX-Q 8K8

$7,755.00
$7,755.00 $7,755.00
Your Price Sold out
MSRP: $7,755.00 | MAP: $7,755.00

In stock and ready to ship

  • PowerLight universal switchmode power supply with PFC for highest efficiency, improved audio performance and low weight

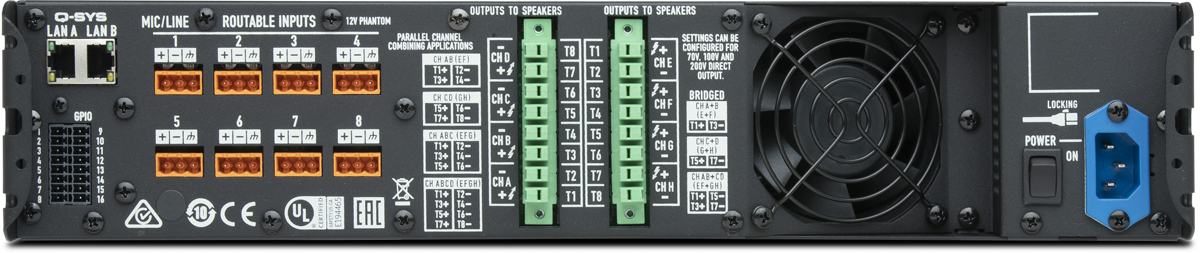

  • Touch-proof Euroblock loudspeaker connections
  • Eight bi-directional GPIO connections for further control and integration of third-party peripherals within Q-SYS
  • Automatic energy saving modes ensure that the amplifier will draw the minimum amount of AC power while still providing outstanding audio quality
Log in or register for YOUR best price

Q-SYS CX-Q Series network amplifiers combine a legacy of robust power amplifiers, advancements in high-efficiency output devices and native network transport, control and monitoring capabilities. CX-Q 8K8 features eight channels, capable of delivering customized power output loading and a total maximum power of up to 8000 W. Low-Z, 70 V or 100 V direct drive are available on all channels.

View full details

Specifications

Typical distortion
8Ω
0.02 - 0.05%
4Ω
0.04 - 0.1%
Maximum distortion 4Ω - 8Ω
1.0%
Frequency response
20 Hz - 20 kHz +/- 0.3 dB
Noise
Unweighted output muted
> 101 dB
Weighted output muted
> 104 dB
Gain (1.2V setting)
38 dB
Damping factor
> 100
Input impedance
> 8k balanced and > 4k unbalanced
Amplifier and load protection
Short circuit, open circuit, over current, over voltage, thermal, RF,, DC fault shutdown, active inrush limiting, on/off muting
AC power input
Universal power supply 100 - 240 VAC, 50 - 60 Hz
Agency approvals
UL, CE, RoHS/WEEE compliant, FCC Class B (conducted and radiated emissions)
Carton contents
IEC cable, quick start guide, Euro (green) connectors
