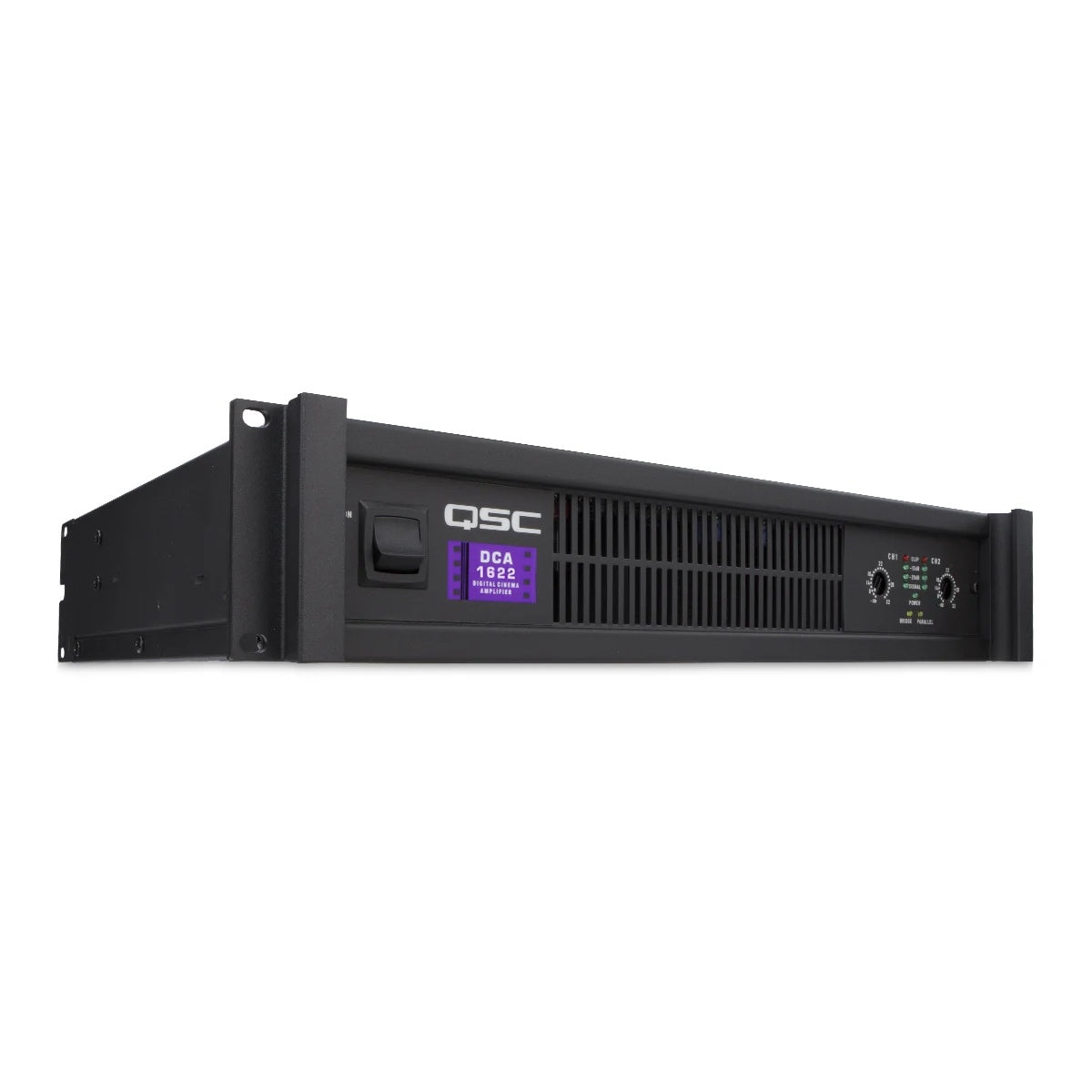

Q-SYS DCA1622 2-Channel Cinema Power Amplifier Low Ohm
Q-SYS DCA1622 2-Channel Cinema Power Amplifier Low Ohm
SoundPro Item: 119383 | Part Number: DCA1622
Pricing available upon request
Pricing available upon request
Usually ships in 5-7 business days
- DataPort Interface Enables Direct Connection To DCP Cinema Processors And DCM Monitors
- PowerLight Power Supply Delivers Extended Headroom For Cinema Low-Frequency Reproduction
- Output Averaging Short Circuit Protection Guards Connected Speakers Without Signal Interruption
- Active Inrush Limiting Prevents Circuit Breaker Trips At System Power-Up
- Gain Control Security Cover Blocks Accidental Adjustment In Permanent Installations
- Variable-Speed Fan With Rear-To-Front Airflow Maintains Thermal Stability In Dense Racks
- Neutrik Speakon And Safety-Shrouded Barrier Strip Outputs Support Multiple Wiring Methods
The Q-SYS DCA1622 is built for cinema audio system integrators and installation engineers who need high-output, low-impedance amplification without 70V transformer infrastructure. Operating in Class AB and rated for continuous high-power duty, it addresses the specific thermal and protection demands of dedicated screening rooms and multi-auditorium installs where reliability is non-negotiable. The proprietary PowerLight power supply delivers the headroom needed for extended low-frequency reproduction, which is the defining performance factor in cinema subwoofer chains.

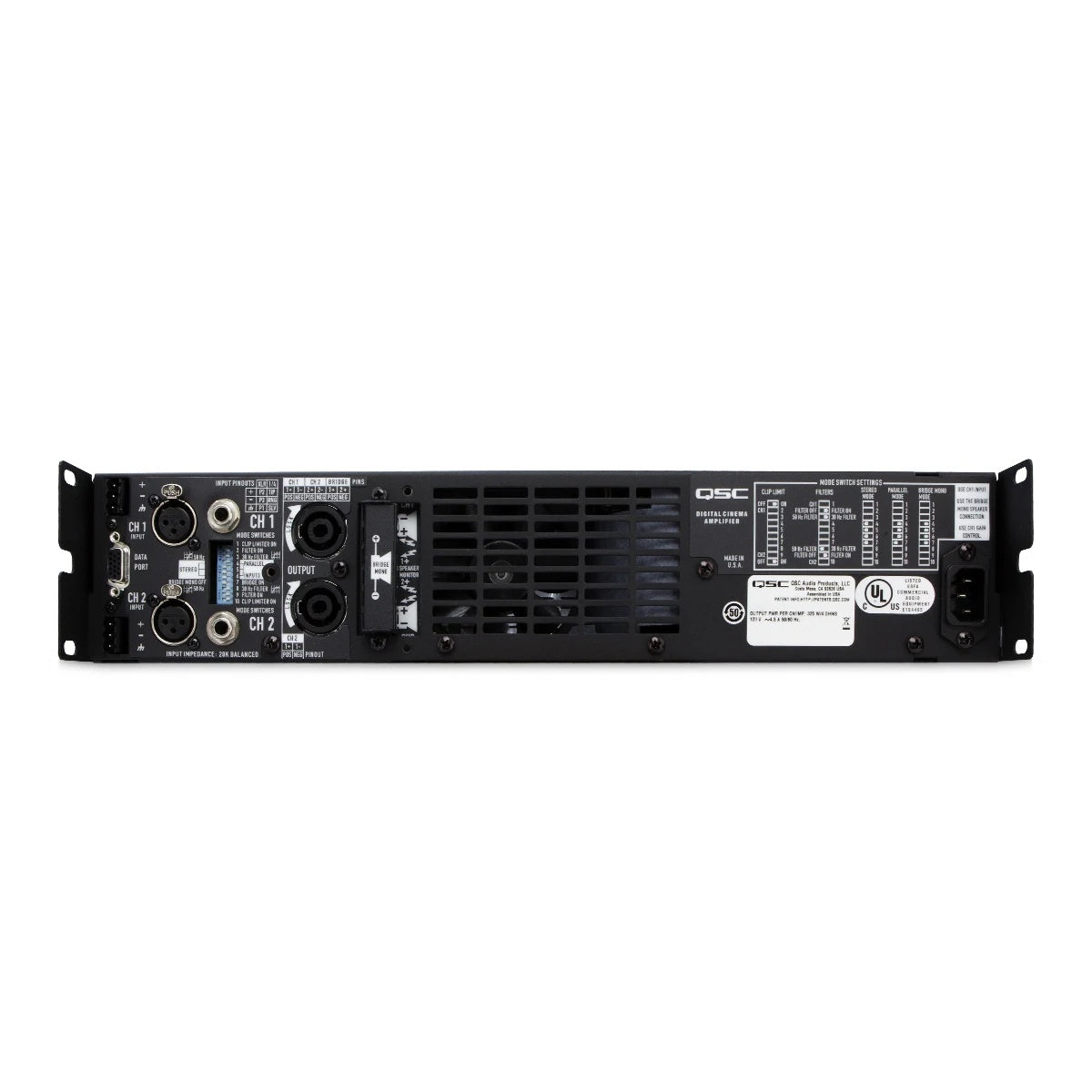

DataPort connectivity gives integrators direct communication with DCP Digital Cinema Processors and DCM Digital Cinema Monitors, reducing rack cabling and simplifying commissioning on day one. Input flexibility covers balanced XLR, quarter-inch TRS, and detachable terminal block connections per channel, while outputs accommodate Neutrik Speakon and safety-shrouded barrier strip wiring to match whatever speaker infrastructure is already in place. Rear panel DIP switches handle clip limiter, LF filter frequency, bridge mode, and input routing without requiring software access.
At 3.5 inches of rack height and 14 inches deep, the DCA1622 fits standard-depth racks and keeps footprint lean in high-channel-count rooms. Variable-speed rear-to-front fan cooling maintains safe operating temps in fully loaded racks without recirculating heat into adjacent gear. For teams that ship pre-wired rack systems, the lightweight construction removes the need to de-rack amplifiers before transit, keeping turnaround fast between installs.
