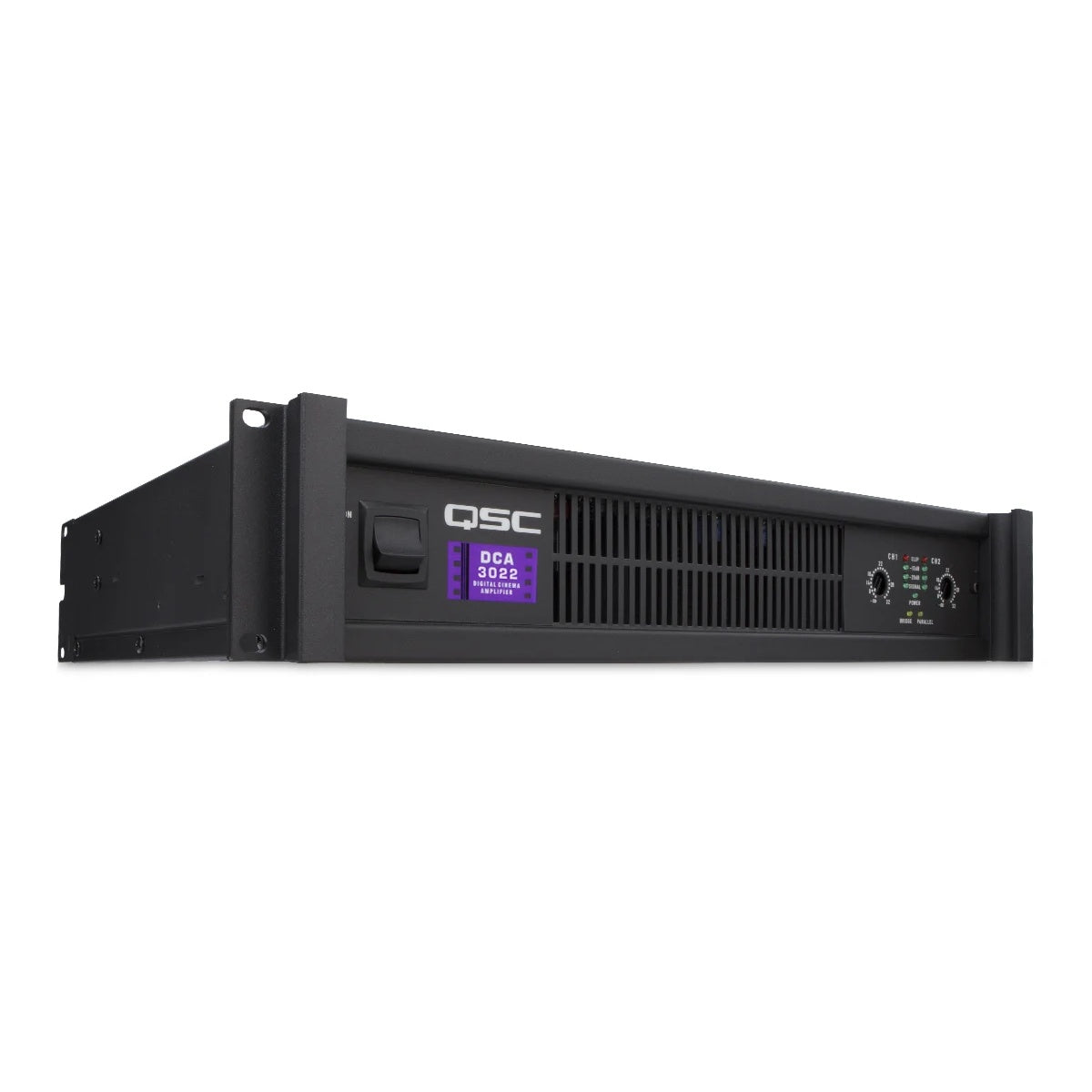

Q-SYS DCA3022 2-Channel Cinema Power Amplifier Low Ohm

Q-SYS DCA3022 2-Channel Cinema Power Amplifier Low Ohm

SoundPro Item: 119452 | Part Number: DCA3022

$1,880.00
$1,880.00 $1,880.00
Your Price Sold out
MSRP: $1,880.00 | MAP: $1,880.00

Usually ships in 5-7 business days

  • 2-Step H Output Circuitry Sustains High Power Across Low-Impedance Loads
  • DataPort HD15 Interface Enables Direct DCP And DCM Cinema Processor Integration
  • Patented Output Averaging Short-Circuit Protection Stabilizes Reactive Or Mismatched Loads
  • Active Inrush Limiting Prevents Circuit Breaker Trips On Power-Up
  • Gain Control Security Cover Protects Against Tampering And Misadjustment In Installed Systems
  • Variable-Speed Fan With Rear-To-Front Airflow Maintains Thermal Stability In Enclosed Racks
  • DIP-Switch Rear Panel Configures Clip Limiter, LF Filter, Routing, And Bridge Mode Without Software
Log in or register for YOUR best price

The Q-SYS DCA3022 is a two-channel, low-impedance power amplifier engineered for non-networked cinema audio installations. With 2-Step H output circuitry, it delivers sustained high power across 8, 4, and 2-ohm loads without the thermal stress common in Class AB designs, making it a practical choice for screen channels, surrounds, and subwoofer applications in commercial cinema environments. The DataPort HD15 interface provides direct connectivity to DCP Digital Cinema Processors and DCM Digital Cinema Monitors, enabling system-level control without additional hardware.

At 3.5 rack units and 14 inches deep, the DCA3022 fits inside standard shallow racks, reducing installation footprint and infrastructure cost. Variable-speed fan cooling with rear-to-front airflow keeps the amplifier thermally stable in enclosed rack environments. Patented Output Averaging short-circuit protection and full thermal, ultrasonic, and RF protection ensure load stability even under reactive or mismatched speaker conditions — a critical requirement in installed cinema systems where access during operation is limited.

For integrators building or maintaining cinema audio systems, the DCA3022 offers a balance of output capability, physical efficiency, and control flexibility. DIP-switch rear-panel configuration covers clip limiting, LF filtering, input parallel or stereo routing, and bridge mode — all accessible without software. Neutrik Speakon and safety-shrouded barrier strip outputs support both permanent installation wiring and serviceability under time pressure.

Downloads

View full details

Specifications

Audio
Stereo Power @ 8Ω (20 Hz–20 kHz, 0.03% THD)
550 W per channel
Stereo Power @ 4Ω (20 Hz–20 kHz, 0.05% THD)
900 W per channel
EIA Power @ 8Ω (1 kHz, 1% THD)
625 W per channel
EIA Power @ 4Ω (1 kHz, 1% THD)
1050 W per channel
EIA Power @ 2Ω (1 kHz, 1% THD)
1500 W per channel
Bridged Mono @ 16Ω (20 Hz–20 kHz, 0.1% THD)
1100 W
Bridged Mono @ 8Ω (20 Hz–20 kHz, 0.1% THD)
2000 W
Bridged Mono @ 4Ω (1 kHz, 1% THD)
3000 W
Signal To Noise Ratio (20 Hz–20 kHz, unweighted)
> 107 dB
Frequency Response (LF filter off)
20 Hz–20 kHz, ± 0.2 dB; 8 Hz–50 kHz, +0/–3 dB
Damping Factor (1 kHz and below)
Greater than 500
Distortion THD (typical, 20 Hz–20 kHz, 10 dB below rated)
< 0.01% @ 8Ω and 4Ω
Distortion (SMPTE-IM)
< 0.02%
Input Sensitivity @ 8Ω
1.7 V rms (+6.8 dBu)
Input Sensitivity @ 4Ω
1.5 V rms (+5.7 dBu)
Input Clipping
10 V rms (+22 dBu)
Input Impedance
10 kΩ unbalanced, 20 kΩ balanced
Voltage Gain @ 8Ω
40x (32 dB)
Output Circuitry Class
2-Step H
Channels
2
Connectivity
Input Connectors (per channel)
1/4" TRS, 3-pin XLR, 3-pin detachable terminal block
Output Connectors (per channel)
Neutrik Speakon, safety-shrouded barrier strip, Monitor output
DataPort Connector
One HD15
Dimensions
Height
3.5"
Width
19"
Depth
14"
Height (mm)
89 mm
Width (mm)
483 mm
Depth (mm)
356 mm
Weight
Net Weight
21 lbs (9.5 kg)
Construction
Cooling
Variable-speed fan, rear-to-front airflow
Controls
Front Panel
AC switch, Ch. 1 and Ch. 2 recessed gain knobs with security cover

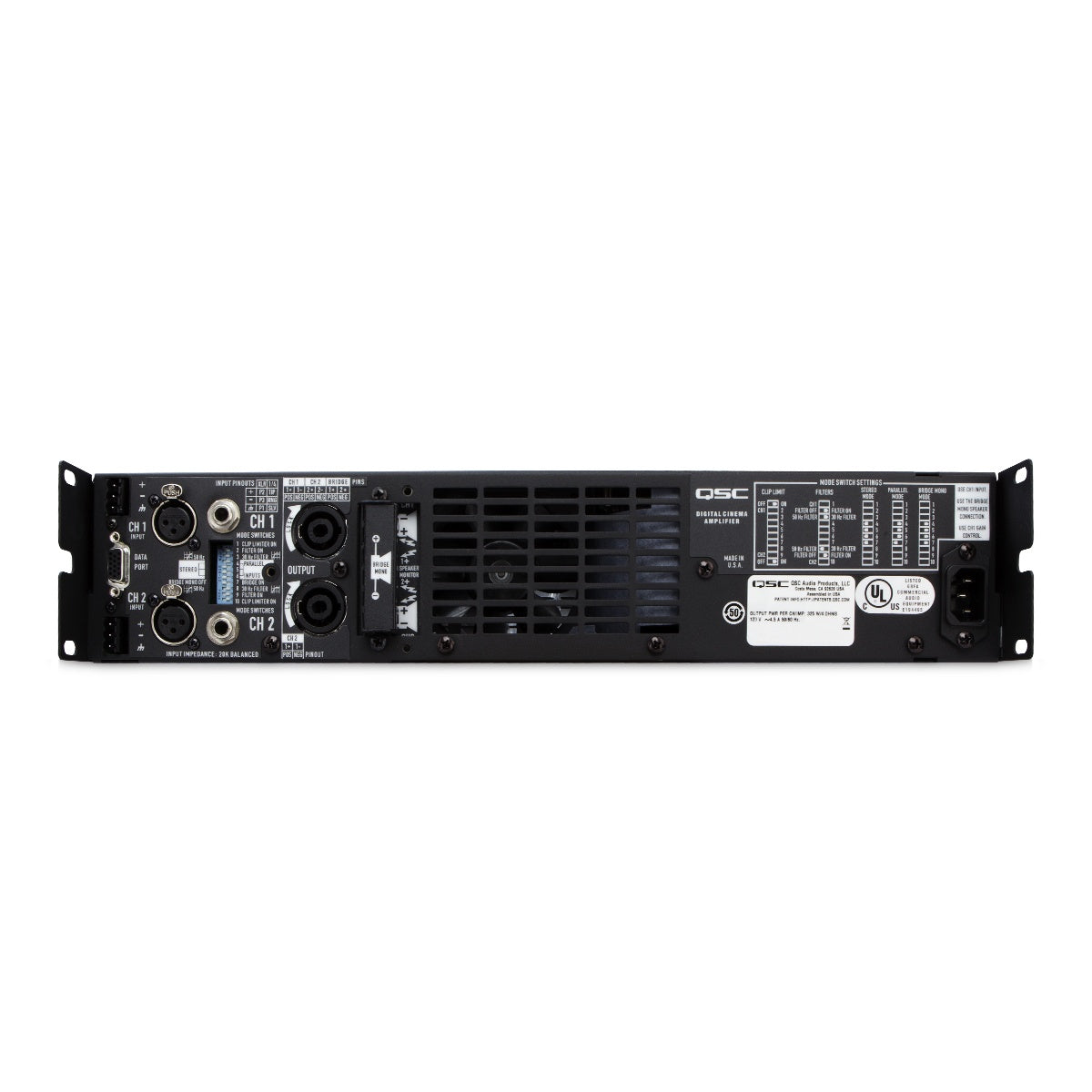

Rear Panel
DIP switches: Clip Limiter on/off per channel, LF Filter on/off per channel, LF Filter Freq 30 or 50 Hz per channel, Inputs Parallel or Stereo, Bridge Mode
Indicators
LED Indicators (per channel)
CLIP/PROT (Red), LEVEL –10 dB (Green), LEVEL –20 dB (Green), SIGNAL –35 dB (Green), BRIDGED (Yellow), PARALLEL INPUTS (Yellow), POWER (Green)
