Q-SYS Q-SYS Digital Cinema I/O Interface 1RU Q-LAN Audio I/O | Without HDMI

Q-SYS Q-SYS Digital Cinema I/O Interface 1RU Q-LAN Audio I/O | Without HDMI

SoundPro Item: 119389 | Part Number: DCIO

Pricing available upon request

Pricing available upon request

Your Price Sold out

Usually ships in 5-7 business days

  • Routes Projector IMB And Alternate Sources To Q-SYS Core Over Dual Q-LAN Ports
  • AES3/EBU Digital Inputs Accept Signals From Projector And Content Sources
  • XLR Mic/Line Input With Phantom Power Supports On-Screen Monitoring And Paging
  • Powered Monitor Output Drives A Passive Speaker Without An External Amplifier
  • HI/VI Outputs Address Hearing And Visually Impaired Accessibility Requirements
  • Four Relay Control Outputs Enable Projector And Venue Automation Integration
  • RS-232 And GPI Automation Inputs Allow Third-Party Control System Integration
Log in or register for YOUR best price

The Q-SYS Digital Cinema I/O Interface is built for cinema integrators deploying Q-SYS-enabled multiplexes, providing dedicated per-screen audio I/O that connects directly to Q-SYS Core processors over a redundant dual-gigabit Q-LAN network. It handles AES3/EBU digital inputs from projector IMBs and alternate content sources, mic/line analog inputs, HI/VI accessibility outputs, and powered monitor output to a passive speaker — consolidating the signal chain that would otherwise require multiple discrete devices.

Designed as part of a complete Q-SYS cinema ecosystem alongside network amplifiers and loudspeakers, this interface is managed entirely through Q-SYS Designer Software with support for custom UCIs, touchpanels, and mobile apps. Integrators can configure, monitor, and control audio across every room in a multiplex from a unified system view, eliminating the per-room complexity typical of traditional cinema audio architectures.

Relay control outputs and RS-232/GPI automation inputs give the interface the hooks needed to integrate with projector automation, lighting, and other venue control systems — making it well suited for both new cinema builds and upgrades to existing Q-SYS infrastructure. The 1RU form factor fits standard rack infrastructure in equipment rooms serving individual auditoriums.

Downloads

View full details

Specifications

Dimensions
Height
1.75" (1 RU)
Width
19"
Depth
11.2"
Electrical
Line Voltage Requirements
100 VAC – 240 VAC, 50/60 Hz
Monitor Speaker Output Power
10 W max
Relay Output Max Rating
30 VDC @ 1A
Audio Performance
A/D Conversion
32-bit delta-sigma, 48 kHz
Frequency Response
20 Hz to 20 kHz (+/- .5dB)

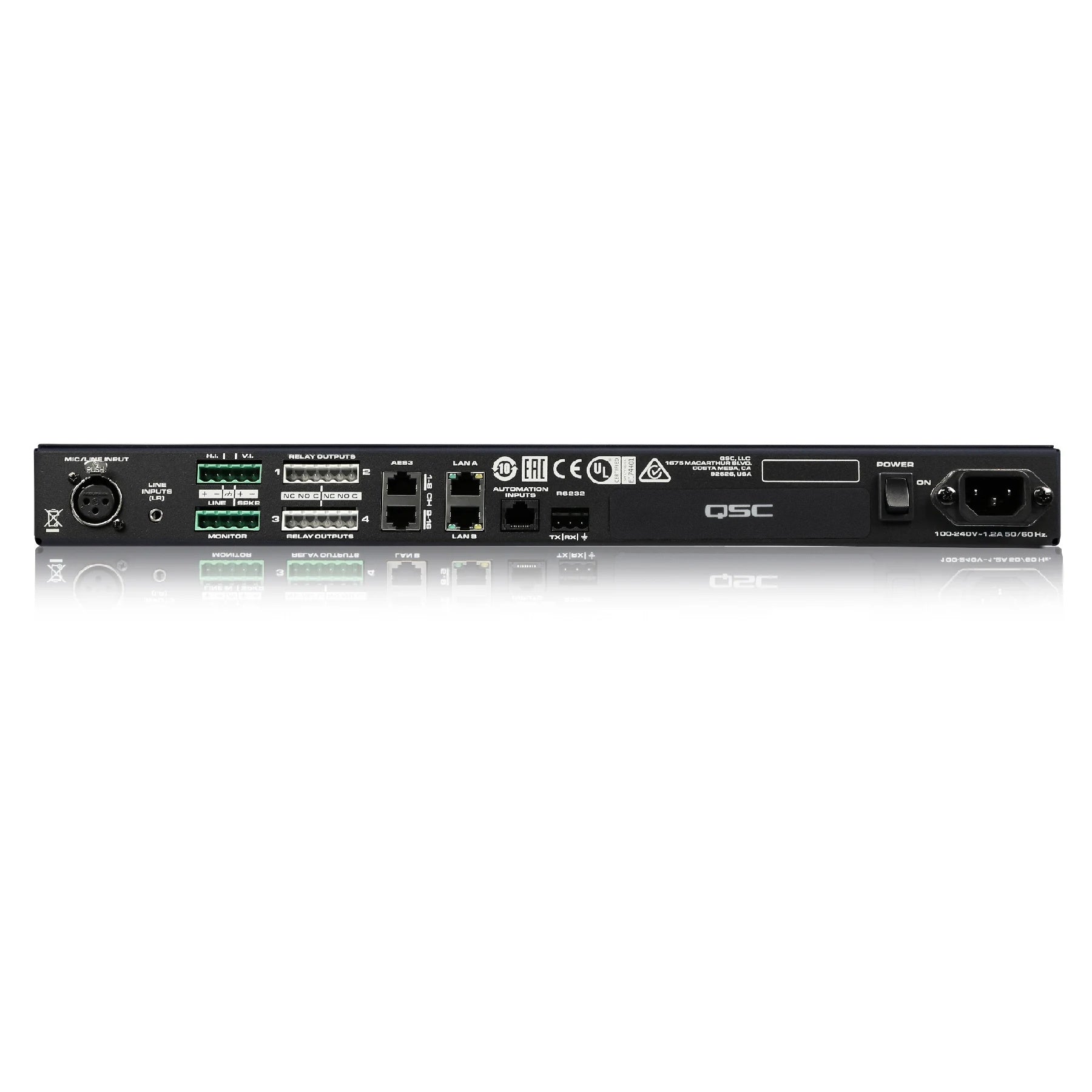

Connectivity
Mic/Line Input Connector
XLR (mic + phantom power or line level)
Stereo Line Input Connector
3.5mm TRS mini jack, unbalanced
H.I./V.I. Output Connector
5-pin Euro-style (x1) – common GND
Monitor Line Output Connector
3-pin Euro-style
Monitor Speaker Output Connector
2-pin Euro-style
AES3/EBU Inputs
Ch. 1-8, 15-16 (RJ45 x2)
Automation Inputs
RJ45, RS-232
Relay Outputs
3-pin Euro-style (x4), NO/NC/common
Q-LAN Ports
Dual Gigabit Ethernet, LAN A and LAN B (RJ45 x2)
Power Connector
IEC
Power Switch
Rocker switch
Stereo Line Input Performance
Input Stage Type
Unbalanced
Input Impedance (4dBu sens)
> 10k Ohms
Max Analog Input Level (4dBu sens)
15 dBu (4.4 Vrms)
Input Impedance (-10dBV sens)
2.7k Ohms
Max Analog Input Level (-10dBV sens)
1 dBV (1.2 Vrms)
AES/EBU Digital Input Performance
Input Stage Type
Balanced
Input Impedance
110 ohms
Input Sample Rate
48 kHz or 96 kHz
Mic/Line Input (XLR) Performance
Input Stage Type
Active balanced
Input Impedance
2.2k Ohms
Max Analog Input Level
26 dBu
Phantom Power Voltage
15V
Automation Inputs
GPI Max Input Voltage
5V (3.3V typical)
GPI Contact Type
TTL compatible dry contact closure

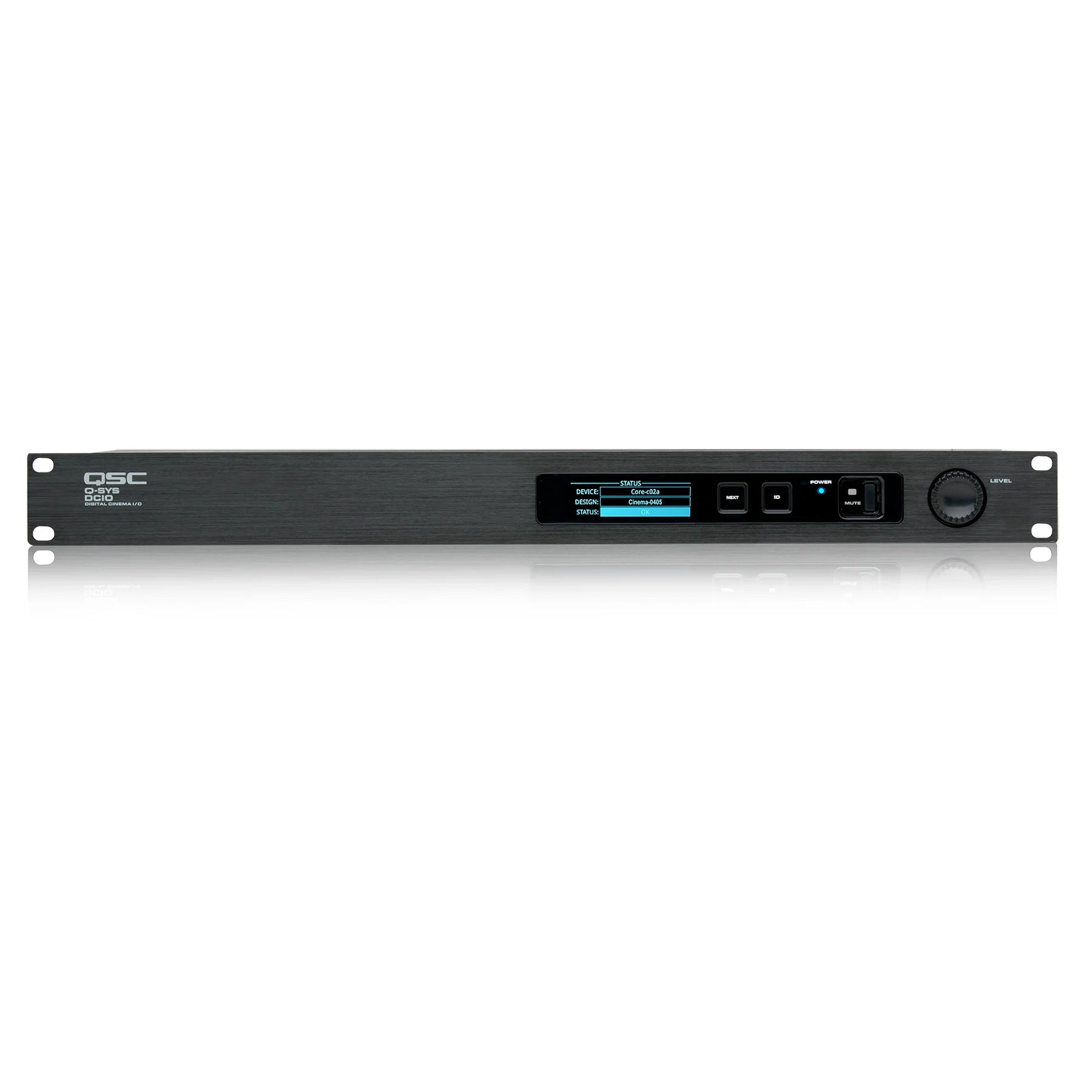

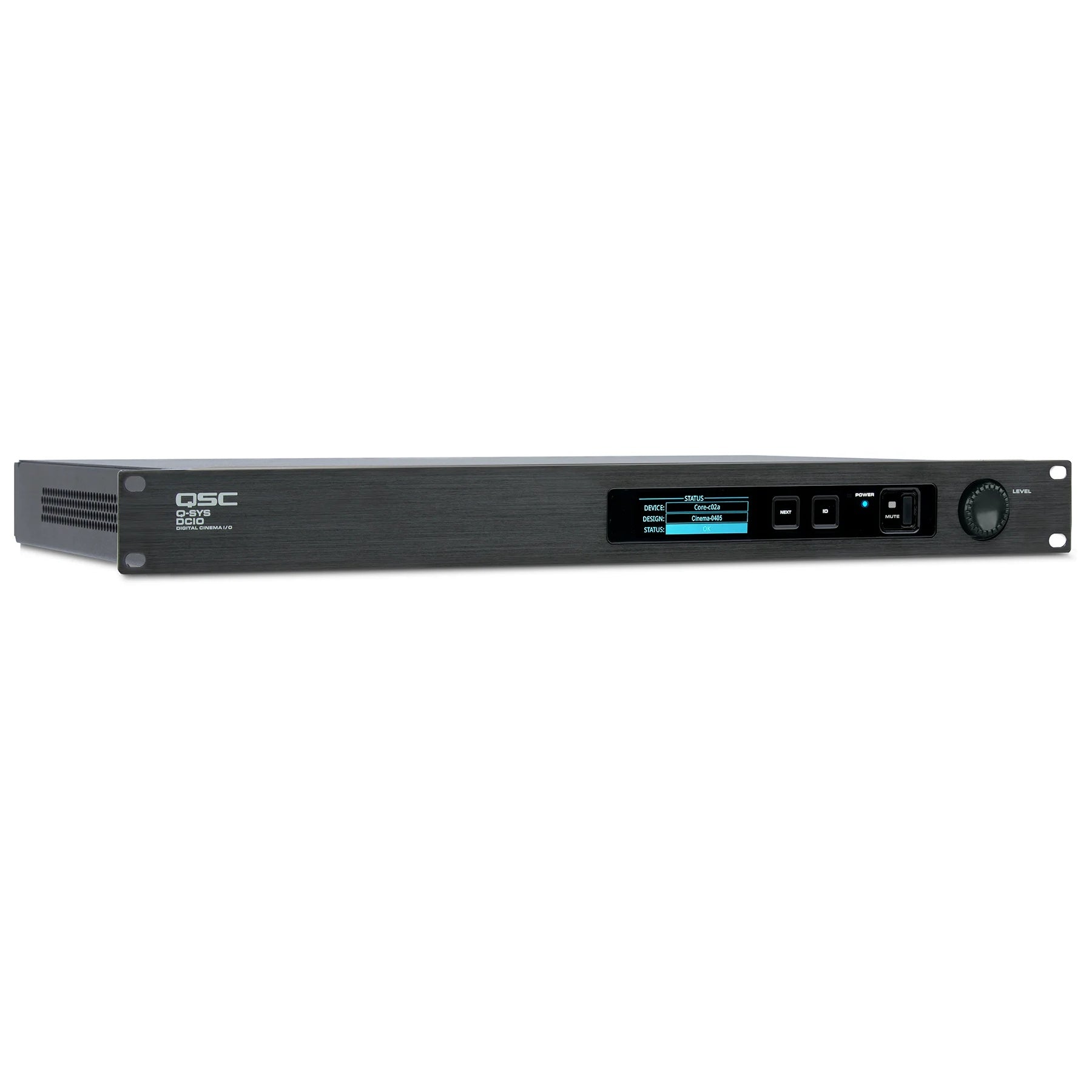

Controls and Display
Parameter Adjust
Rotary encoder
Power On Indicator
Blue LED
Display
Monochrome 304x96 blue OLED graphics display
Mute Button
Momentary
Mute Indicator
Red LED
Navigation
Screen Navigation (Next) and ID buttons
Included Items
Accessories
1m UL/CSA line cord, Euro-style connectors for outputs and relay connections
