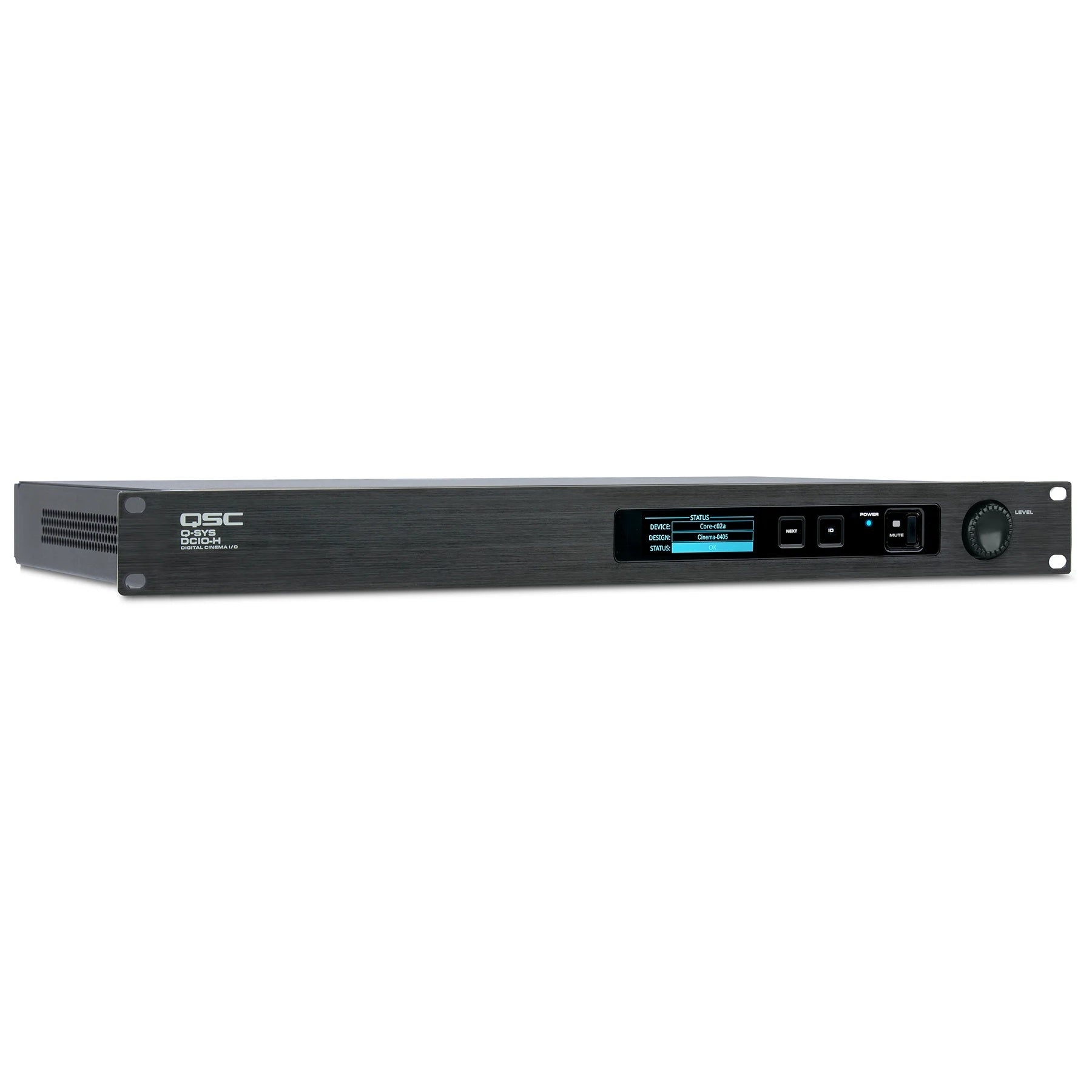

Q-SYS Digital Cinema I/O Interface 1RU Q-LAN Audio I/O | With HDMI

Q-SYS Digital Cinema I/O Interface 1RU Q-LAN Audio I/O | With HDMI

SoundPro Item: 119390 | Part Number: DCIO-H

Pricing available upon request

Pricing available upon request

Your Price Sold out

Usually ships in 5-7 business days

  • Routes Projector IMB And Alternate Sources To Q-SYS Core Over Dual Q-LAN Ports
  • AES3/EBU Digital Inputs Accept Signals From Projector And Content Sources
  • XLR Mic/Line Input With Phantom Power Supports On-Screen Monitoring And Paging
  • Powered Monitor Output Drives A Passive Speaker Without An External Amplifier
  • HI/VI Outputs Address Hearing And Visually Impaired Accessibility Requirements
  • Four Relay Control Outputs Enable Projector And Venue Automation Integration
  • RS-232 And GPI Automation Inputs Allow Third-Party Control System Integration
Log in or register for YOUR best price

The Q-SYS Digital Cinema I/O Interface is purpose-built for cinema integrators deploying Q-SYS-enabled multiplexes who need dedicated, per-auditorium audio I/O without building a signal chain from multiple discrete devices. It connects directly to Q-SYS Core processors over a redundant dual-gigabit Q-LAN network, handling AES3/EBU digital inputs from projector IMBs and alternate content sources, mic/line analog inputs, HI/VI accessibility outputs, and a powered monitor output capable of driving a passive speaker. Available with or without HDMI connectivity, the family covers both standard and video-integrated screen configurations within the same ecosystem.

Managed entirely through Q-SYS Designer Software, the interface supports custom UCIs, touchpanels, and mobile apps, giving integrators a unified system view across every room in a multiplex. This eliminates the per-room configuration complexity that comes with traditional cinema audio architectures and makes remote monitoring practical at scale. Relay control outputs and RS-232/GPI automation inputs provide the hooks needed to tie into projector automation, lighting, and third-party venue control systems.

The 1RU form factor fits standard rack infrastructure in equipment rooms serving individual auditoriums, and the interface is designed as part of a broader Q-SYS cinema ecosystem alongside network amplifiers and loudspeakers. For integrators building new multiplexes or upgrading existing Q-SYS infrastructure, this interface is the consolidation point that simplifies both commissioning and long-term system management.

Downloads

View full details

Specifications

Dimensions
Height x Width x Depth
1.75" (1 RU) x 19" x 11.2"
Height x Width x Depth (mm)
44 x 483 x 282.5 mm
Electrical
Line Voltage Requirements
100 VAC - 240 VAC, 50/60 Hz
Power Switch
Rocker switch
IEC Power Connector
Yes
Monitor Speaker Output Power
10 W max
Relay Output Max Rating
30 VDC @ 1A
Audio Performance
A/D Conversion
32-bit delta-sigma, 48 kHz
Frequency Response
20 Hz to 20 kHz (+/- .5 dB)

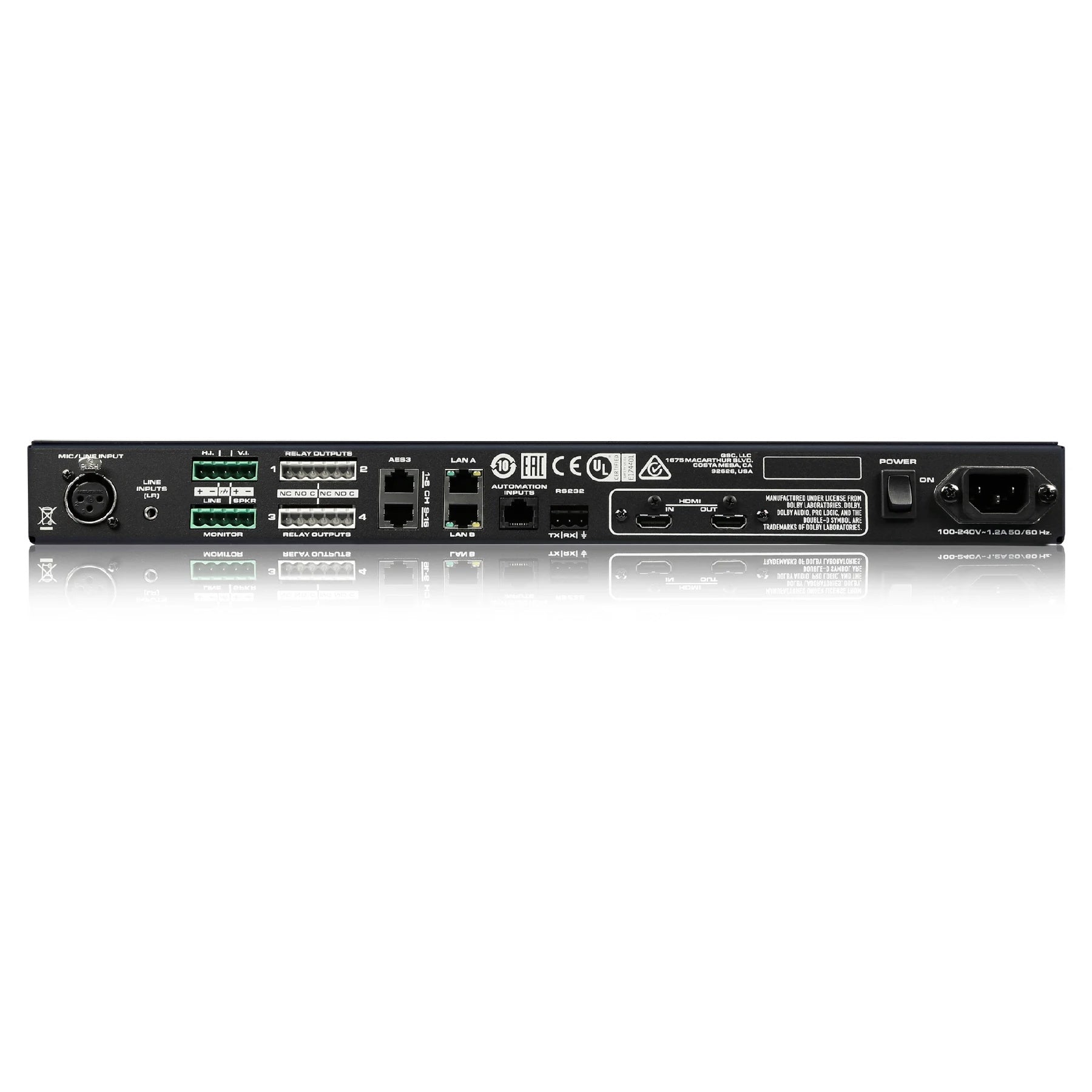

Connectivity
Mic/Line Input
XLR (mic + phantom power or line level)
Line Input
3.5 mm TRS, unbalanced
H.I./V.I. Output
5-pin Euro-style (x1) - common GND
Monitor Line Output
3-pin Euro-style
Monitor Speaker Output
2-pin Euro-style, 10 W max output
AES3/EBU Inputs
Ch. 1-8, 15-16 (RJ45 x2)
Automation Inputs
RJ45, RS-232
Dual Gigabit Ethernet Q-LAN Ports
LAN A, LAN B (RJ45 x2)
HDMI Input/Output
HDMI 2.0, Type A female connectors
Relay Outputs (4)
3-pin Euro-style; Normally open (NO), normally closed (NC), and common; Max 30 VDC @ 1A
Automation Inputs (RJ45 - 6 GPI)
Max input voltage 5V (3.3V typical); TTL compatible dry contact closure
Stereo Line Input Performance
Input Stage Type
Unbalanced input
Input Impedance (4 dBu sens)
> 10k Ohms
Max Analog Input Level (4 dBu sens)
15 dBu (4.4 Vrms)
Input Impedance (-10 dBV sens)
2.7k Ohms
Max Analog Input Level (-10 dBV sens)
1 dBV (1.2 Vrms)
AES/EBU Digital Input Performance
Input Stage Type
Balanced input
Input Impedance
110 ohms
Input Sample Rate
48 kHz or 96 kHz
Mic/Line Input (XLR) Performance
Input Stage Type
Active balanced input
Input Impedance
2.2k Ohms
Max Analog Input Level
26 dBu
Phantom Power Voltage
15V

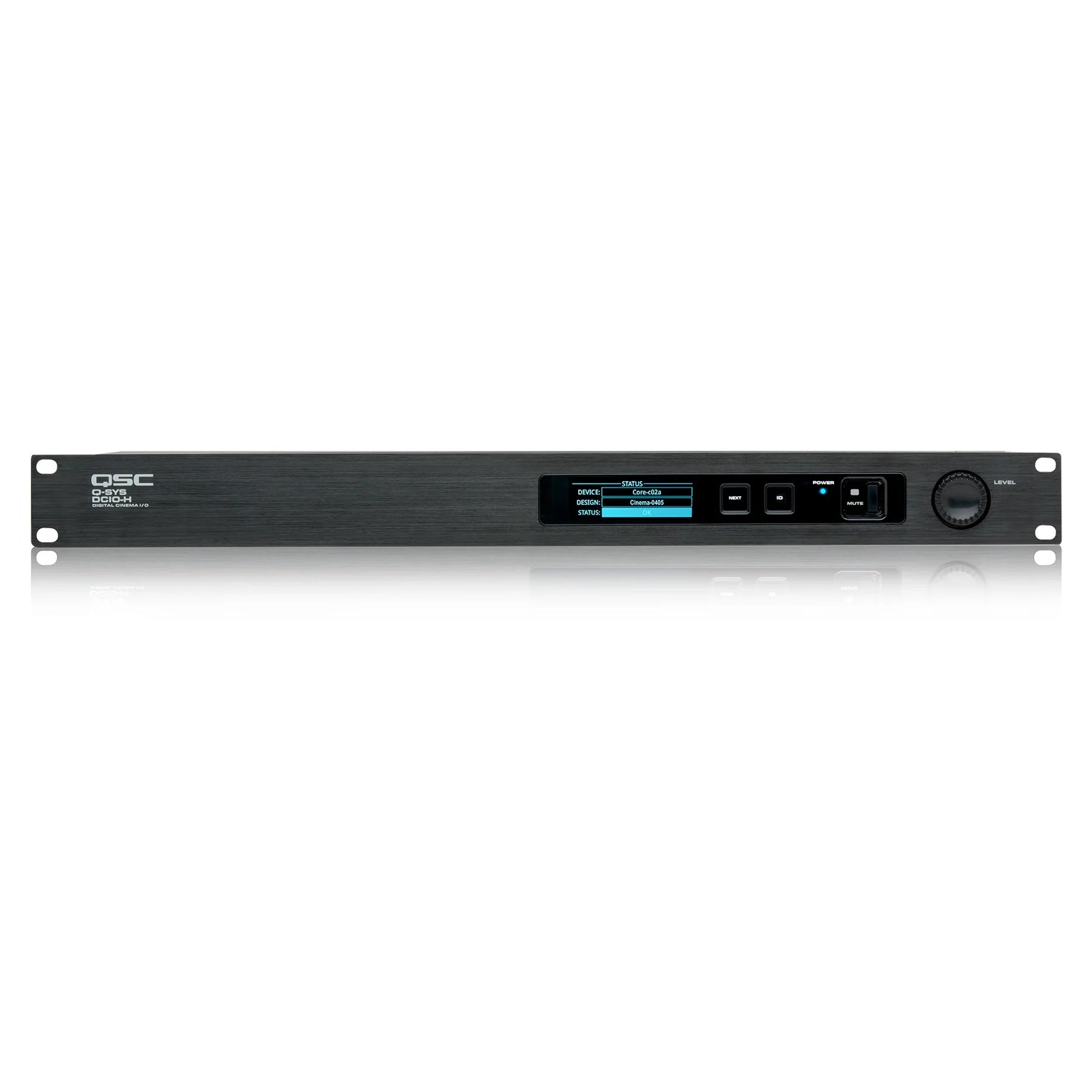

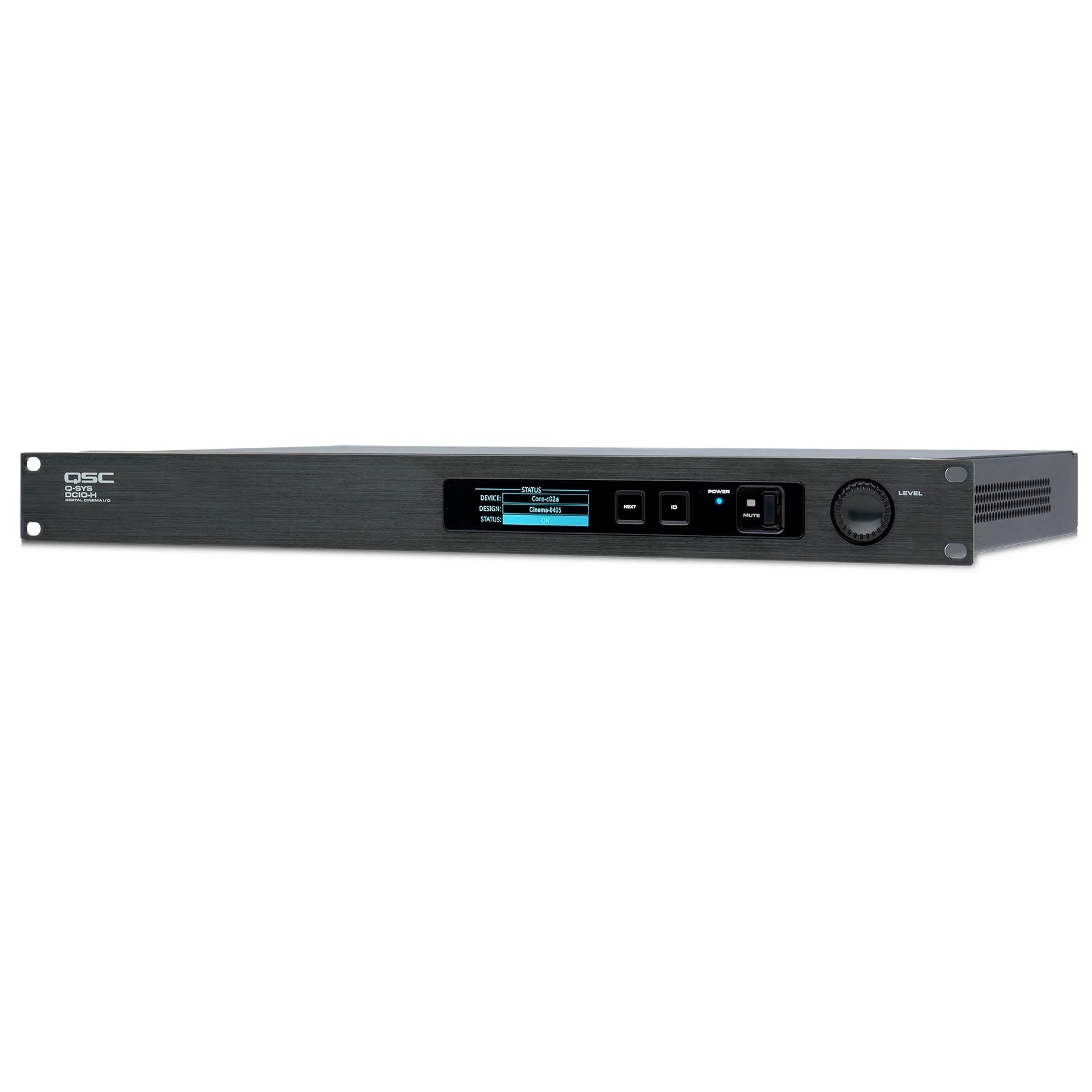

Controls
Parameter Adjust
Rotary encoder
Power On Indicator
Blue LED
Display
Monochrome 304x96 blue OLED graphics display
Mute Button
Momentary mute button
Mute Indicator
Red LED
Navigation
Screen Navigation (Next) and ID buttons
Included Items
Accessories Included
1m UL/CSA line cord, Euro-style connectors for outputs and relay connections
