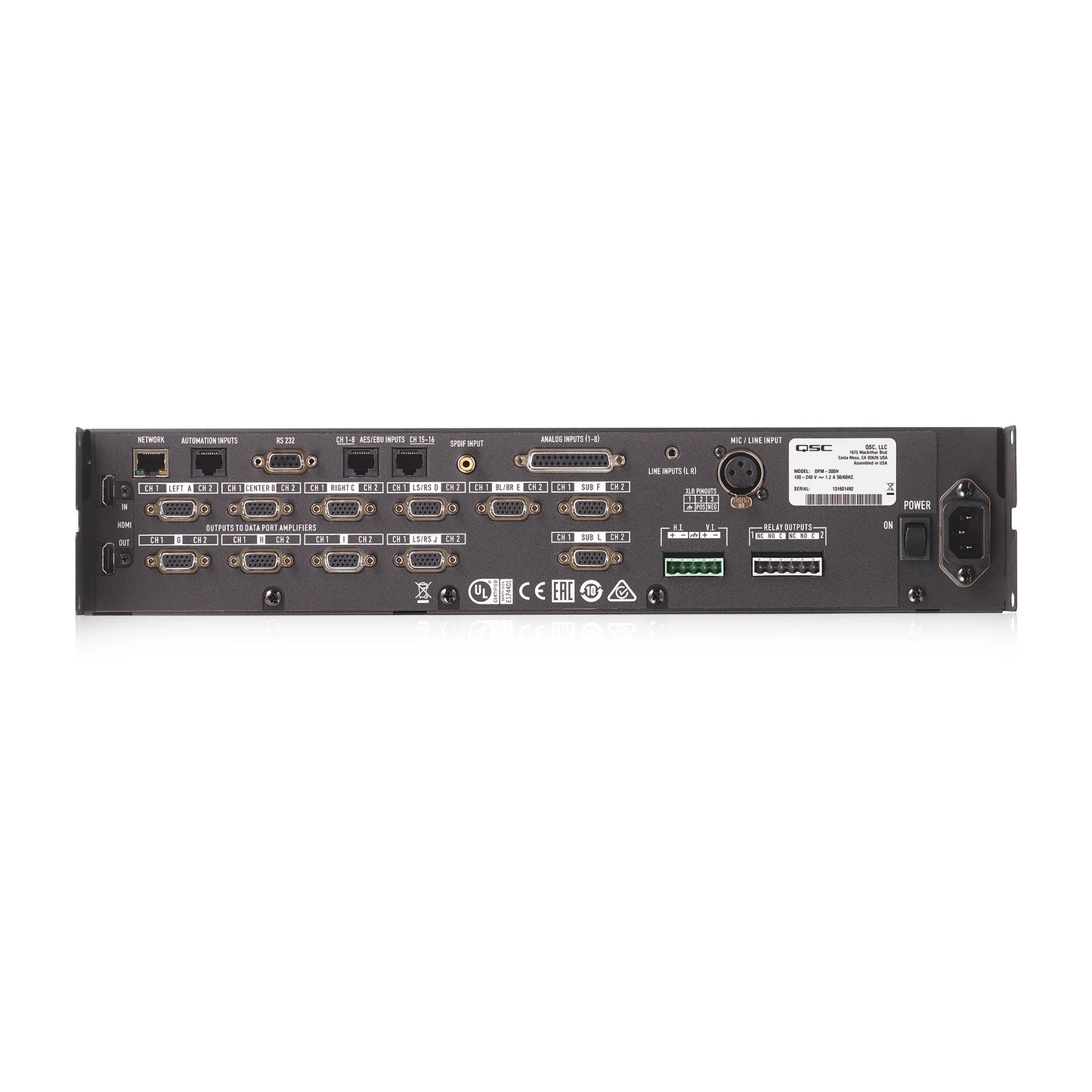

Q-SYS Q-SYS Digital Cinema Processor 10-Ch DSP With Intrinsic Correction | With HDMI & Advanced Audio Codec Support
Q-SYS Q-SYS Digital Cinema Processor 10-Ch DSP With Intrinsic Correction | With HDMI & Advanced Audio Codec Support
SoundPro Item: 119412 | Part Number: DPM-300H
Usually ships in 5-7 business days
- Ten AES/EBU Digital Inputs Support Both 5.1 And 7.1 Soundtrack Formats
- Intrinsic Correction Optimizes DCS Loudspeaker Performance Before Room Tuning Begins
- Configurable Passive, Bi-Amp, Tri-Amp, Or Quad-Amp Crossovers Across Three Screen Channels
- Ethernet Control With Full SNMP Support Enables Remote Cinema System Management
- Load Fault Detection Monitors All Amplifier Outputs For Opens And Shorts
- Bypass Mode Keeps Audio Flowing Even When A Component Fails Mid-Show
- Field-Updatable Firmware Extends Hardware Capability As Format Standards Evolve
Cinema system integrators and sound technicians responsible for commissioning and maintaining digital cinema auditoriums will find the DPM series purpose-built for that workflow. Replacing the need for separate equalizers, crossovers, and monitoring systems, it unifies every signal processing function — from AES/EBU digital input to amplifier output — inside a single 2RU chassis designed to work natively with QSC Digital Cinema Amplifiers over DataPort cabling. The result is a measurably simpler wiring topology and dramatically faster commissioning compared to mixed-vendor signal chains.
Where the DPM separates itself from conventional cinema processors is in QSC's Intrinsic Correction technology. Rather than relying entirely on room measurement and manual EQ to compensate for loudspeaker anomalies, Intrinsic Correction applies speaker-specific correction curves derived from factory characterization of QSC Digital Cinema Speakers. Integrators working with DCS cabinets benefit from optimized out-of-box performance before a single measurement is taken, reducing the tuning hours billed per screen. The configurable crossover architecture — passive, bi-amp, tri-amp, or quad-amp across three screen channels — gives technicians the flexibility to match amplifier topology to any screen size or format without external processors.
Network-centric management via Ethernet with full SNMP support means the DPM fits naturally into IP-managed cinema facility infrastructure, enabling remote monitoring of amplifier load faults, relay status, and system health from a central operations position. RS-232 automation control and six general-purpose contact closure inputs allow integration with projection automation and show control systems common in modern multiplexes. Firmware is field-updatable, protecting the installation investment as format requirements evolve.
Specifications
