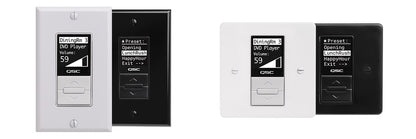

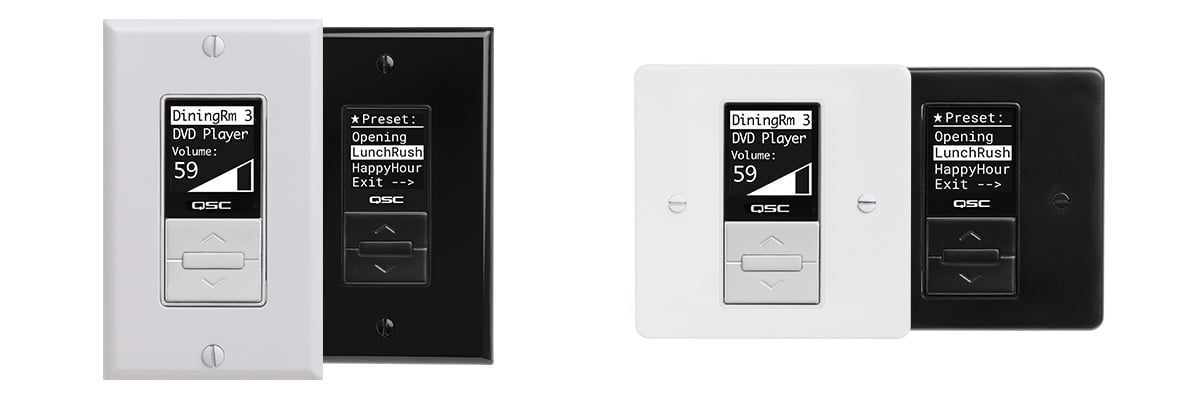

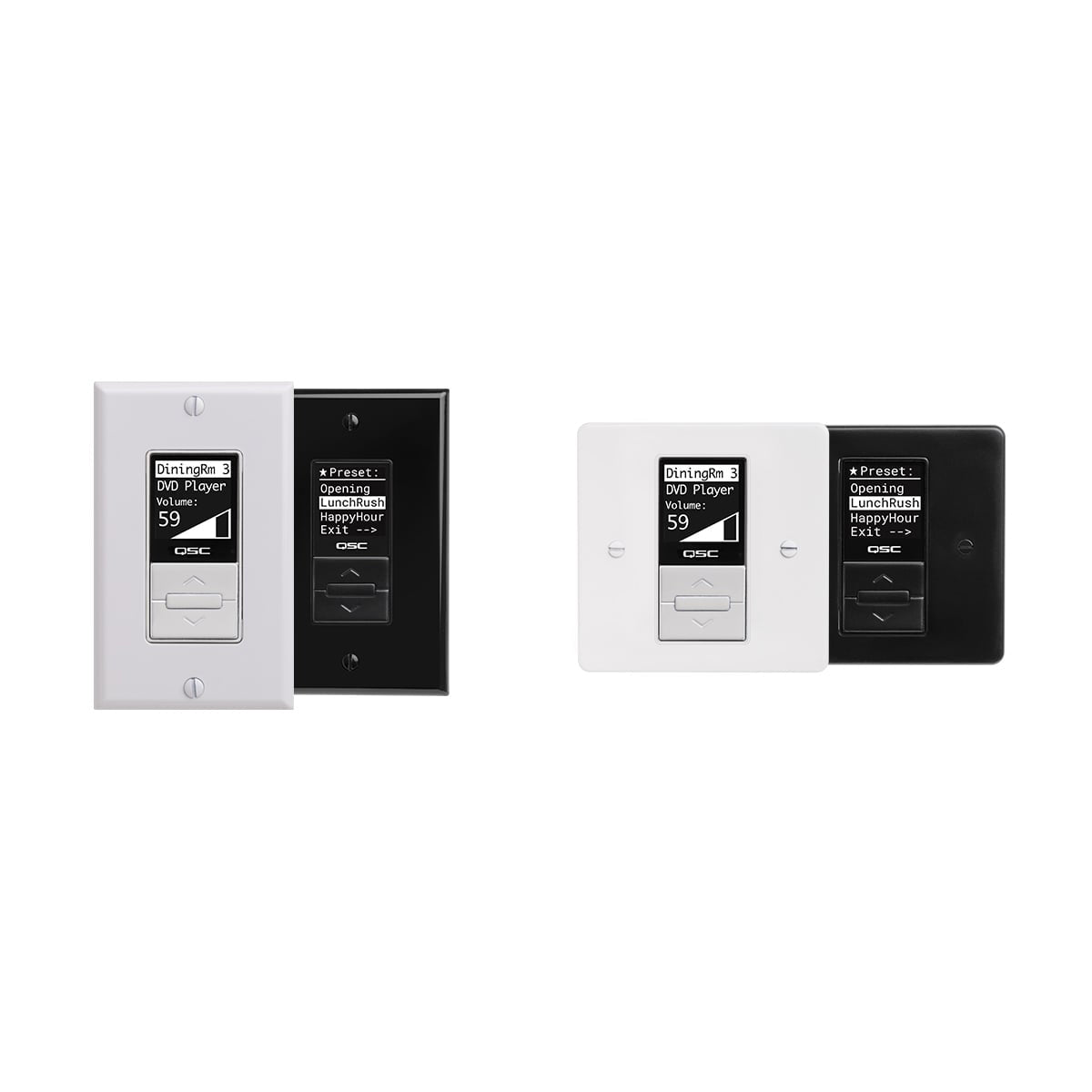

Q-SYS MP-MFC Controller-Wall mount controller for MP-M Series mixers

Q-SYS MP-MFC Controller-Wall mount controller for MP-M Series mixers

SoundPro Item: 145094 | Part Number: MP-MFC-NA-BK

Regular price $375.00
Regular price $375.00 Sale price $375.00
Your Price Sold out
MSRP: $375.00 | MAP: $375.00

Usually ships in 5-7 business days

  • For use with the MP-M paging and music mixer/processor only
  • Control zone source selection, zone output level, input level selection and scene recall
  • Crisp 27 mm x 26mm monochrome graphic display and three buttons (increment, decrement, select)
  • Ability to daisy chain up to four MP-MFC controllers
  • Up to 250 m cable length (CAT5)
  • Up to eight MP-MFC controllers per MP-M Series mixer
  • Available in black or white
  • Available in NA and EU sizes

The MP-MFC controllers are intuitive wall mount controls to enable customizable system adjustments for the MP-M Series music and paging mixer. Designers can configure these control peripherals to provide end users with as much or as little control over the system as needed.

View full details

Specifications

Controls
Three buttons (increment, decrement, and select)
Connectors
2x RJ45
Display
128 x 128 pixels, 27 (L) x 26 (W) mm viewing area
Available Colors
Black, white
Connection Max
Per MFC port: Daisy chain up to 4 MP-MPC controllers, with a 250 m maximum cable length, otal: Up to 8 controllers per MP-M Series mixer
Versions

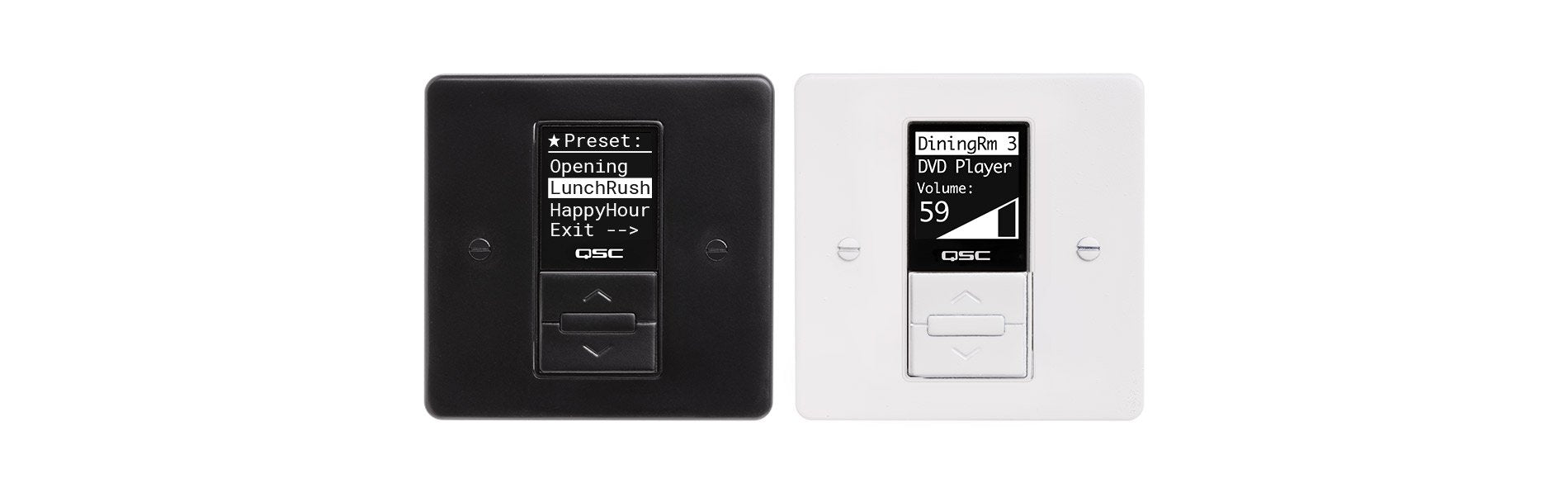

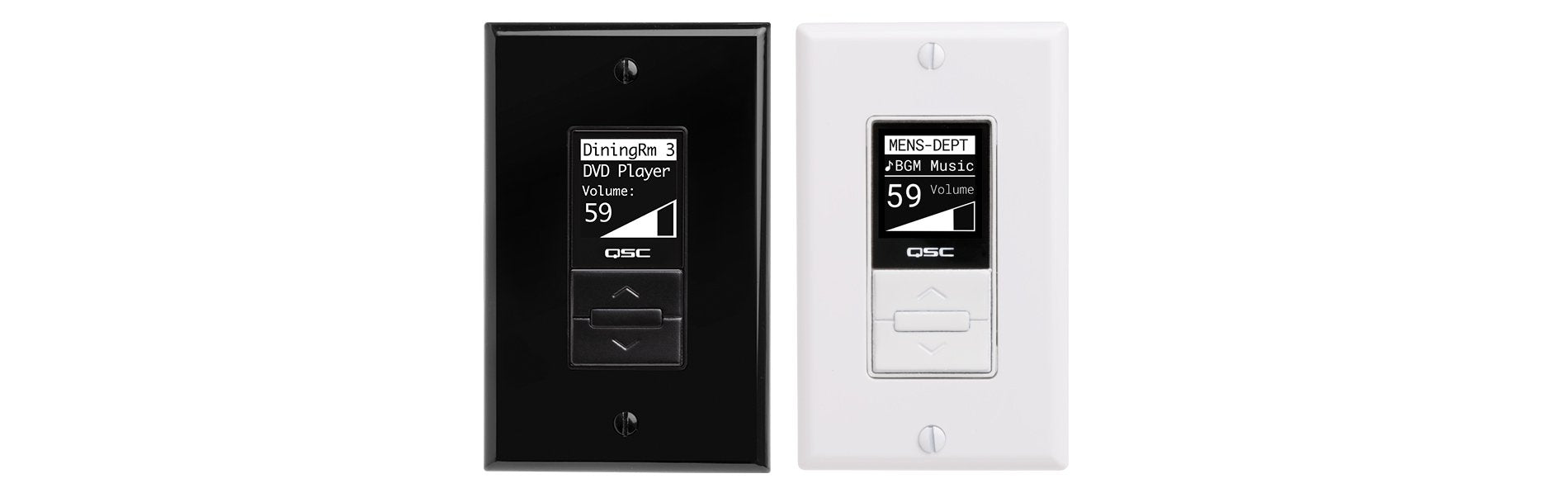

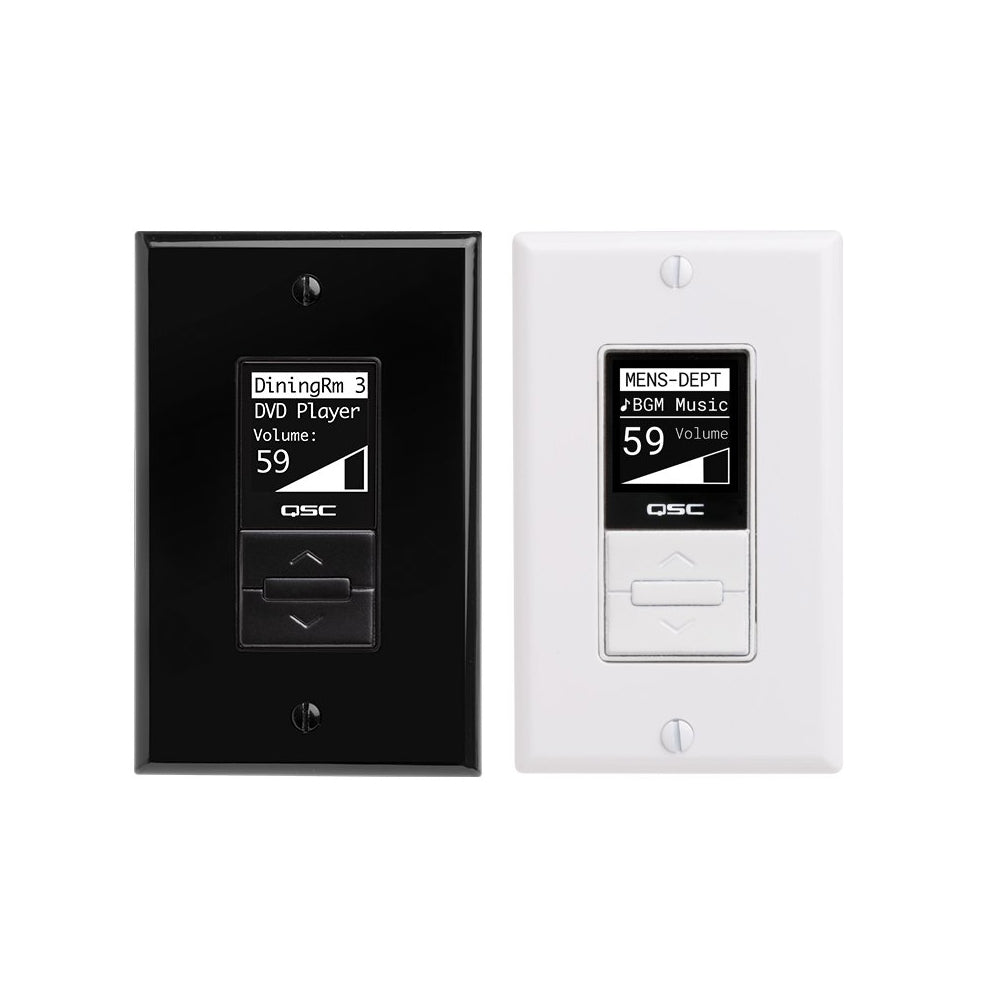

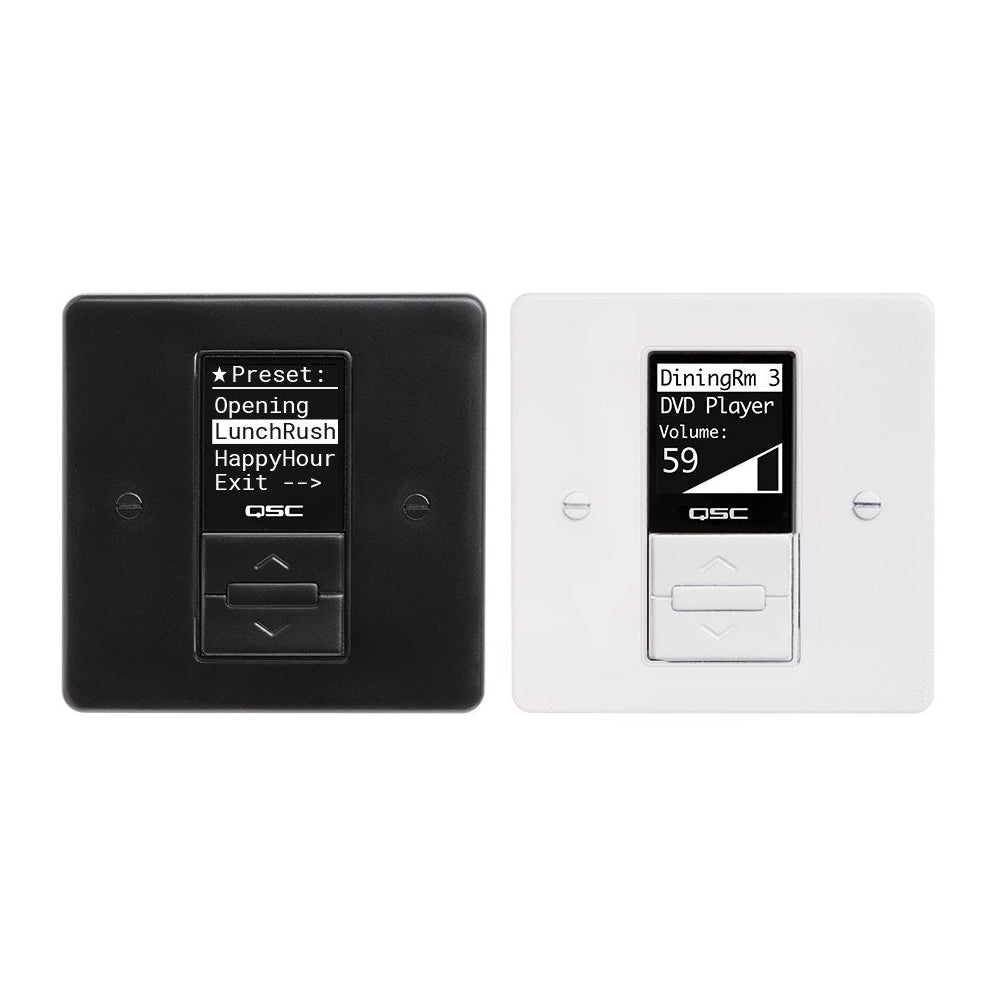

MP-MFC-NA-BK - North American version, black, MP-MFC-NA-WH - North American version, white, MP-MFC-EU-BK - European version, black, MP-MFC-EU-WH - European version, white
Dimensions (HxWxD), North American versions
114 x 7 x 35 mm, 4.5 x 2.75 x 1.4 in
Dimensions (HxWxD), European versions
89 x 89 x 36 mm, 3.5 x 3.5 x 1.4 in
Net Weight
All Versions: 0.1 kg / 0.2 lb
