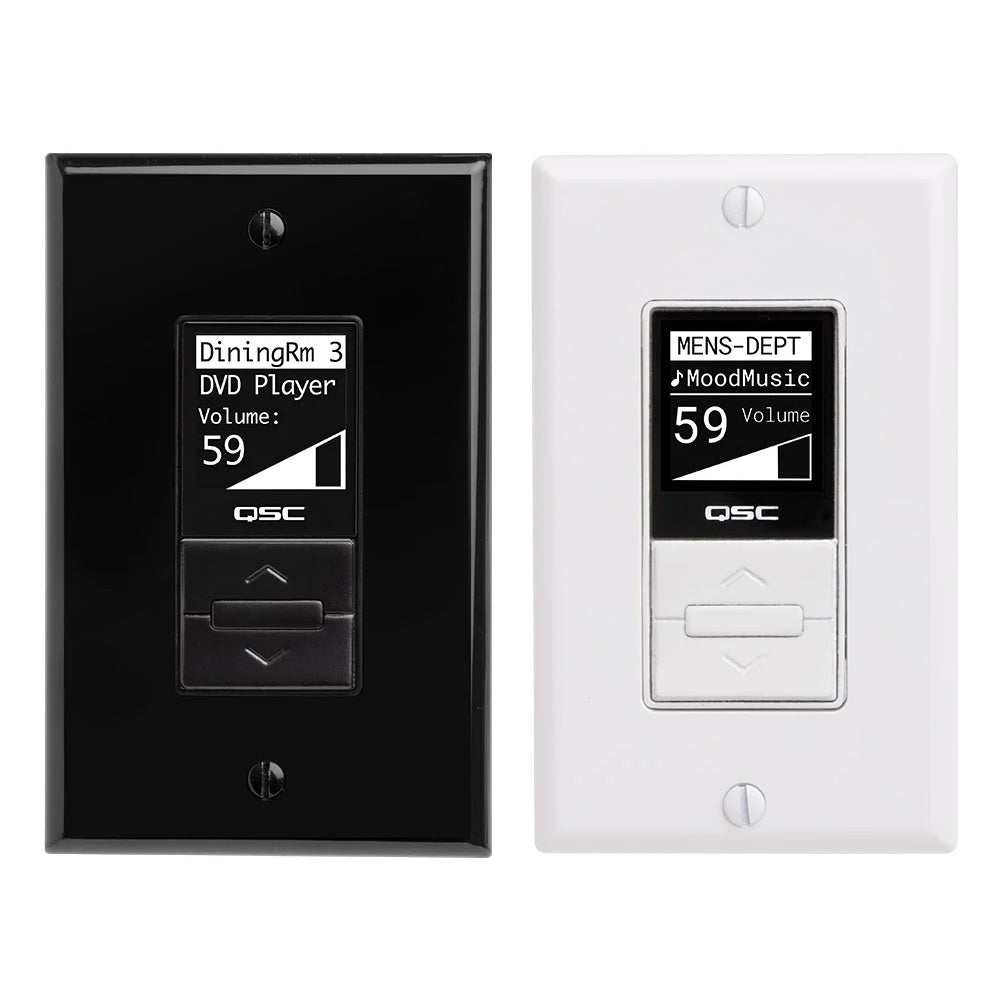

Q-SYS MP-MFC Decora Style Zone Controller for MP-M Mixers | White

Q-SYS MP-MFC Decora Style Zone Controller for MP-M Mixers | White

SoundPro Item: 145095 | Part Number: MP-MFC-NA-WH

$285.00
$285.00 $285.00
Your Price Sold out
MSRP: $285.00 | MAP: $285.00

Usually ships in 5-7 business days

  • Configurable Control Depth Lets Designers Limit Or Expand End-User Access Per Zone
  • Daisy-Chain Topology Reduces Cable Runs Across Multi-Zone Installations
  • Monochrome Graphic Display Provides Clear On-Wall Feedback For Source And Scene Status
  • CAT5 Wiring Compatibility Simplifies Integration Into Standard Structured Cabling Infrastructures
  • Decora-Style Form Factor Maintains Consistent Architectural Finish In Installed Environments
Log in or register for YOUR best price

The Q-SYS MP-MFC wall controller series gives AV designers precise, configurable control over what end users can adjust within a Q-SYS MP-M Series music and paging system. Whether deployed in a corporate campus, hospitality environment, house of worship, or retail chain, installers can tailor the controller's behavior to expose only the control parameters appropriate for each space — from full zone management to a single volume knob equivalent.

Each MP-MFC connects over structured CAT5 cabling, making installation straightforward in any environment where Decora-style wall plates are the standard. The controller integrates directly into the MP-M ecosystem, allowing zone output level, input source selection, and scene recall to be managed from the wall without requiring a touchscreen or network-connected device. Its daisy-chain capability reduces cable runs and simplifies wiring in multi-zone facilities, while the per-mixer controller limit supports scalable deployments across larger installations.

For AV integrators specifying installed audio solutions where reliability, simplicity, and a clean architectural finish are priorities, the MP-MFC series offers a dedicated hardware interface that keeps system control local and intuitive without exposing unnecessary complexity to the end user.

Downloads

View full details

Specifications

Dimensions
Height (NA)
4.5"
Width (NA)
2.75"
Depth (NA)
1.4"
Height (NA, mm)
114 mm
Width (NA, mm)
7 mm
Depth (NA, mm)
35 mm
Weight
Net Weight
0.2 lbs / 0.1 kg
Controls
Buttons
Three (increment, decrement, select)
Display
Resolution
128 x 128 pixels
Viewing Area
27 mm x 26 mm
Connectivity
Connectors
2x RJ45
Max Cable Length
250 m (CAT5)
Daisy Chain Limit
Up to 4 MP-MFC controllers per MFC port
Max Controllers Per Mixer
8 (MP-M Series)
Construction
Available Colors
Black, White
Available Versions
NA, EU
Identifiers
Model
MP-MFC-NA-WH
Region
North American (NA)
