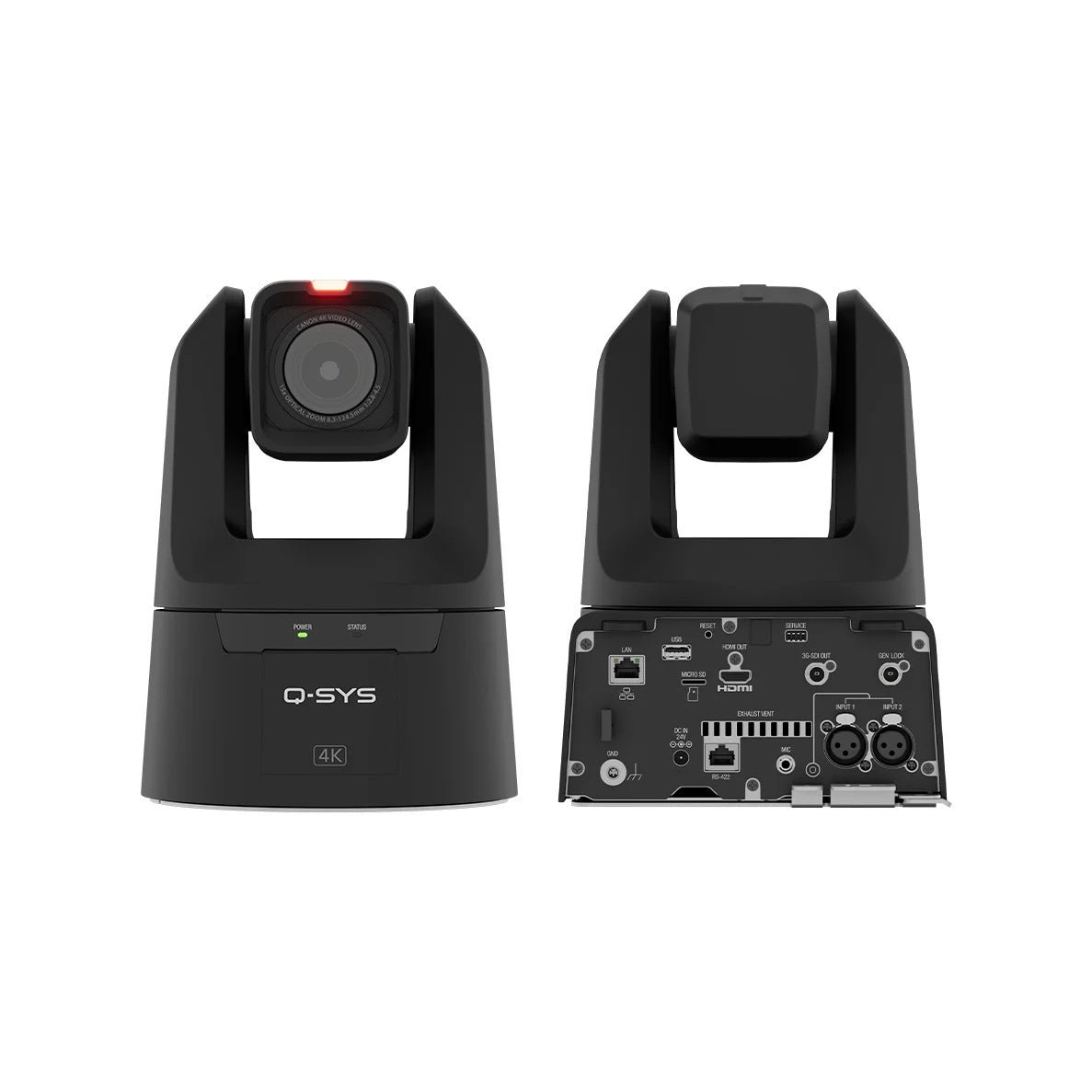

Q-SYS NC-Pro15x PTZ Network Camera Canon Optics 4K UHD | Black

Q-SYS NC-Pro15x PTZ Network Camera Canon Optics 4K UHD | Black

SoundPro Item: 201764 | Part Number: NC-PRO15X-BK

Pricing available upon request

Pricing available upon request

Your Price Sold out

Usually ships in 5-7 business days

  • Canon-Built Optics And Image Processing Deliver Broadcast-Grade Clarity
  • Dual Pixel Autofocus Ensures Smooth, Accurate Subject Tracking In Dynamic Spaces
  • Simultaneous 3G-SDI, HDMI, And NDI HX2 Output Eliminates Additional Distribution Hardware
  • Built-In ND Filter Maintains Exposure Control In High-Ambient-Light Environments
  • Integrated Tally Light Provides On-Camera Cue Visibility For Production Workflows
  • Native Q-SYS Device Enables Drag-And-Drop Control And Automation Without Custom Code
  • Ceiling-Mountable Design Supports Flexible Installation In Varied Room Configurations

The Q-SYS NC-Pro15x is a professional network PTZ camera engineered for high-impact spaces where production-grade video quality is non-negotiable. Built by Canon and driven by the Q-SYS Full Stack AV Platform, it is purpose-built for AV integrators deploying scalable camera systems in large conference rooms, boardrooms, broadcast studios, houses of worship, and live production environments. The 1.0-inch 4K UHD CMOS sensor paired with Canon's image processing and Dual Pixel Autofocus delivers the kind of smooth, accurate subject tracking that demanding presentation and conferencing workflows require.

What sets the NC-Pro15x apart from standard conferencing PTZ cameras is its simultaneous 3G-SDI, HDMI 2.0, and NDI HX2 output capability, giving production teams the flexibility to feed signals to switchers, confidence monitors, and IP video networks without additional distribution hardware. Power, video, and control all travel over a single network cable, eliminating the video matrix and cabling complexity that typically accompany multi-camera installations. As a native Q-SYS device, it integrates directly into the Q-SYS control engine with drag-and-drop routing, enabling engineers to design custom automation and user control experiences without bespoke programming.

The NC-Pro15x also supports the VisionSuite Presenter Spotlight experience and delivers video to UC compute devices via any Q-SYS AV bridging peripheral, making it a strong fit for unified communications deployments where a single device must serve both room-based AV and video conferencing infrastructure.

Downloads

View full details

Specifications

Optics
Optical Zoom
15x
Digital Zoom
20x
Focal Length
f=8.3 mm to 124.5 mm
Aperture
F2.8 to F4.5
Horizontal Field of View
73°
Image Sensor
Sensor Type
1.0" single-plate CMOS
Sensor Scanning Mode
Progressive
Minimum Illumination (4K)
Approx. 1.5 lux (1/30 sec., 29.97 Hz, gain 33.0 dB)
Minimum Illumination (1080p)
Approx. 3 lux (1/60 sec., 59.94 Hz, gain 33.0 dB)
Shutter Speed
1/3 s to 1/2000 s
White Balance
Auto, Set A, Set B, Daylight, Tungsten Lamp, Manual, Specified Color Temperature
PTZ Movement
Horizontal Rotation Range
±170°
Vertical Rotation Range
-30° to +90°
Ceiling Mountable
Yes
Video Output
HDMI 2.0 Output
3840x2160: 29.97P, 25.00P, 23.98P fps; 1920x1080: 59.94P/59.94i, 50.00P/50.00i/25.00P, 29.97P/23.98P fps; 1280x720: 59.94P, 50.00P fps
SDI-3G Output
1920x1080: 59.94P/59.94i, 50.00P/50.00i/25.00P, 29.97P/23.98P fps; 1280x720: 59.94P, 50.00P fps
NDI HX2 + Q-SYS Bridging
1080p @ 29.97, 25 fps
NDI HX2 Without Q-SYS Bridging
4K @ 29.97, 25, 15 fps; 1080p @ 59.94, 50, 29.97, 25, 15 fps; 720p @ 59.94, 50, 29.97, 25, 15 fps; 360p @ 59.94, 50, 29.97, 25, 15 fps
IP Stream Resolution (Preview)
H.264 @ 360p
Audio Inputs (XLR/3.5 mm)
Inactive
Power
Power over Ethernet
PoE+ (Type 2)
Dimensions
Size
7.87" x 10.59" x 8.19" (200 x 269 x 208 mm)
Weight
Net Weight
9.04 lbs (4.1 kg)
Construction
Battery Chemistry (Embedded, Non-Accessible)
Lithium Carbon Monofluoride
Color
Black
Identifiers
MPN
NC-PRO15X-BK
Accessories
Accessories (Sold Separately)
NC-Pro15x-WM wall mount (available in black or white)
