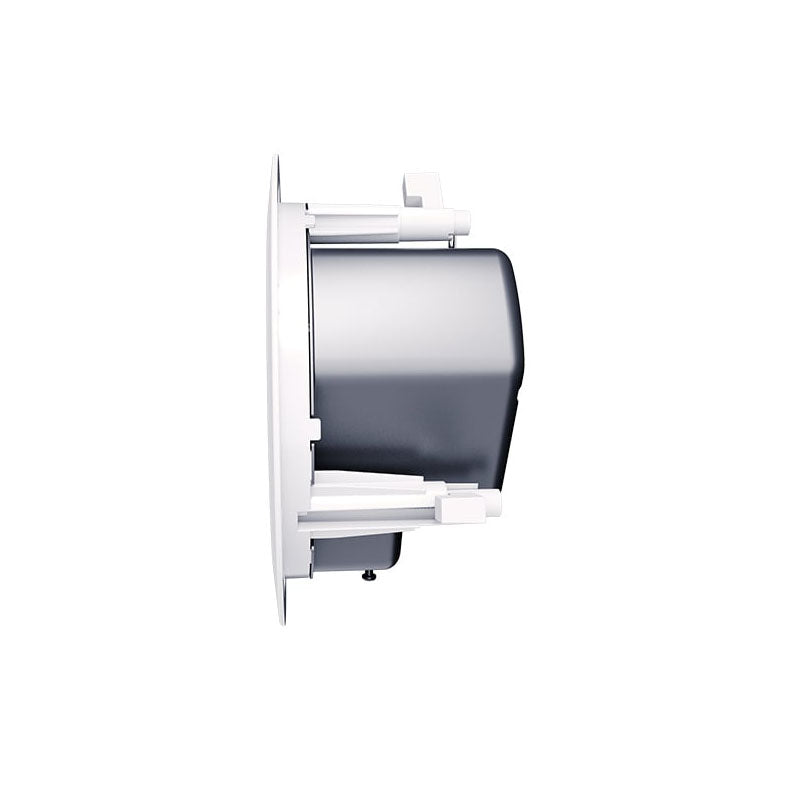

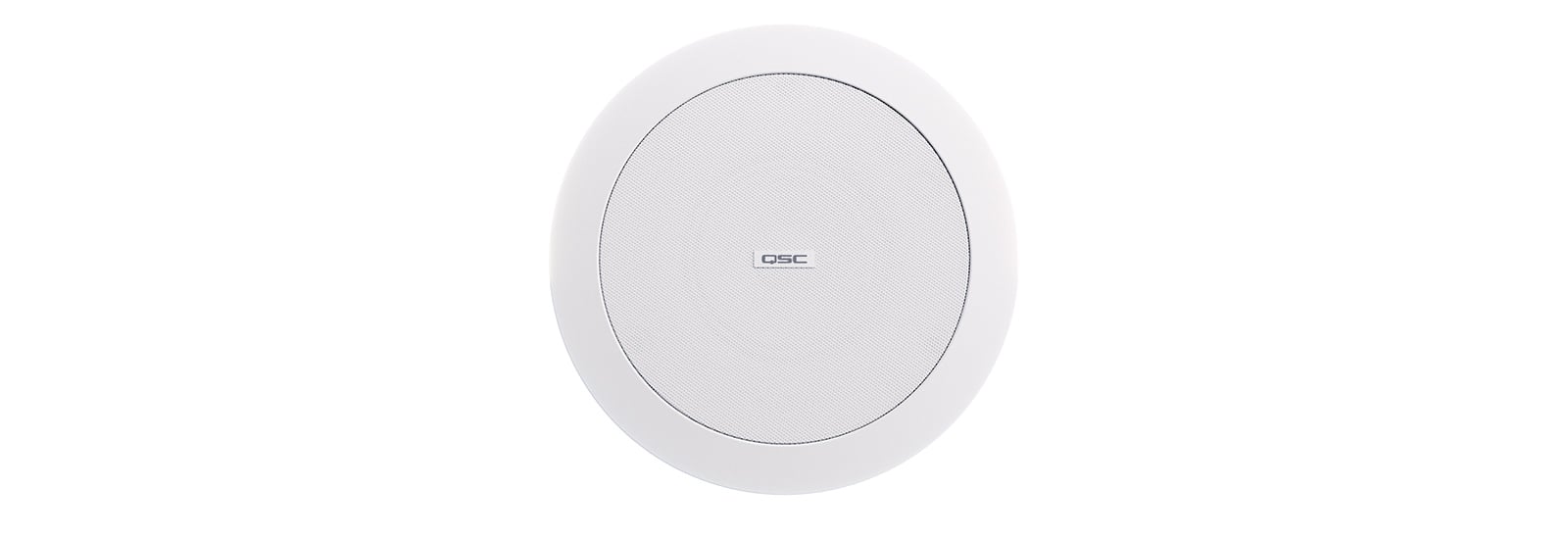

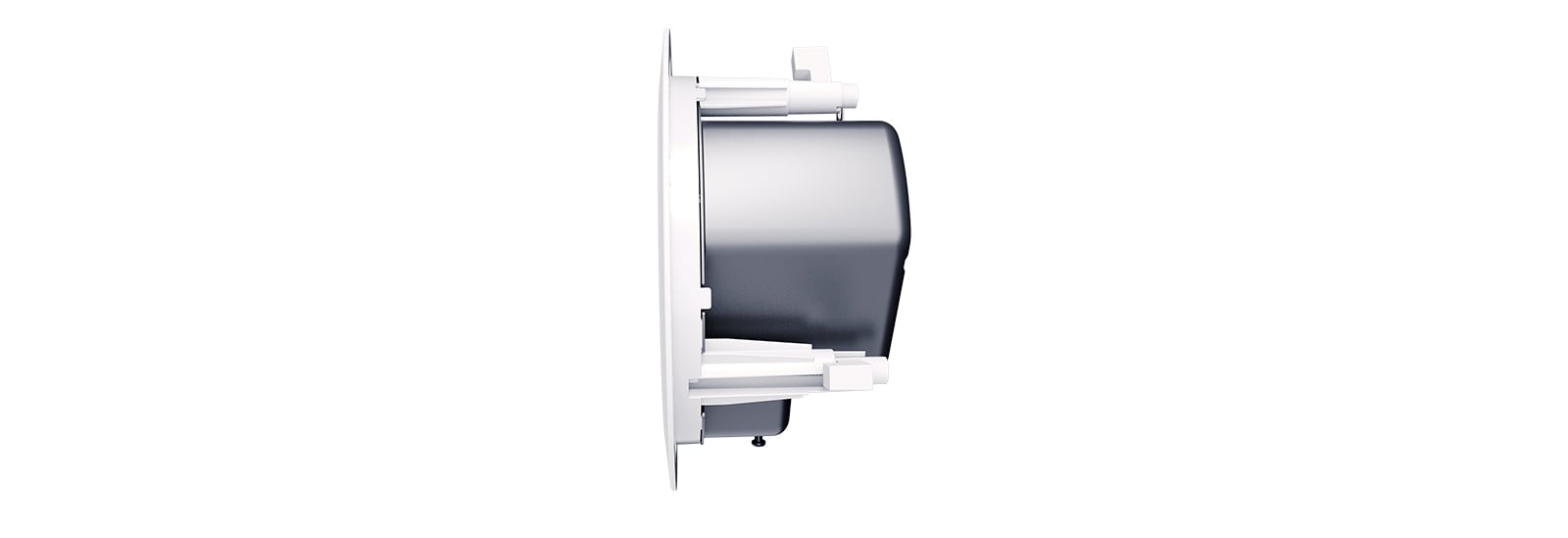

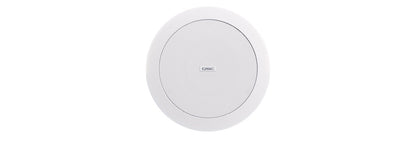

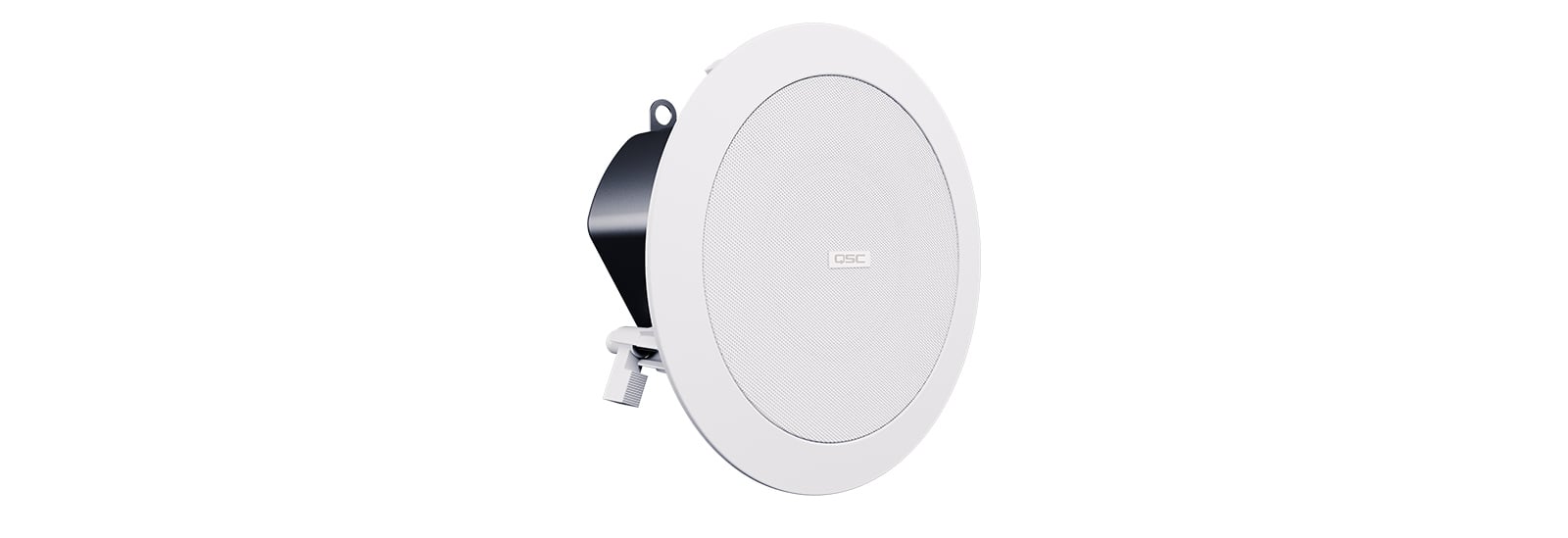

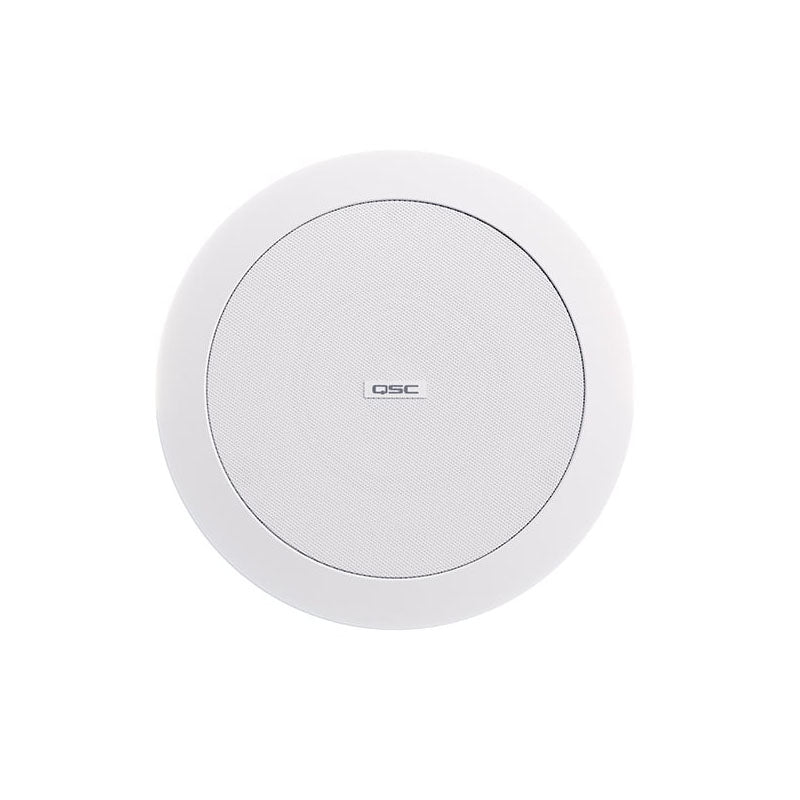

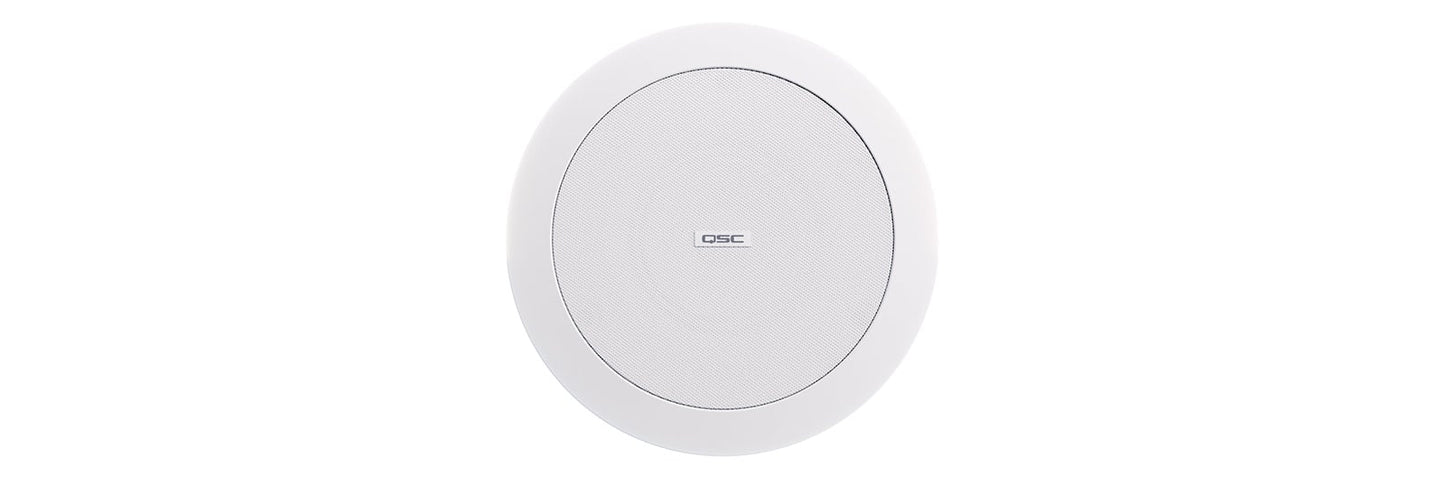

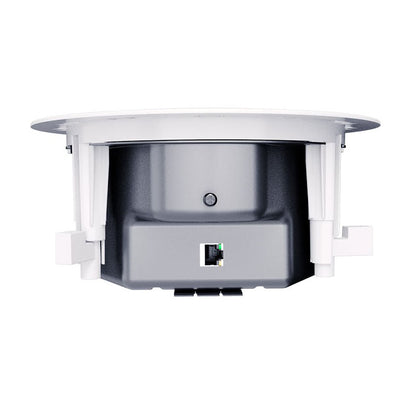

Q-SYS NL-C4 network loudspeaker network ceiling-mount loudspeaker

Q-SYS NL-C4 network loudspeaker network ceiling-mount loudspeaker

SoundPro Item: 132960 | Part Number: NL-C4-WH

$600.00
$600.00 $600.00
Your Price Sold out
MSRP: $600.00 | MAP: $600.00

In stock and ready to ship

  • Native PoE ceiling-mount loudspeaker for Q-SYS
  • 4-inch, full-range driver

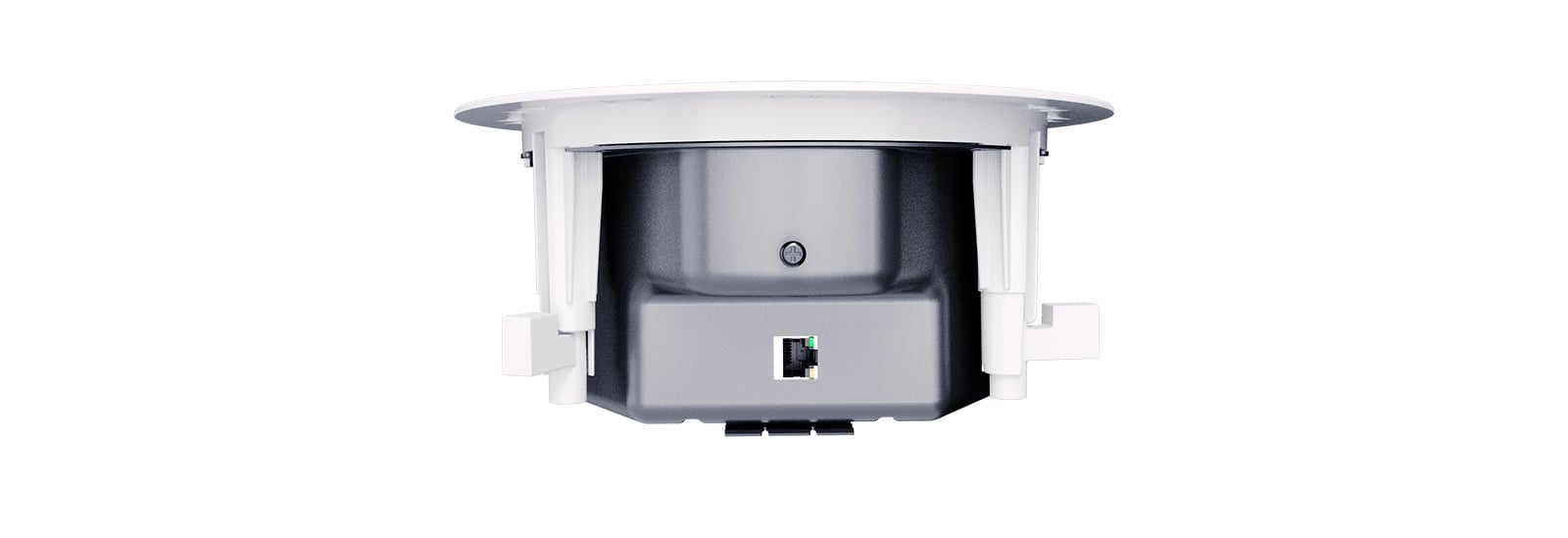

  • Powered-over-Ethernet enables power, data, and control over a single cable
  • Consistent tonal characteristics across the entire NL Series family to let you mix and match form factors
  • Q-SYS integrates loudspeaker voicings (Intrinsic Correction™) to simplify the tuning process
  • Comprehensive management via Q-SYS Designer Software and Q-SYS Reflect
  • Available in white (RAL 9010) only
Log in or register for YOUR best price

The Q-SYS NL-C4 is a network PoE loudspeaker that delivers clear speech and music reproduction natively to Q-SYS. The ceiling-mount loudspeaker features a four-inch, full-range driver, and can be integrated into your space with a single Ethernet cable to reduce overall hardware footprint and lower system cost. As a native Q-SYS Product, you can take advantage of the drag-and-drop integration and simple control capabilities offered by Q-SYS.

View full details

Specifications

Loudspeaker type
Network PoE ceiling-mount loudspeaker for Q-SYS
Driver
4-in (101.6 mm) full-range, paper cone woofer, ferrite magnet
Effective frequency range
100 Hz to 20 kHz
Rated noise power / voltage (W rms)
12 W (PoE), 24 W (PoE+)
Rated coverage (-6 dB)
120°
Directivity factor
3.8
Directivity index
5.8 dB
Maximum continuous SPL
94 dB (PoE), 97 dB (PoE+)
Maximum peak SPL
108 dB (PoE), 111 dB (PoE+)
Input connector type
RJ45, Q-LAN
Enclosure material
ABS baffle on powder steel back can
Grille material
Powder coated steel
Ingress protection
IP34
Cutout dimension
7.1 in (179 mm) hole diameter
Net Weight
3.5 lbs (1.6 kg)
Product dimensions (diameter x height)
8.46 x 4.13 in (215 x 105 mm)
Operating environment
Desgined for indoor use
Operating temperature range
10° to 40° C
Included accessories
C-rings and tile rails, rail screws, cut-out template, grille
Optional Accessories
NL-C179 (bezel-less collar), AD-MR4 (pre-install mud ring)
Safety agency
UL/IEC 62368-1
Plenum rating
UL 2043
Power requirements
PoE (Type 1 Class 3) or PoE+ (Type 2 Class 4)
