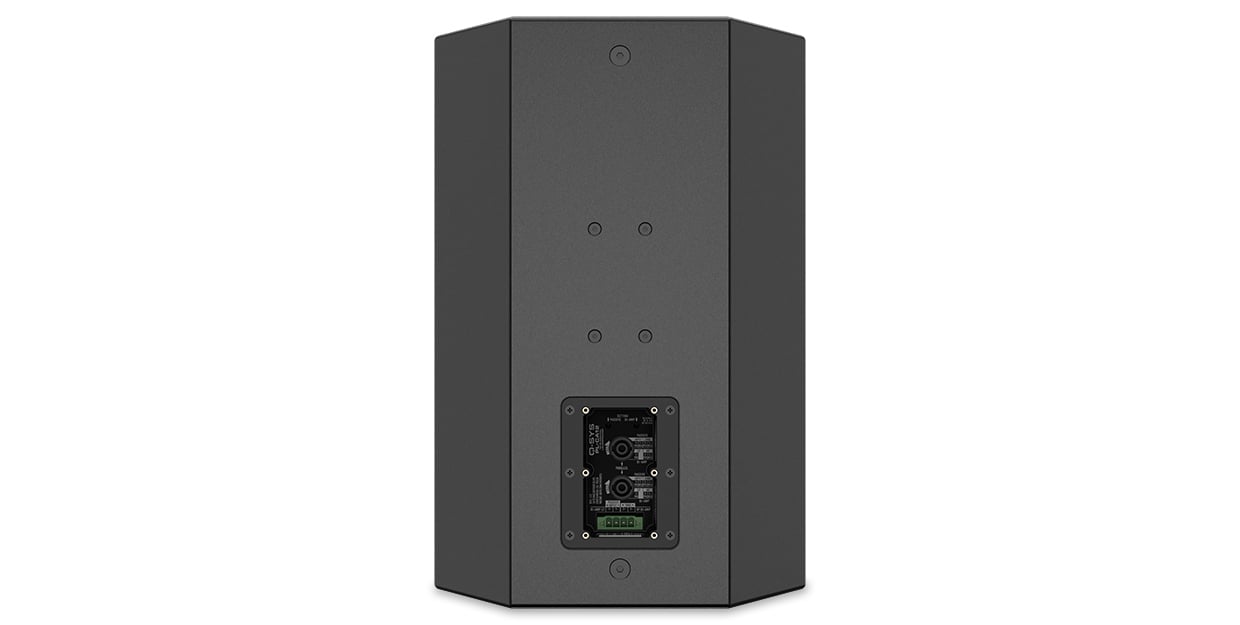

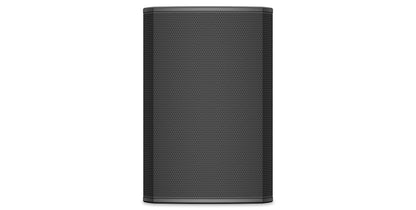

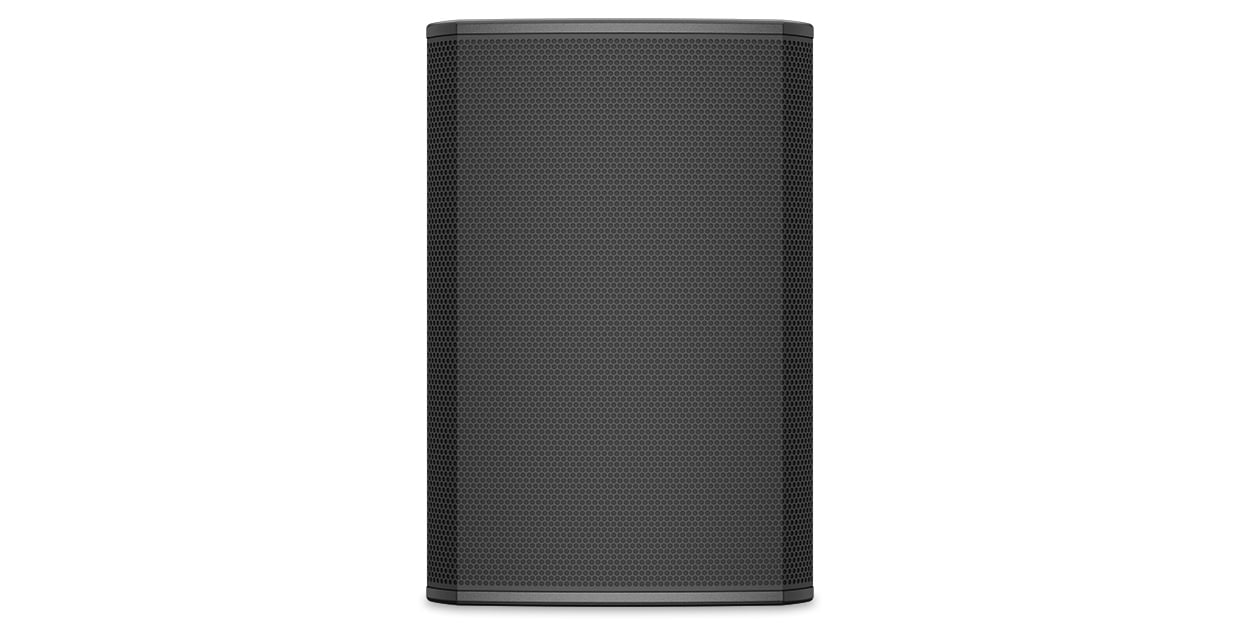

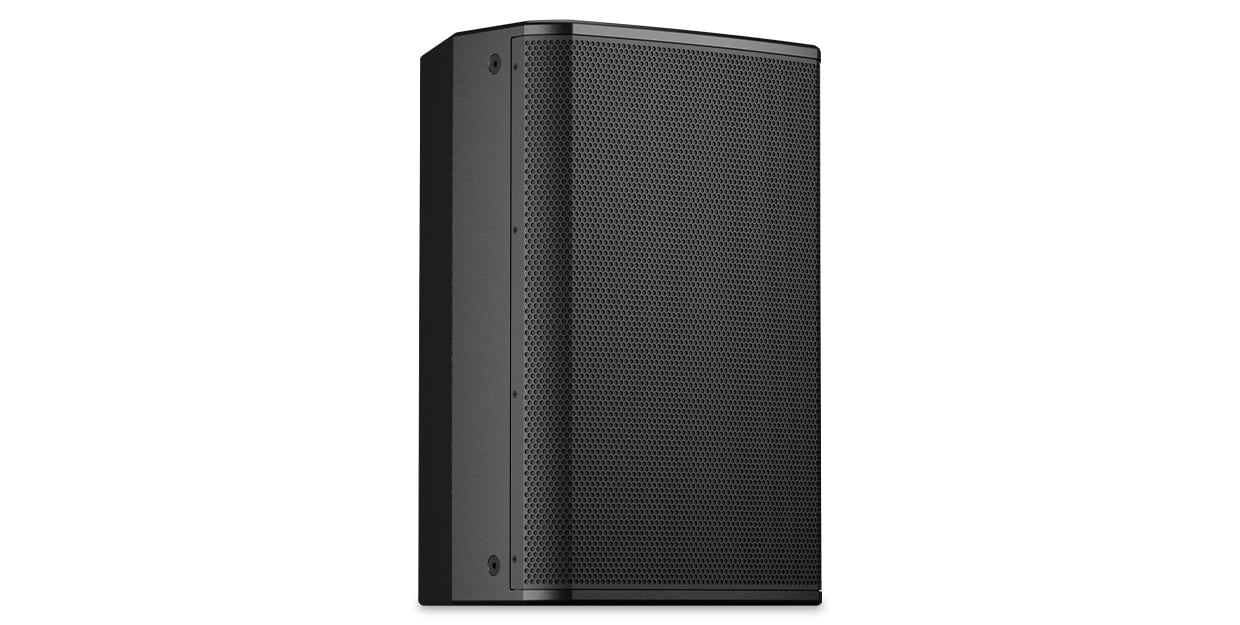

Q-SYS PL-CA12-Two-way, full-range 12-inch coaxial loudspeaker

Q-SYS PL-CA12-Two-way, full-range 12-inch coaxial loudspeaker

SoundPro Item: 145096 | Part Number: PL-CA12

$2,375.00
$2,375.00 $2,375.00
Your Price Sold out
MSRP: $2,375.00 | MAP: $2,375.00

Usually ships in 5-7 business days

  • 12-inch LF transducer + coaxial HF compression driver in a compact, bass-reflex enclosure
  • Weatherized (IP54) wooden enclosure for indoor and protected outdoor environments
  • Pairing with Q-SYS CX-Q 4ch network amplifiers enables custom voicings and filter sets for quicker deployment and better sonic performance
Log in or register for YOUR best price

The Q-SYS PL-CA12 is a two-way, full-range 12-inch coaxial loudspeaker that offers wide, symmetrical coverage in a compact enclosure. It is ideal for applications when placed closer to the listener and/or where controlled coverage is not a requirement.

View full details

Specifications

Enclosure Configuration
Two-way, full-range coaxial loudspeaker in bass reflex enclosure
Tranducers
LF: 12 in (320 mm), 3 in (72.6 mm) voice coil, neodymium, Coaxial HF: compression driver, 3 in (76.2 mm) voice coil
Coverage
80° conical DMT
System Bandwidth (-10 dB with EQ)
38 Hz -20 kHz (no subwoofer)
System Sensitivity
102 dB 1W/1m
Max SPL* (continuous)
119 dB (passive), 120.5 dB (bi-amp)
Connectors
2x Speakon NL4, 1x Euroblock: Solid wire 8 AWG, 4 poles
Recommended Amplifiers
CX-Q 8K4 (up to 2 per ch), CX-Q 4K4 (up to 1 per ch)
Enclosure Material:
Exterior plywood
Enclosure Color:
Black (RAL 9011)
Weatherization
IP54 , External plywood, Stainless screws, Treated grille vs. UV and corrosion, Hydrophobic stainless steel mesh behind grille, Polyurea Paint, Input cup (IP65) sealing with gland
Dimensions
23.5 x 15.7 x 13.8 in (597 x 400 x 350.4 mm)
Weight
44 lb (20 kg)
Optional Accessories (sold separately)
PL-CA12-YM horizontal yoke mount, PL-CA12-LK link to suspend PL-CA12 with PL-SUB15
