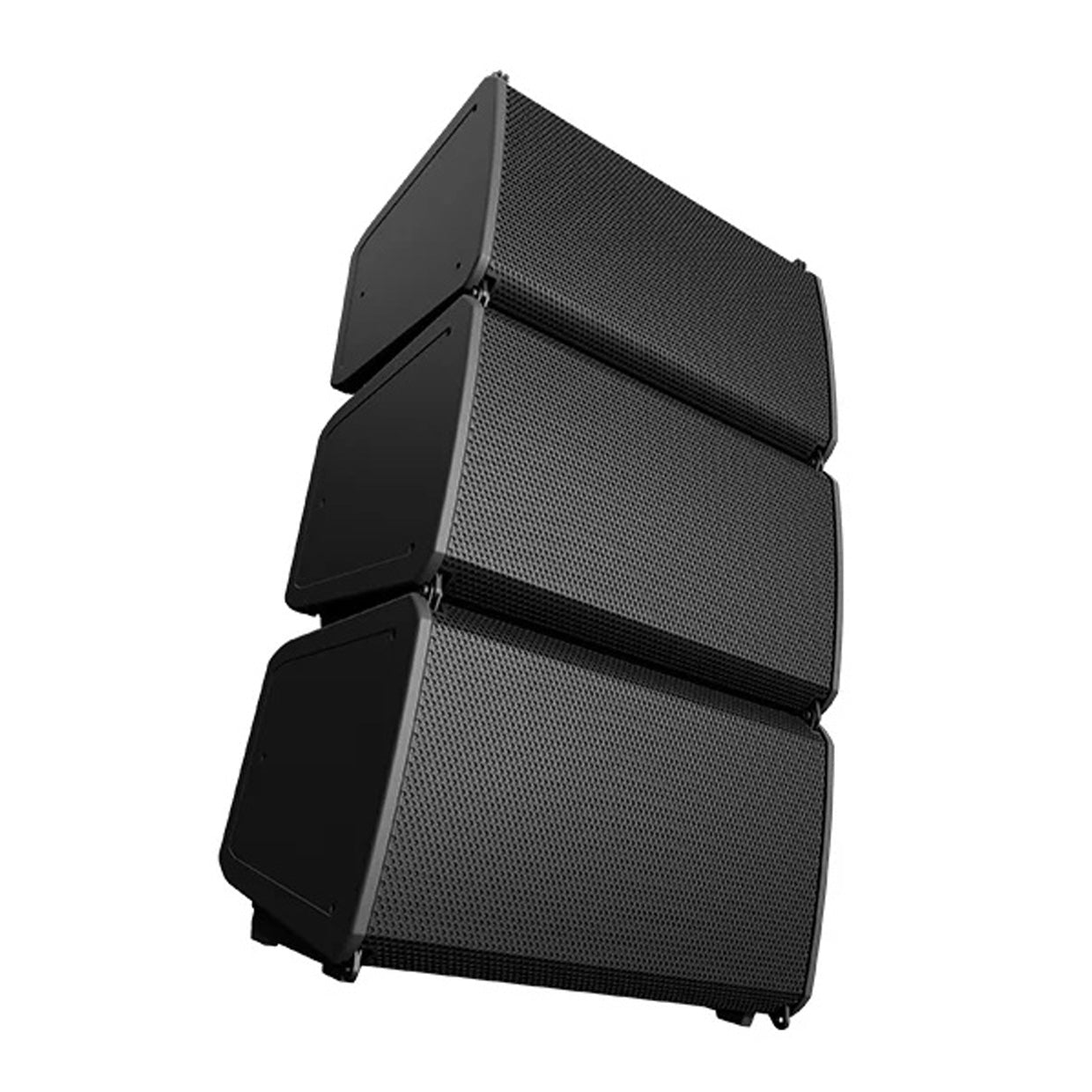

Q-SYS PL-LA8 Array Frame for PL-LA8 Line Array System | Black

Q-SYS PL-LA8 Array Frame for PL-LA8 Line Array System | Black

SoundPro Item: 142296 | Part Number: PL-LA8-AF-BK

$778.00
$778.00 $778.00
Your Price Sold out
MSRP: $778.00 | MAP: $778.00

Usually ships in 5-7 business days

  • Integrated Aluminum Rigging Hardware Supports Flying Up To Twelve Enclosures
  • Multiple Splay Angle Positions Allow Precise Vertical Coverage Shaping
  • Compatible With IP54-Rated PL-LA8 Enclosures For Protected Outdoor Deployments
  • Pairs With Q-SYS CX-Q Network Amplifiers For Unified Platform Optimization
  • QSC LEAF Waveguide Delivers Optimized Internal Sound Paths Across Array Configurations
Log in or register for YOUR best price

The Q-SYS PL-LA8 Array Frame is purpose-built for AV integrators and system designers deploying PL-LA8 passive line arrays in installed sound environments. Whether outfitting a corporate auditorium, higher education lecture hall, entertainment venue, or small-to-medium-sized sporting facility, this frame provides the structural backbone for scalable, flown line array configurations that meet demanding front-of-house performance requirements.

Designed to work within the broader Q-SYS PL-LA ecosystem, the array frame supports integration with Q-SYS CX-Q Series network amplifiers, enabling advanced system optimization through custom voicings and filter sets directly within the Q-SYS platform. This tight hardware-software integration distinguishes PL-LA deployments from generic third-party line array solutions, offering AV control, audio, and video management from a unified environment.

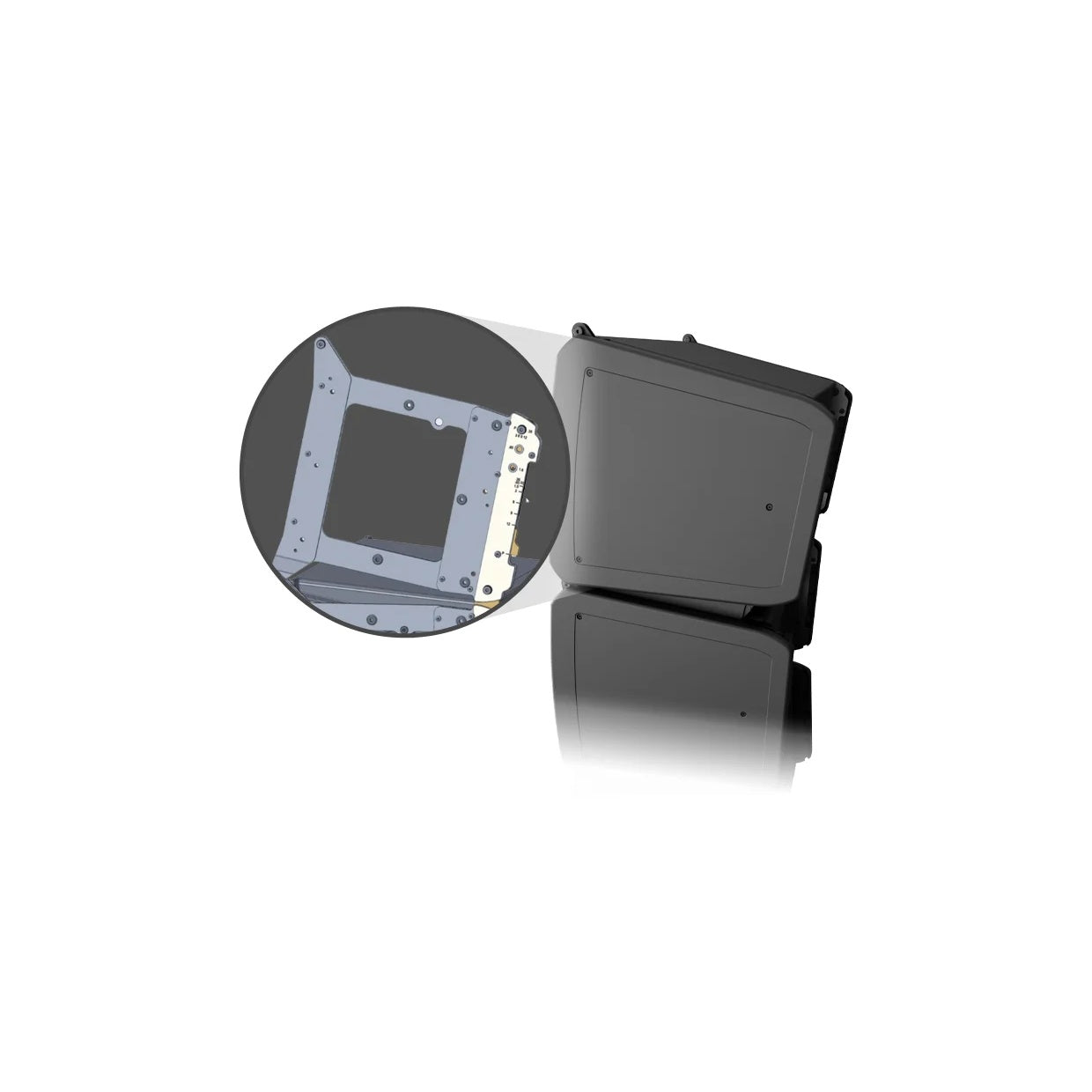

The array frame accommodates the IP54-rated, weatherized ABS enclosures of the PL-LA8, making it suitable not just for interior installs but also for protected outdoor applications. Rigging hardware is aluminum, and the system supports multiple discrete splay angles for precise vertical coverage shaping across a range of room geometries and throw distances.

Downloads

View full details

Specifications

Construction
Enclosure Material
Impact-resistant ABS
Rigging Material
Aluminum
Color
Black (RAL 9011)
Environmental
Weatherization
IP54
Sealing
Input cup (IP65) sealing with gland
Grille Treatment
UV and corrosion treated; hydrophobic stainless steel mesh behind grille
Hardware
Stainless screws
Rigging
Rigging Angles (degrees)
0.5, 1.5, 3, 4.5, 6, 8, 10, 12
Max Enclosures Per Array
12
Audio (PL-LA8)
Enclosure Configuration
Bass Reflex, two-way passive/bi-amp line array loudspeaker
LF Transducer
8 in (200 mm), 2 in (50 mm) voice coil, neodymium magnet
HF Transducer
Compression driver, 1.75 in (44 mm) voice coil
Coverage (H x V)
100° x 15°
System Bandwidth (-10 dB with EQ)
61 Hz–20 kHz (no subwoofer)
System Sensitivity
101.2 dB @ 1 W/1 m
Max SPL Continuous
126 dB
System Power Rating
46 Vrms, continuous 250 W @ 8 Ω
Connectors
2x Speakon NL4; 1x Euroblock (parallel to Speakon): solid wire 8–24 AWG, 4 poles
Recommended Amplifiers
Q-SYS CX-Q Series 4ch network amplifiers
Dimensions (PL-LA8 Enclosure)
Dimensions
10.7 x 20.1 x 13.7 in (272 x 512 x 349 mm)
Weight (PL-LA8 Enclosure)
Weight
30 lb (13.5 kg)
Identifiers
MPN
PL-LA8-AF-BK
