Q-SYS PL-SUB15-Passive 15-inch installation subwoofer

Q-SYS PL-SUB15-Passive 15-inch installation subwoofer

SoundPro Item: 141648 | Part Number: PL-SUB15

$2,025.00
$2,025.00 $2,025.00
Your Price Sold out
MSRP: $2,025.00 | MAP: $2,025.00

Usually ships in 5-7 business days

  • 15-inch LF transducer in a bass-reflex enclosure
  • Weatherized (IP54) wooden enclosure for indoor and protected outdoor environments
  • Omnidirectional or cardioid radiation modes when deploying two or more subwoofers
  • Ground or flown deployment (M10 rigging points)
Log in or register for YOUR best price

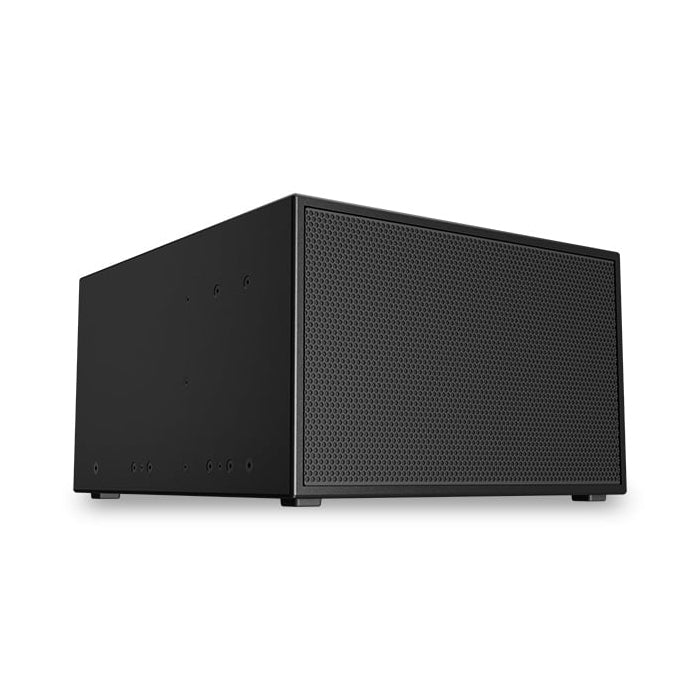

The Q-SYS PL-SUB15 is a passive, 15-inch installation subwoofer that features a weatherized wooden enclosure in a compact form factor suited for a broad range of applications, from entertainment and small sporting venues to corporate auditoriums or higher ed lecture halls.

View full details

Specifications

Transducers
LF: 15 in (380 mm), 4 in (100 mm) voice coil
Enclosure configuration
Passive subwoofer in bass reflex enclosure
Coverage
Omni-directional or cardioid radiation modes selectable in Q-SYS;, cardioid setup requires minimum two (2) units
System bandwidth (-10 dB with EQ)
38-100 Hz, Sub Crossover = 80, 38-110 Hz, Sub Crossover = 100, 38-140 Hz, Sub Crossover = 125
System sensitivity
97.5 dB @ 1 W/1 m
Max SPL* (continuous)
139 dB
Enclosure material:
Exterior plywood
Enclosure color
Black (RAL 9011)

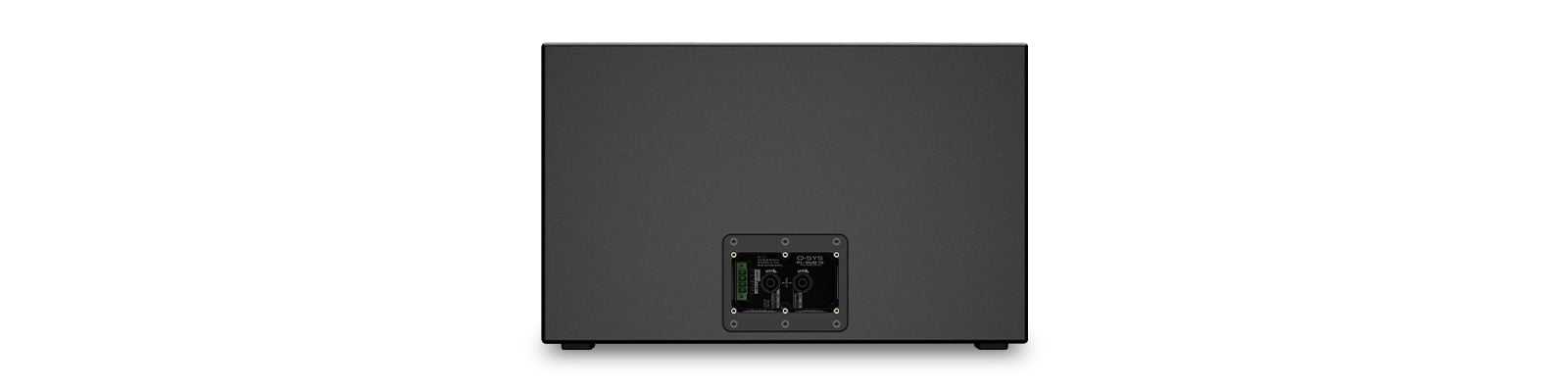

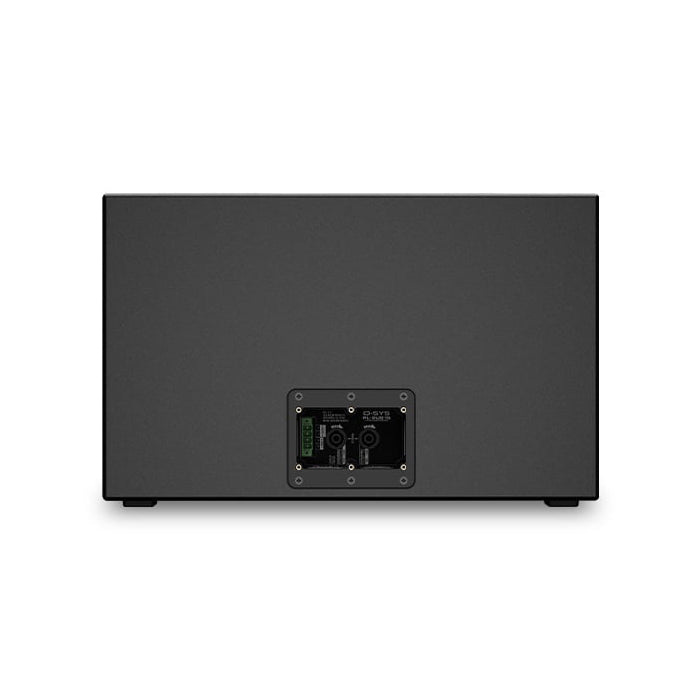

Connectors
2x Speakon NL4 (cable connector not provided), 1x Euroblock (parallel to Speakon): Solid wire 8-24 AWG, 4 poles
Weatherization
IP54, External plywood, Stainless screws, Treated grille vs. UV and corrosion, Hydrophobic stainless steel mesh behind grille, Polyurea Paint, Input cup (IP65) sealing with gland
Recommended amplifiers
Q-SYS CX-Q 8K4 (up to 1 per ch)
Dimensions
14.7 x 23.5 x 27.1 in (375 x 598 x 690 mm)
Weight
80 lb (36.3 kg)
