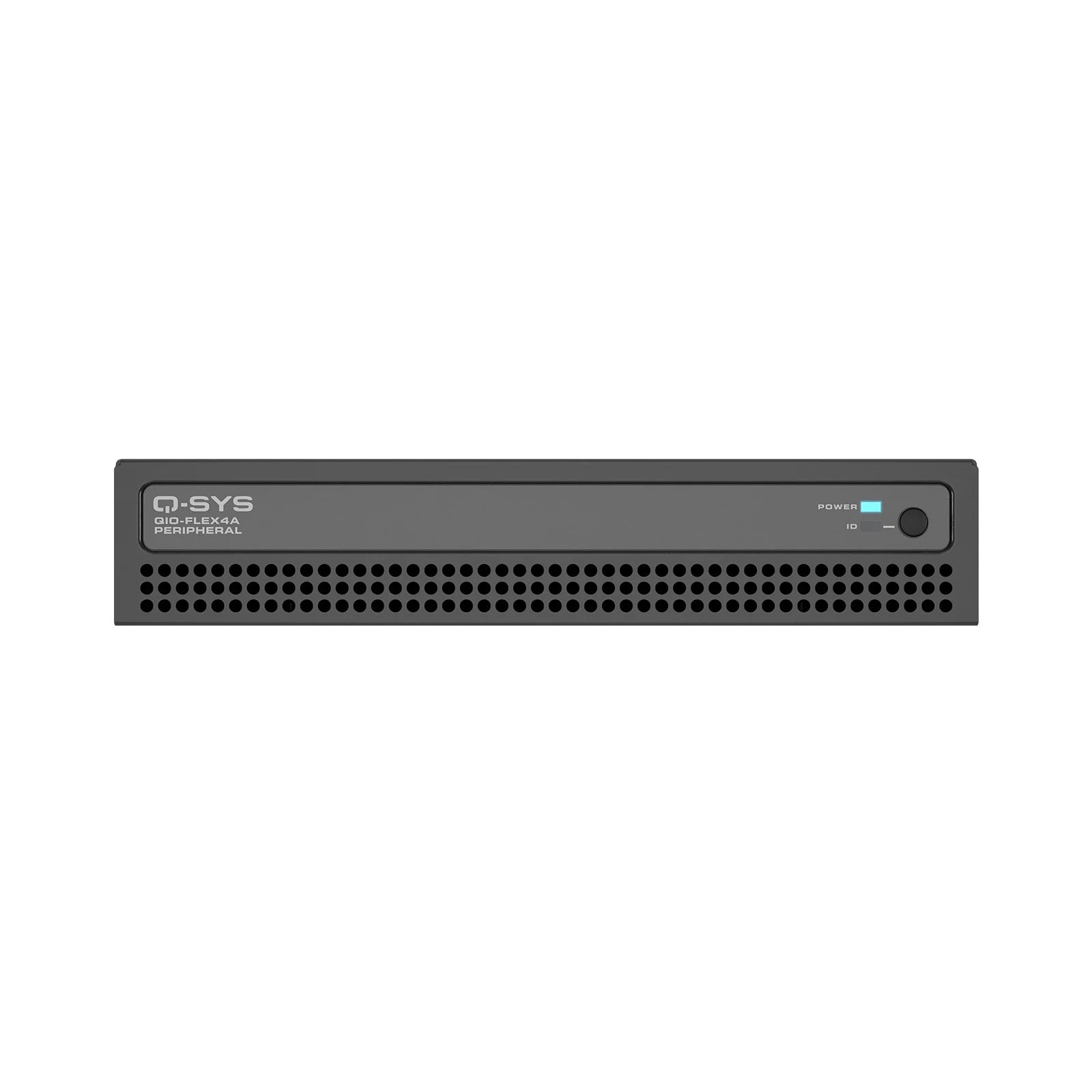

Q-SYS QIO-FLEX4A Modular Network I/O Expander for Q-SYS

Q-SYS QIO-FLEX4A Modular Network I/O Expander for Q-SYS

SoundPro Item: 145113 | Part Number: QIO-FLEX4A

Pricing available upon request

Pricing available upon request

Your Price Sold out

Usually ships in 5-7 business days

  • Four Software-Configurable FLEX I/O Channels Adapt To Mic Or Line Operation
  • Onboard Amplifier Outputs Eliminate External Amps For Small Rooms
  • PoE+ Support Reduces Infrastructure By Powering Over Existing Network Cable
  • Daisy-Chain Networking Supports Up To Four Units On A Single Network Run
  • 4x8 GPIO And RS232 Enable Native Third-Party Control Integration
  • Native Q-SYS Designer And Q-SYS Reflect Management For Streamlined Commissioning
  • Surface Mounting Hardware Included For Flexible Placement Without Additional Parts
Log in or register for YOUR best price

The Q-SYS QIO-FLEX4A is purpose-built for systems integrators deploying scalable installed audio networks on the Q-SYS platform. Where centralized I/O creates long analog cable runs, the QIO-FLEX4A moves mic/line connectivity, amplification, and control interfacing to the point of need, whether that is a huddle room, a hospitality suite, a classroom, or a corporate boardroom. Four software-configurable FLEX I/O channels handle mic or line sources without swapping hardware, and two onboard amplifier outputs eliminate the cost and space of a dedicated external amplifier for low-wattage reinforcement applications.

For integrators managing multi-room rollouts under cabling constraints, the QIO-FLEX4A offers practical infrastructure savings. Up to four units daisy-chain on a single network drop, and up to two units can share a daisy-chained DC power feed, reducing conduit requirements significantly. PoE+ operation from an IEEE 802.3at Type 2 source keeps power infrastructure simple. A 4x8 GPIO block and RS232 port connect directly to room controllers, lighting systems, and legacy serial devices without additional hardware, keeping the signal chain consolidated in a single half-rack-width enclosure.

Unlike generic audio expanders that require separate control gateways, the QIO-FLEX4A is managed natively inside Q-SYS Designer Software and Q-SYS Reflect, maintaining commissioning consistency across an entire Q-SYS deployment. Surface mounting hardware ships in the box, and optional rack-mount and power supply accessories cover installations where those formats are required. This device addresses the last-meter problem in distributed AV installs without adding complexity to the system design.

Downloads

View full details

Specifications

Certifications
Compliance
FCC Part 15B, ICES-003:2020, TUV, CAN/CSA 22.2, IEC62368-1, IEC60065, RoHS2, WEEE, CE, EN55032, EN55035, RCM: AS/NZS CISPR 32, NOM, GB8898, GB13837, GB17625.1, SJ/T 1164 (RoHS), SANS 941, BIS, KC 9032, KC 9035, SASO, RoHS3
Dimensions
Dimensions
5.5" x 8.62" x 1.59" (139.7 x 219.1 x 40.4 mm)
Mounting Options
Surface/wall-mountable (hardware included); rack-mountable 1RU half-rack width (QIO-RMK sold separately)
Weight
Product Weight
2.3 lbs. (1.04 kg)
Audio
Max Input Level
+24 dBu (balanced), +18 dBu (unbalanced)
Preamplifier Gain Range
0 dB to 60 dB
Phantom Power
+48 V DC (10 mA per channel, IEC 61938 P48 compliant)
Equivalent Input Noise
<-120 dBu, no weighting @ 20 Hz to 20 kHz
Input To Input Crosstalk @ 1 kHz
> 110 dB Typical, > 95 dB Minimum
Input Impedance
10 kΩ (balanced), 5 kΩ (unbalanced)
Input Dynamic Range @ +24 dBu
> 108 dB
Input Dynamic Range @ +10 dBu
> 105 dB
Input Dynamic Range @ -10 dBu
> 100 dB
Input Dynamic Range @ -36 dBu
> 80 dB
Max Output Level Range
-37 dBu to +24 dBu
Output Dynamic Range
108 dB
Output To Output Crosstalk @ 1 kHz
> 102 dB Typical, > 90 dB Minimum
Output Impedance (Mic/Line)
200 Ω (balanced), 100 Ω (unbalanced)
Sample Rate
48 kHz
Bit Depth
24 bit
Amp Outputs
Max Speaker Output Power (Aux 24 VDC)
9 W @ 4 Ω, per channel
Max Speaker Output Power (PoE+)
5 W @ 4 Ω, per channel
Amp Output Impedance
4-8 Ω nominal

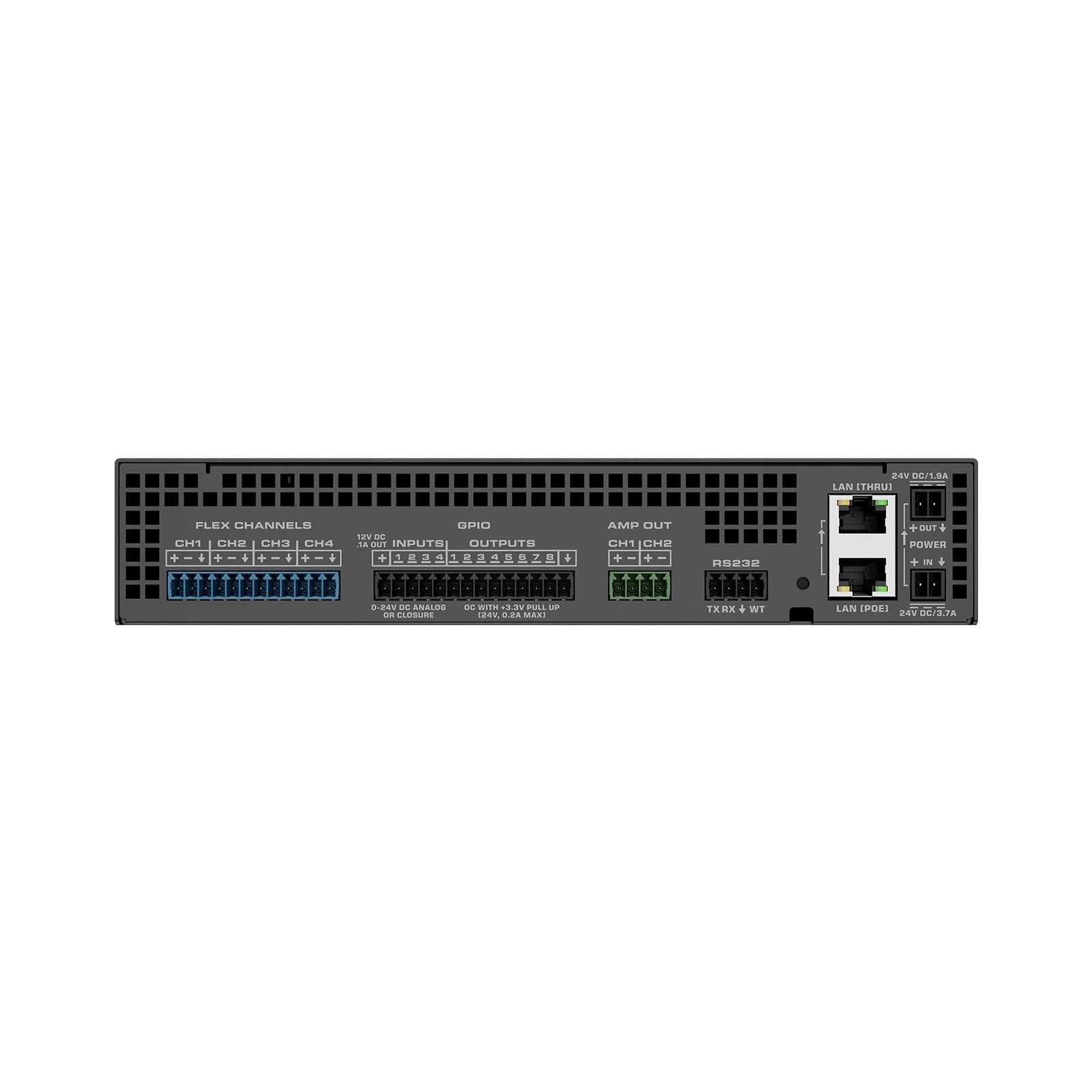

Connectivity
Flex I/O Channels
4
GPIO
4x8
RS232 Ports
1
Amplifier Outputs
2
External Power Supply
24 VDC nominal, 3.7 A on Euro connector with daisy-chain connector (QIO-PSU sold separately)
LAN (PoE)
Gigabit LAN for Q-LAN, PoE
PoE Specification
IEEE 802.3at Type 2 Class 4; accepts IEEE 802.3af Type 1 Class 3 (amplifier disabled)
LAN (Thru)
Ethernet daisy-chaining
Environmental
Power Consumption (Aux 24 VDC, Max)
43.5 W
Power Consumption (PoE+, Max)
25.5 W
Power Consumption (PoE, Amp Disabled)
12.95 W
Ambient Operating Temperature
0° C to +50° C
Humidity
5% to 85% RH through 30°C, non-condensing
Storage Temperature
-20°C to +70°C
Heat Load
45 BTU/hr
