Q-SYS QIO-IR1x4 Network I/O Expander

Q-SYS QIO-IR1x4 Network I/O Expander

SoundPro Item: 133839 | Part Number: QIO-IR1x4

$588.00
$588.00 $588.00
Your Price Sold out
MSRP: $588.00 | MAP: $588.00

Usually ships in 5-7 business days

  • The first native network IR connectivity solution for Q-SYS
  • One (1) IR receiver input and four (4) IR emitter outputs
  • Power over Ethernet (PoE) capable
  • Daisy-chain up to four QIO expanders on a single network run (with local daisy-chained DC power)
  • Simple drag-and-drop integration and comprehensive management via Q-SYS Designer Software and Q-SYS Reflect

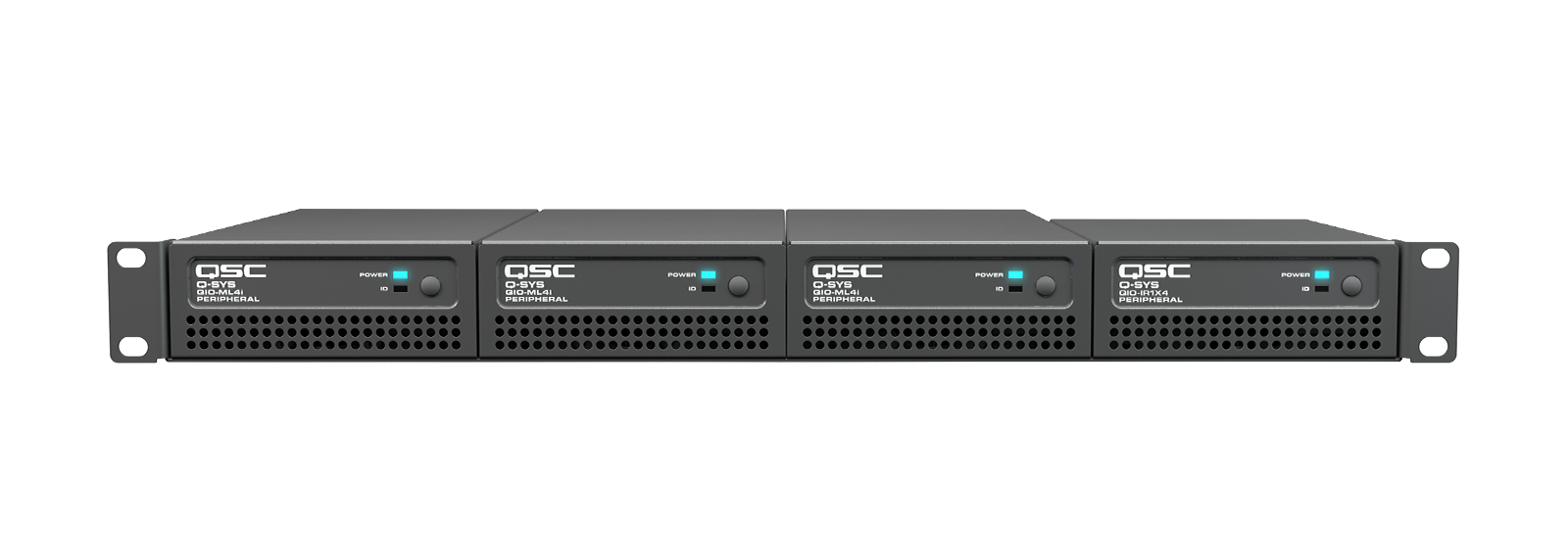

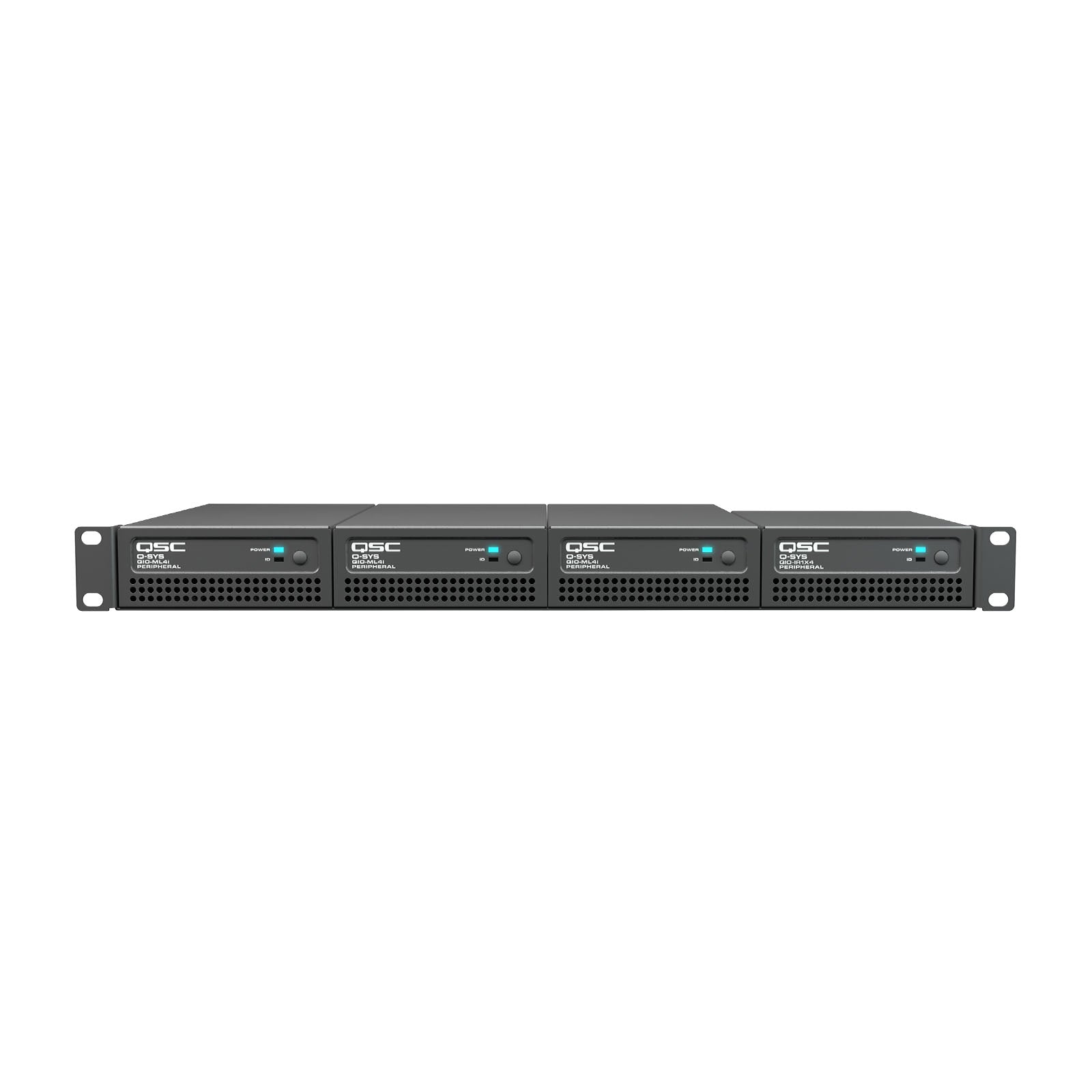

  • Surface- or rack-mountable (1RU, quarter width)
  • Includes surface mounting hardware
Log in or register for YOUR best price

The Q-SYS QIO-IR1x4 expands your Q-SYS system's capabilities to enable streamlined interoperability with non-networked control devices via IR connectivity. By separating local I/O from processing hardware, the QIO Series offer modular and easily scalable network I/O to support your desired topology.

View full details

Specifications

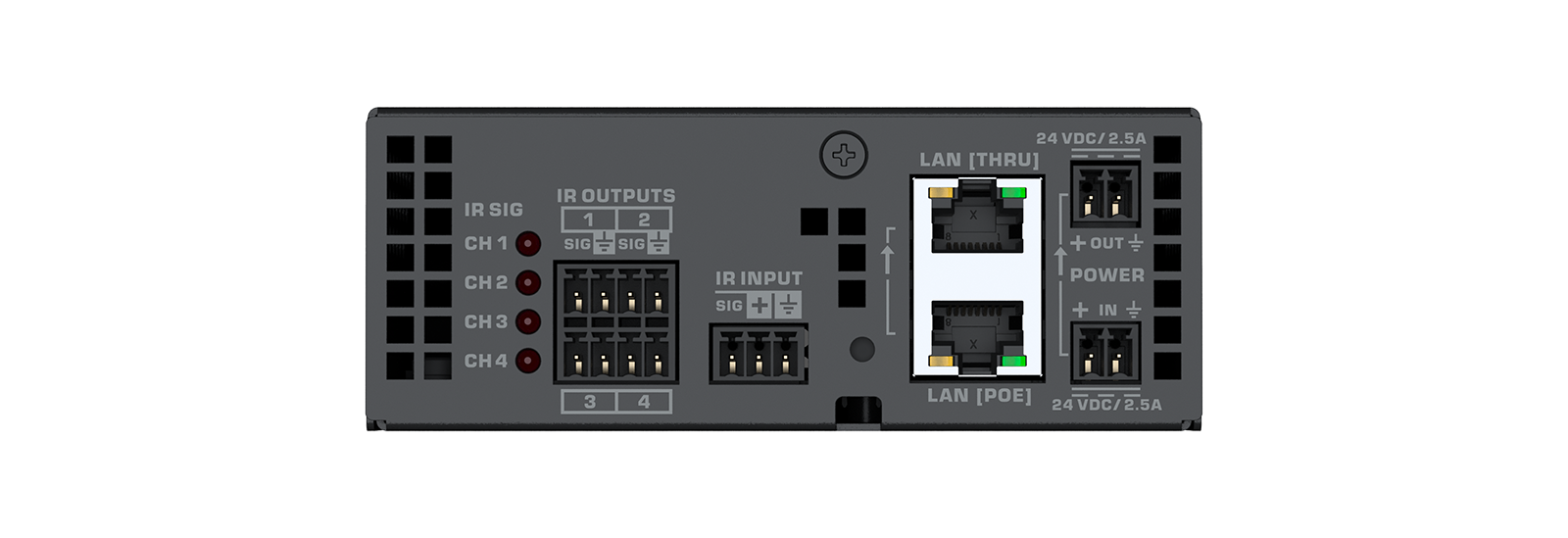

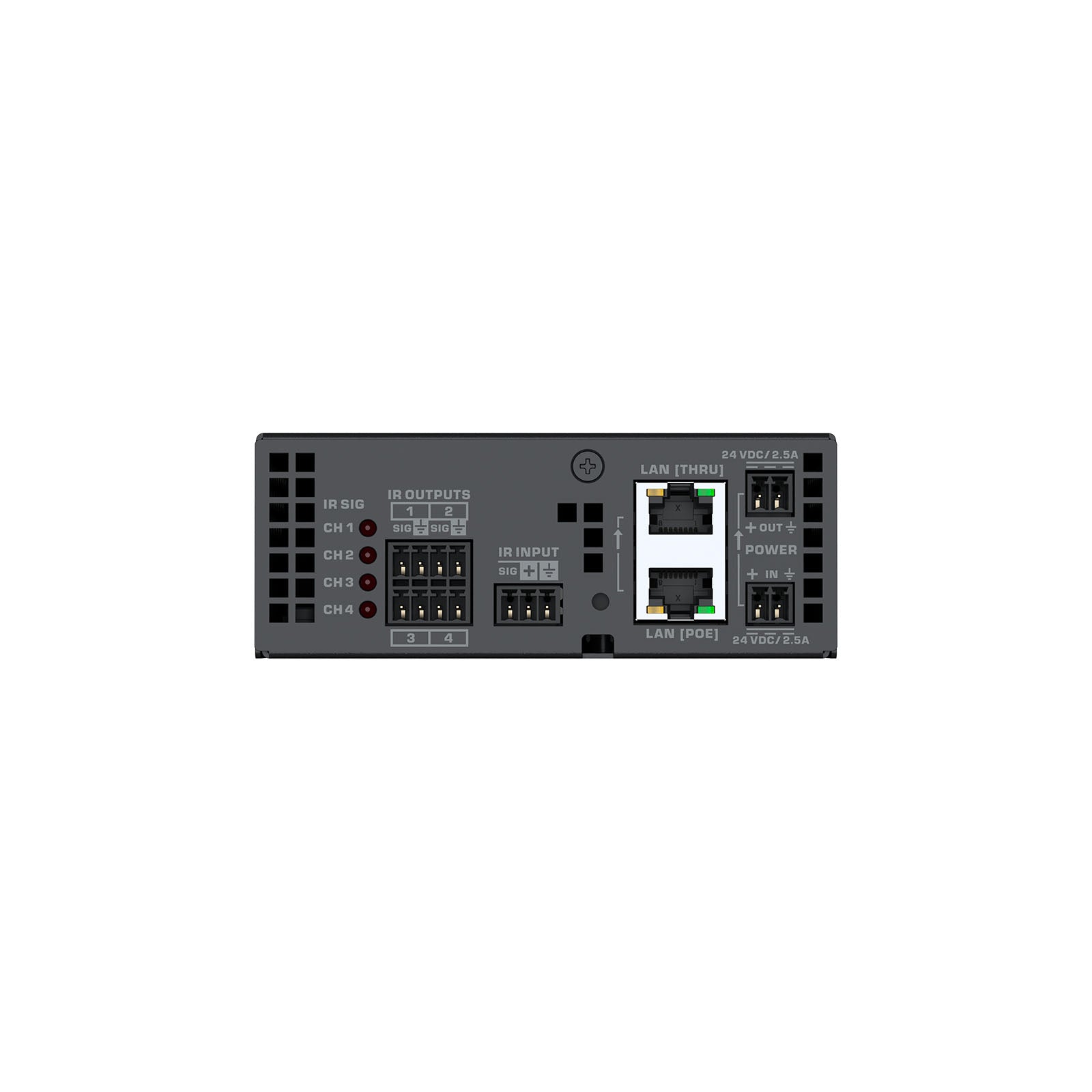

IR/Serial Output Ports
IR/Serial Output Ports
IR output or RS-232 (transmit only)
Four (4) configurable ports
IR
Configurable carrier frequency and drive strength
RS232
Configurable baud rate

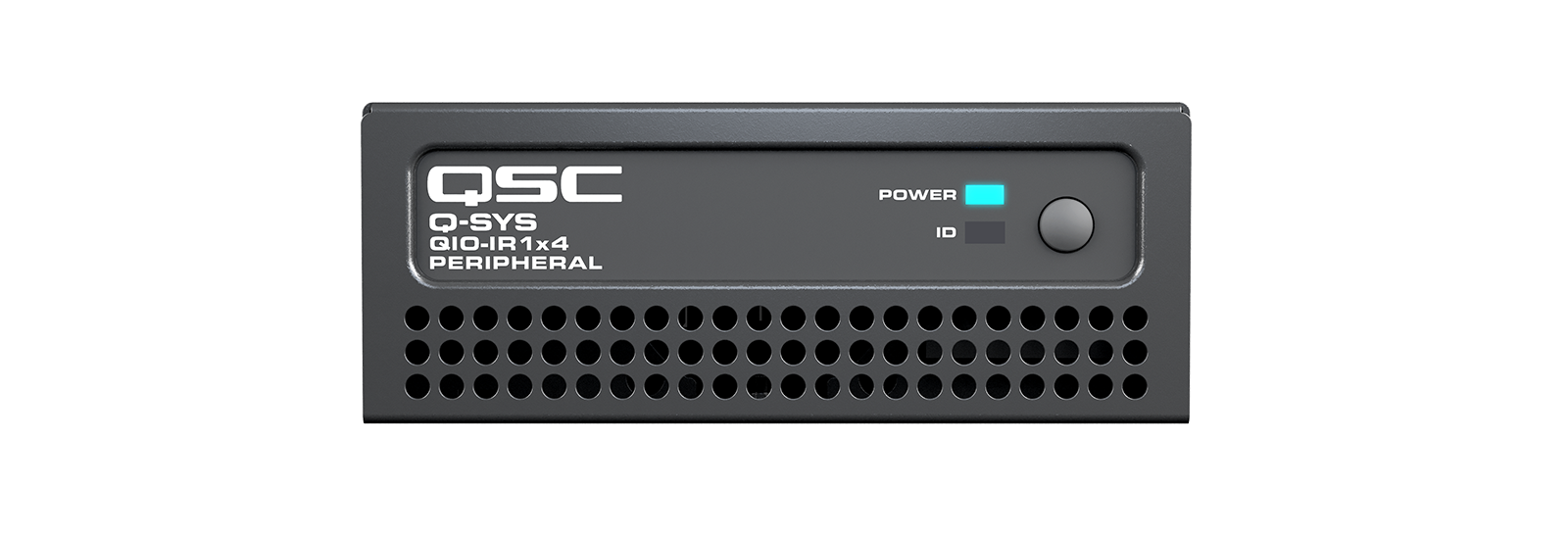

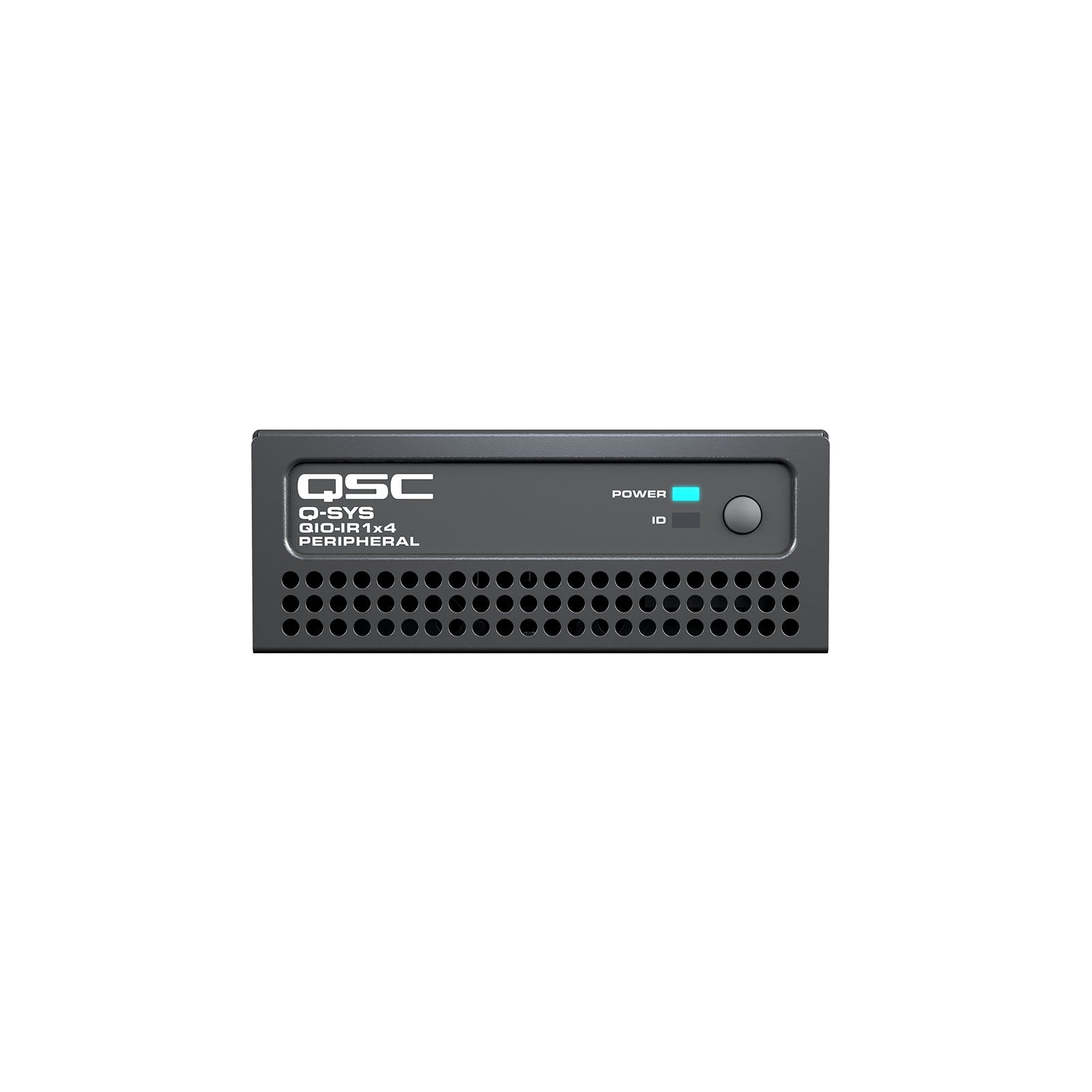

LED indicators
IR transmit activity
IR Input Ports
IR Input Ports
IR Input Ports
One (1) port, bandwidth TBD
Other Connectors
Other Connectors
External power supply
24 VDC nominal, 2.5 A on Euro connector with second connector for daisy-chaining (QIO-PSU power supply sold separately)
LAN (PoE)
Gigabit LAN connection for Q-LAN, PoE
PoE specification
Conforms to IEEE 802.3af Type 1
LAN (Thru)
Ethernet daisy-chaining
General
General
Dimensions
5.5 x 4.25 x 1.59 in (139.7 x 108 x 40.4 mm)
Weight
1.18 lb (0.54 kg)
Mounting options
Surface- and wall-mountable (hardware included), Rack-mountable; 1RU, quarter-rack width (QIO-RMK rack kit sold separately)
Environmental
Environmental
Ambient operating temperature range
0°C to +50°C
Humidity
0%-85% through 30°C non-condensing
Storage temperature
-20°C to +70°C
Compliance
FCC 47 CFR Part 15, IC ICES-003, CE (EN55032, EN55035), EU RoHS directive 2011/65/EU, WEEE directive 2012/19/EU, China RoHS directive GB/T26572, EAC, UL, C-UL, NOM-019
