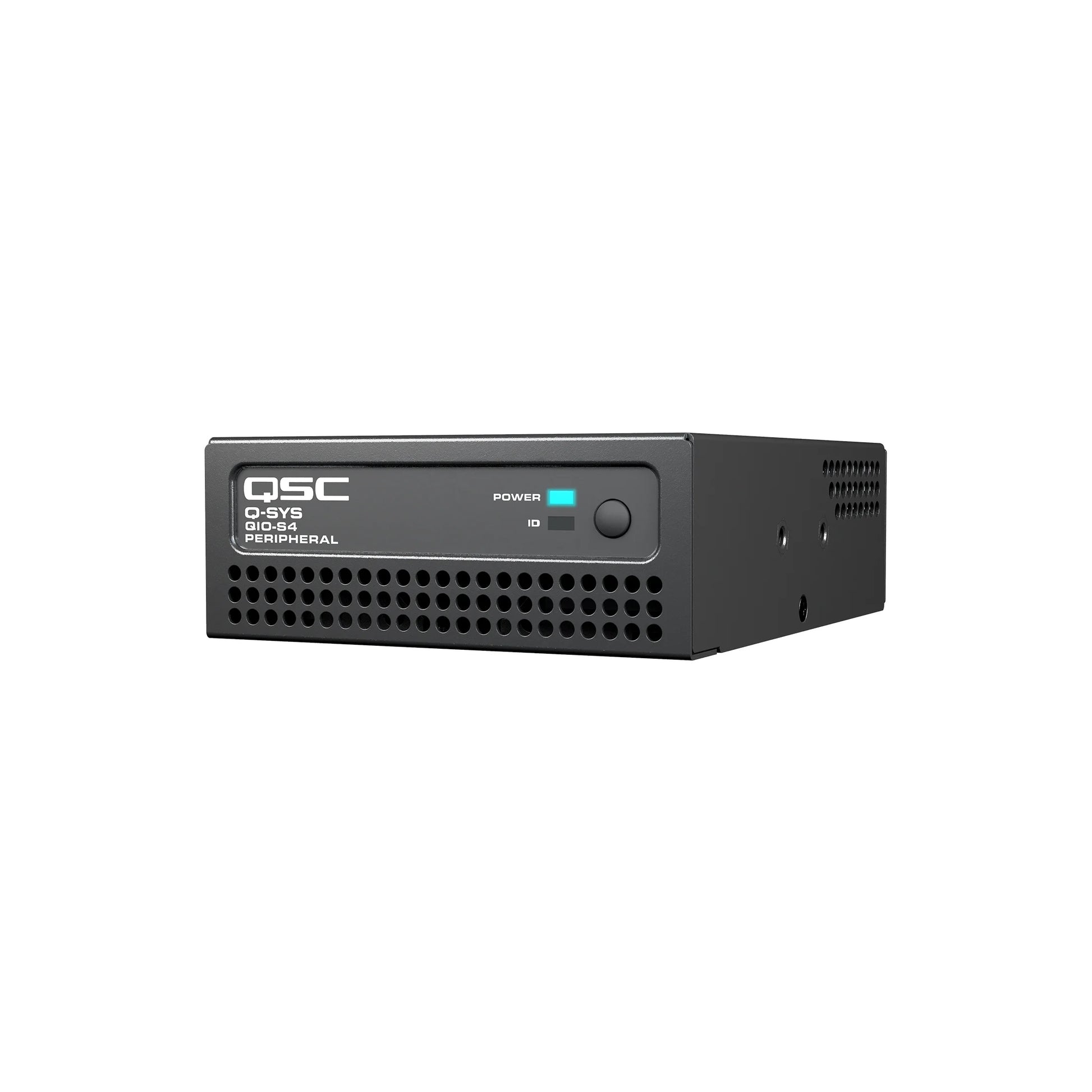

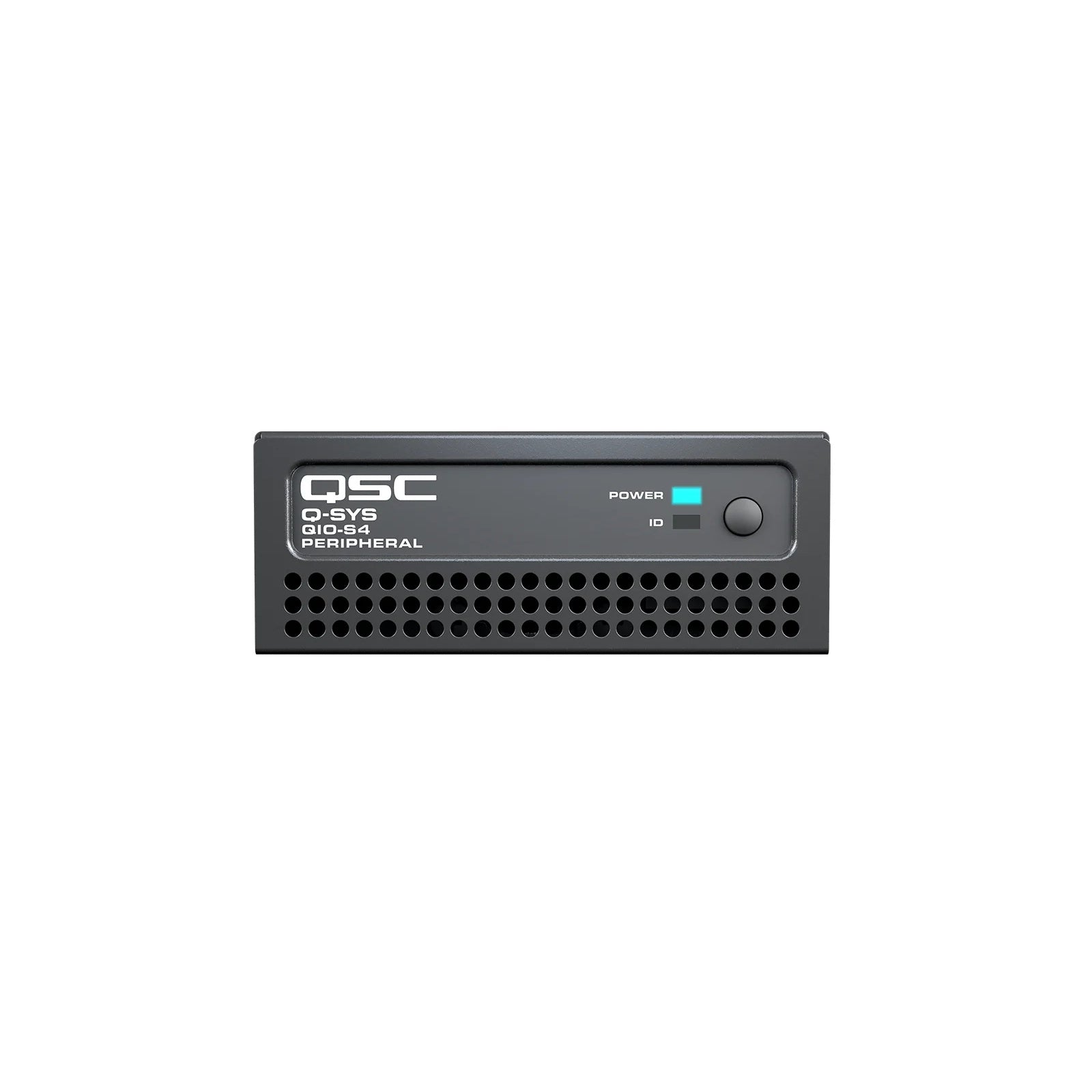

Q-SYS QIO-S4 Four-Port Serial I/O Control Expander

Q-SYS QIO-S4 Four-Port Serial I/O Control Expander

SoundPro Item: 133840 | Part Number: QIO-S4

Pricing available upon request

Pricing available upon request

Your Price Sold out

Usually ships in 5-7 business days

  • Four Bi-Directional Serial Ports Extend Q-SYS Control To Non-Networked Devices
  • One Port Supports RS-232, RS-422, And RS-485 For Broad Device Compatibility
  • PoE Powered Per IEEE 802.3af For Cable-Simplified Distributed Installs
  • Daisy-Chain Up To Four Units On A Single Network Drop For Scalable Expansion
  • Native Q-SYS Designer Integration Enables Drag-And-Drop Configuration

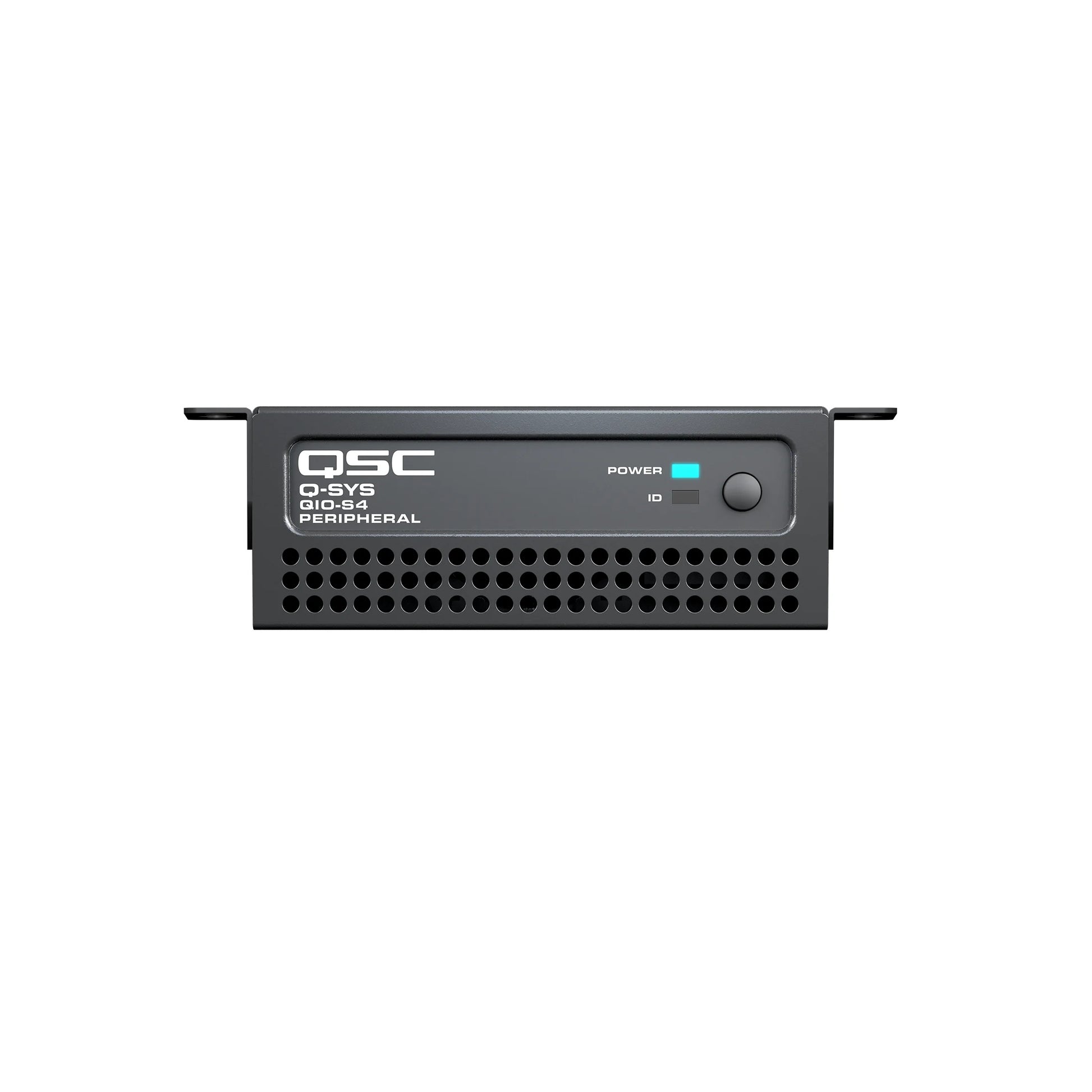

  • Surface And Wall Mounting Hardware Included For Flexible Deployment
Log in or register for YOUR best price

The Q-SYS QIO-S4 is built for AV integrators and system designers working in corporate, higher education, and house-of-worship environments who need localized serial control without extending cable runs back to the core processor. By placing serial I/O at the point of need, the QIO-S4 reduces cabling complexity and eliminates signal degradation from long RS-232 runs, making it the practical choice over patching serial endpoints directly to a centralized core.

The unit appears natively in Q-SYS Designer Software, supporting drag-and-drop configuration without third-party middleware or custom drivers. Power is delivered over a standard IEEE 802.3af PoE port, removing the need for a dedicated power run at most install locations. A 24 VDC input is also available for locations where PoE is not available. Up to four units can be daisy-chained on a single network drop using local DC power passthrough, allowing serial port counts to scale without adding network infrastructure.

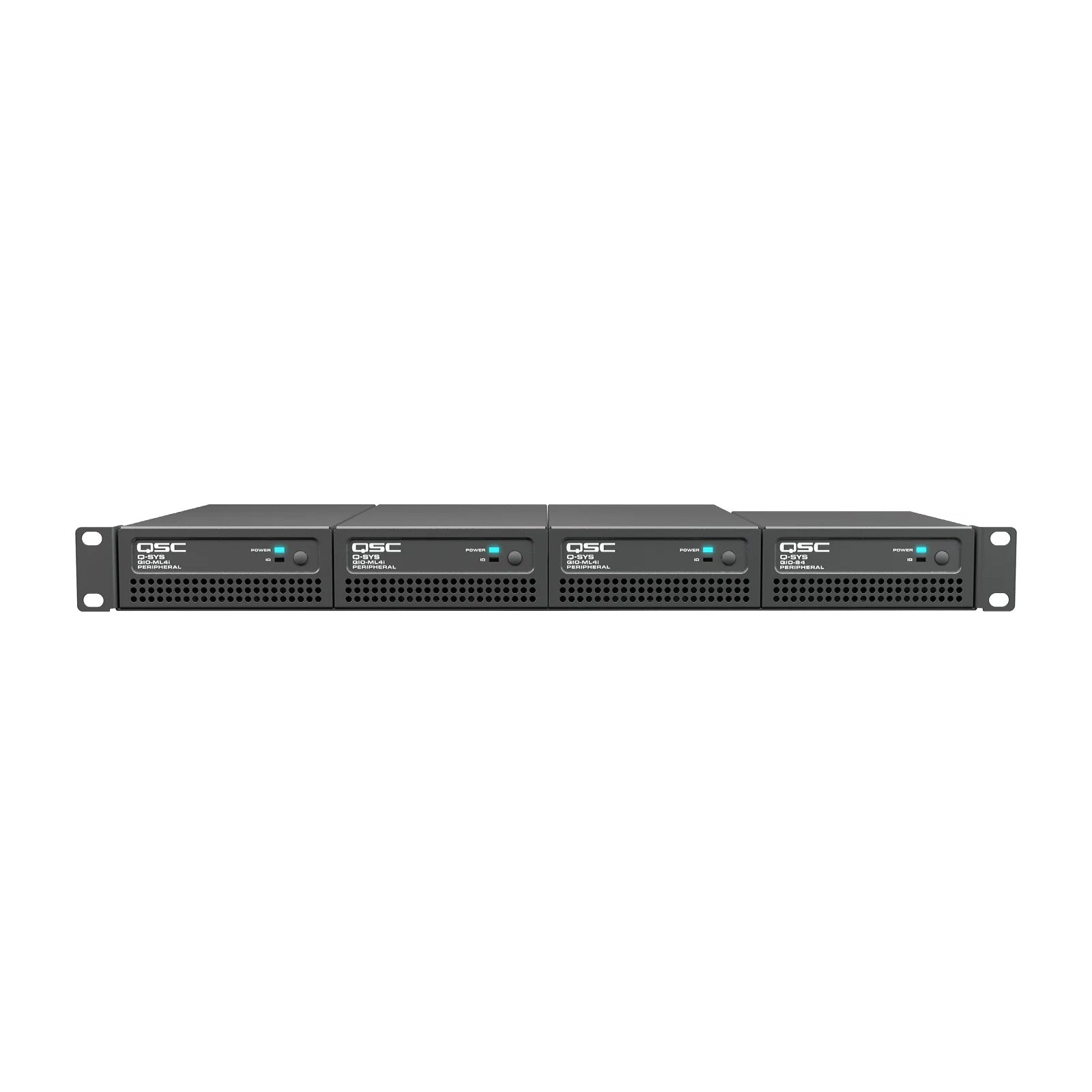

The quarter-rack, 1RU form factor suits surface mounting above ceiling tiles, attachment to the back of display enclosures, or rack installation with the optional QIO-RMK kit. Integration with Q-SYS Reflect enables remote monitoring and management, making the QIO-S4 a dependable component in multi-vendor control environments where distributed serial endpoints are the norm rather than the exception.

Downloads

View full details

Specifications

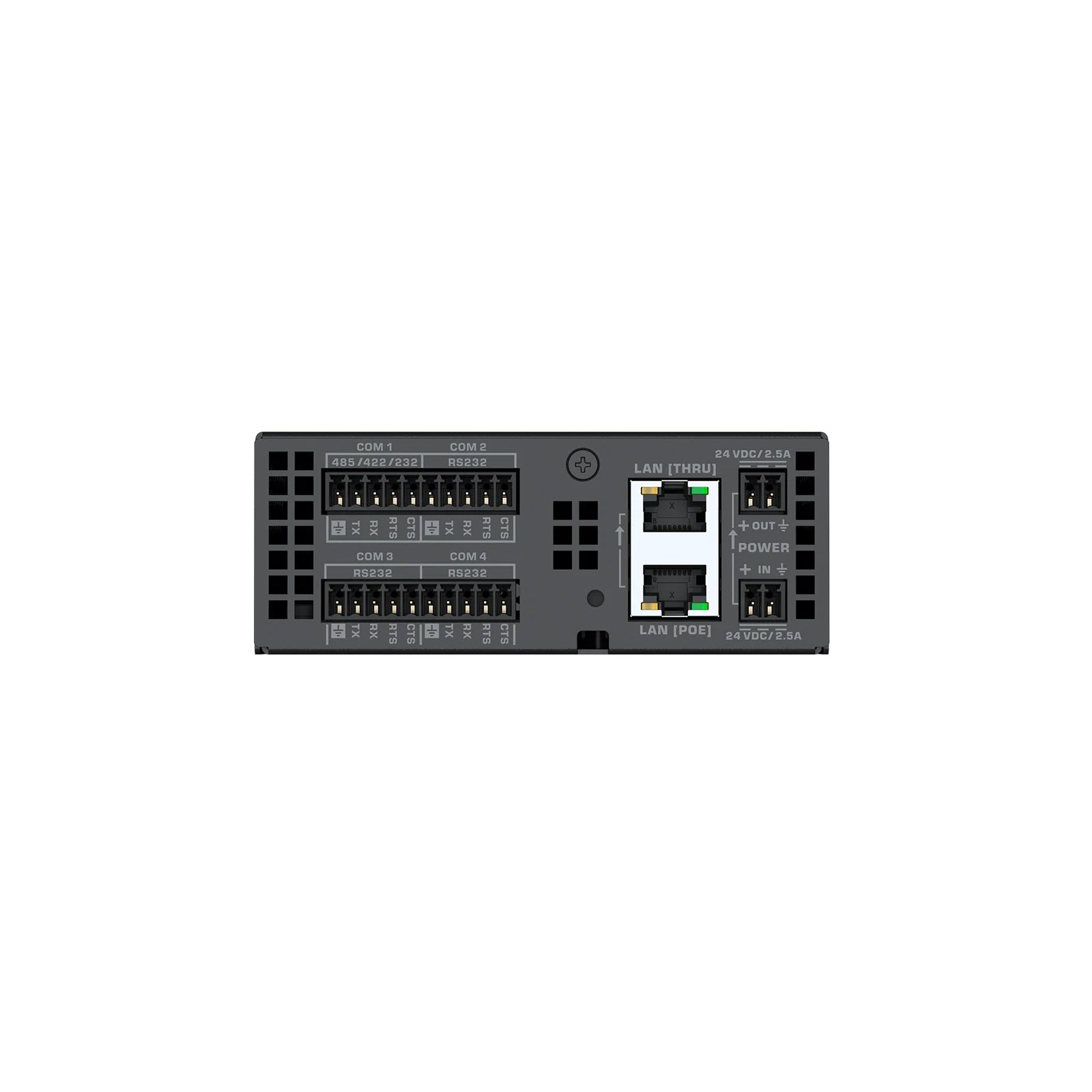

Connectivity
RS-232 / RS-485 / RS-422 Port
One (1) port, configurable protocol, baud rate, and flow control
RS-232 Ports
Three (3) ports, configurable protocol, baud rate, and flow control
LAN (PoE)
Gigabit LAN connection for Q-LAN, PoE
PoE Specification
Conforms to IEEE 802.3af Type 1
LAN (Thru)
Ethernet daisy-chaining
External Power Supply
24 VDC nominal, 2.5 A on Euro connector with second connector for daisy-chaining
Dimensions
Dimensions
5.5 x 4.25 x 1.59 in (139.7 x 108 x 40.4 mm)
Weight
Unit Weight
1.18 lbs (0.54 kg)
Construction
Mounting Options
Surface- and wall-mountable (hardware included); rack-mountable 1RU quarter-rack width (QIO-RMK sold separately)
Environmental
Ambient Operating Temperature
0°C to +50°C
Humidity
0%-85% through 30°C non-condensing
Storage Temperature
-20°C to +70°C
Compliance
FCC 47 CFR Part 15, IC ICES-003, CE (EN55032, EN55035), EU RoHS 2011/65/EU, WEEE 2012/19/EU, China RoHS GB/T26572, EAC, UL, C-UL, NOM-019
