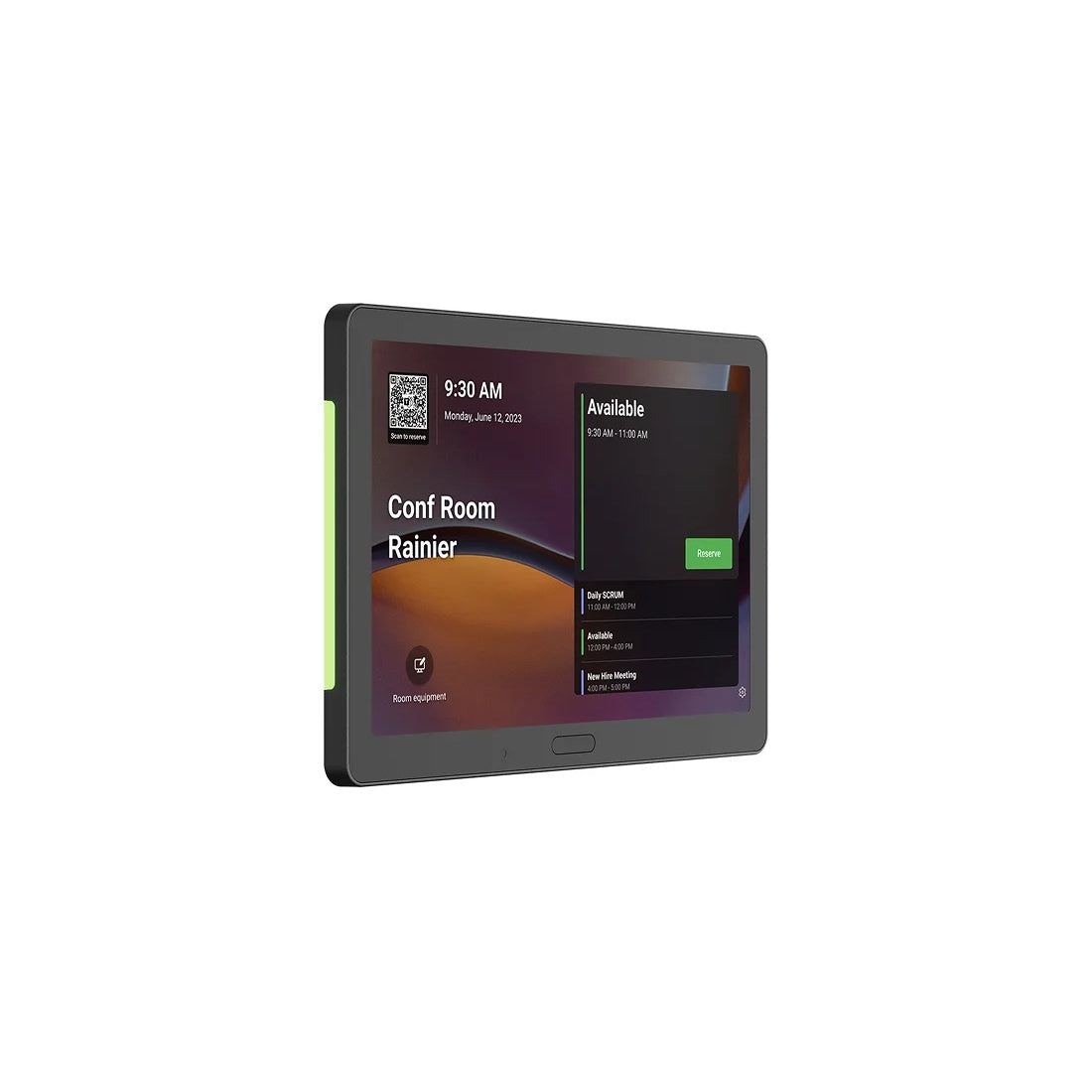

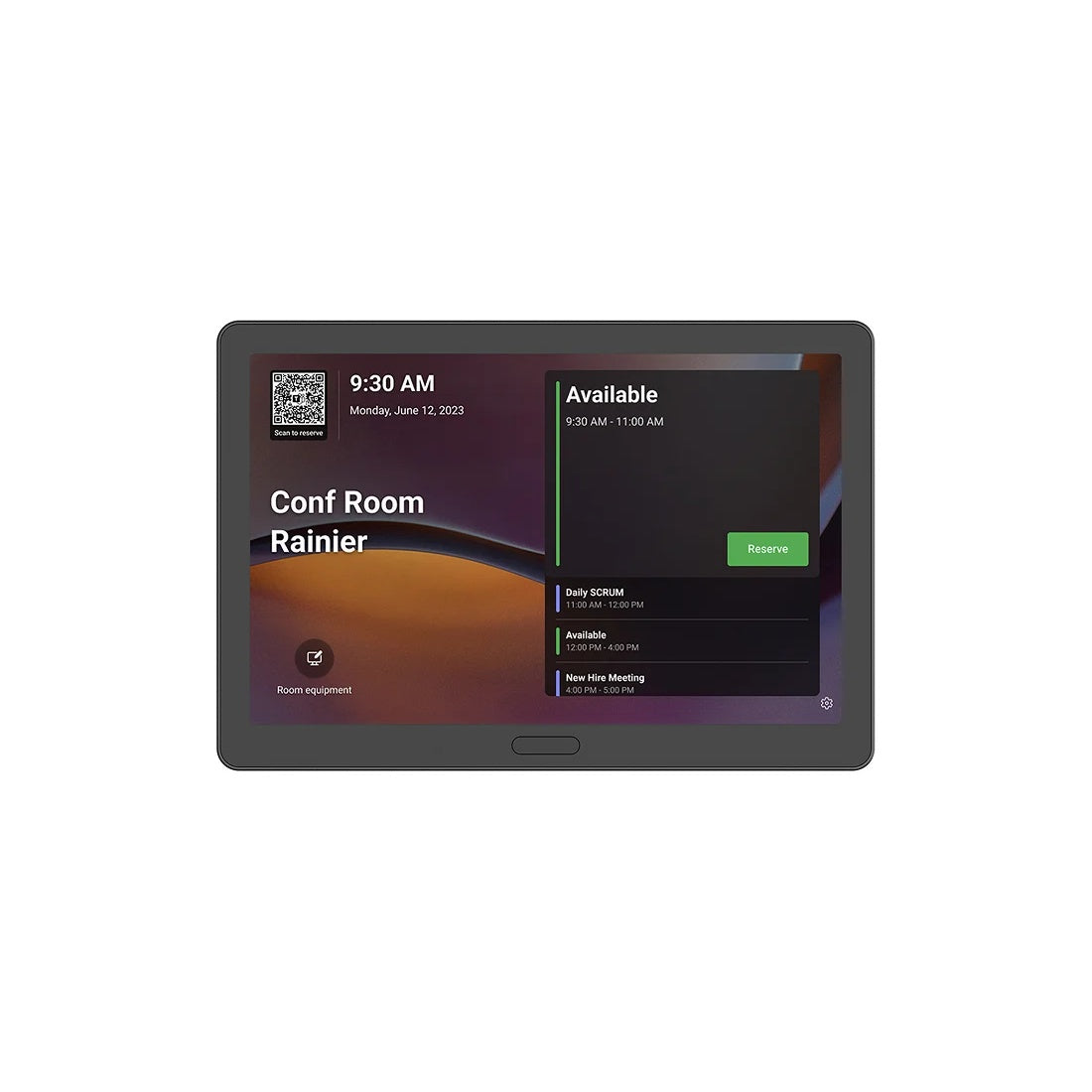

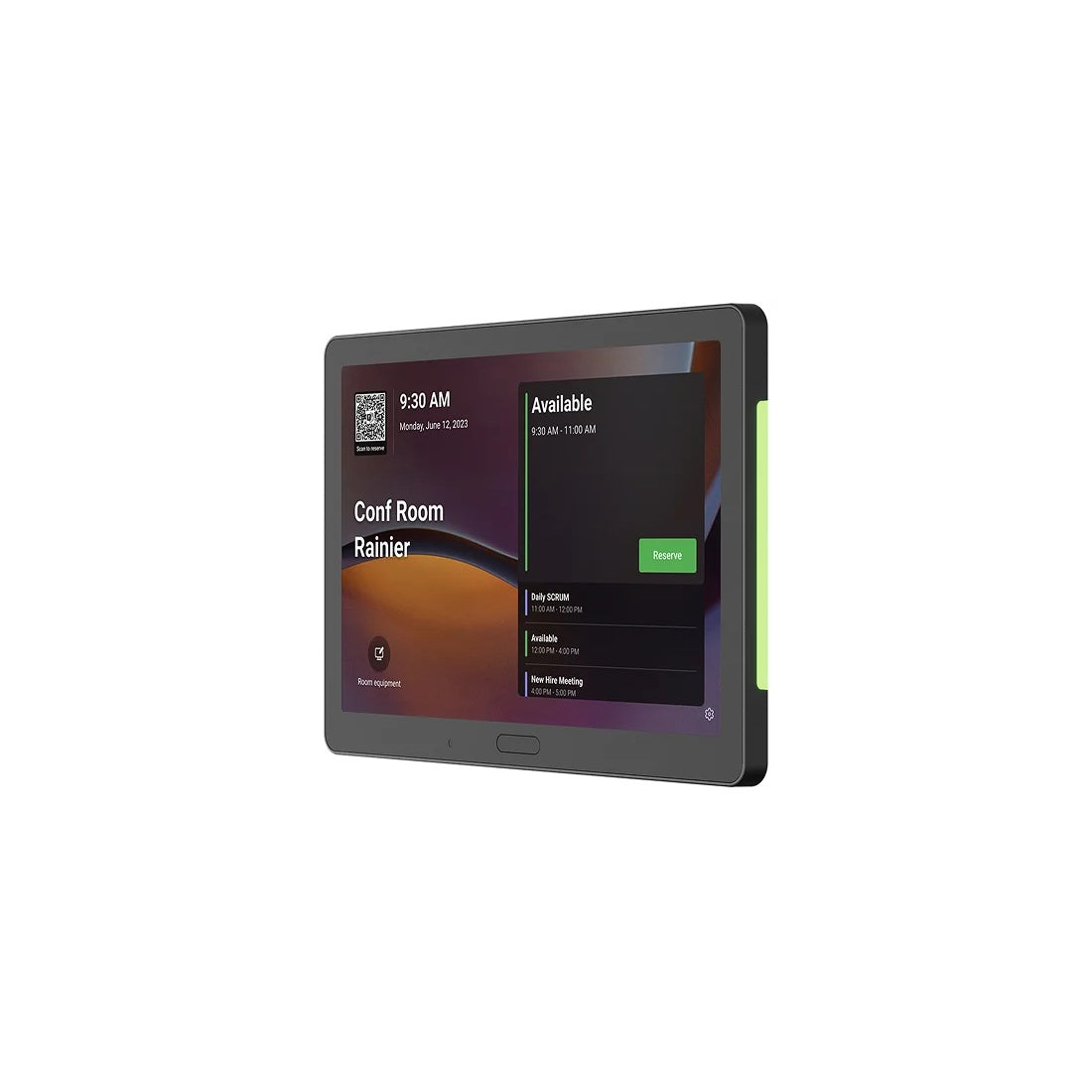

Q-SYS QSP-11 Microsoft Teams Scheduling Panel With Wall Mount

Q-SYS QSP-11 Microsoft Teams Scheduling Panel With Wall Mount

SoundPro Item: 207033 | Part Number: QSP-11

Pricing available upon request

Pricing available upon request

Your Price Sold out

Usually ships in 5-7 business days

  • MDEP-Certified Teams Panel Enables Native Teams Admin Center Enrollment And Management
  • Dual RGB Side Lightbars Indicate Room Status From Front, Side, And Rear Through Glass
  • Q-SYS Reflect Integration Unifies Cloud Monitoring Across All Room Types In One Dashboard
  • Projected Capacitive Multi-Touch With Oleophobic Anti-Glare Surface For Reliable Interaction
  • Human Presence Motion Sensor Triggers Auto Wake-Up For Responsive Display Activation
  • PoE 802.3af Support Enables Single-Cable Installation Without A Local Power Outlet
  • Portrait Or Landscape Orientation Supports Flexible Exterior Door Mounting

The Q-SYS QSP-11 is built for AV integrators and corporate IT teams scaling Microsoft Teams Rooms deployments across multi-room or multi-site environments. Its MDEP certification delivers fully native Teams Panel functionality, including room status display, reserve-now, check-in, extend, and release actions managed through Teams Admin Center. This eliminates third-party middleware and the deployment overhead that comes with it.

What separates the QSP-11 from competing scheduling displays is its native integration with Q-SYS Reflect, which allows administrators to monitor this panel alongside RoomSuite spaces, high-impact rooms, and communal areas in a single cloud dashboard. Real-time alerts and remediation actions are available without platform switching, a measurable operational advantage at scale.

Installation flexibility covers the widest range of corporate architecture. The included surface wall mount handles standard drywall and conference room exteriors, while an optional glass and mullion kit extends coverage to all-glass environments common in modern office builds. PoE 802.3af powers the unit over a single network cable in most installations, and optional Wi-Fi with a DC power accessory addresses locations where cabling is not practical. Portrait and landscape orientation support gives integrators additional flexibility at the door.

Downloads

View full details

Specifications

System Details
Operating System
Android 15 (MDEP-compliant for Teams Panel)
Screen Size
10.95 in (278 mm)
Resolution
1920 x 1200, 16:10, ~206 dpi
Brightness
350 nits (typical)
Touch and Sensors
Touch Type
Projected capacitive multi-touch
Surface
Anti-glare, oleophobic
Motion Sensor
Human presence/proximity (auto wake-up)
Status Indicators
Dual RGB side lightbars, front-visible, side-visible, rear-visible through glass

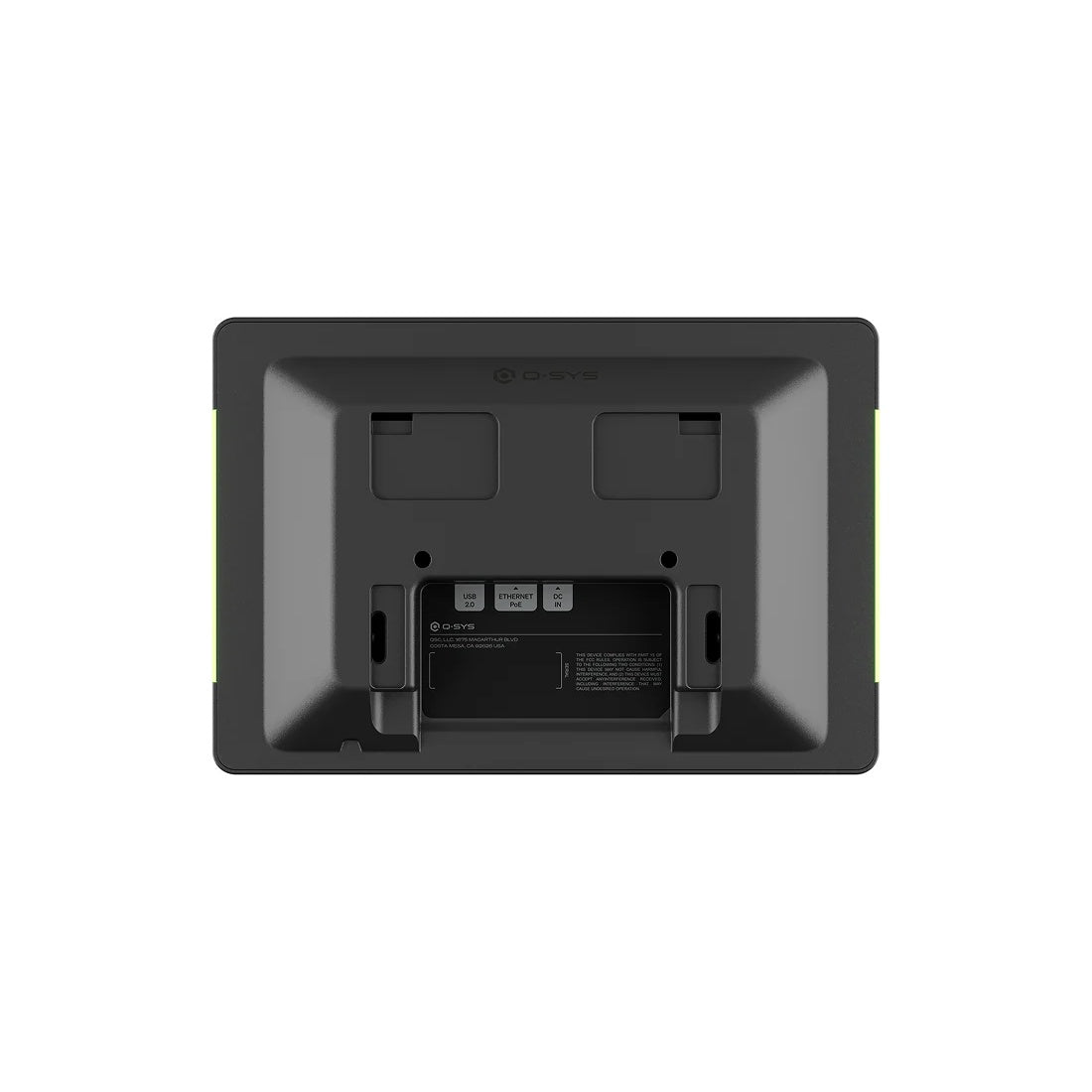

Connectivity
RJ-45 (PoE)
1 Gbps Ethernet, 802.3af PoE PD
Wi-Fi
802.11 a/b/g/n/ac; 2.4/5 GHz; disabled by policy if required
Bluetooth
Bluetooth 5.0 (BR/EDR + LE)
DC Input
Optional 12 V DC power supply accessory (QSP-DC-PSU), sold separately
USB-C
Service/debug port; up to 5 V / 1 A device power support during service

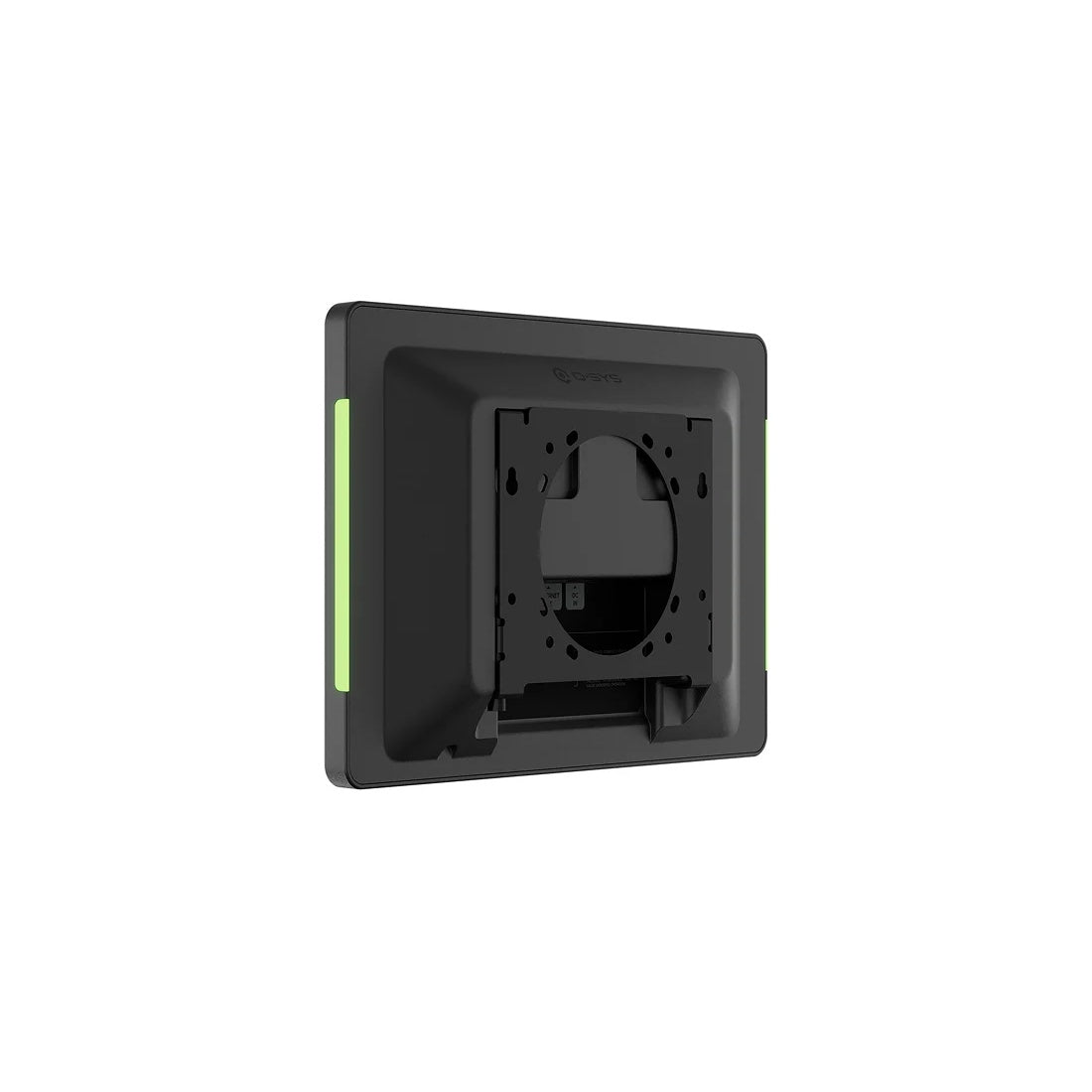

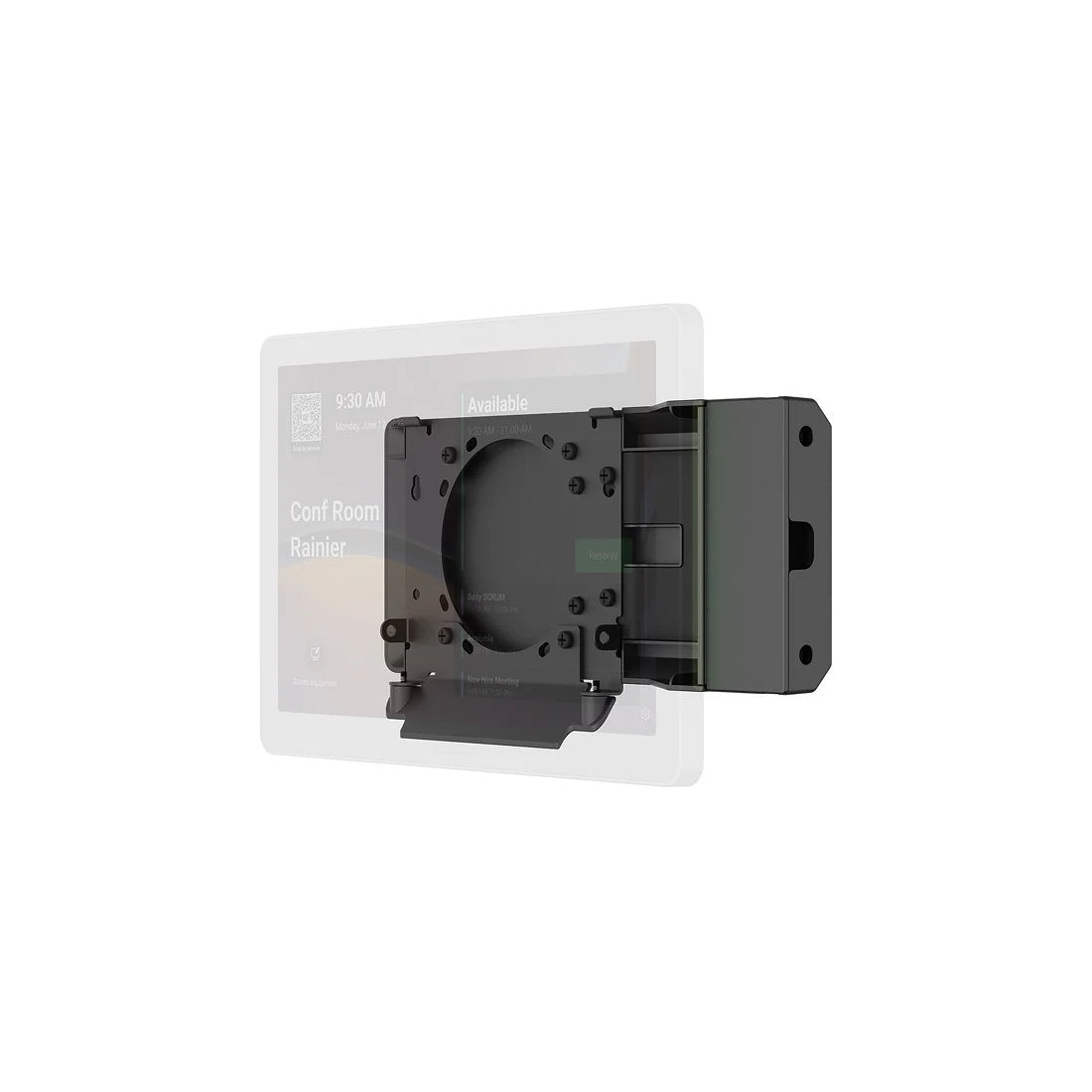

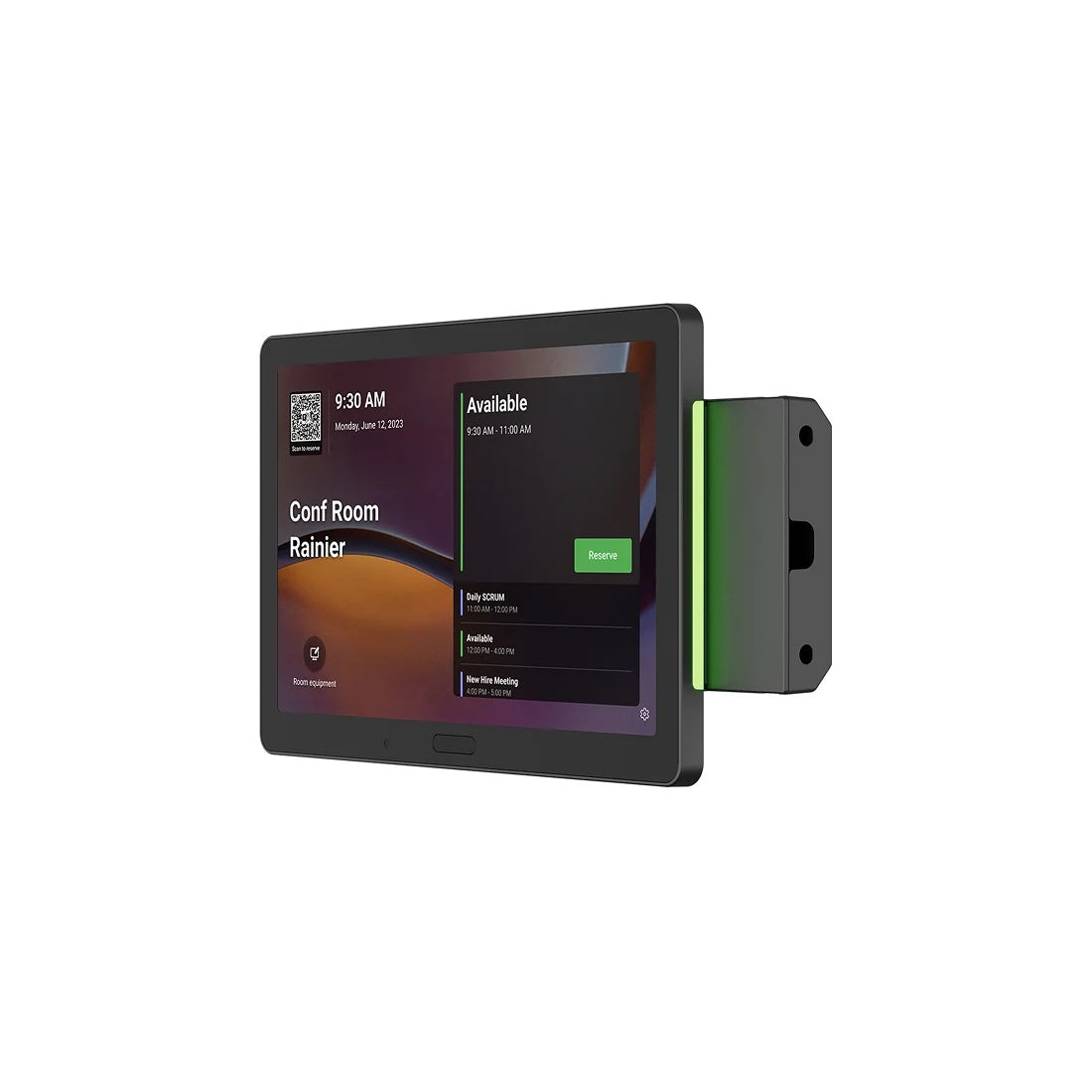

Mounting
Wall Mount
Included
Glass/Mullion Mounting Kit
Optional (sold separately)
Orientation
Portrait or Landscape
Dimensions
Product Dimensions (L x W x H)
10.4 x 7.1 x 1.2 in (264 x 180.9 x 30.0 mm)
Weight
Product Weight
1.6 lbs (0.7 kg)
Environmental
Operating Temperature Range
50° to 95° F (10° to 35° C)
Storage Temperature Range
-4° to 158° F (-20° to 70° C)
Operating and Storage Humidity Range
5% to 85% RH, non-condensing
