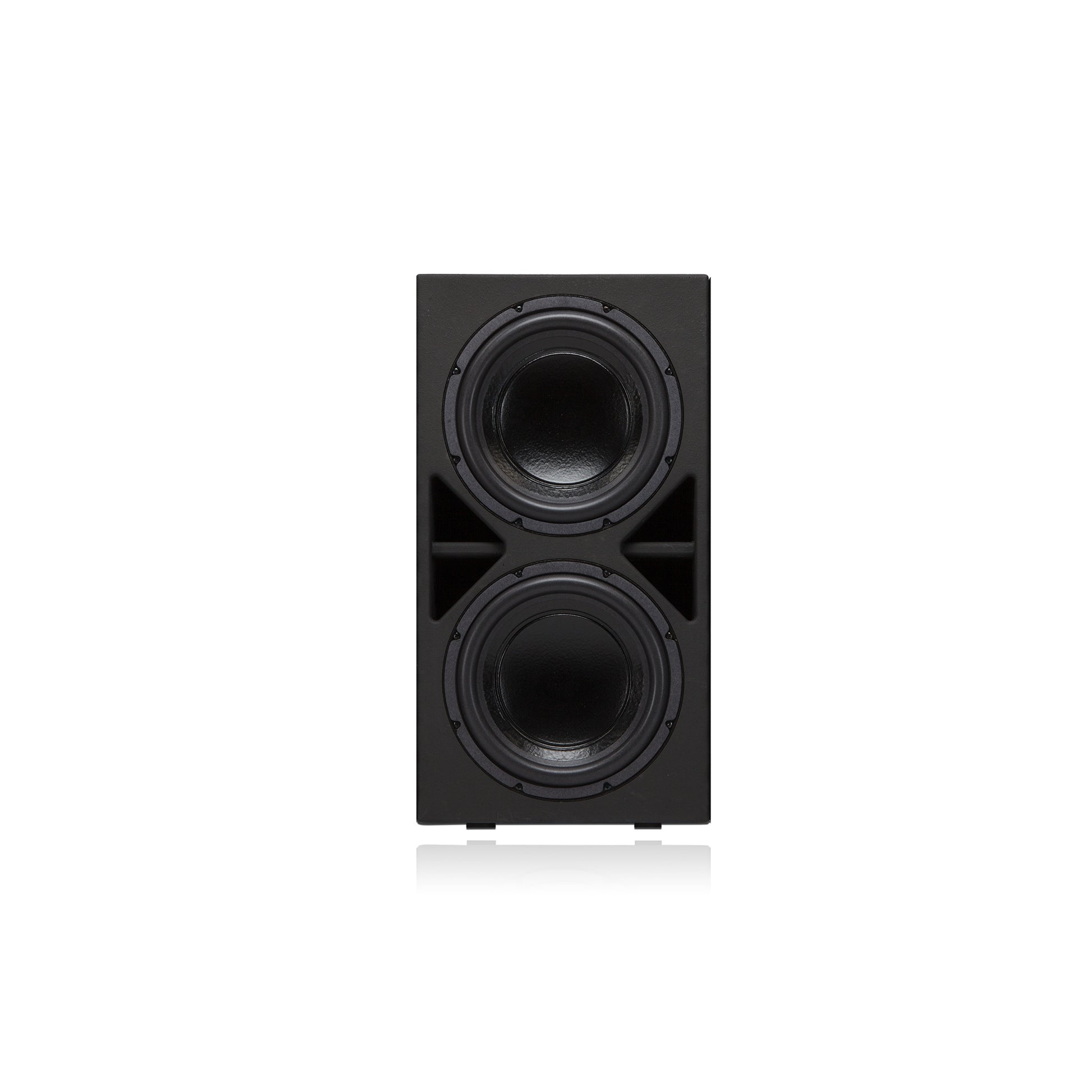

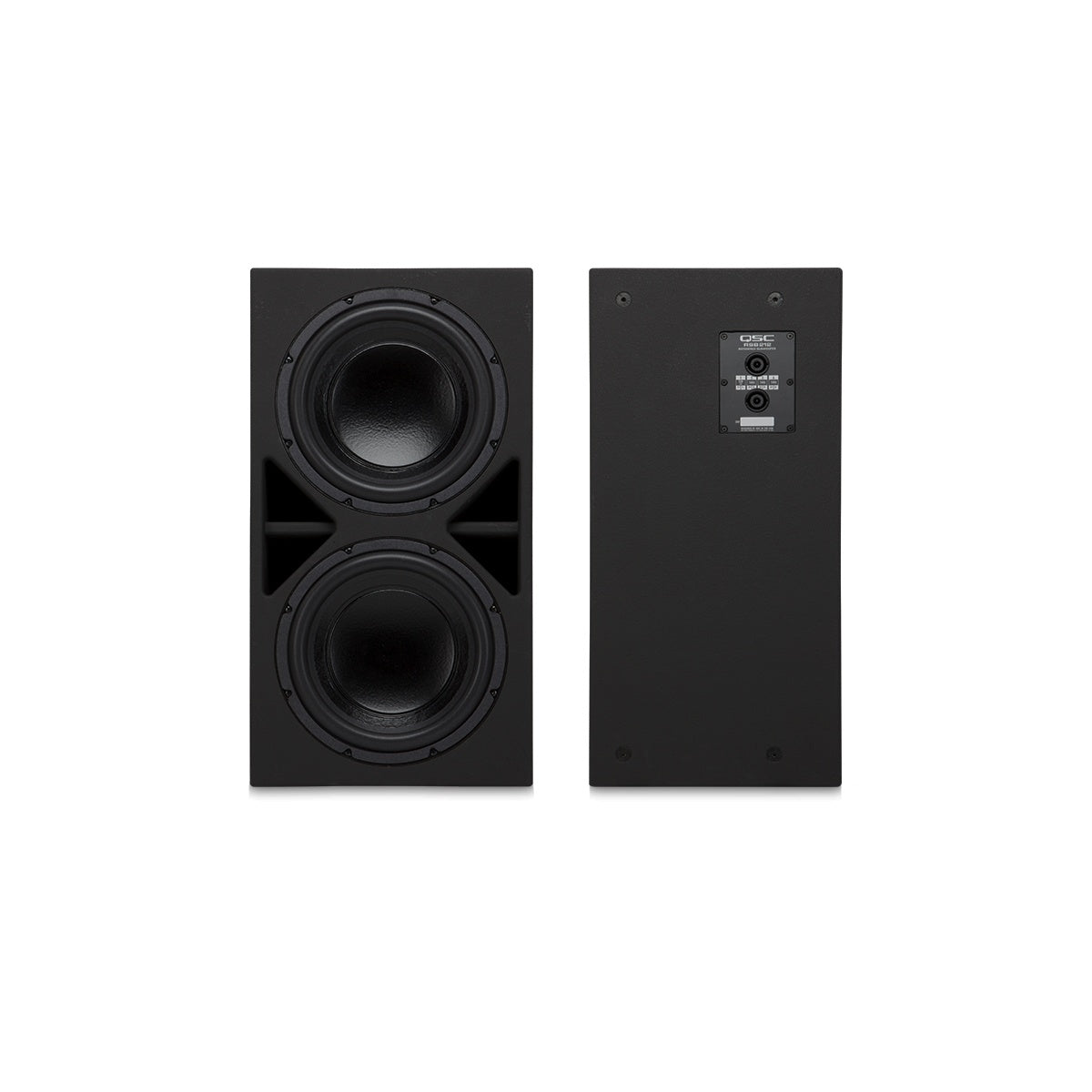

Q-SYS RSB212 Dual 12" Cinema Reference Subwoofer

Q-SYS RSB212 Dual 12" Cinema Reference Subwoofer

SoundPro Item: 119454 | Part Number: RSB212

$2,675.00
$2,675.00 $2,675.00
Your Price Sold out
MSRP: $2,675.00 | MAP: $2,675.00

Usually ships in 5-7 business days

  • Kevlar-Reinforced Paper Cone Drivers Maintain Accuracy Under High-Power Sustained Output
  • Parallel NL8 Speakon Input With Loop-Through Simplifies Multi-Cabinet Wiring
  • M10 Threaded Inserts Enable Structurally Secure Mounting In Permanent Installations
  • Optimized For Behind-Screen Deployment In Perforated-Screen Cinema Environments
  • Q-SYS DSP Integration Enables Up To 48 dB/Oct Crossover Slope Precision
  • 15-Ply Baltic Birch Plywood Enclosure Provides Long-Term Rigidity And Resonance Control

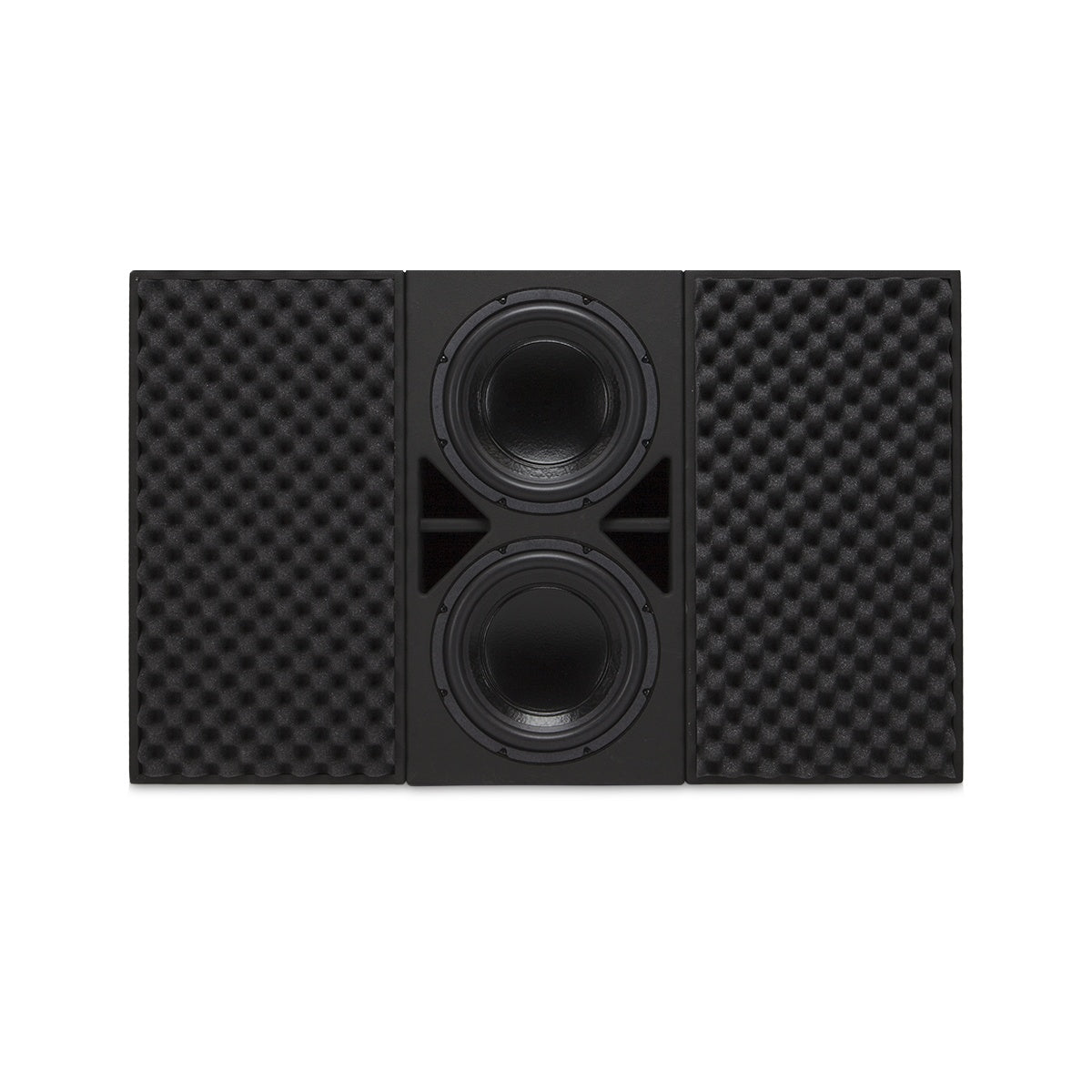

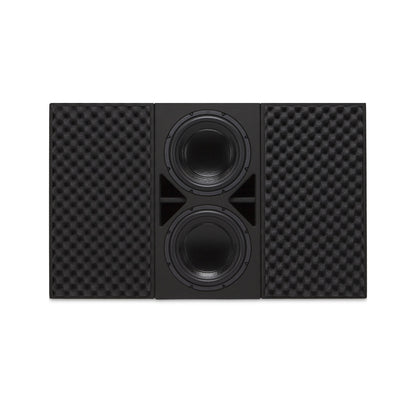

  • Compatible With RBK-12 Baffle Wing Kit For Acoustic Boundary Optimization
Log in or register for YOUR best price

The Q-SYS RSB212 is engineered for cinema sound engineers and AV integrators who require reference-grade low-frequency reproduction in permanent, high-performance screening environments. Designed as part of the Q-SYS Reference Monitor System, it is optimized for deployment behind perforated screens and pairs directly with the RSC-112 screen channel loudspeaker, making it a coherent system choice rather than a generic subwoofer addition.

Post-production facilities, commercial cinemas, and large-format screening rooms benefit from the RSB212's 30 Hz extension, 3-ohm rated impedance, and 1000 W power handling, which together support high-current amplifier integration without sacrificing dynamic headroom. Crossover architecture is managed through dedicated Q-SYS DSP, enabling slopes up to 48 dB per octave for precise frequency boundary control between the sub and screen channel loudspeakers.

For integrators, the parallel NL8 Speakon input with loop-through simplifies multi-cabinet wiring in permanent installations, while M10 threaded inserts provide structurally secure rigging options across a variety of mounting configurations. The 15-ply Baltic birch plywood enclosure ensures long-term dimensional stability in fixed installations where enclosure resonance would otherwise compromise reference-level accuracy. The optional RBK-12 baffle wing kit extends deployment flexibility for installations requiring acoustic boundary optimization.

Downloads

View full details

Specifications

Audio
Coverage Angle
Omnidirectional
Frequency Range (-10 dB)
30 Hz to 120 Hz
Crossover Frequencies
80 to 120 Hz (selectable), up to 48 dB/oct via Q-SYS DSP
Sensitivity
96 dB
Maximum Continuous SPL
120.5 dB
Maximum Peak SPL
126.5 dB
Rated Impedance
3Ω
Rated Noise Power / RMS Voltage
1000 W / 55 V
Recommended Amplifier Power
1000 W
Transducers
Woofers
2 x 12 in. (305 mm) Kevlar-reinforced paper cones
Voice Coils
3 in. (76 mm)
Connectivity
Input Connector
Parallel NL8: 1/to sub, 2/thru, 3/thru, 4/thru
Construction
Enclosure Material
15-ply Baltic birch plywood
Dimensions
Height x Width x Depth
28.5" x 15.1" x 13.5" (725 x 383 x 344 mm)
Weight
Net Weight
89 lbs (40.4 kg)
Identifiers
Optional Accessory
RBK-12 baffle wing kit
