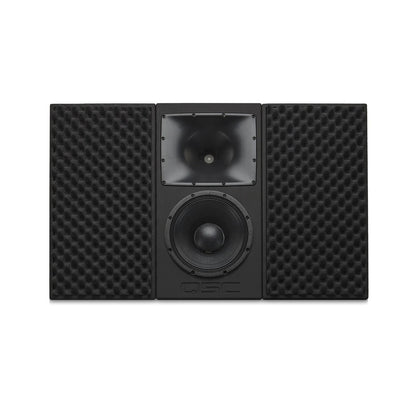

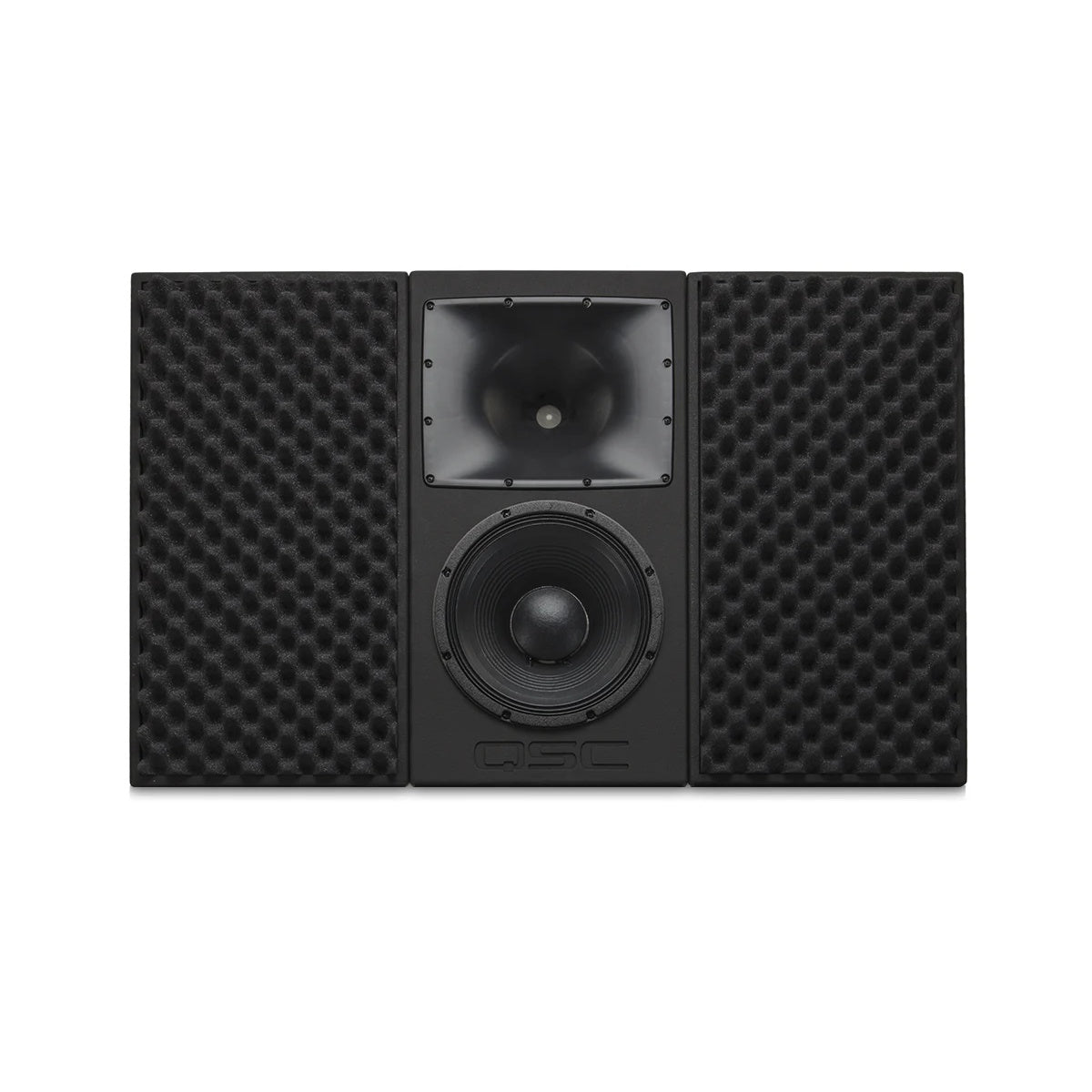

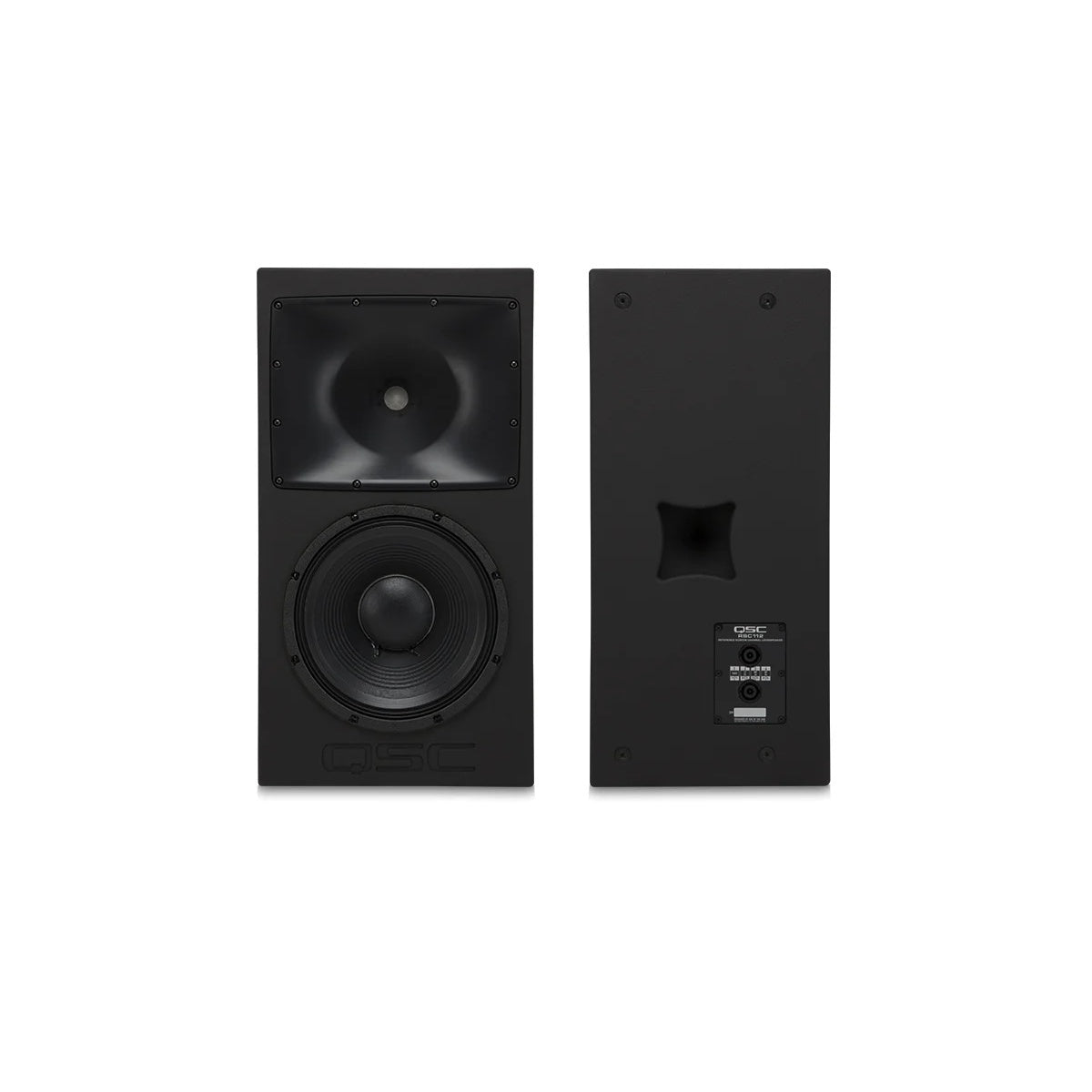

Q-SYS RSC112 3-Way Screen Channel Cinema Loudspeaker
Q-SYS RSC112 3-Way Screen Channel Cinema Loudspeaker
SoundPro Item: 119453 | Part Number: RSC112
Usually ships in 5-7 business days
- Directivity Matched Transition Technology Ensures Coherent Power Response Across The Listening Area
- Coaxial Neodymium Compression Driver Aligns MF And HF Sources For Accurate Imaging
- 90° Axisymmetric Horn Provides Consistent Coverage Behind Perforated Screens
- Tri-Amp Passive Architecture Enables Dedicated DSP Control Per Frequency Band
- M10 Threaded Inserts Support Flexible, Secure Permanent Installation
- Parallel NL8 Speakon Input Passes Signal Through To Subwoofer In One Cable Run
- Optional RBK-12 Baffle Wing Kit Extends Compatibility Across Screen Configurations
The Q-SYS RSC112 is engineered for cinema integrators and system designers specifying behind-screen loudspeakers in large-format auditoriums. Its tri-amplified passive architecture separates LF, MF, and HF signal paths, enabling dedicated DSP control per band through Q-SYS processing. This level of frequency-band independence is critical in premium cinema environments where tonal consistency across every seat is the baseline requirement, not a secondary goal.
Where conventional screen channel designs compromise off-axis coherence, the RSC112 addresses the problem at the transducer level. A coaxial neodymium compression driver co-locates the MF and HF acoustic sources at a single origin point, and the 90-degree axisymmetric horn works in conjunction with Directivity Matched Transition technology to maintain smooth power response through the crossover region. The result is reduced lobing and off-axis coloration even behind perforated projection screens, where high-frequency articulation is typically the first casualty.
Designed as part of the Reference Monitor System, the RSC112 is optimized to pair with the RSB-212 subwoofer, with parallel NL8 Speakon connectivity passing signal through to the sub in a single cable run. The 15-ply Baltic birch plywood enclosure and M10 threaded inserts are built for permanent installation in demanding cinema builds. An optional RBK-12 baffle wing kit broadens deployment options across varied screen configurations. For integrators already working within the Q-SYS ecosystem, the RSC112 is a system-matched solution with a clear performance rationale over generic cinema loudspeaker alternatives.
